Дезон ПВХ мембранная клавиатура самоклеящаяся поликарбонатная этикетка шелкография панель наклейка
- Категория: Keypads & Keyboards >>>
- Поставщик: Meishan,Technology,Holding(Guangdong),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.91 $* | 0.41 $* |
| Aug-19-2025 | 0.10 $* | 0.65 $* |
| Jul-19-2025 | 0.19 $* | 0.31 $* |
| Jun-19-2025 | 0.82 $* | 0.12 $* |
| May-19-2025 | 0.81 $* | 0.90 $* |
| Apr-19-2025 | 0.64 $* | 0.82 $* |
| Mar-19-2025 | 0.44 $* | 0.99 $* |
| Feb-19-2025 | 0.87 $* | 0.61 $* |
| Jan-19-2025 | 0.37 $* | 0.42 $* |
Характеристики
Why Choose Us
Deson advantages:
1.Leading Manufacturer With 20+ Years Experience;
2. Free for drawing Making, Free for sample making, Free OEMService;
3.Highest 1000 level dust free production line,Own Certification of ISO14001:2015 and ISO9001:2015 ，TS16949 ;
4,Authenticated Alibaba Golden Verified Supplier Since 2016;
5.Fast & On time delivery and Low MOQ;
6.Strict QC Procedure,Defecective Rate is below 0.2%, 1:1 replacement or refund for any defectives.Tolerance Size strictly controlled in ±0.2mm;
7.Mainclients are Huawei Lenovo,Vivo,Foxconn,Alfa,Flextronics....
Products Description
Part | Ordinary Material | ||||
Graphic Overlay | Material | Finish | Specification | ||
PC | Gloss | 0.175/.25/.35/.5 mm thickness | |||
Matt | 0.175/.25/.35/.5 mm thickness | ||||
PET | Fine Texture | 0.15/.20 mm thickness | |||
Valet Texture | 0.15/.20 mm thickness | ||||
Gloss with Hard Coat | 0.18 mm thickness | ||||
Rear Adhesive | Paper Double-sided Tape | 0.10 mm thickness | |||
1.Custom specification and drawing, design can be arbitrary;
2. Panel can wash, and the panel contents without injury.
3. Light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any
intermittent problem.
2. Panel can wash, and the panel contents without injury.
3. Light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any
intermittent problem.
1. Paste, fixed, conductive shielding, conductive shielding, insulation.
2. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and quakeproof.
3. Backlit, high temperature, corrosion, sealing, protection
4. Spraying shelter, insulation, noise, filtering.
2. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and quakeproof.
3. Backlit, high temperature, corrosion, sealing, protection
4. Spraying shelter, insulation, noise, filtering.
General grade PC film:
Screen Printing, Silk Printing, LED/LCD window, optical, automotive dials, Helmet, Toy, Various Labels, Switch/Membrance Switch, thin Film Button, Name Plate, Panel,Protetive Mask, Sun Hat, Sun Glasses, IMD mold injection molding, embossing, die cutting etc.
Flame retardant PC/PP Film:
Embossing, Die Cutting, Bending, Folding, TV, Monitor, Laptop/Car Battery, Adaptor, Power Supply, Display Panel Insulation, Electrical /Electronic Insulation, EMI/RFI Shielding, Printed Circuit Board Insulation, UL Required Labels, PC Borad insulation, disc drive Insulation etc.
Screen Printing, Silk Printing, LED/LCD window, optical, automotive dials, Helmet, Toy, Various Labels, Switch/Membrance Switch, thin Film Button, Name Plate, Panel,Protetive Mask, Sun Hat, Sun Glasses, IMD mold injection molding, embossing, die cutting etc.
Flame retardant PC/PP Film:
Embossing, Die Cutting, Bending, Folding, TV, Monitor, Laptop/Car Battery, Adaptor, Power Supply, Display Panel Insulation, Electrical /Electronic Insulation, EMI/RFI Shielding, Printed Circuit Board Insulation, UL Required Labels, PC Borad insulation, disc drive Insulation etc.
More Details :

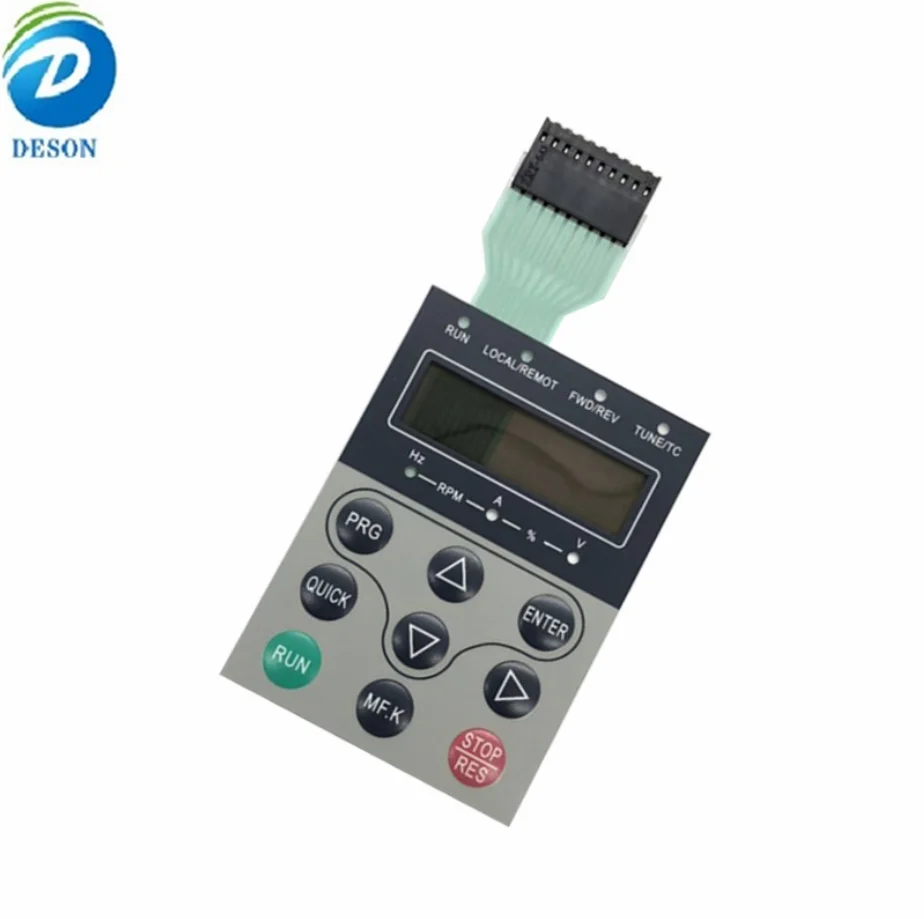

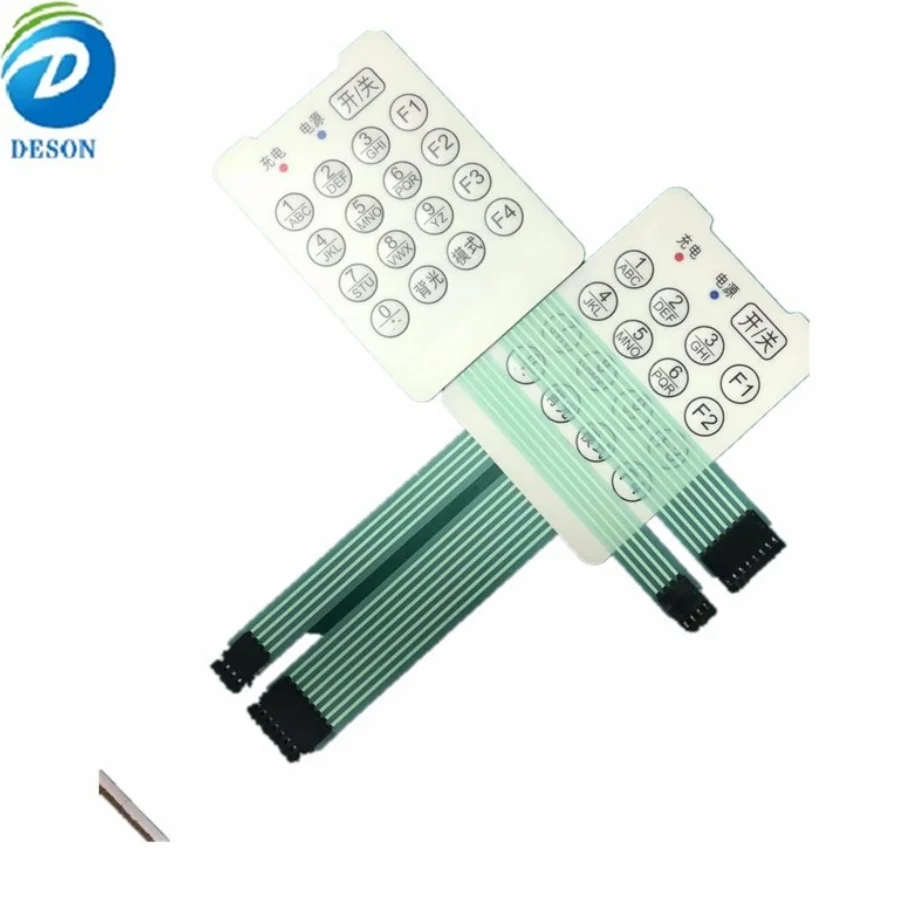

The main properties of custom design electronic membrane keypad:
1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . Deson can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.
2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.
6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to th
1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . Deson can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.
2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.

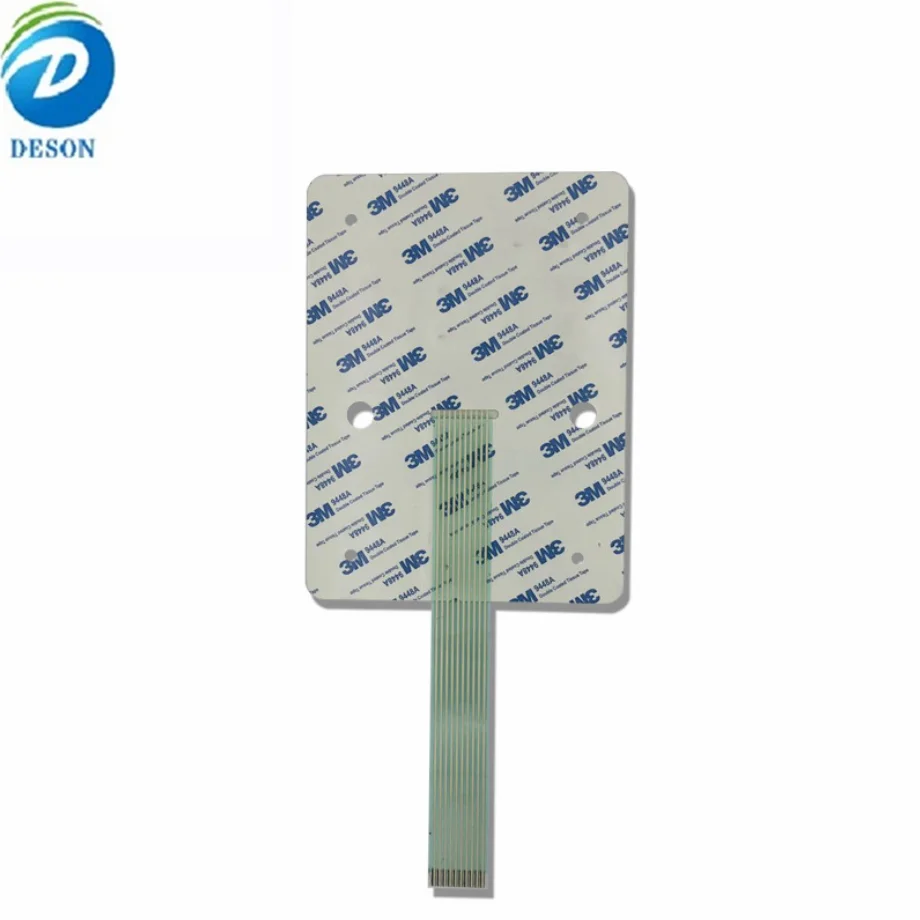

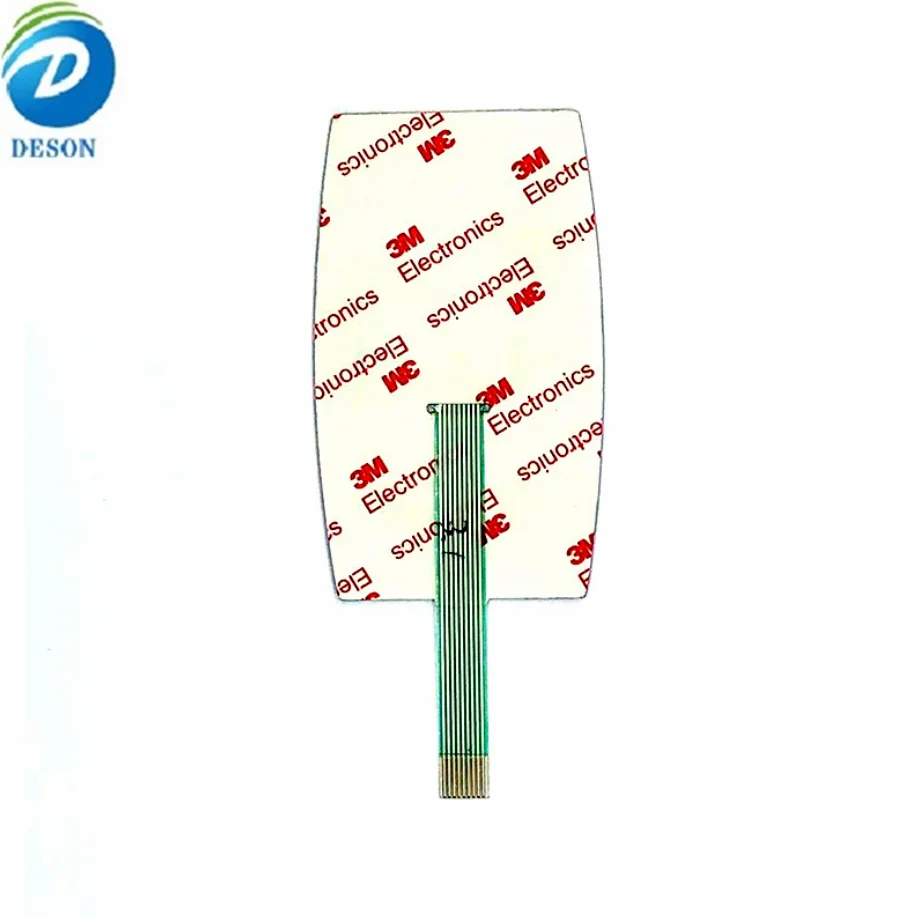

6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to th

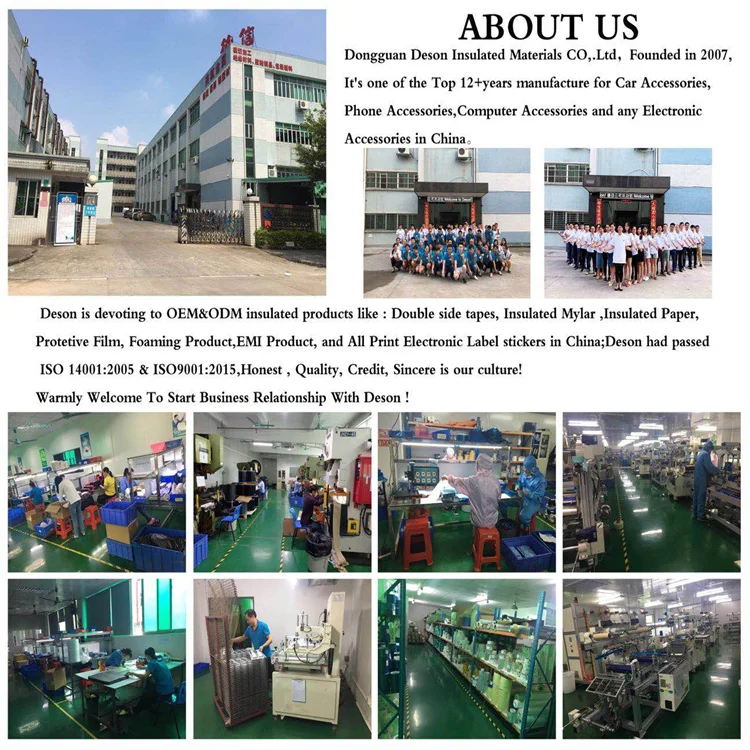

Company Profile
FAQ
Deson Service
1.Free Samples:
Pls advise usage and application, we will offer you 3ea different free samples with die cut shapes to test.
2.Quotation:
2.Quotation:
To make it worth ,it's better you can test our samples first ,then once you test the most suitable sample ,we will quote you in 1hour !
3.Production time:
24hours for free samples ,7days for mass production.
4.Service:
All steps will be showed by videos or pictures ,to make everything under your control.
Payment
1.Please create a personal buyer account before you buy from Alibaba
2.Write your email address, when place an order.
3.Go to your email and click the link, “Send Initial Payment / Pay Balance “or “go to pay" ,
4.Then choose “+Add a new card to pay in USD ($)"
5.Fill in the bank card information, "Confirm and Pay" , that charge from your card directly, place an order successfully
Shipping
1.Delivery time: 1~3 working days after payment
2.Main mode of transport: by express, DHL, UPS or FedEx. Other mode of transport also support
3.Get tracking no.: The tracking number will be offered in 1~2 days once we get from our forwarder.
3.Production time:
24hours for free samples ,7days for mass production.
4.Service:
All steps will be showed by videos or pictures ,to make everything under your control.
Payment
1.Please create a personal buyer account before you buy from Alibaba
2.Write your email address, when place an order.
3.Go to your email and click the link, “Send Initial Payment / Pay Balance “or “go to pay" ,
4.Then choose “+Add a new card to pay in USD ($)"
5.Fill in the bank card information, "Confirm and Pay" , that charge from your card directly, place an order successfully
Shipping
1.Delivery time: 1~3 working days after payment
2.Main mode of transport: by express, DHL, UPS or FedEx. Other mode of transport also support
3.Get tracking no.: The tracking number will be offered in 1~2 days once we get from our forwarder.
