Тестер внутреннего сопротивления батареи
- Категория: Battery Testers >>>
- Поставщик: Decca,Precision,Measuring,Instrument,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1650.15 $* | 1683.21 $* |
| Jul-18-2025 | 1338.59 $* | 1365.57 $* |
| Jun-18-2025 | 1624.63 $* | 1656.46 $* |
| May-18-2025 | 1611.90 $* | 1643.60 $* |
| Apr-18-2025 | 1286.33 $* | 1312.45 $* |
| Mar-18-2025 | 1585.66 $* | 1617.1 $* |
| Feb-18-2025 | 1572.59 $* | 1603.10 $* |
| Jan-18-2025 | 1559.32 $* | 1590.11 $* |
Характеристики
1. Descriptions

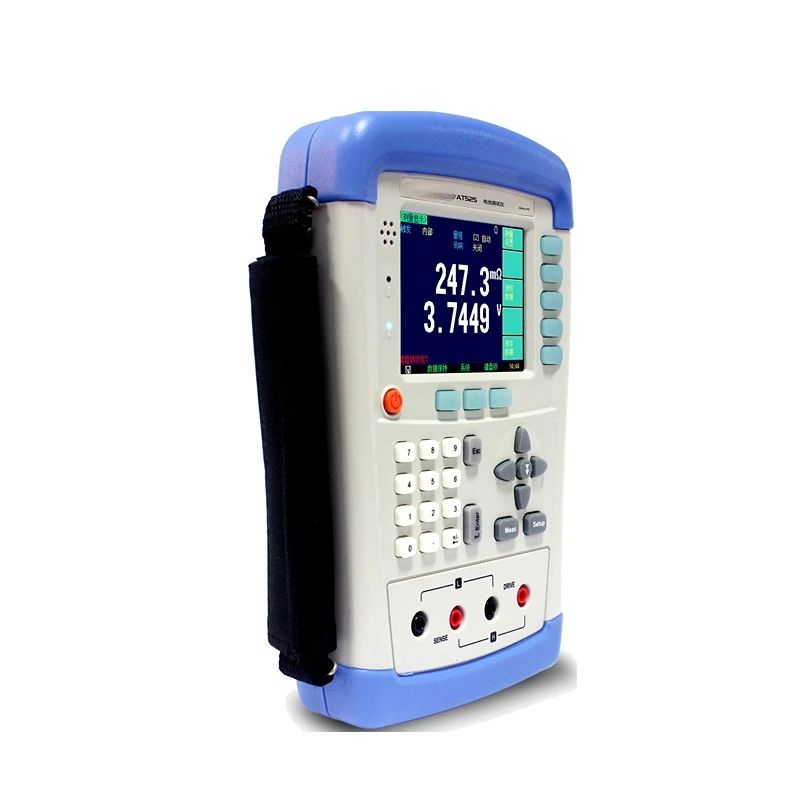

AT525 Online Battery Internal Online Tester measurement requirements from contact resistance to internal resistance and voltage of batteries .It is the use of a high-performance processors and 3.5" TFT LCD screen smart handheld Meter. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. Wide Resistance Measurement Range from 100μΩ to 3.2kΩ . 3200 resistance readers and 5000 voltage readers. It can guarantee 0.05% accuracy, even in the condition of the testing speed under 15/s. AT518 is equipped with Mini-USB interface, can conveniently make data communication and remote control with PC.
\t\t\t AT525 Battery Internal Resistance Online Tester \t\t\t | |||
\t\t\t SPECIFICATIONS \t\t\t | |||
\t\t\t Parameters \t\t\t | \t\t\t AC resistance, DC voltage \t\t\t | ||
\t\t\t Accuracy \t\t\t | \t\t\t Resistance: 0.5%±5dgt \t\t\t Voltage: 0.05%±5dgt \t\t\t | ||
\t\t\t Measurement Range \t\t\t | \t\t\t Resistance: 0.001mΩ~3.3Ω \t\t\t V: 0.0001V~60V \t\t\t | ||
\t\t\t Signal Source \t\t\t | \t\t\t AC: 1kHz Open-circuit Voltage: < 30mv Current: < 15mA \t\t\t | ||
\t\t\t Range \t\t\t | \t\t\t Automatic, Manual, Nominal with 6 ranges \t\t\t | ||
\t\t\t Speed \t\t\t | \t\t\t 20 times/second, 10 times/second, 3 times/second \t\t\t | ||
\t\t\t Result Display \t\t\t | \t\t\t ABS/PER/SEQ \t\t\t | ||
\t\t\t Max Reading \t\t\t | \t\t\t Resistance: 3200 Voltage: 5000 \t\t\t | ||
\t\t\t Max Resolution \t\t\t | \t\t\t Resistance: 0.01mΩ Voltage: 1mV \t\t\t | ||
\t\t\t Adjustment \t\t\t | \t\t\t Short-circuit reset for each range \t\t\t | ||
\t\t\t Comparator \t\t\t | \t\t\t Voltage compare separately, resistance compare separately, \t\t\t Voltage and resistance combination compare GD/NG sorting result display, beep \t\t\t | ||
\t\t\t Trigger \t\t\t | \t\t\t Internal, Manual, Remote \t\t\t | ||
\t\t\t Test Terminal \t\t\t | \t\t\t 4 terminal shielding ( 2 check terminal and 2 driving terminal) and \t\t\t external shielding ground section \t\t\t | ||
\t\t\t Configuration Interface \t\t\t | \t\t\t Build-in Mini-USB (virtual serial port); Charging Interface; U disc Interface \t\t\t | ||
\t\t\t Others \t\t\t | \t\t\t 3.5 inches true color 16M color TFT-LCD display \t\t\t Keypad lock and data hold function \t\t\t Compatible SCPI Order Set \t\t\t Switch in both Chinese and English \t\t\t Adjustable Background light Auto power-off \t\t\t | ||
\t\t\t GENERAL FEATURES \t\t\t | |||
\t\t\t Adaptor(ATL909) \t\t\t | \t\t\t Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC \t\t\t | ||
\t\t\t Battery Parameters \t\t\t | \t\t\t 8.4v, Li, 2200mAh rechargeable battery \t\t\t | ||
\t\t\t Charging Time \t\t\t | \t\t\t Single continued charging time: max 300 Min \t\t\t | ||
\t\t\t Working Life \t\t\t | \t\t\t ≥ 8 hours \t\t\t | ||
\t\t\t Dimension & Weight \t\t\t | \t\t\t 130.23mm (Width)*210.76mm (Height)*37.88mm (Depth) 650g \t\t\t | ||
\t\t\t ORDERING INFORMATION \t\t\t | |||
\t\t\t Accessories \t\t\t | \t\t\t ATL501B 4-terminal kelvin test clip; \t\t\t ATL909: DC adaptor; \t\t\t ATL202 portable bag; \t\t\t ATL804 Li- battery \t\t\t *ATL105Mini-USB communication cable \t\t\t *ATL501C 4-terminal test probe \t\t\t *ATS525 data acquisition software \t\t\t | ||
Product Description
2. Company Profile and the main advantages
Company Information
Certifications
