Переключатель уровня воды в стиральной машине
US $1.00-$3.00
Y03 Factory 15-20A нормально закрытый автоматический переключатель давления
- Категория: Pressure Switches >>>
- Поставщик: Yueqing,Aibeiken,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 4.81 $* | 4.51 $* |
| Jul-15-2025 | 3.87 $* | 3.33 $* |
| Jun-15-2025 | 4.42 $* | 4.59 $* |
| May-15-2025 | 4.3 $* | 4.62 $* |
| Apr-15-2025 | 3.71 $* | 3.3 $* |
| Mar-15-2025 | 4.72 $* | 4.92 $* |
| Feb-15-2025 | 4.69 $* | 4.1 $* |
| Jan-15-2025 | 4.37 $* | 4.57 $* |
Характеристики

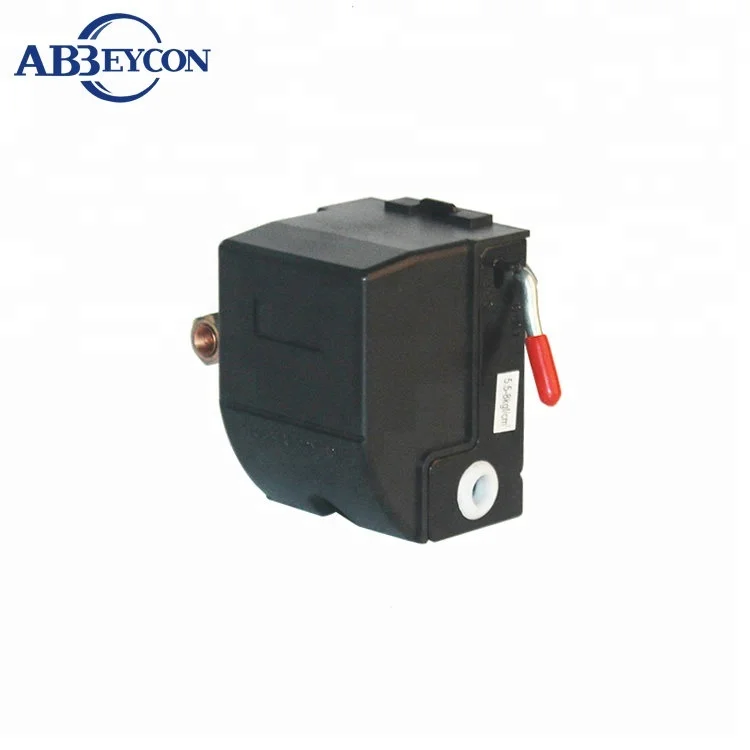

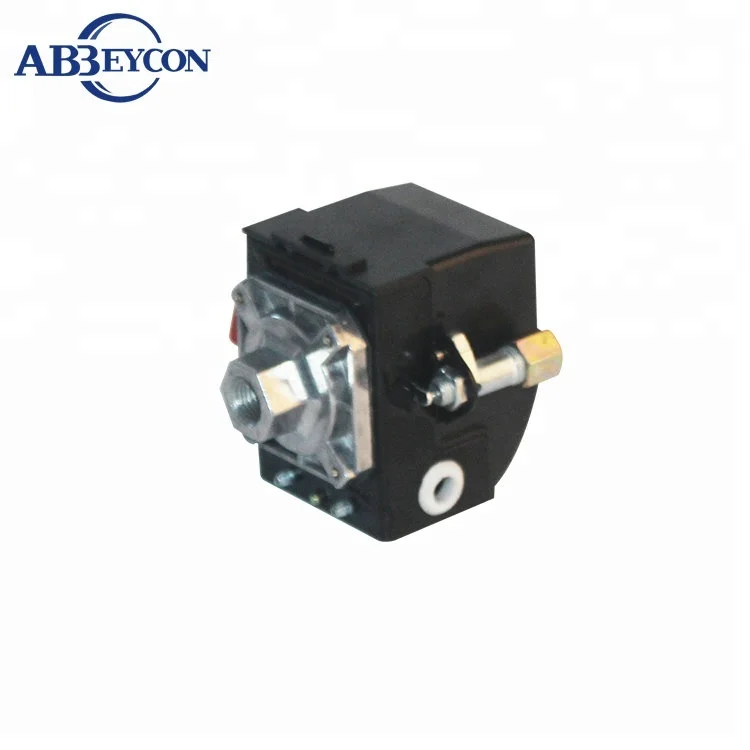

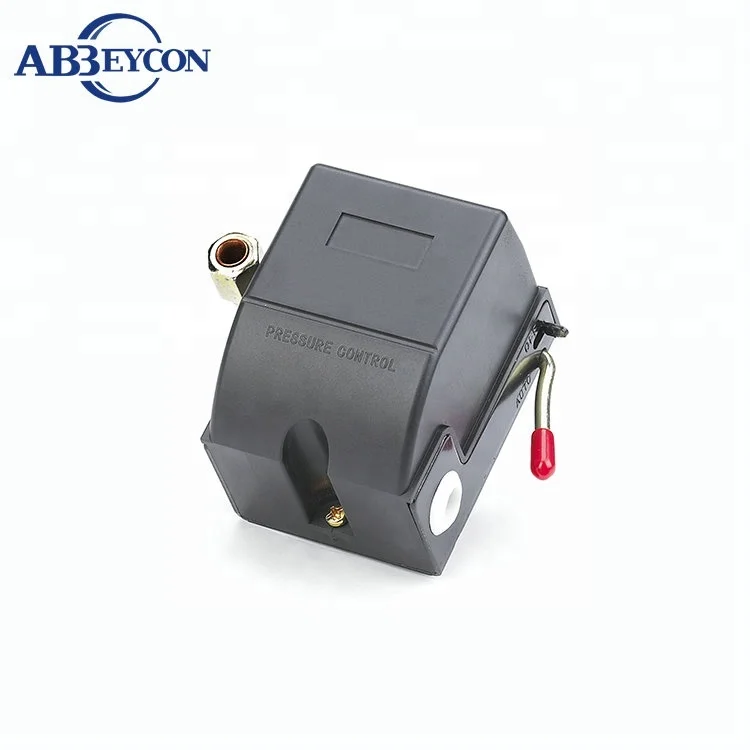

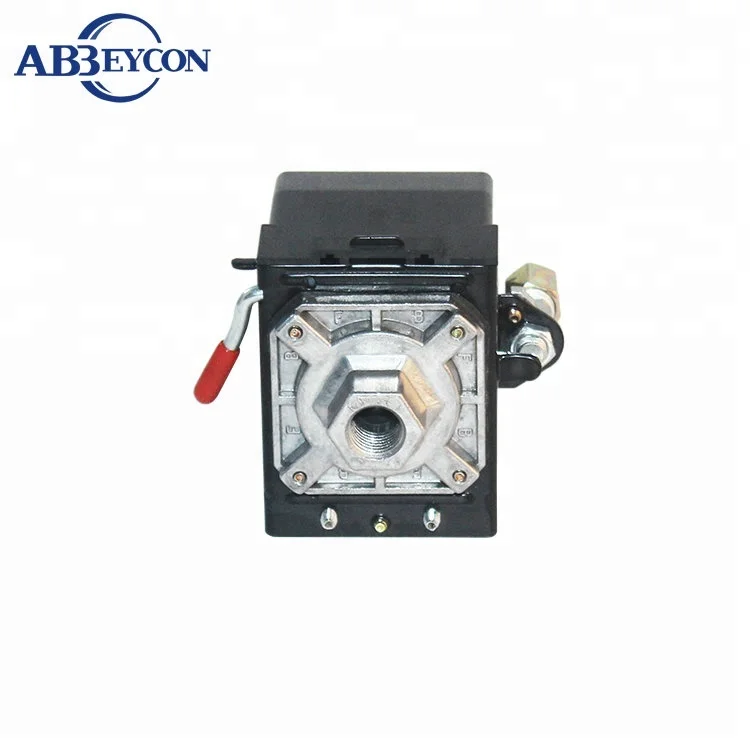

Y03 Factory 15-20A normally closed automatic air pressure switch GB-10B
Product Description
GB10 air compressor pressure switches / pressure control are used to regulate the tank pressure between two preset values on small (up to 175PSI) electrically driven air compressors. They are available
with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four-port manifold style is available which provides a means for easy mounting of valves and gauges.

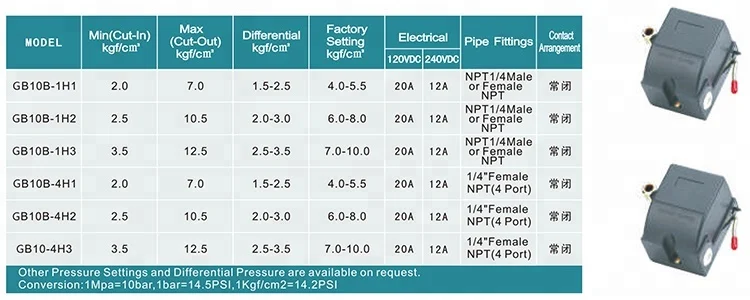

| MODEL | Min | Max | Differential Bar | Factory | Electrical Rating | Pipe Fititngs | Contact | |
| (Cut-In) Bar | (Cut-Out) Bar | Setting Bar | 120VAC | 240VAC | Arrangement | |||
| GB10-1H1 | 2.0 | 7.0 | 1.5-2.5 | 4.0-5.5 | 20A | 12A | NPT 1/4 Male or Female NPT | NC |
| GB10-1H2 | 2.5 | 10.5 | 2.0-3.0 | 6.0-8.0 | 20A | 12A | NPT 1/4 Male or Female NPT | NC |
| GB10-1H3 | 3.5 | 12.5 | 2.5-3.5 | 7.0-10.0 | 20A | 12A | NPT 1/4 Male or Female NPT | NC |
| GB10-4H1 | 2.0 | 7.0 | 1.5-2.5 | 4.0-5.5 | 20A | 12A | 1/4" Female NPT (4 Port) | NC |
| GB10-4H2 | 2.5 | 10.5 | 2.0-3.0 | 6.0-8.0 | 20A | 12A | 1/4" Female NPT (4 Port) | NC |
| GB10-4H3 | 3.5 | 12.5 | 2.5-3.5 | 7.0-10.0 | 20A | 12A | 1/4" Female NPT (4 Port) | NC |
Our Services
Company Information
Packaging
Y01 Air Control Compressor Normally Close GB10 NC Mechanical Pressure switch
