Welding Machine Welding Oscillator



Main feathers:

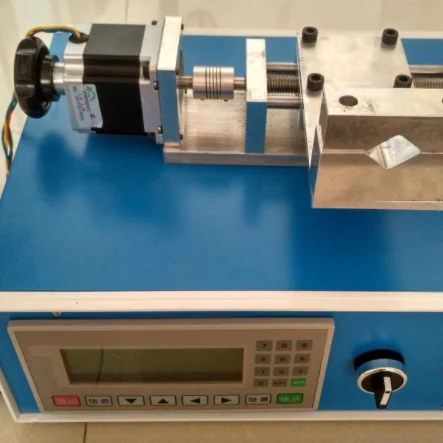

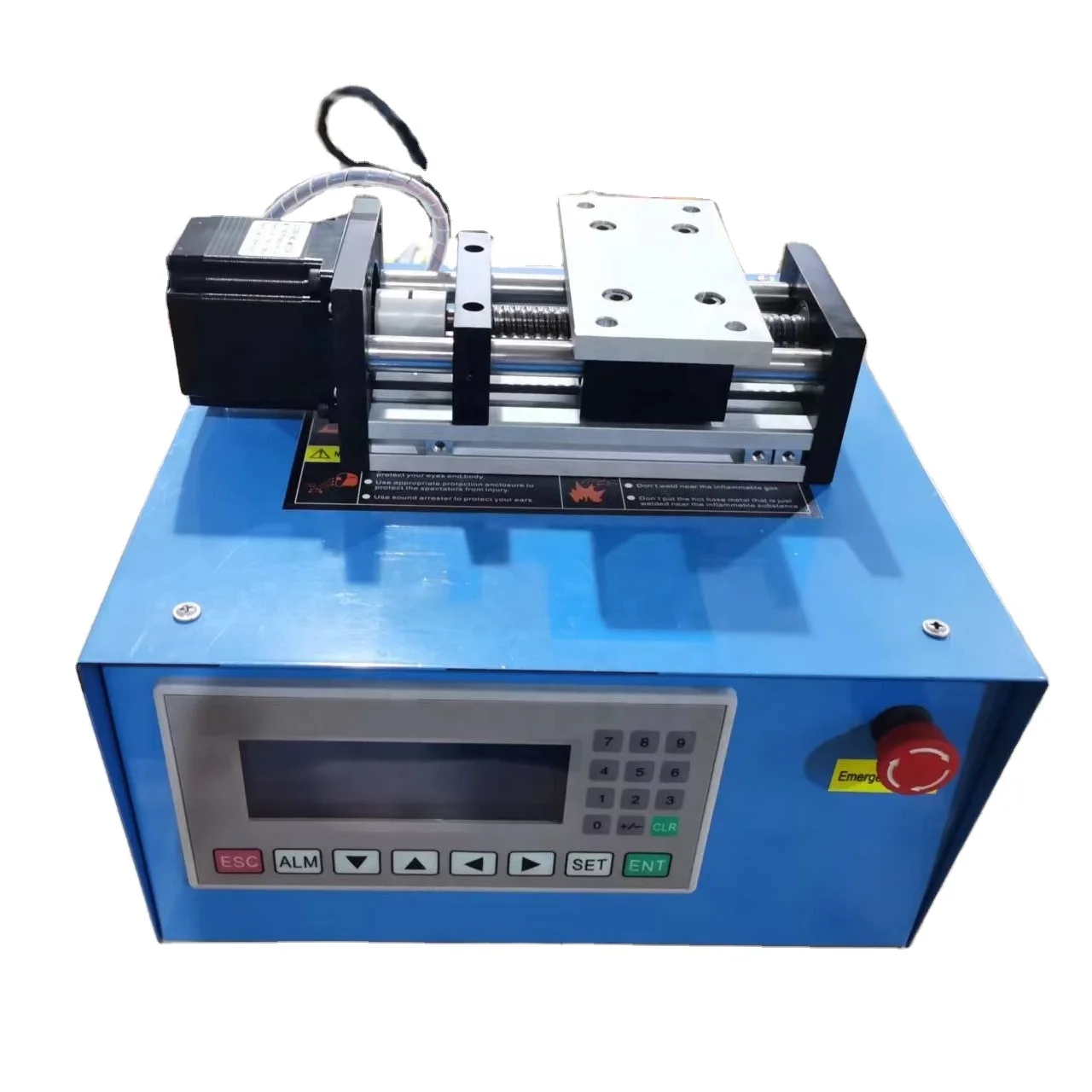

The precision welding oscillator system is a universal welding auxiliary equipment, and has the reputation of "improving welding efficiency multiplier". Its performance and stability reach or exceed similar imported equipment. The working principle is to give a digital signal through microcomputer control, drive the stepper motor to drive the ball screw, and finally achieve a precise swing of the welding gun left and right along the direction of the weld. During the welding process, the width of the weld can be effectively increased, and the effect of multiple welds can be obtained in one welding, which greatly improves productivity; the edge of the molten pool is improved to eliminate "bite" defects; the surface of the weld is clean, especially suitable for thicker plates and wide Metal fill welding and cover welding of welds. Has been widely used in shipbuilding, pressure vessels, pipelines, large steel structures and other industries.



Oscillator advantages:



1) The welding width can be accurately controlled and adjusted during the welding process.

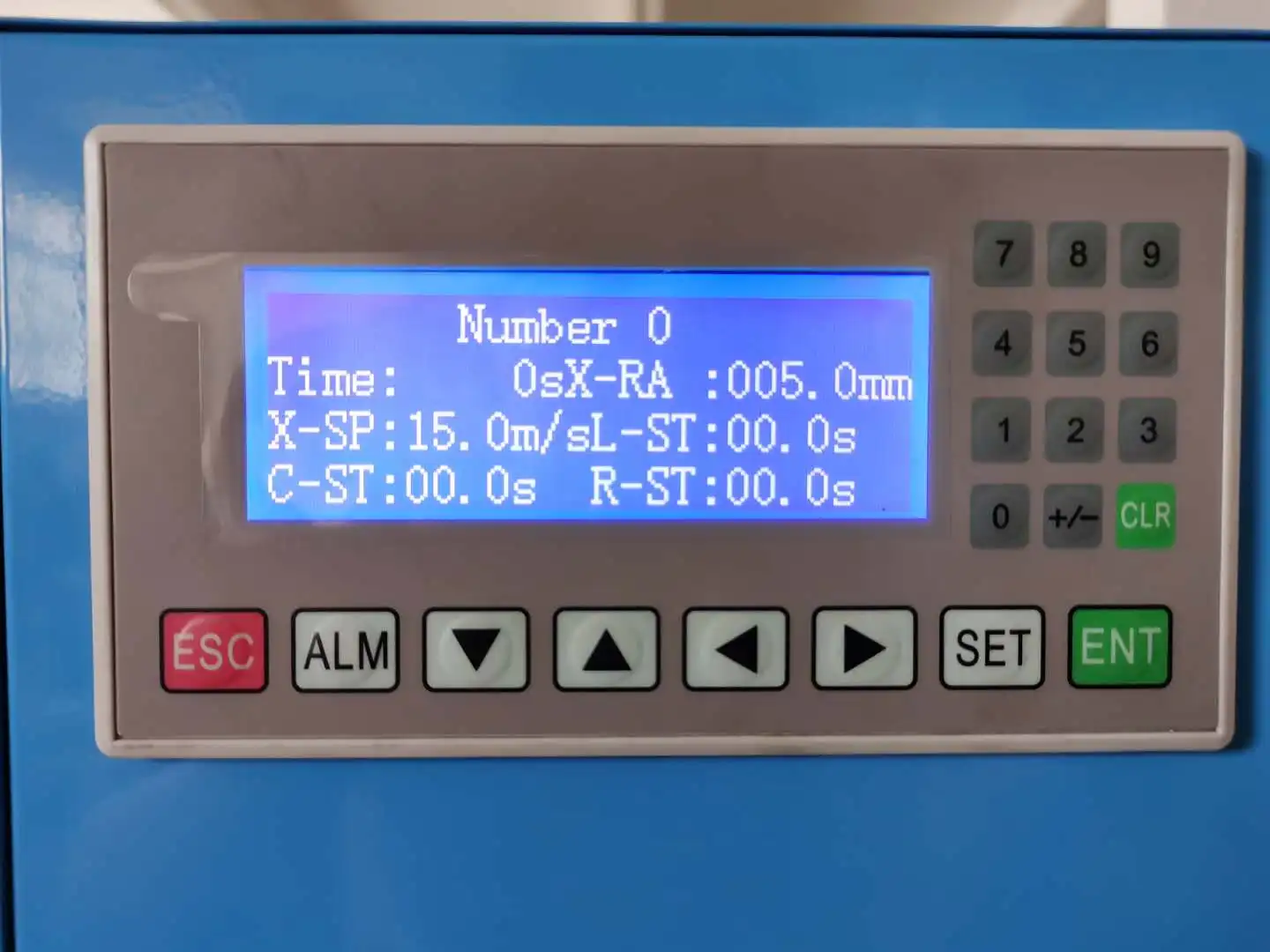

2) The dwell time on the left, right, and middle can be controlled during welding swing to increase local welding time.

3) Manual and automatic control functions for specific applications.

4) Increase the thickness of weldable workpieces, reduce welding defects and improve welding quality
