Бытовая машина для производства
- Категория: Environmental Machinery >>>
- Поставщик: Shanghai,Wecome,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 71400.63 $* | 74970.57 $* |
| Aug-17-2025 | 70800.35 $* | 74340.67 $* |
| Jul-17-2025 | 59400.49 $* | 62370.31 $* |
| Jun-17-2025 | 69600.74 $* | 73080.38 $* |
| May-17-2025 | 60600.28 $* | 63630.98 $* |
| Apr-17-2025 | 68400.62 $* | 71820.60 $* |
| Mar-17-2025 | 67800.85 $* | 71190.82 $* |
| Feb-17-2025 | 67200.59 $* | 70560.75 $* |
| Jan-17-2025 | 66600.47 $* | 69930.10 $* |
Характеристики
Products Description

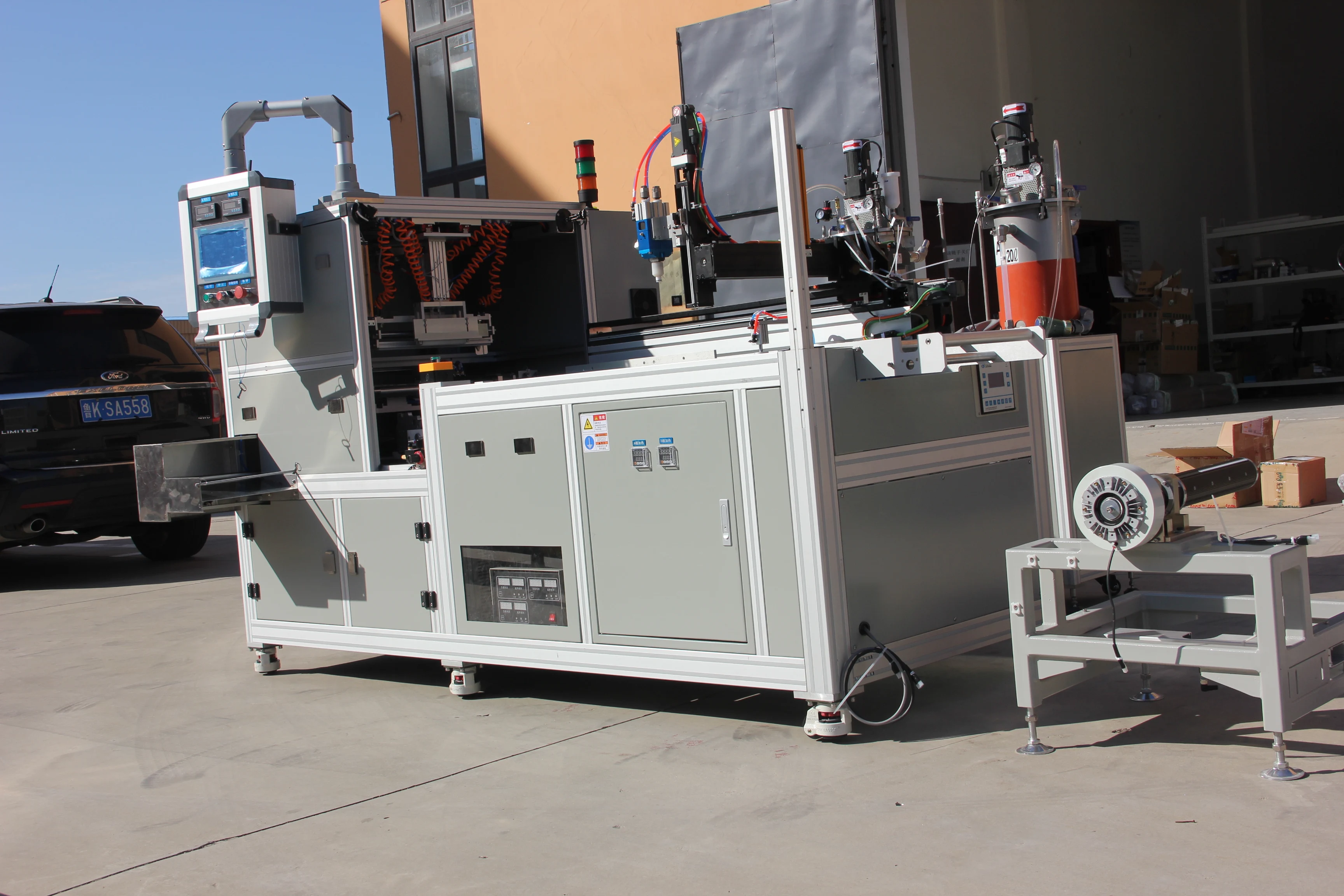

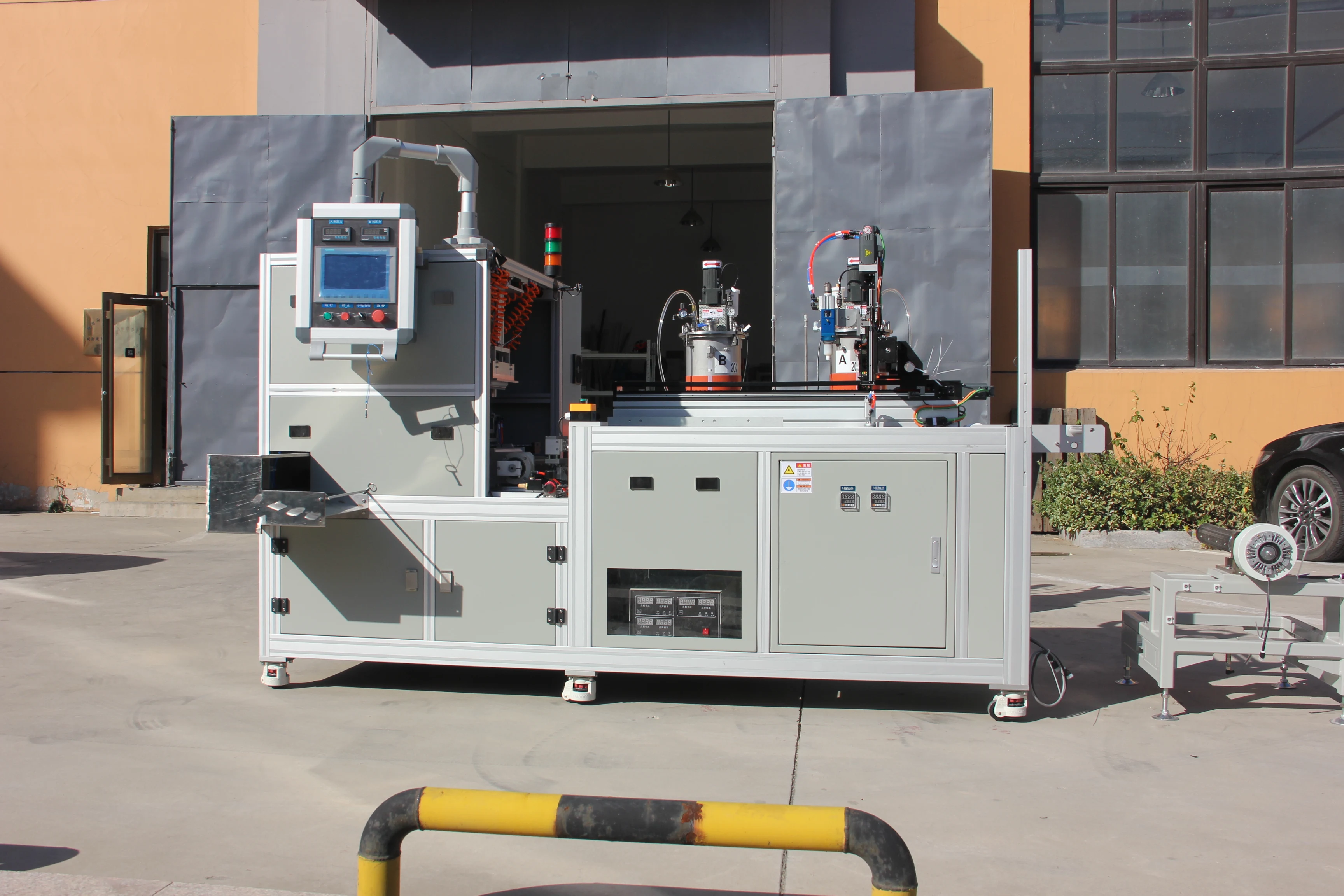

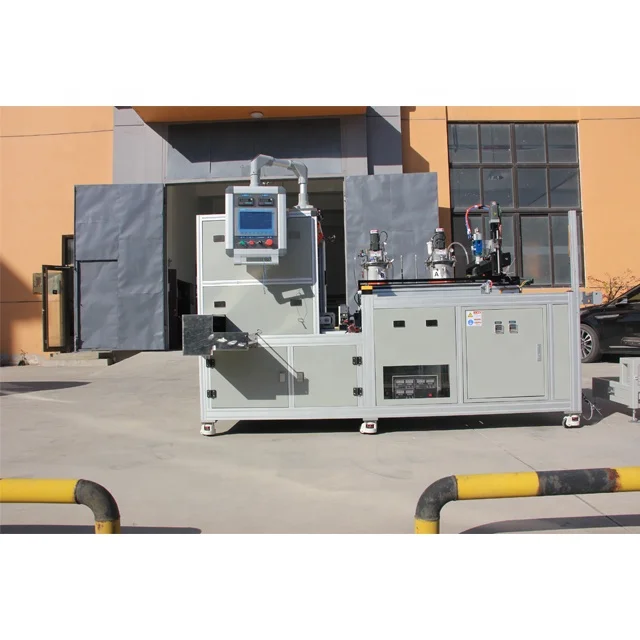

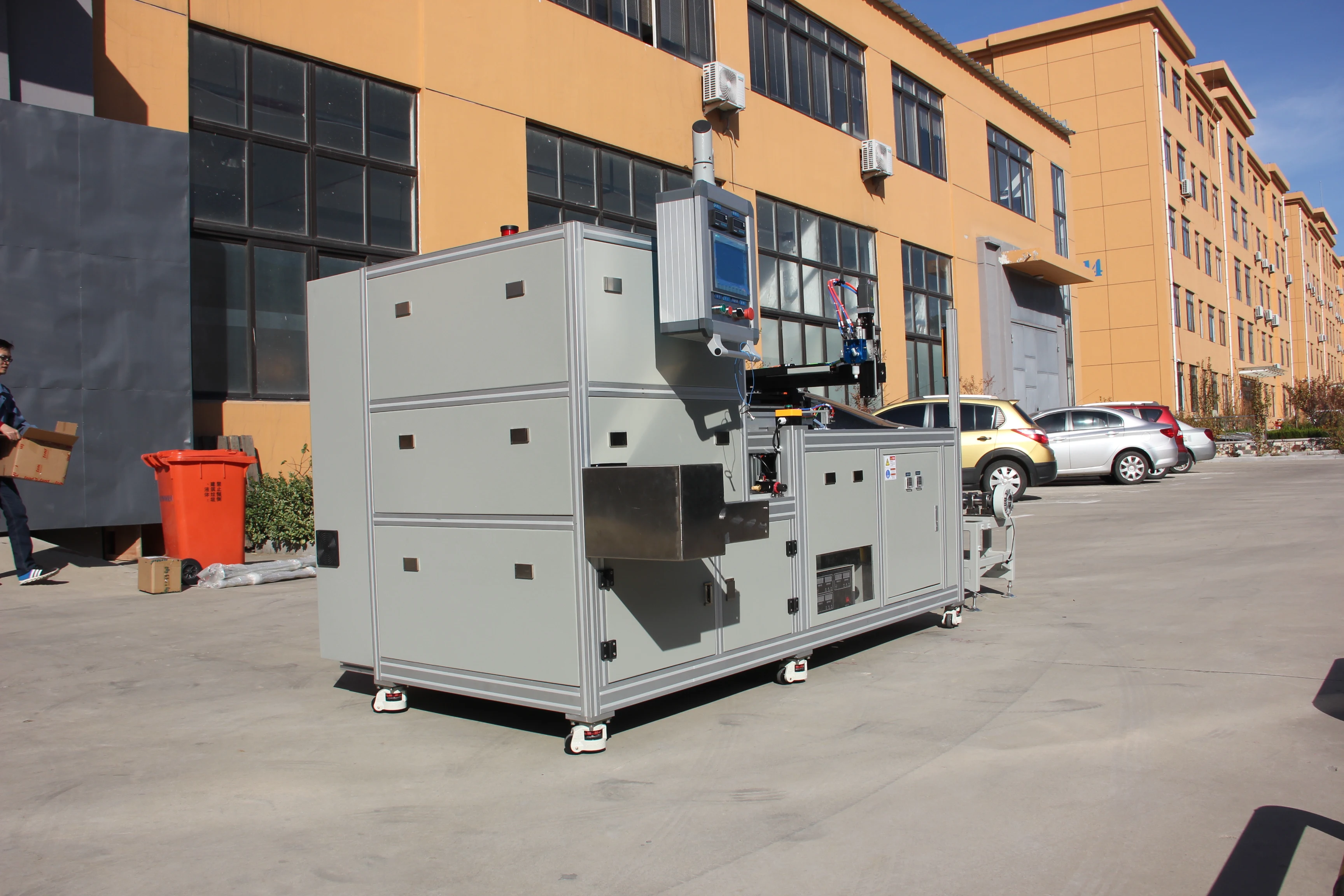

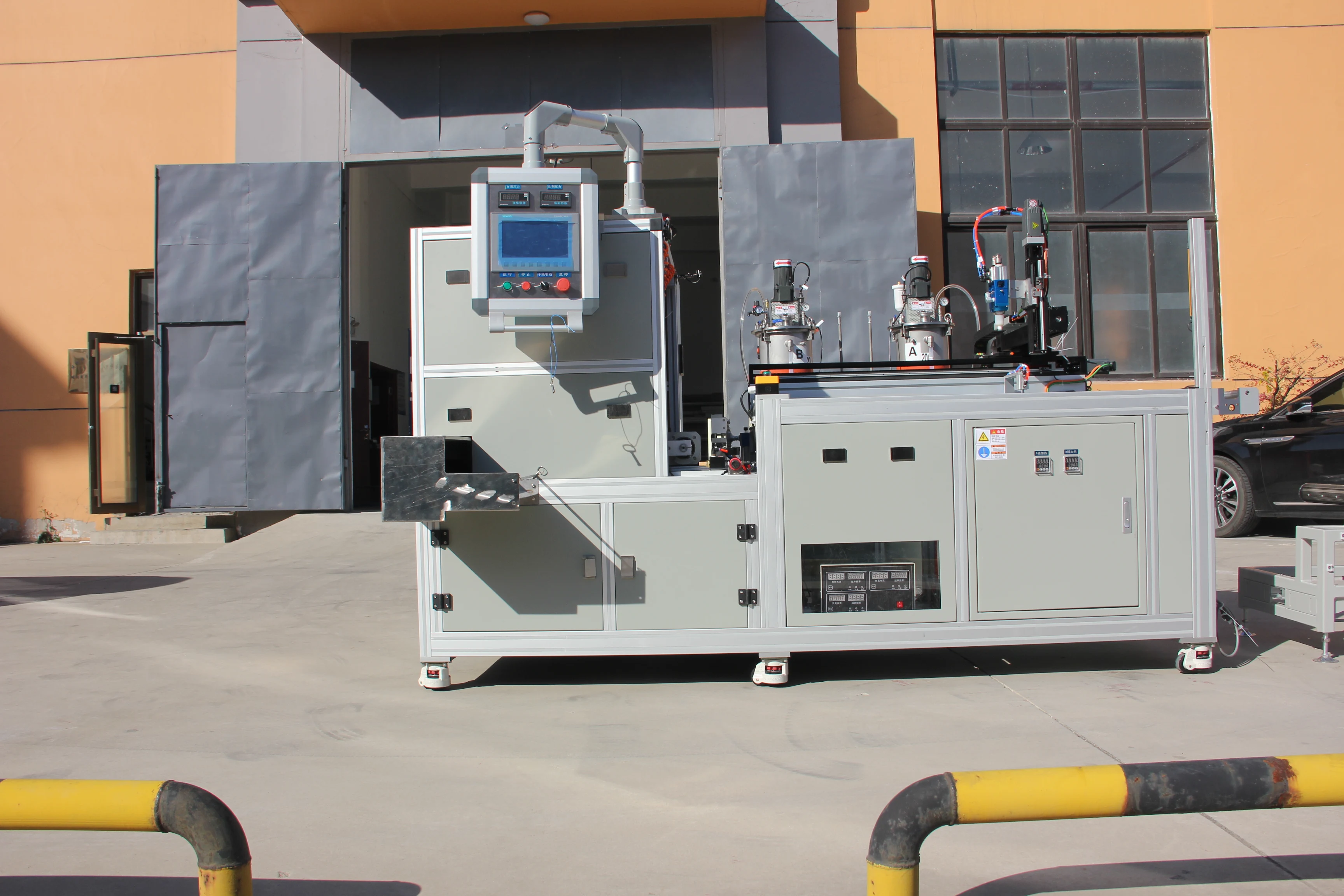

High Standard Domestic RO membrane rolling machine
High Standard Domestic RO membrane rolling machine
Application: Applicable for membrane with a width of 250~330mm, and can roll up to 10 layers of the membrane with diameter up to
80mm.
Operation: Manually placement of membrane and spacer, button, and foot switch control action, according to the set parameters
rolling, XYZ robot glue dispenser, and automatic product unloading.
80mm.
Operation: Manually placement of membrane and spacer, button, and foot switch control action, according to the set parameters
rolling, XYZ robot glue dispenser, and automatic product unloading.
Item | Name | RO rolling machine |
1 | Size | 3500*2200*1800(mm) |
2 | Weight | 1000kgs |
3 | Power | AC 220V/5KW The machine will not working continue every time, so the total power should be use depends on the final production per day. |
4 | Air pressure | ≥6kg |
5 | Working Temperature | 0~40℃( The best temperature is 25℃) |
6 | Humidity | Around 55% |
7 | Man Power | 1 person, lay the sheet on the right position |
8 | Product Model | Suitable for 1812-50,1812-75,2012-100,3012-300,3013-400 elements, etc |
9 | Structure | EU standard industry heavy aluminum materials. |
10 | Main Parts Supplier | 1. Semens control system--Import from Germany. 2. Misumi compinents-- Import from Japan. 3. PMI Robot-- Import from Taiwan, China 4. SMC air control-- Import from Japan. 5. Omron components-- Import from Japan. |
11 | Warranty | 1. The machine supplier give 1 year machine warranty, if any component meet unexpected quantity problem, we will replace a new one for free. But if we found the components damaged by human, we will replace but not afford any cost. 2. We will reply customer within 2 working days, and tell how to solve the problems, give the final schedule for repair the machines. |
Main Technical Parameters of rolling machine
Scope of application | Suitable for most domestic membrane models currently on the market (adjustable) Included model: 1812 (2-layer membrane) ~ 3013 (6-layer membrane) Maximum roll diameter 100mm |
Frame | European standard industrial heavy duty aluminum profile |
Operation | Single operation（35s-45s/pc，calculated with model 1812 model 2-layer membrane) suitable for manual proficiency |
Delivery Gluing | Automatic glue application by robot (to ensure uniform glue line and adjustable width) |
Power | AC 220V / 5KW |
Air source pressure | 0.4 ~ 0.7 Mpa |
Main Technical Parameters of dispenser
Mixing ratios and requirements | Stable proportions, accurate dosing and adequate mixing |
Radio Range | 100:100（Weight radio ）Can be customized according to requirements |
Delivery Range | 3.5g-17.6g （Take Fuller's glue as an example） |
Delivery Density | ±2％ |
Mixing Method | Static mixing |
Main configuration of the roll-making system
Main Installations | Installations Content | QTY | Note |
Fixed Cone System | 1 | AirTac cylinder custom machined components | |
Pneumatic tooling heads | 1 | Precision Bearings Special Customized Parts Material SUS304 | |
Servo Motor | 1 | Germany Siemens Servo Motor 400W | |
Reduction gear | 1 | Domestic | |
Transfer Part | 1 | Domestic | |
Transfer Part | 1 | Shangyin Ball Screw Customized machined components | |
Reduction gear | 1 | Domestic | |
Servo Motor Driven | 1 | Germany Siemens Servo Motor 400W | |
Tape cutting cylinder | 1 | AirTac cylinder custom machined components | |
MEM, Spacer Transfer Part | 1 | AirTac cylinder Germany Siemens Servo Motor | |
Ultrasonic Welding | 1 | Domestic | |
Spacer installation tension Axis | 1 | Easy to disassemble when installing the spacer | |
Tension controller | 1 | The tension value can be displayed directly | |
Basic configuration Part | Wheel and foot movable Fixed rack table | 1 | Industrial heavy duty APS aluminium profiles, Customized |
Device Basic configuration system | 1 | Taiwan HIWIN lead rails, custom machined components | |
Electric control cabinet electrical control Part | 1 | Germany Siemens PLC, Siemens touch screen (10") Omron,Schneider, LG and other brand components |
Main configuration of dispensing machine
1. Main agent barrel
Type | SUS304 Simple pressure barrel |
Volume | 20L 1pc |
Feeding method | Vacuum suction |
Special configuration | Barrel with minimum limited sensing Manual stop valve between barrel and pump section |
2.Hardening agent barrel
Type | SUS304 Simple pressure barrel |
volume | 20L/ 1pc |
Feeding method | Vacuum suction |
Special configuration | Barrel with minimum limited sensing Manual stop valve between barrel and pump section |
3.Main metering pump
Type | Volume measurement method | Metering pump diameter | Φ15 | ||
Materials for metering pump chambers | SUS304Nitriding treatments | Piston material | SUS304Nitriding treatments | ||
Pump section check valve | 3T SUS+PTFE+EPDM | ||||
Remark | Check valves and metering pumps are customized | ||||
4.Hardener metering pumps section
Type | Volume measurement method | Metering pump diameter | Φ15 | ||
Materials for metering pump chambers | SUS304Nitriding treatments | Piston material | SUS304Nitriding treatments | ||
Pump section check valve | 3T SUS+PTFE+EPDM | ||||
Remark | Check valves and metering pumps are customized | ||||
5.Drive Source
Drive method | Siemens Servo motor drive |
Remark | Power AC220V Air source (0.5Mpa~0.7Mpa) |
6.Mixing Section
Method | Double liquid valve Static mixing | |
Specification | MS08-24 Switzerland MIXPAC |
7.Pipeline - Piping part
Pump OUT pipe | Main agent | Category | 34PW (Imported from Japan, seamless anti-breathable crystals) |
Size·Length | 1/4 lengths to be made | ||
Remark | |||
Hardening agent | Category | 34PW (Imported from Japan, seamless anti-breathable crystals) | |
Size·Length | 1/4 lengths to be made |
The main performance characteristics of the machine:
1.Realize the whole process for the closed-loop tension control of spacer, ultrasonic welding of the central tube and spacer, automatic transfer membrane, automatic glue line, rolling membrane, tension membrane roll, outer ring tape forming and automatic finished product unloading.
2. The advanced servo drive mode is adopted to cooperate with precision tooling and three-axis manipulator gluing operation, which provides a reliable guarantee for the quality of finished products;
3. The machine is reasonable in design, beautiful in appearance, convenient in installation and durable in use.
It adopts the touch screen and PLC control system of human-machine interface, automatic tension adjustment, closed-loop control, infrared light fence safety protection and other facilities to ensure the safe operation and ease of use of the machine;
Motor:
2. The advanced servo drive mode is adopted to cooperate with precision tooling and three-axis manipulator gluing operation, which provides a reliable guarantee for the quality of finished products;
3. The machine is reasonable in design, beautiful in appearance, convenient in installation and durable in use.
It adopts the touch screen and PLC control system of human-machine interface, automatic tension adjustment, closed-loop control, infrared light fence safety protection and other facilities to ensure the safe operation and ease of use of the machine;
Motor:
1. Siemens
2. PLC: Siemens
3. Touch screen: Siemens
4. Cylinder: AirTAC SMC
5: Drive screw: Taiwan Shangyin
6: Contactor: Schneider
7: Power and Relay: Omron
8: Switch Contactor: Schneider
9: Proximity Switch sensor switch photoelectric sensor: South Korea Autonics
10: Commercial product: Japan Misumi
Company Profile
Established in 2013, Shanghai WECOME Environmental & Technology Co., Ltd is a professional membrane technology and materials supplier with production and sales together. We are specializing in reverse osmosis membrane element solutions, including rolling machines and raw materials. We also have our own factory, which is based in 2011. We are located in International metropolis-Shanghai, known as "Oriental Paris" and "Magic Capital". All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Covering an area of 600 square meters, we now have over 30 employees, an annual sales figure that exceeds USD 10, 000, 000 and are currently exporting of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001, ISO45001 certificates. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Asia, Europe, Southeast Asia etc. Our company history as follows:
2013.11 Shanghai WECOME company established.
2014.03 Water treatment RO membrane tape products manufacture and market sales start.
2015.02 RO membrane automatic rolling machine design finished, and start OEM production.
2016.08 RO membrane automatic rolling machine manufacture and market sales start.
2017.03 WECOME India branch established, and start running to service local India customers.
2018.03 RO membrane permeate carrier product start manufacture and market sales.
2019.03 Strategic cooperation with Alibaba, Globe marketing sales start a new page.
2021.12 Strategic cooperation with Made-In-China, online sales start a new page again.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are
looking forward to forming successful business relations with new clients around the world in the near future.
Covering an area of 600 square meters, we now have over 30 employees, an annual sales figure that exceeds USD 10, 000, 000 and are currently exporting of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001, ISO45001 certificates. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Asia, Europe, Southeast Asia etc. Our company history as follows:
2013.11 Shanghai WECOME company established.
2014.03 Water treatment RO membrane tape products manufacture and market sales start.
2015.02 RO membrane automatic rolling machine design finished, and start OEM production.
2016.08 RO membrane automatic rolling machine manufacture and market sales start.
2017.03 WECOME India branch established, and start running to service local India customers.
2018.03 RO membrane permeate carrier product start manufacture and market sales.
2019.03 Strategic cooperation with Alibaba, Globe marketing sales start a new page.
2021.12 Strategic cooperation with Made-In-China, online sales start a new page again.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are
looking forward to forming successful business relations with new clients around the world in the near future.
Company Scale
Packing and shipping
Exhibition
Certifications
FAQ
1 Who we are?
We are specializing in RO membrane solutions, including rolling machines and raw materials, like central tube, spacer,
tricot(permeate carrier), sheet, glue etc. We also have our own factory, which is based in 2011.
2 Do your products support customization? Can I put my logo on the product?
Yes, sure. We support customized logo in the product including packing.
3 How long does the delivery 40HQ container usually take?
One 40HQ container we can delivery about 15-20 days after receiving full payment.
4 Can I get a free sample? And how long does the delivery sample usually like?
Yes, sure. We can provide you free sample, you just responsible for shipping cost. We can prepare 3-5 days for sample production.
5 Where are your company? Can I visit your company?
Yes, sure. We are located in Shanghai, China. We also have branch located in Beijing, Shenzhen and India.
6 Why choose Wecome?
Not only we are a material supplier, we are also your reliable technical adviser. We have long time experience in membrane rolling
market and have many years experiences of imports and exports.
We are specializing in RO membrane solutions, including rolling machines and raw materials, like central tube, spacer,
tricot(permeate carrier), sheet, glue etc. We also have our own factory, which is based in 2011.
2 Do your products support customization? Can I put my logo on the product?
Yes, sure. We support customized logo in the product including packing.
3 How long does the delivery 40HQ container usually take?
One 40HQ container we can delivery about 15-20 days after receiving full payment.
4 Can I get a free sample? And how long does the delivery sample usually like?
Yes, sure. We can provide you free sample, you just responsible for shipping cost. We can prepare 3-5 days for sample production.
5 Where are your company? Can I visit your company?
Yes, sure. We are located in Shanghai, China. We also have branch located in Beijing, Shenzhen and India.
6 Why choose Wecome?
Not only we are a material supplier, we are also your reliable technical adviser. We have long time experience in membrane rolling
market and have many years experiences of imports and exports.
