Термостойкие высокотемпературные поликристаллические панели из мульлитового волокна и керамического для печей
- Категория: Ceramic Fiber Boards >>>
- Поставщик: Zhengzhou,Rongsheng,Refractory,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.92 $* | 0.73 $* |
| Aug-17-2025 | 0.99 $* | 0.64 $* |
| Jul-17-2025 | 0.51 $* | 0.87 $* |
| Jun-17-2025 | 0.9 $* | 0.68 $* |
| May-17-2025 | 0.2 $* | 0.98 $* |
| Apr-17-2025 | 0.22 $* | 0.81 $* |
| Mar-17-2025 | 0.69 $* | 0.53 $* |
| Feb-17-2025 | 0.44 $* | 0.88 $* |
| Jan-17-2025 | 0.69 $* | 0.22 $* |
Характеристики
Product Description
Ceramic Fiber Board Description
Specification
Type | COM | ST | HP | HA | Zir-Alu | HZ | |||||||
Classified Temp. | 1100ºC (1983ºF) | 1260ºC (2300ºF) | 1260ºC (2300ºF) | 1360ºC (2480ºF) | 1400ºC (2550ºF) | 1430ºC (2600ºF) | |||||||
Working Temp. | <1000ºC (2012ºF) | 1050ºC (1922ºF) | 1100ºC (2012ºF) | 1200ºC (2192ºF) | 1200ºC (1192ºF) | 1350ºC (2462ºF) | |||||||
Color | white | white | white | white | white | white | |||||||
Density(kg/m3) | 260-320 (16-20lb/ft3) | 260-320 (16-20lb/ft3) | 260-320 (16-20lb/ft3) | 260-320 (16-20lb/ft3) | 260-320 (16-20lb/ft3) | 260-320 (16-20lb/ft3) | |||||||
Linear Shrinkage (%) (24 hrs) | -3 (1000ºC/1832ºF) | -3 (1000ºC/1832ºF) | -3 (1100ºC/2012ºF) | -3 (1250ºC/2282ºF) | -3 (1000ºC/2012ºF) | -3 (1350ºC/2462ºF) | |||||||
Thermal conductivity (W/M.K) | 0.085 (400ºC/752ºF) 0.132 (800ºC/1472ºF) 0.180 (1000ºC/2012ºF) | 0.085 (400ºC/752ºF) 0.132 (800ºC/1472ºF) 0.180 (1000ºC/2012ºF) | 0.085 (400ºC/752ºF) 0.132 (800ºC/1472ºF) 0.180 (1000ºC/2012ºF) | 0.085 (400ºC/752ºF) 0.132 (800ºC/1472ºF) 0.180 (1000ºC/2012ºF) | 0.085 (400ºC/752ºF) 0.132 (800ºC/1472ºF) 0.180 (1000ºC/2012ºF) | 0.085 (400ºC/752ºF) 0.132 (800ºC/1472ºF) 0.180 (1000ºC/2012ºF) | |||||||
Compression Strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |||||||
Chemical(%) | Al2O3 | 44 | 46 | 47-49 | 52-55 | 45-46 | 39-40 | ||||||
Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | - | |||||||
Al2O3+SiO2+ZrO2 | - | - | - | - | 99 | ||||||||
ZrO2 | - | - | - | - | .5-7 | 15-17 | |||||||
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | 0.2 | |||||||
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | 0.2 | |||||||
Size(mm) | 1200*1000mm(47″*40″); 1000*600mm(40″*36″);900*600mm(24″*36″) 20-50mm(1″/2″)thickness | ||||||||||||
Details Images

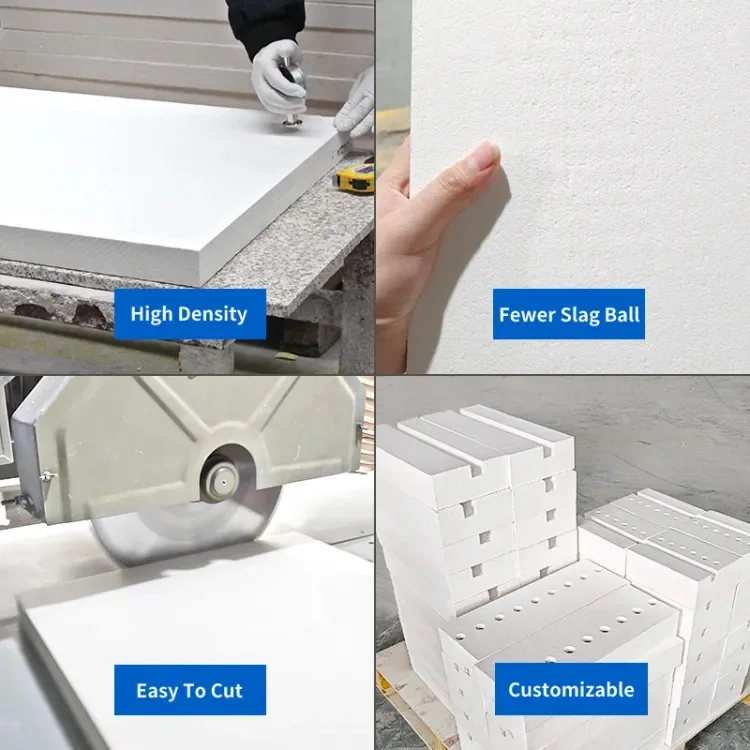

Fire resistant ceramic fiber board advantage:
1, with high temperature thermal conductivity, light weight, long life, tensile strength, good elasticity, non-toxic and so on.
2, high compressive strength, long service life;
3, low heat capacity, low thermal conductivity;
4, non-brittle material, good toughness;
5, the size of accurate, good flatness;
6, easy to install,
7, excellent anti-wind erosion performance;
8, continuous production, fiber distribution, performance and stability;
9, excellent sound and noise reduction performance.
Product Application
Fire resistant ceramic fiber board applications:
1.Industrial kiln wall lining, masonry insulation layer, high temperature, high heat equipment insulation, insulation, high temperature kiln kiln lining, kiln car, door baffle, furnace furnace temperature divider, aerospace, shipbuilding insulation, Fireproof, soundproof, insulated.
2.Iron and steel industry: expansion joints, insulation, insulation and insulation; non-ferrous metal industry: backing insulation materials, tundish and tank cover for pouring copper and copper alloy;
3.Ceramic industry: light kiln car structure and the furnace hot surface lining, the furnace temperature zone separation and fire materials;
Glass industry: the pool was lining heat, burner block;
4.Furnace building: hot surface refractories (alternative fiber blanket), heavy refractory lining, expansion joints;
5.Light industry: lining of industrial and domestic boiler combustors;
6.Petrochemical industry: high temperature heating furnace lining hot surface material;
7.Building materials industry: cement rotary kiln and other equipment insulation.
