Ротационное лазерное оборудование для измерения приемник управления машиной вращающегося лазерного
- Категория: Laser Levels >>>
- Поставщик: Sunnav,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 952.26 $* | 1000.21 $* |
| Aug-16-2025 | 944.82 $* | 991.32 $* |
| Jul-16-2025 | 792.52 $* | 832.92 $* |
| Jun-16-2025 | 928.92 $* | 974.28 $* |
| May-16-2025 | 808.79 $* | 848.34 $* |
| Apr-16-2025 | 912.35 $* | 958.7 $* |
| Mar-16-2025 | 904.70 $* | 949.85 $* |
| Feb-16-2025 | 896.6 $* | 941.33 $* |
| Jan-16-2025 | 888.98 $* | 932.87 $* |
Характеристики
SMC-100 Laser Machine Control Indicator Guidance System
Key Features

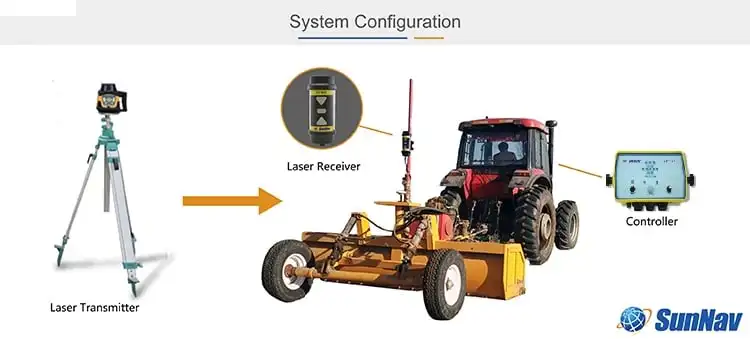

SMC-100 series products are leveling guidance system developed by our company for road construction machine control application which is based on laser and Height difference display technology. The display system is high accuracy, stable performance, easy operation, dust and water proof, shock-proof and durable, It is used for high precision land leveling, the accuracy is +/-2cm, it helps to save construction time, reduce rework frequency, measurement frequency, thus it could help to save cost and reduce the technology requirement of the workers.
Parts
Useing
Technical Specificat

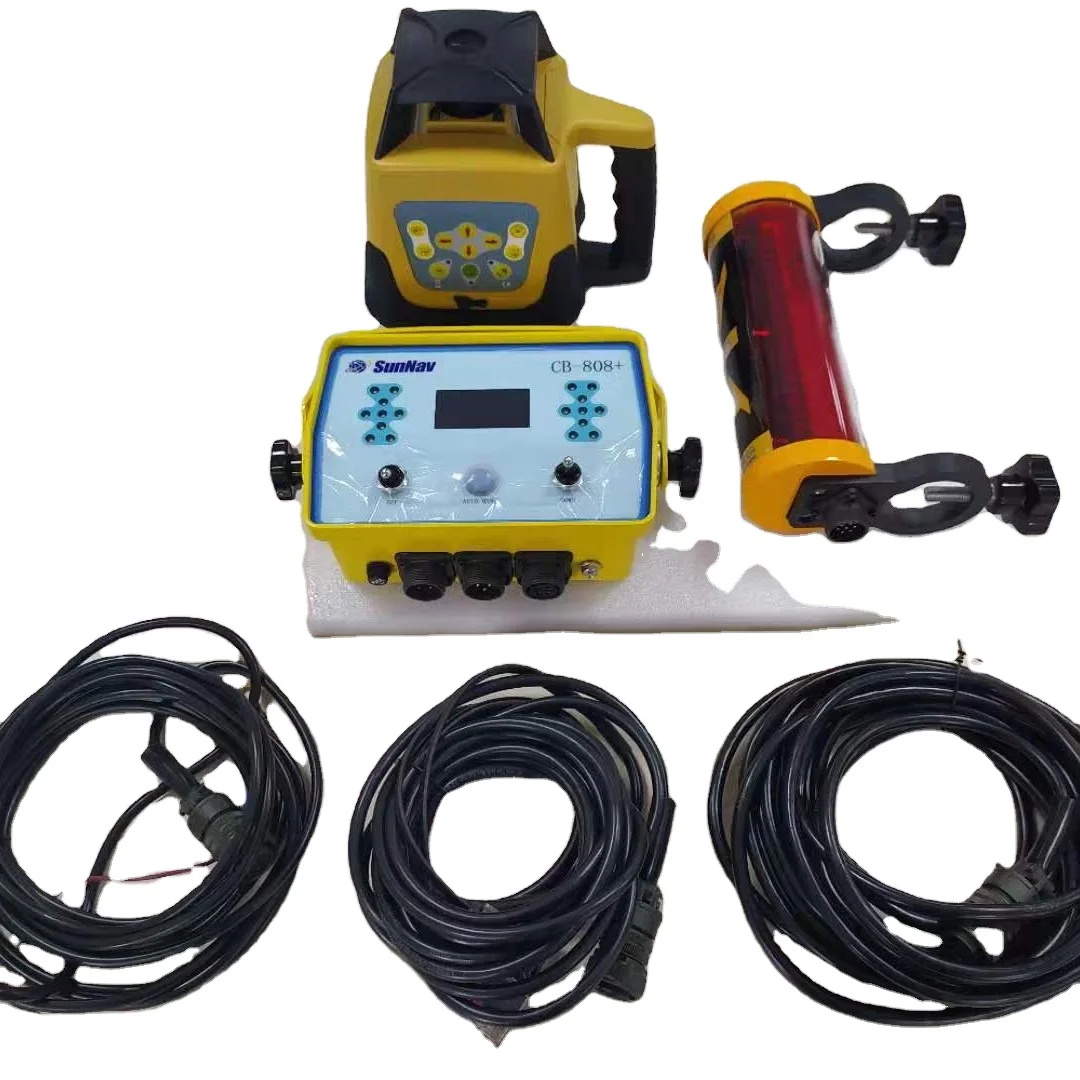

| PART | DATA SHEET |

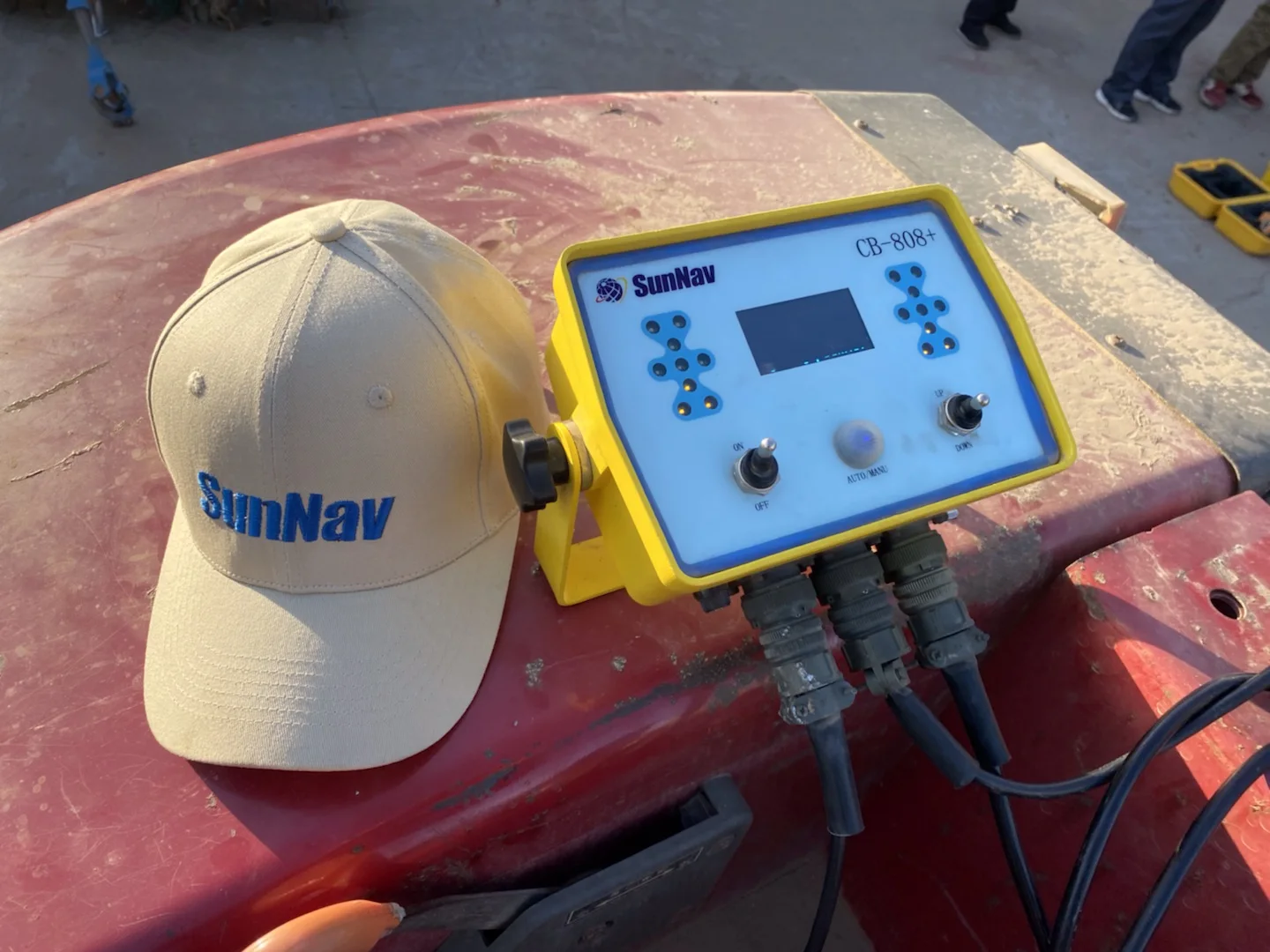

| CB-808+ | Power 1pc Control 1pc Receiver 1pc Accuracy of Leveling ±2cm Operating Temp. 40°C to 70°C Storage Temp. -55°C to 85°C Controlling Handle support OLED Display Screen Yes Self-luminous Yes Wide Viewing Angle Yes High Contrast Yes Low Electricity Consumption Yes Dimension 41cmx35cmx20cm Gross Weight 6kg |

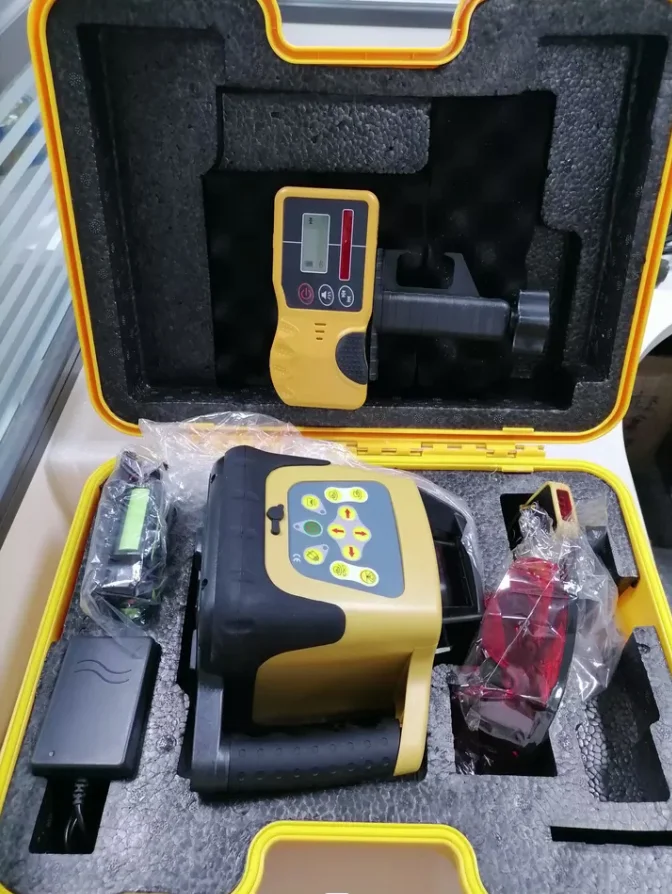

| KF-508 | Laser Source: 2.5mW laser diode: Class-II Visible diode (635m) Operating Range (diameter):600m (depends on environmental condition) Sloping Leveling:Yes Self-leveling Accuracy:±0.05mm/m Self-leveling Range: ±5° Rotation:600 rpm Storage Temperature:-20°C to 80°C Dimension:44cmx28cmx38cm Gross Weight:5.5kg Power Source:NI-MH rechargeable battery, continuously work for 10 hours Operating Temperature:-20°C to 70°C |
| LS-808 | Angle for Receiving Laser: 360° Detection Windowr: 200mm Detection Resolution: ±3mm Vertical LED Indicator: Yes Interface: RS-232 or RS-485 CAN J1939 (option) Water/Dust Proof: IP68 Power Source: Power Supply Operating Temperature: -40°C to 71°C Storage Temperature: -55°C to 85°C Electric Input: 9v to 16v Dimension: 41cmx35cmx20cm Weight: 4kg |
R&D and Production
Packaging&Transport
