2x4 Китай горячая распродажа портативный автоматический контроль FFU дешевый комнатный вентилятор фильтр Чистая
- Категория: Air Cleaning Equipment >>>
- Поставщик: Guangzhou,Bacclean,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 179.56 $* | 188.44 $* |
| Aug-19-2025 | 177.66 $* | 186.68 $* |
| Jul-19-2025 | 149.93 $* | 156.64 $* |
| Jun-19-2025 | 174.80 $* | 183.35 $* |
| May-19-2025 | 152.80 $* | 160.36 $* |
| Apr-19-2025 | 171.33 $* | 180.83 $* |
| Mar-19-2025 | 170.84 $* | 179.50 $* |
| Feb-19-2025 | 168.62 $* | 176.67 $* |
| Jan-19-2025 | 167.4 $* | 175.8 $* |
Характеристики
Product Information
All sizes and styles can be customized | ||||||||||
Model | BACCLEAN-FFU01 | BACCLEAN-FFU02 | BACCLEAN-FFU03 | BACCLEAN-FFU04 | ||||||
Module size (mm) | 876*575*330 | 575*1175*330 | 615*1225*330 | 1175*1175*330 | ||||||
plenum chamber material | Galvanized aluminum sheet/Stainless steel | |||||||||
wind volume(m³/h) | 800 | 1000 | 1200 | 2000 | ||||||
Average wind speed (m/s) | 0.3-0.5 | |||||||||
Outside the box static pressure (pa) | 96(10mmAq) | |||||||||
Power (KW) | 100-200 | |||||||||
Fan Type / Control | AC fan/DC fan/group control | |||||||||
NoiseDB | 55 | |||||||||
High efficiency filtration | Size | 870*570*69 | 570*1170*69 | 610*1220*69 | 1170*1170*69 | |||||
Efficiency | 99.99%@0.3um | |||||||||
Frame | High-grade aluminum | |||||||||
Initial pressure loss | 110Pa@0.45m/s | |||||||||
Characteristic | little resistance, long service life | |||||||||
Fan | power supply(V/Hz) | 220/50 or 110V/60 | ||||||||
Type | Aluminum turbo fan | |||||||||
Vibration coefficient(mm/s) | 0.2~0.5 | |||||||||
Product Display

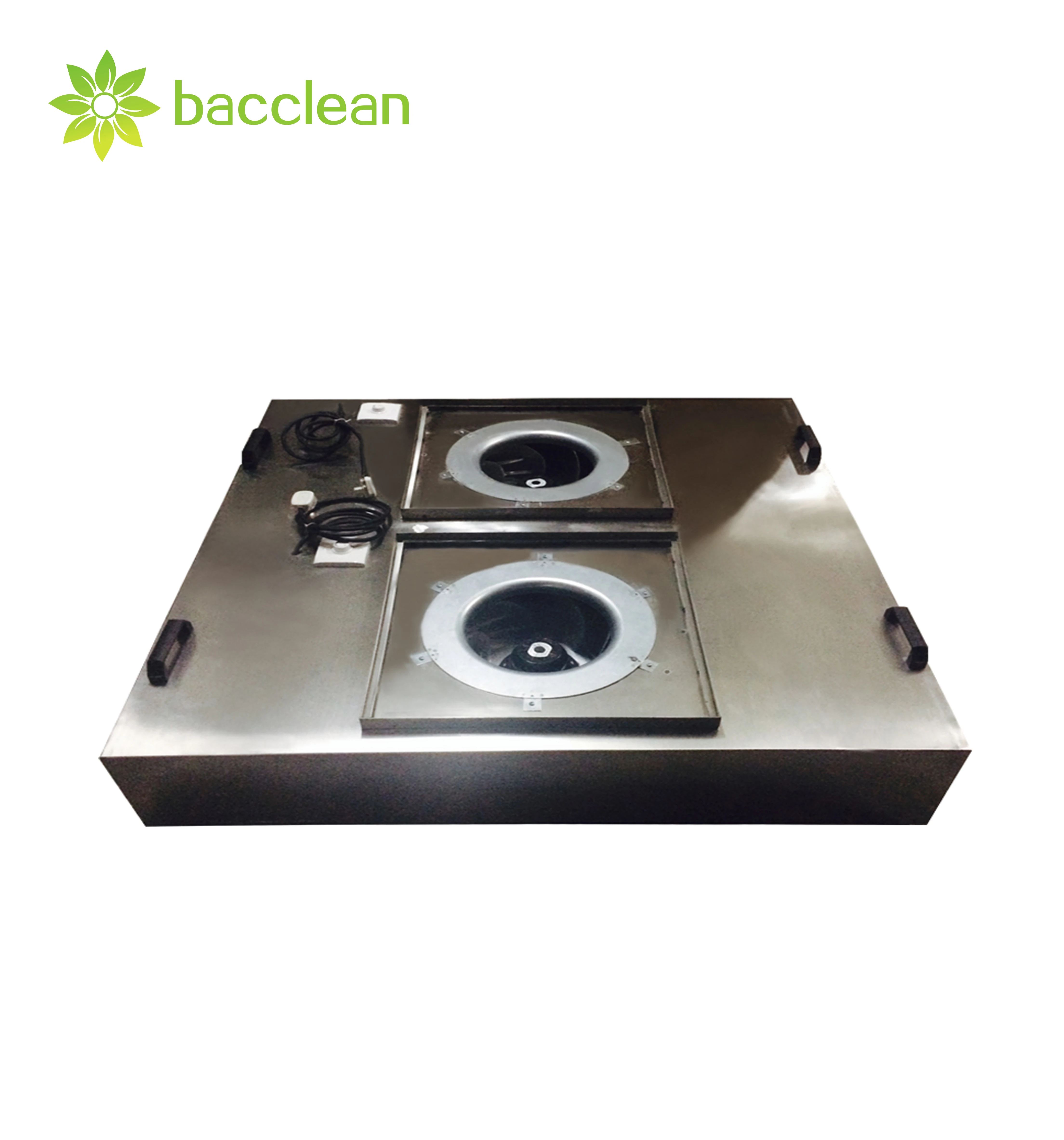

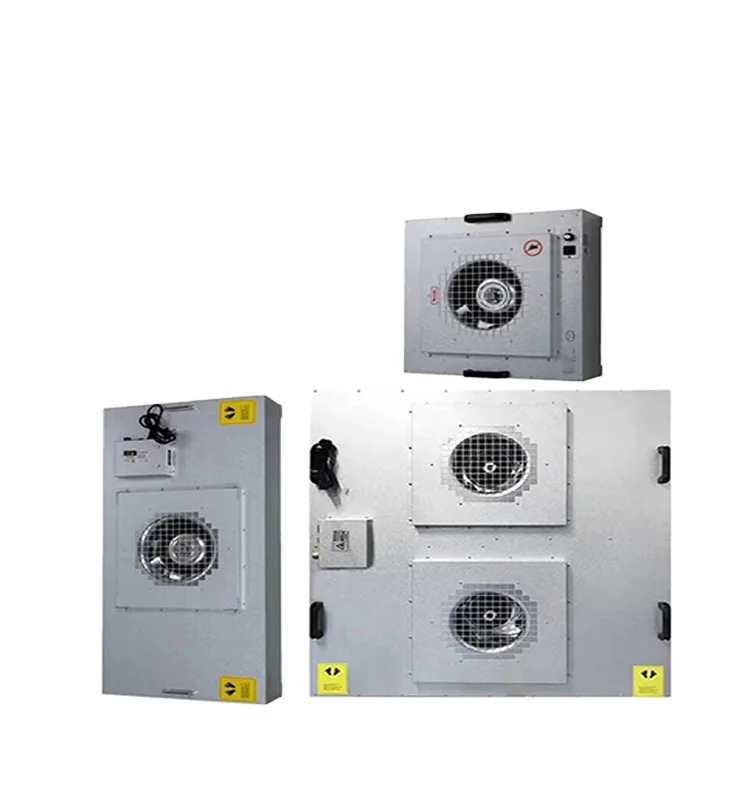

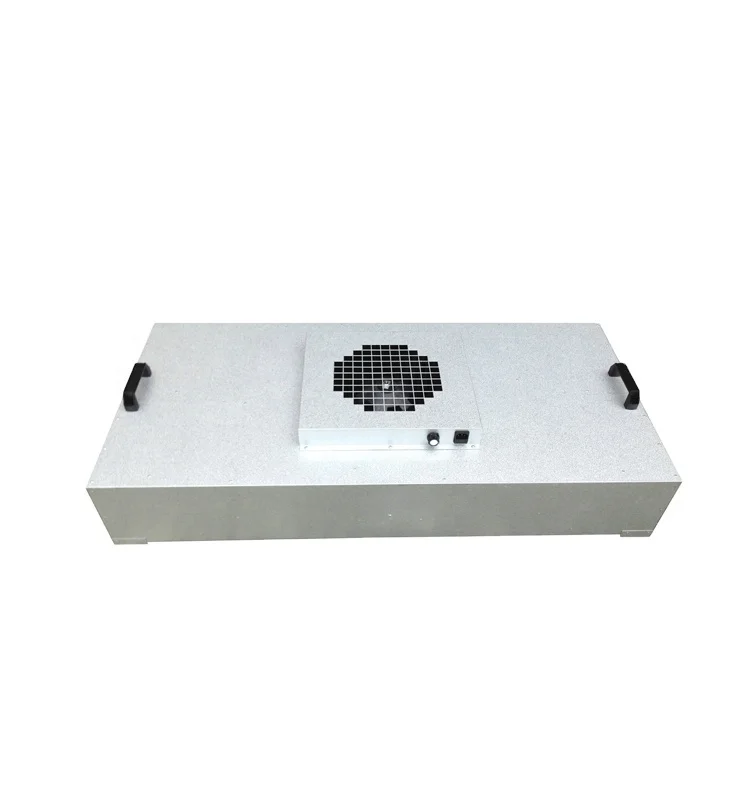

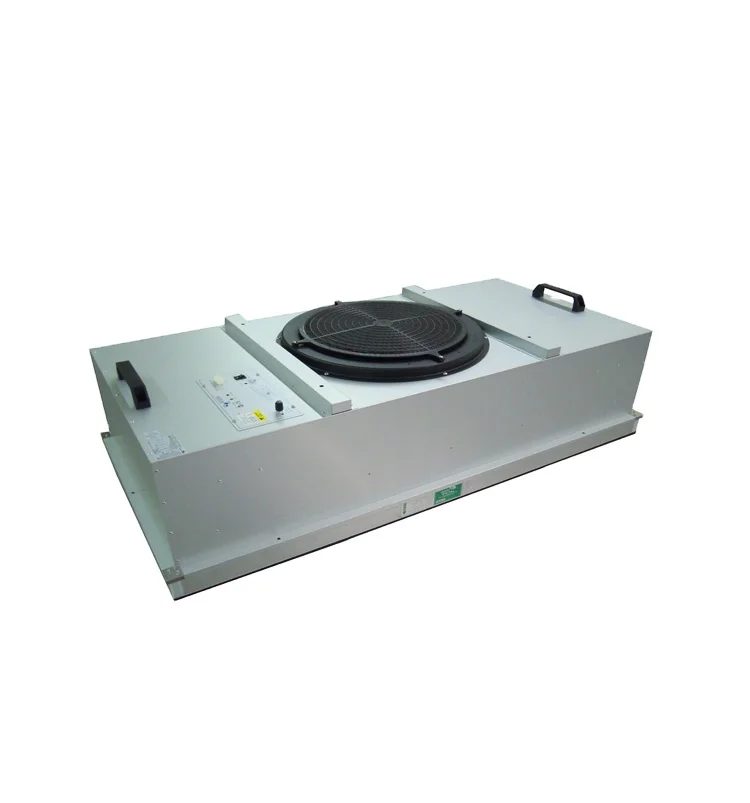

Fan Filter Unit
A cleanroom fan filter unit (FFU)/ laminar flow hood is a type of air filtering equipment. It is used to supply purified air to cleanrooms or microenvironments by filtering out harmful airborne particles from the recirculating air. The units are installed within the system’s ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter, and internally ontrollable fan air distribution
The features of the FFU
1 The energy efficiency ratio is high and the calorific value is small.
2 It is easy to be installed, and it can be used by one or in series.
3 It has multi-stage adjustable wind speed controller.
4 It has an interlligent control system.
5 It has compact and firm structure with light weight, corrosion resistance, rust prevention and good performance.

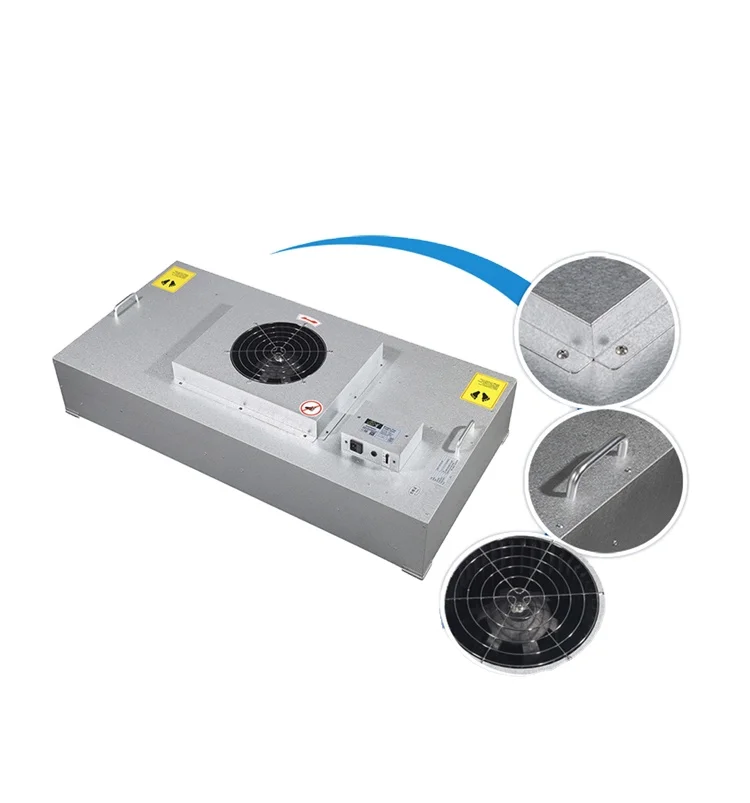

Control panel
Speed switch(Optional)
motor
Insulated handle

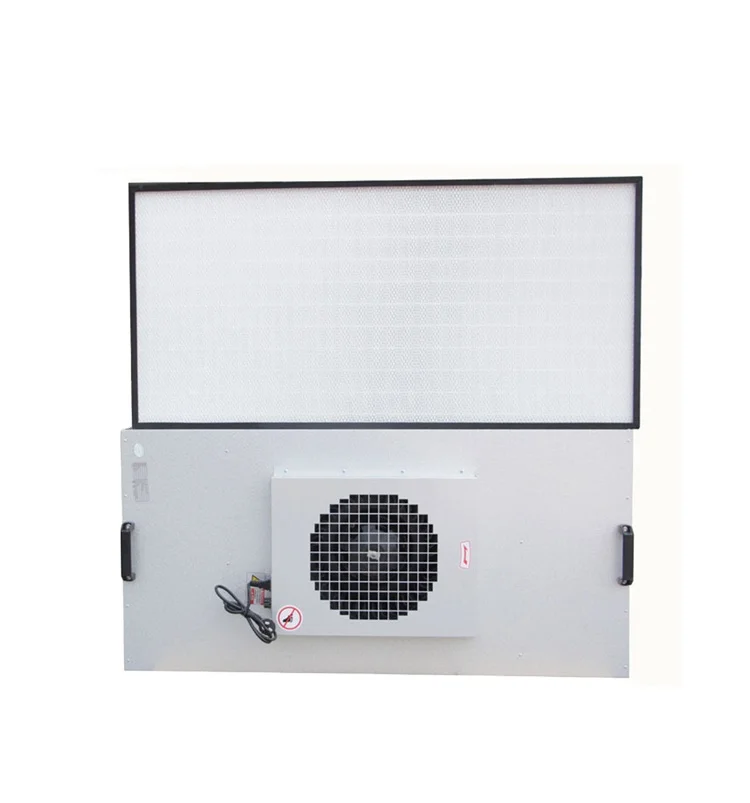

Mini pleat HEPA filter for cleanroom Fan filter unit.
The efficiency can be H13 and H14 according to the requirement. A Fan filter unit is combined with a cabinet and a HEPA filter. A nylon mesh filter can be as a pre-filter together with the fan filter unit if it is in need.
Application
HEPA Filter Fan filter unit (FFU) are widely used in clean room, clean operating station, clean production line, assembled clean room and partial 100 level occasions. It can provide high quality clean air to different size and different cleanliness level's clean room and microenvironment.
