Сельскохозяйственная машина гидравлический круглый пресс для сена/машина силажа тракторный монтажный соломенный стебель сборный мини
- Категория: Balers >>>
- Поставщик: Yantai,Dibo,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1190.1 $* | 1250.21 $* |
| Aug-17-2025 | 1180.18 $* | 1239.41 $* |
| Jul-17-2025 | 990.41 $* | 1040.30 $* |
| Jun-17-2025 | 1160.9 $* | 1218.6 $* |
| May-17-2025 | 1010.65 $* | 1061.99 $* |
| Apr-17-2025 | 1140.24 $* | 1197.14 $* |
| Mar-17-2025 | 1130.75 $* | 1187.86 $* |
| Feb-17-2025 | 1120.90 $* | 1176.48 $* |
| Jan-17-2025 | 1110.66 $* | 1166.12 $* |
Характеристики
Product Overview
Small corn straw crushing pickup baler four wheel tractor with agricultural grass picker round baler machine manufacturer
Walking straw baler compress machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing, and it matches with envelop machine to achieve the enveloping of ensile. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.
FEATURES AT A GLANCE
Wheat straw baler is mainly composed of a pickup, a baling mechanism, a baling chamber, a compression piston, a transmission system, and a frame. The equipment is towed by a tractor and travels across the straw, with a matching power of over 80 horsepower. The tractor's power shaft is used as the output power to automatically pick up, feed, bale, and cut the rope. It can be adjusted through components to change the density of the bales during baling. Automatic baling and other processes are completed at one time, so that the bales are not scattered, disordered, and arranged on the ground in a row. It greatly reduces labor intensity and is used for biomass straw power plants and equipment for farmers.
corn baler machine with tractor is suitable for tractors with a rear power output of 18 horsepower or more. The picking, forming, bundling and bundling process of soft stem grasses (rice, wheat straw, pasture, crushed corn stover, etc.) is automatically completed by the picking mechanism, the rolling roller mechanism, the wire tying mechanism and the tying mechanism. Make the bales neat and messy.
Walking baler
The matching power of Walking baler machine is suitable for tractors with rear power output above 20 horsepower. The process of picking up, forming, bundling, and releasing soft stalked grass (rice, wheat straw, pasture, crushed corn straw, etc.) is mainly completed automatically through a pickup mechanism, a rolling roller mechanism, a binding mechanism, and a bale releasing mechanism, so that the grass bales are neat and not messy.
Round bale baler
Round bale baler machine can effectively harvest standing corn stalks, stacked corn stalks, and corn stalks discarded from the combine header. The working principle of this machine is to first knead and crush the straw, and under the inertial action of the machine, throw the material to the auger, push it to the feeding port. The feeding fork sends the material to the compression chamber of the baler, compact the automatic binding rope, and open the bin hydraulically for tying.
Mode Baler
Square baler is a tractor driven positive traction baling machine. This machine can complete the pickup and binding of wheat straw, forage grass, rice straw, corn straw, and other crop straws under the traction of a tractor. Adjust the appropriate bale length and bale density according to different storage and transportation needs. It is an ideal equipment for forage collection and straw fuel collection and bundling.
Working process of silage wrapping machine:
1). The power conveyor driven shaft release the power to bundling machine's power-input shaft through universal drive shaft when drive the chain, chain sprocket, and rotary platen system and picking system.
2). The hydraulic power out driving joint control the cylinder piston to enable the bale putting. The baling machine is already adjusted into the suitable height.
3). When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.
4). When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.
5). After throwing the bale out,correct the hydraulic valve, open rear rack to forwarding again for the second cycle.
1). The power conveyor driven shaft release the power to bundling machine's power-input shaft through universal drive shaft when drive the chain, chain sprocket, and rotary platen system and picking system.
2). The hydraulic power out driving joint control the cylinder piston to enable the bale putting. The baling machine is already adjusted into the suitable height.
3). When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.
4). When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.
5). After throwing the bale out,correct the hydraulic valve, open rear rack to forwarding again for the second cycle.
PRODUCT SPECIFICATIONS
1. Guoan mini round hay baler- can pick up all kinds of hay and straw.
2. Models: 850, 870/870F, 1070/1070F, 1090/1090F All can match with 25-50hp tractors.
3. 870F/1070F/1090F series models have Forced Feeding system, can prevent Jam problem when pick up wet Maize straw or corn stalks which is tough and long.
Model | 850 | 870 | 1070 | 1090 |
Bale size(dia.*width) | 50*70cm | 60*70cm | 70*100cm | 90*100cm |
Machine Dimension | 115*130*120cm | 131*146*138cm | 131*167*156cm | 157*167*170cm |
Bale weight | 15-25kg | 20-30kg | 25-35kg | 30-45kg |
Pickup width | 800mm | 800mm | 1000mm | 1000mm |
Math power | 20-50hp | 20-50hp | ≥30hp | ≥40hp |
PTO speed | 540r/m | 540r/m | 540r/m | 540r/m |
Efficiency | 2-5km/h | 2-5km/h | 3-8km/h | 3-8km/h |
Force Feeding | / | 870F have | 1070F have | 1090F have |
Product packaging

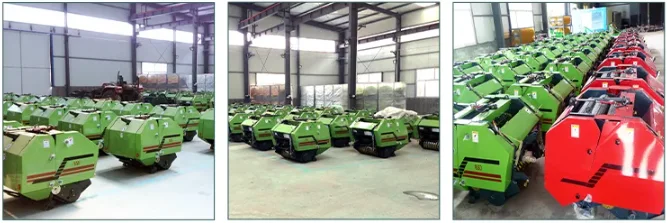

Company Profile
YANTAI DIBO MACHINERY EQUIPMENT CO., LTD
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing. DIBO has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Forestry Machinery, Farm Tractor.Walking Tractor,Pellet machine, more than 50 serials and more than 150 models of various implements
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing. DIBO has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Forestry Machinery, Farm Tractor.Walking Tractor,Pellet machine, more than 50 serials and more than 150 models of various implements
FAQ
1 Are you factory or trading company?
- We have our own factory, mainly manufacture Forestry & Farm Machinery, using "Self-produced Self-marketing" business model, reducing the cost of intermediate links.
2 What's your company advantages of straw crops baler?
- A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.
- B) We have various products and can offer all the machines and tools in the forest and farm. You can get all the items you need. Easy and convenient for you.
- C) With us your money and your business is safe. We can offer 7-days refund in case of bad quality, and Alibaba trade assurance payment for safety.
- D) Coming together is a beginning; keeping together is progress; working together is success.
3 Can we buy one sample of straw crops baler?
- Yes, one sample order is welcome.
However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
4 What's your delivery time for straw crops baler?
- After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
5 How do you control your quality of straw crops baler?
- To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system, and we have passed CE quality management system certificate. All of our products are 100% inspected before shipment.
6 What's your product warranty?
- The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made). To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
7 What's your company mainly exporting market?
- We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service.
- We have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factory.
8 If I need different measurements or weight, could you offer OEM service?
- Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
9 Why choose YANTAI DIBO?
- With our two factories and more than 100 workers, we can offer you the following service:
A. Very competitive advantage products!
B. 7 days money refund in case of bad quality!
C. Small order welcome!
D. Alibaba trade assurance payment for your safety!
E. QC for each product before delivery
F. Nice after sale service.
