Таймер с регулируемой задержкой отключения 110 В переменного тока 220 480 мин. реле включения и выключения питания переменный ток 7 А выходной

Feature:

1. Intelligent linkage: When the surrounding environment changes, you can perform intelligent linkage. For example, the air conditioner will automatically turn on

2. When the room temperature exceeds 35°C. When the humidity is below 20%RH, the humidifier will spray.

3. The temperature unit selection in the APP, you can choose ℃ or ℉ through the app as the temperature unit.

4. Third-party voice control, Google Assistant amazonalexa cooperation.

5. The operation of downloading the APP is convenient and simple. Product parameters:

1. Brand

2. Model: IO33H01

3. Output current: 7A (MAX 10A)

4. Working power consumption: 43mA

5. Output voltage: AC110-220V

6. Power supply voltage: AC 110-220V

7. Weight without shell: 29 grams

8. Shell size: 57×35×20mm

9. Weight without shell: 19.1 grams

10. Without shell size: 44×28×1.6mm

11. Unified line length: 50mm

12. Maximum standby power consumption: 12mA

13. Number of control channels: 1 output

14. Working temperature: -25℃~85℃

15. Working humidity: 5%~95%RH

16. Shell: high-quality shell, dustproof and flame retardant

17. Function: Delay for a period of time to stop power supply

18. Control power: 1400W (maximum) for incandescent lamps, 300W (maximum) for energy-saving lamps

19. With LED indicator light to display the working status (steady on means working, flashing means delay is over)

20. Applicable scenes: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.

21. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.

22. 16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)

Module function: This module is a delayed shutdown module. When the set delay time expires, the power supply is stopped. the

Working status: After power on, the indicator light (PWR) is always on; after the delay is over, the indicator light (PWR) will continue to flash. the

Instructions:

1: Set the time that needs to be delayed (live broadcast settings are not allowed);

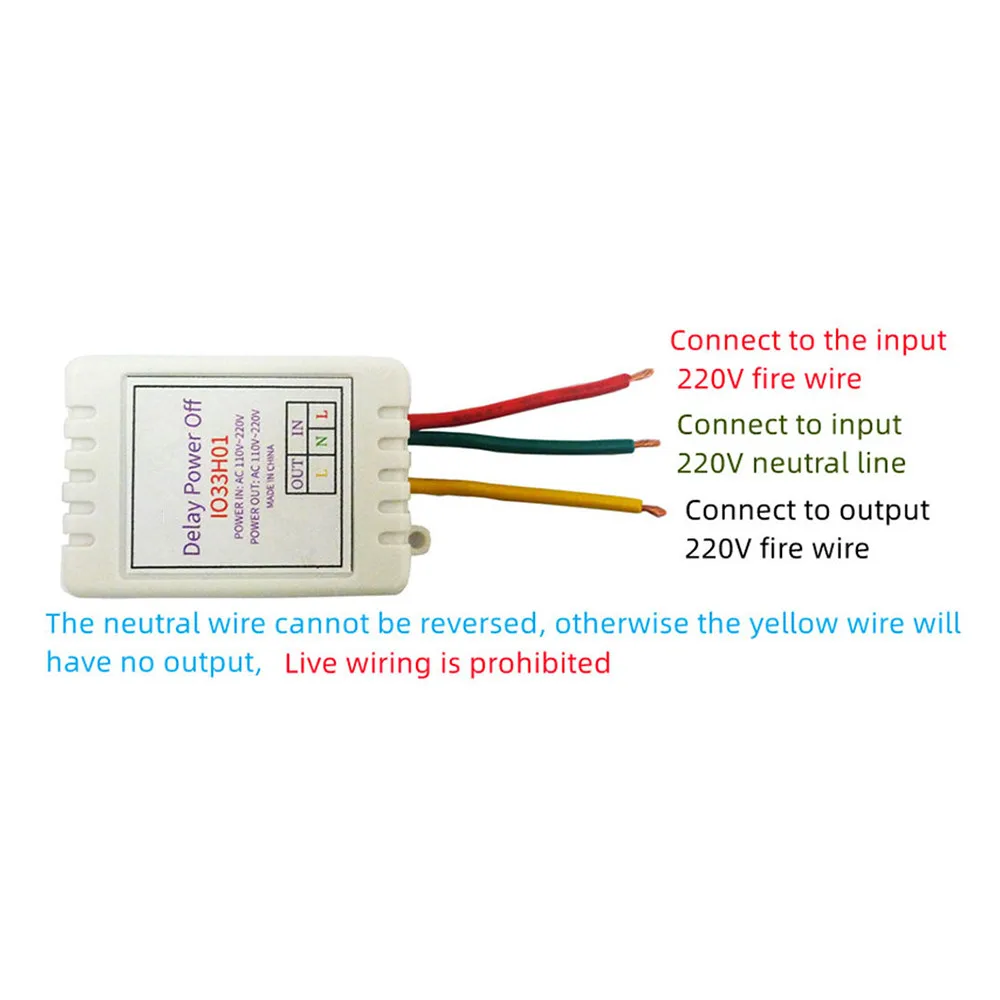

2: After checking that the wiring is correct, power on, the module starts to work after power-on (the indicator light is always on), and the module stops supplying power after the time is up (the indicator light flashes).

1. If you need to shut down in advance during use, just disconnect the main power supply of the module directly.

2. Start the second delay: power on again. the

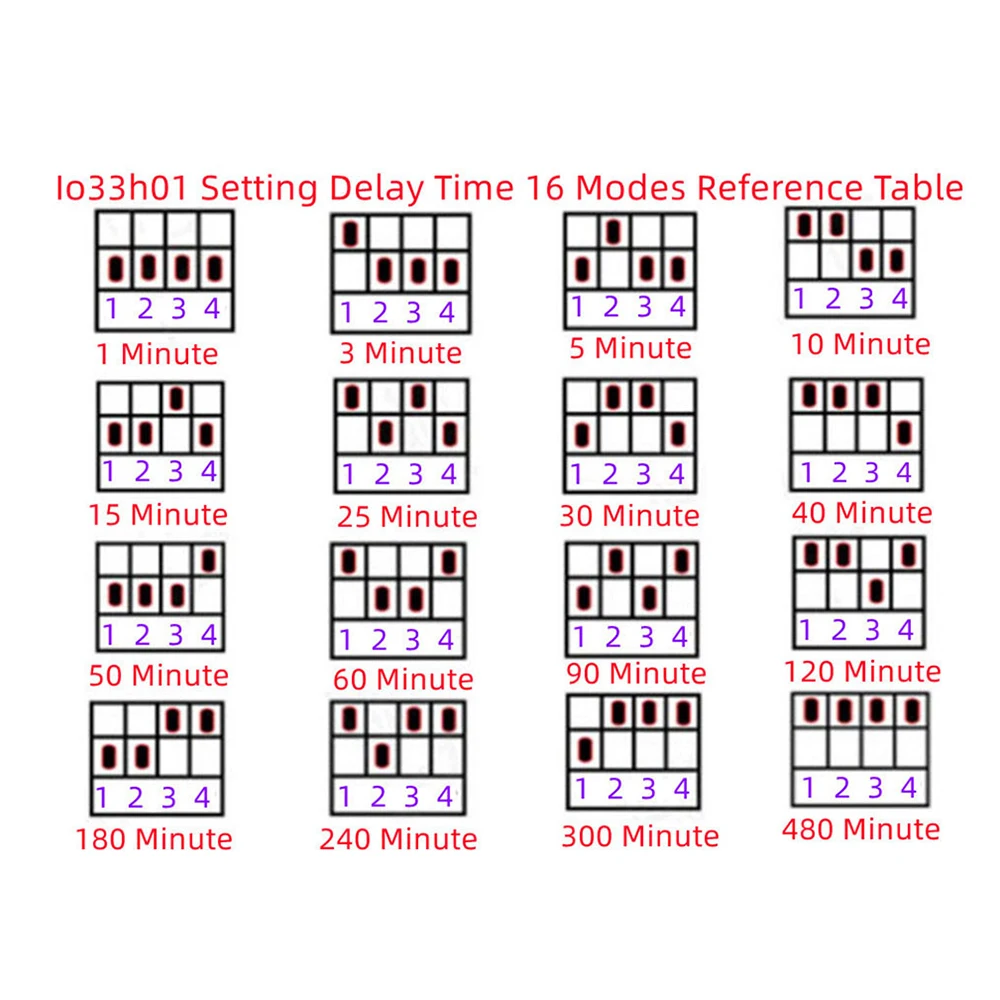

Delay time selection method:

1: Refer to the delay mode table to select the time to be delayed;

2: Toggle the dial switch (red) according to the delay mode table;

3: After setting, check the wiring, and then power on.

Note: When it is necessary to set a new delay mode, in order to ensure personal safety, it must be set to power-off mode, and live operation is prohibited.

parameter:

Input voltage: DC3V LR03*2

WiFi: 802.11b/g/n 2.4GHz

Zigbee 3.0

Working temperature: -10℃~55℃

Working humidity: 10%~90%RH

Package includes:

sensor*1

Manual*1
