Product Description

Rockwell hardness tester portable

1.Application:

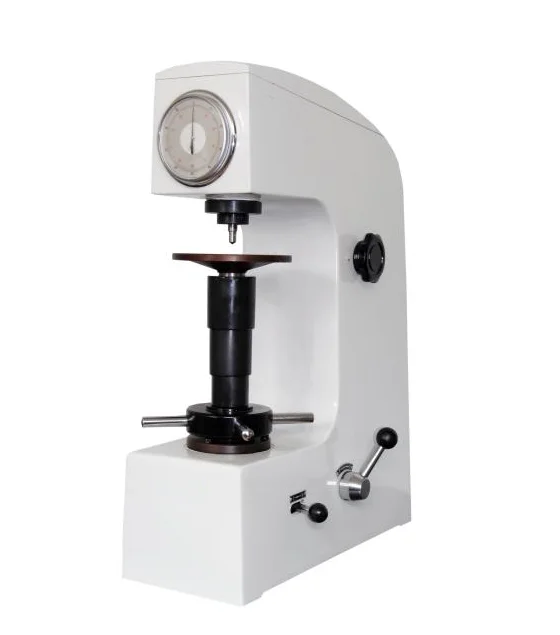

HR-150A Rockwell Hardness tester is the most common Rockwell hardness tester. It is widely used to measure the Rockwell hardness of ferrous metals, non-ferrous metals, non-metallic materials, quenched and tempered materials and other heat treatment materials. Such as hard alloy, carburized steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable castings, mild steel, tempered steel, annealed steel, bearings and other materials

Integral casting body

Part of the body of the product is formed by casting process in one time. The body is a closed shell. Except for the workbench, lead screw and control handle exposed, other institutions are installed in the body shell, which is easy to keep clean. Long - term use of shape variable is very small, and can effectively adapt to a variety of harsh environment.

Dial reading:

Dual dial, a multi-purpose machine, can measure HRA, HRB, HRC three hardness values.

Load changing handle:

Through the handle operation, control the loading and unloading of the lever, without power-on, high test efficiency.

Model	XHRD-150
Initial test force	98.07N（10kgf）
Total test force	588.4N（60kgf）、980.7N（100kgf）、1471N（150kgf)
Measuring range	20-95HRA、10-100HRBW、20-70HRC
Indicator scale	C：0—100； B：0—100
Maximum height of specimen spespecimen	170mm
Distance from indentation center to machine wall	135mm
Hardness resolution	0.5HR
Accuracy	Meet ISO6508-2 ,ASTM E18 test standard
Overall dimension
Weight	70kg

STANDARD DELIVERY

Name	Specification	Quantity
Manual Rockwell hardness tester	HR-150A	1
Diamond cone indenter		1
Carbide ball indenter	Φ1.588mm	1
Large, small and V-shaped sample stand		Each for 1
Standard hardness block	HRA、HRB	Each for 1
Standard hardness block	HRC（High, medium and low）	Each for 1
User manual,certificate, packing list		Each for 1
