Products Description
Lollipop straw Stick extrusion line/making machine /production line
1、Deedo brand series machine is composed of extruder, 2 sets of standard mould,cooling unit ,hauling and rotary cutting device(double frequency conversion speed regulator)
1、Deedo brand series machine is composed of extruder, 2 sets of standard mould,cooling unit ,hauling and rotary cutting device(double frequency conversion speed regulator)
2、Specification of screw of extruder : Diameter is 50 MM(important parts such as screw and cylinder adopts superior alloy steel with nitrogen treatment).
3、 Material : 38CrMoAIA (nitrogen treatment ,depth 0.2-0.7 meters)
4、 Diameter of Sub-screw ： 25MM ,Aspect ratio:20:1
3、 Material : 38CrMoAIA (nitrogen treatment ,depth 0.2-0.7 meters)
4、 Diameter of Sub-screw ： 25MM ,Aspect ratio:20:1
Details Images

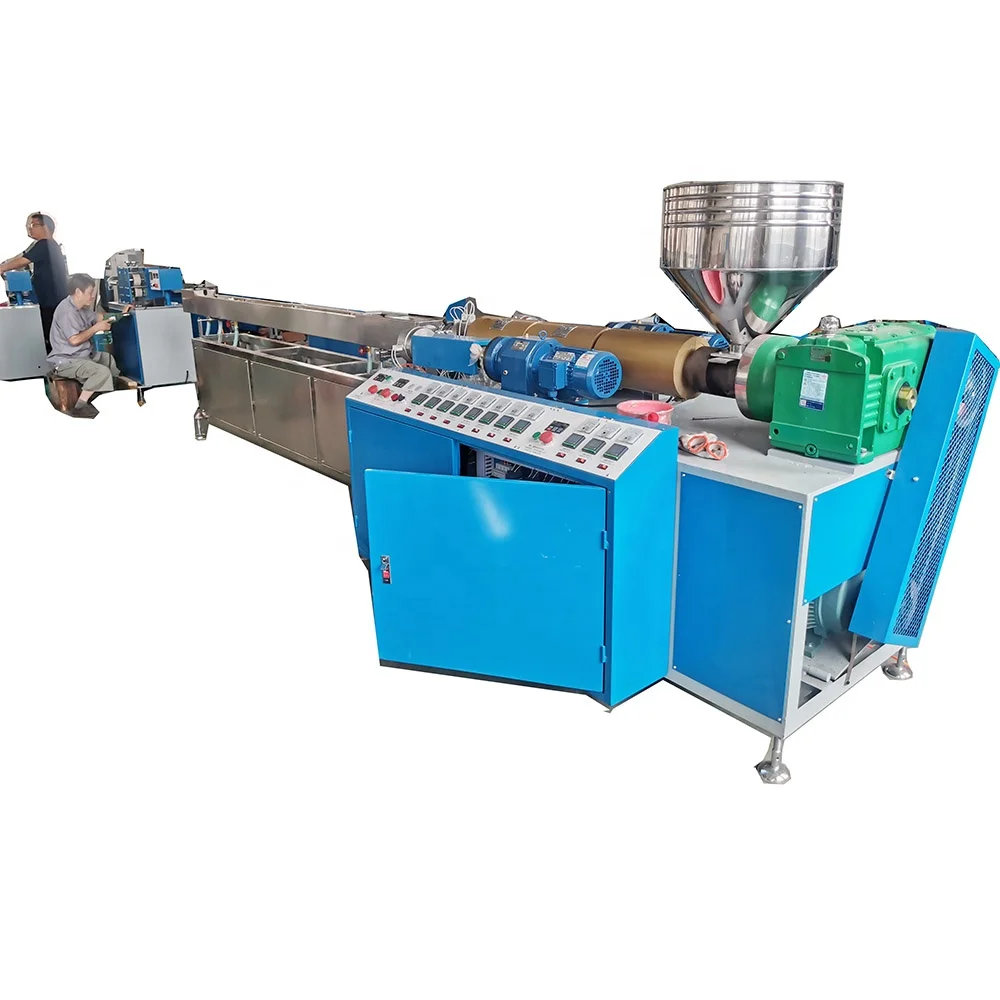

Main extruder
Die mould
Die mould and heating ring

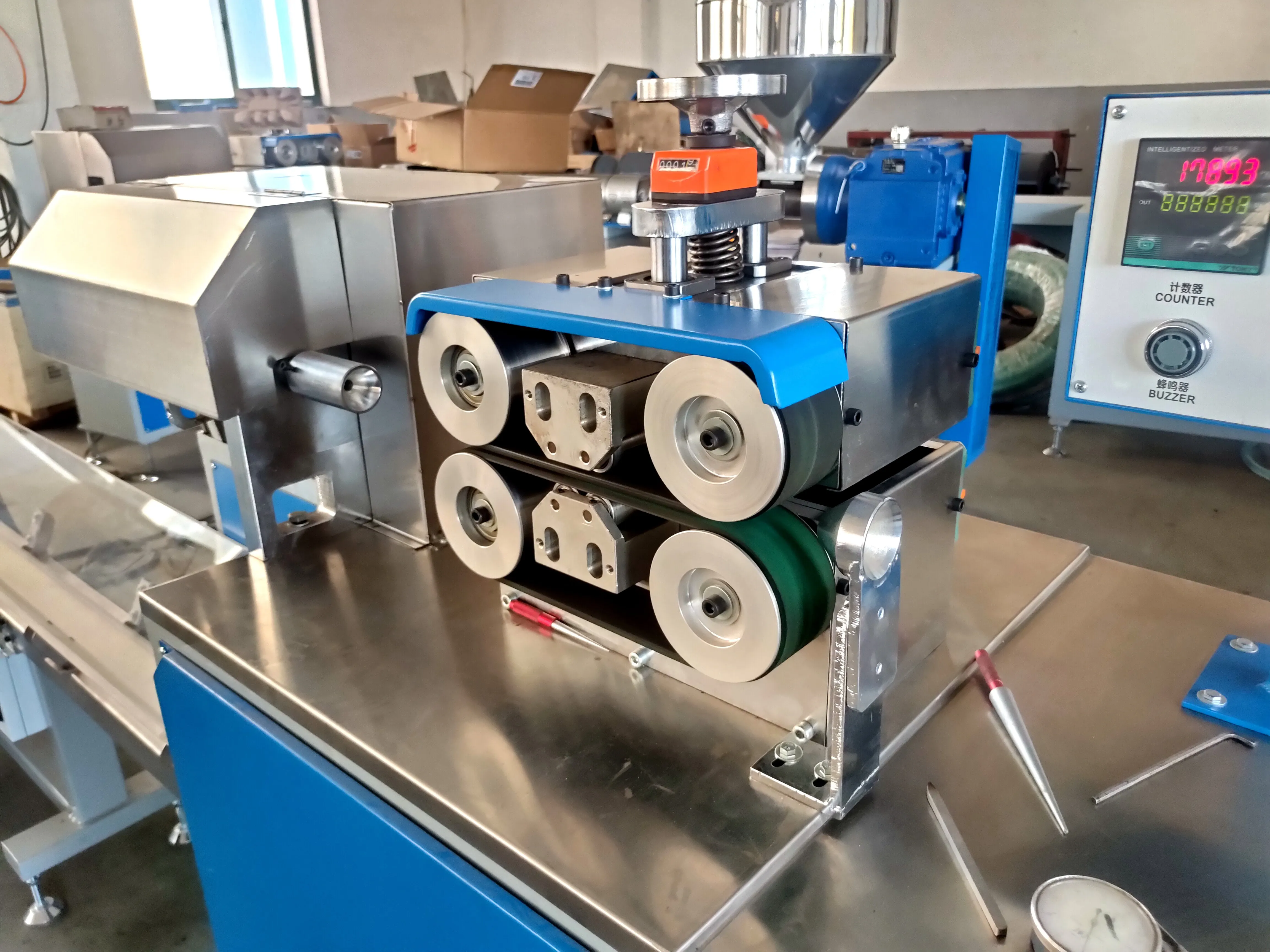

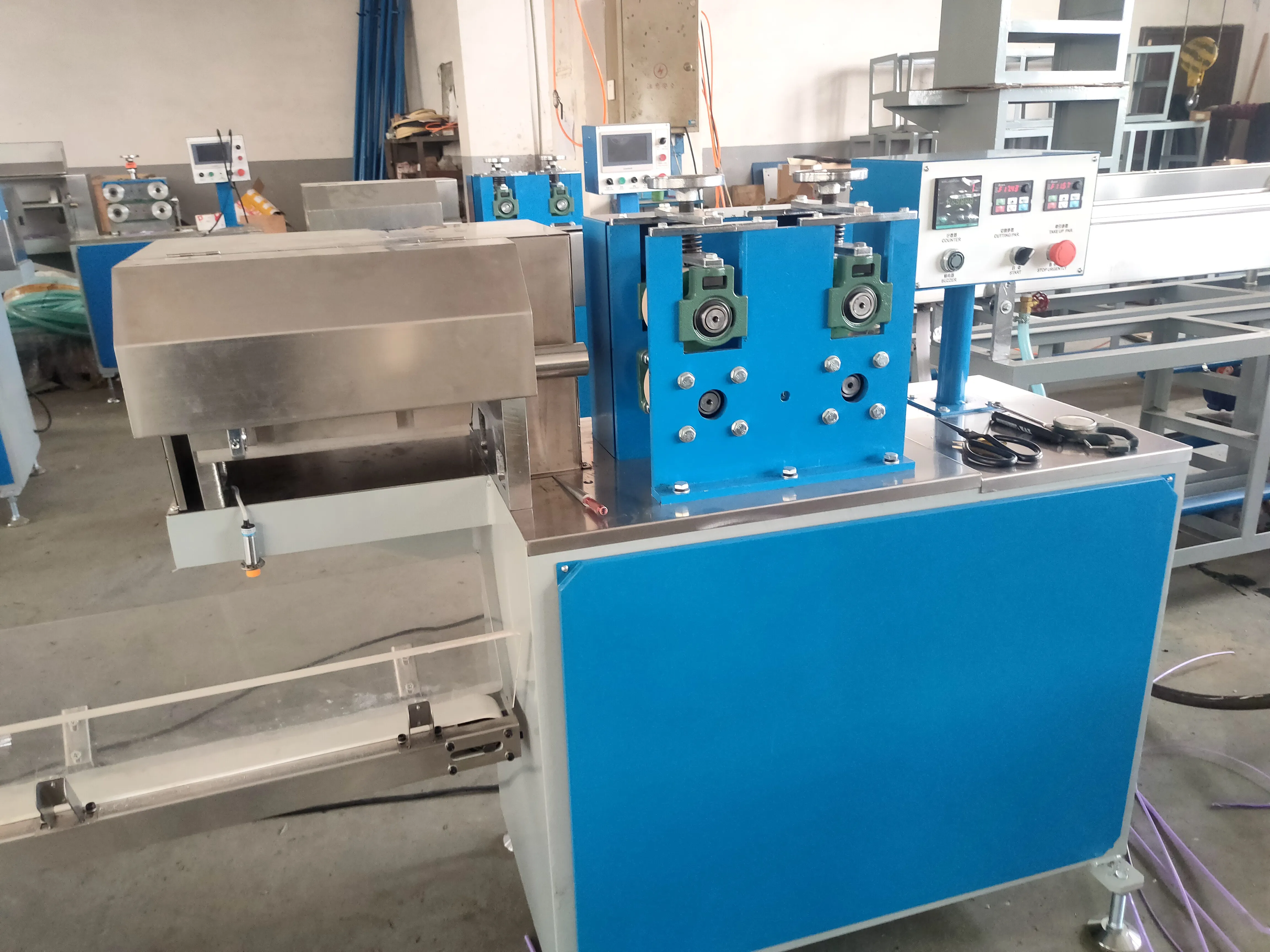

Haul-off and cutter machine
Water cooling tank
Cutter and blades
Gear box
Feeding hopper
Main Features
Plastic Stick extrusion machine | ||||||||
Name | SJ50 Plastic Stick extrusion machine | |||||||
Model | SJ50 | SJ50/25 | SJ50/25/25 | |||||
Description | 1. Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor, hauling cutting system, single color, bicolor or tricolor pipes can be realized. | |||||||
2. Main screw diameter: 50mm, important parts such as screw and cylinder adopts superior alloy steel with nitrogen treatment, 38CrMoAlA (nitrogen treatment, depth 0.2~0.7mm) | ||||||||
3. Aspect ratio: 28:1 | ||||||||
4. Diameter of sub-screw:25mm, Aspect ratio: 20:1 | ||||||||
5. Extruding power: 11kw (frequency conversion control) | ||||||||
6. The die undergoes nitride hardening treatment for a long service time | ||||||||
7. The water tank and the surface of cutting machine are made of 304 stainless steel | ||||||||
8. The main extruder’s screw designed to suit plastic material specified. Tube dies head assembly manufactured in tool steel. | ||||||||
9. All the electrical parts use SCHNEIDER or SIEMENS or Delta | ||||||||
Power Supply | Main screw | 380v ,3phase,50hz,7.5kw(VFD) | ||||||
Sub-screw | / | 0.75kw | 0.75×2kw | |||||
Heating | 7kw | 9.56kw | 12kw | |||||
Hauling motor | 0.75kw(VFD) | |||||||
Cutting motor | 0.75kw(VFD) | |||||||
Total power | 16.5kw | 20kw | 22.5kw | |||||
Temperature Controller | 5 sets | 8 sets | 11 sets | |||||
Electric control cabinet | 1 set | 1 set | 1 set | |||||
Automatic Counting Device | 1 set | 1 set | 1 set | |||||
Way of Hauling | By rubber roller | |||||||
Way of cutting | Rotatory cutting length range 50-300mm | |||||||
Cooling water tank | Usually 4.4m, can be adjusted up&down, right &left, forward&backward. Made of superior stainless teel | |||||||
Option | Vacuum pump (0.75kw) | Air compressor (2kw) | ||||||
Sticks Sepc | Material | PLA PP PE etc | ||||||
Stick Diameter | 2mm~13mm can be custiomized for special requirement | |||||||
Stick Length | Customizable | |||||||
Speed | 600~1000pcs/min (product rate : 20kg/h-30kg/h | |||||||
Color | Single | Two colors | Three colors | |||||
Straight or spiral | √ | √ | √ | |||||
Cutting End | 90°/90°,90°/45°,90°/60°,45°/45°,60°/60 | |||||||
Dimension | L*W*H | 8m*1m*1.7m | 8m*1.5m*1.7m | 8m*2m*1.7m | ||||
Weight | 1500kg | 1700kg | 2000kg | |||||

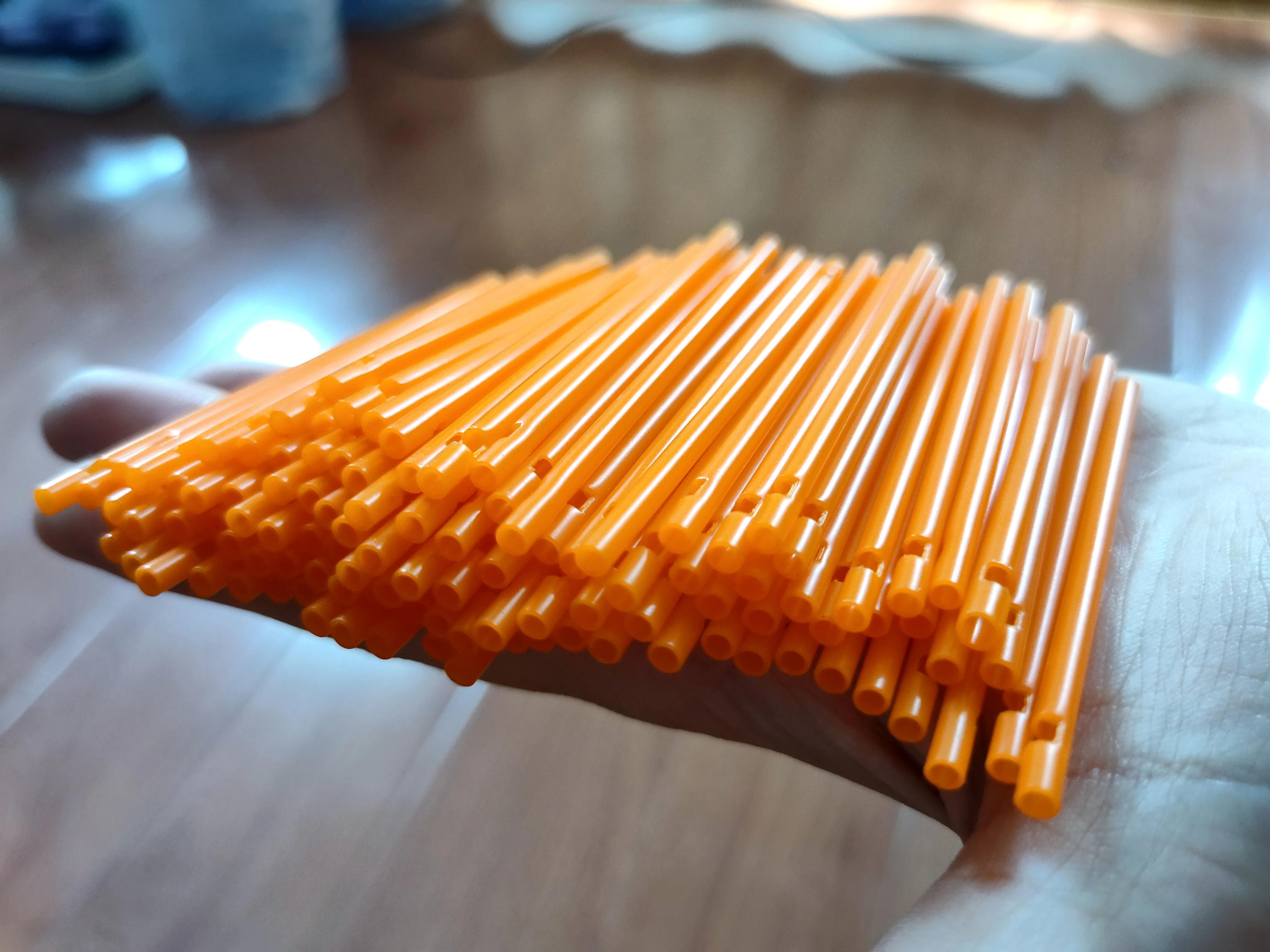

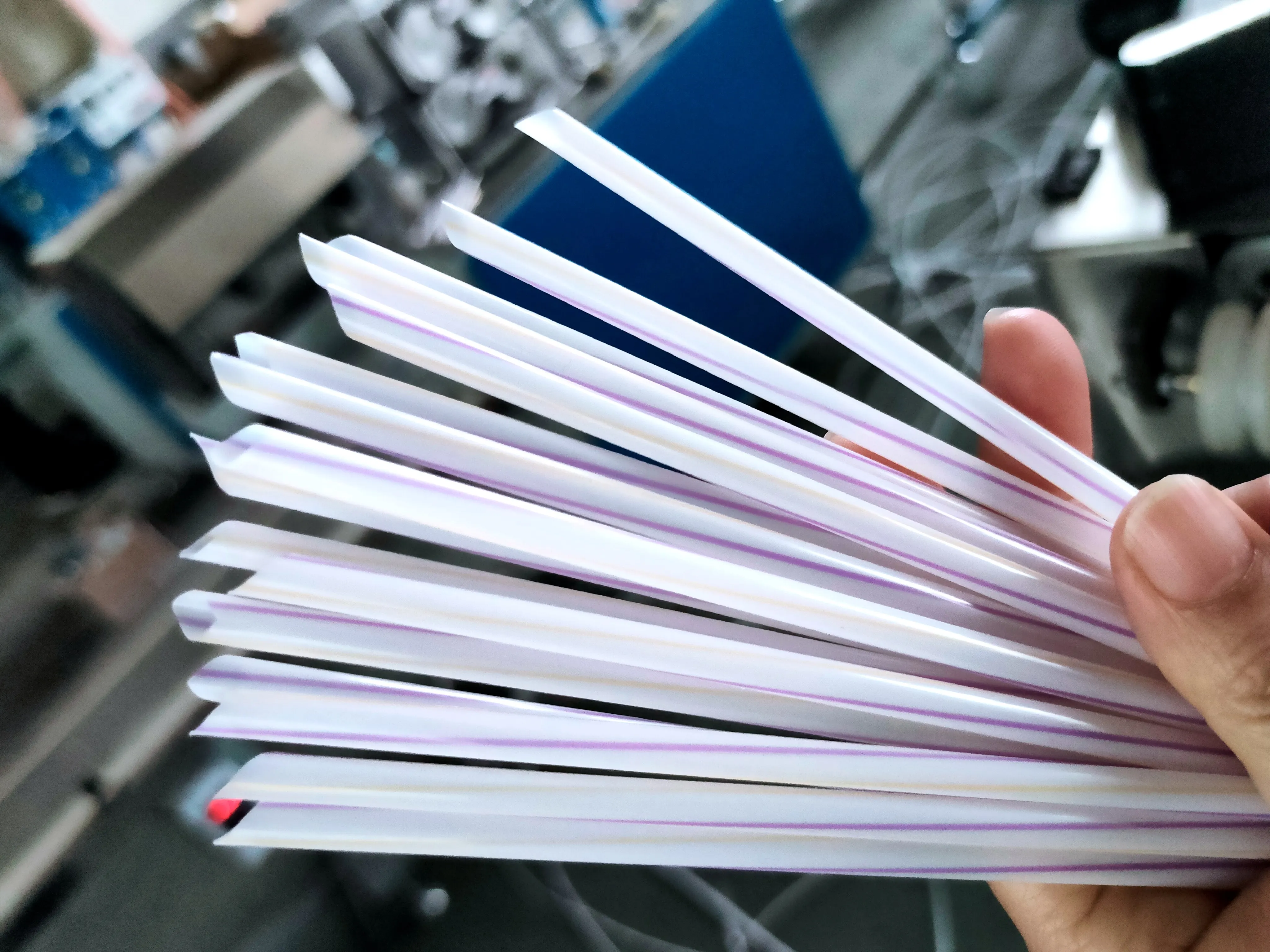

Final Product
