Сферический концевой подшипник из нержавеющей стали с наружным диаметром (головка) 20 мм
- Категория: Rod End Bearings >>>
- Поставщик: Shanghai,Chenghui,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4.88 $* | 4.82 $* |
| Jul-19-2025 | 3.79 $* | 3.28 $* |
| Jun-19-2025 | 4.92 $* | 4.64 $* |
| May-19-2025 | 4.9 $* | 4.48 $* |
| Apr-19-2025 | 3.28 $* | 3.15 $* |
| Mar-19-2025 | 4.65 $* | 4.44 $* |
| Feb-19-2025 | 4.79 $* | 4.58 $* |
| Jan-19-2025 | 4.26 $* | 4.74 $* |
Характеристики

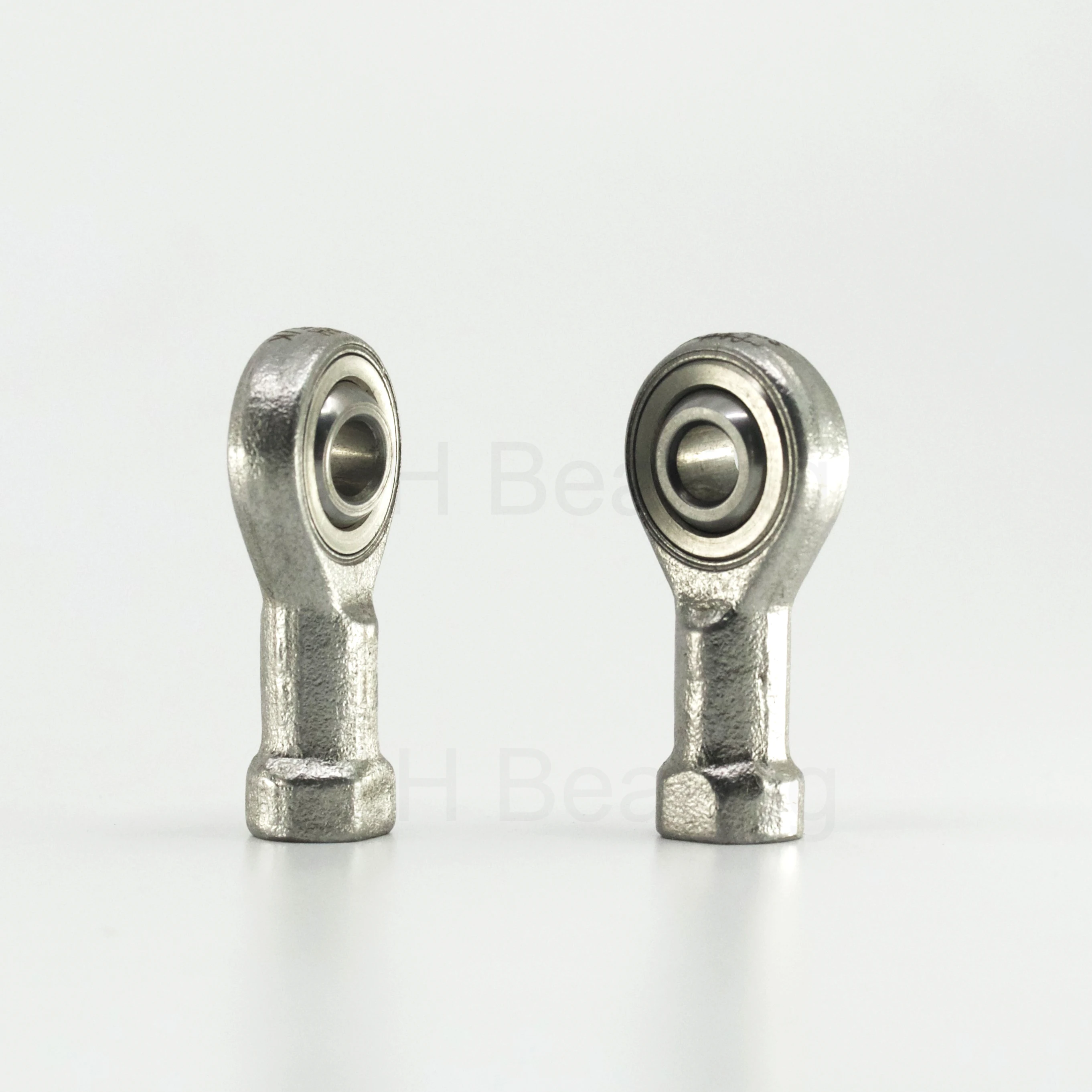

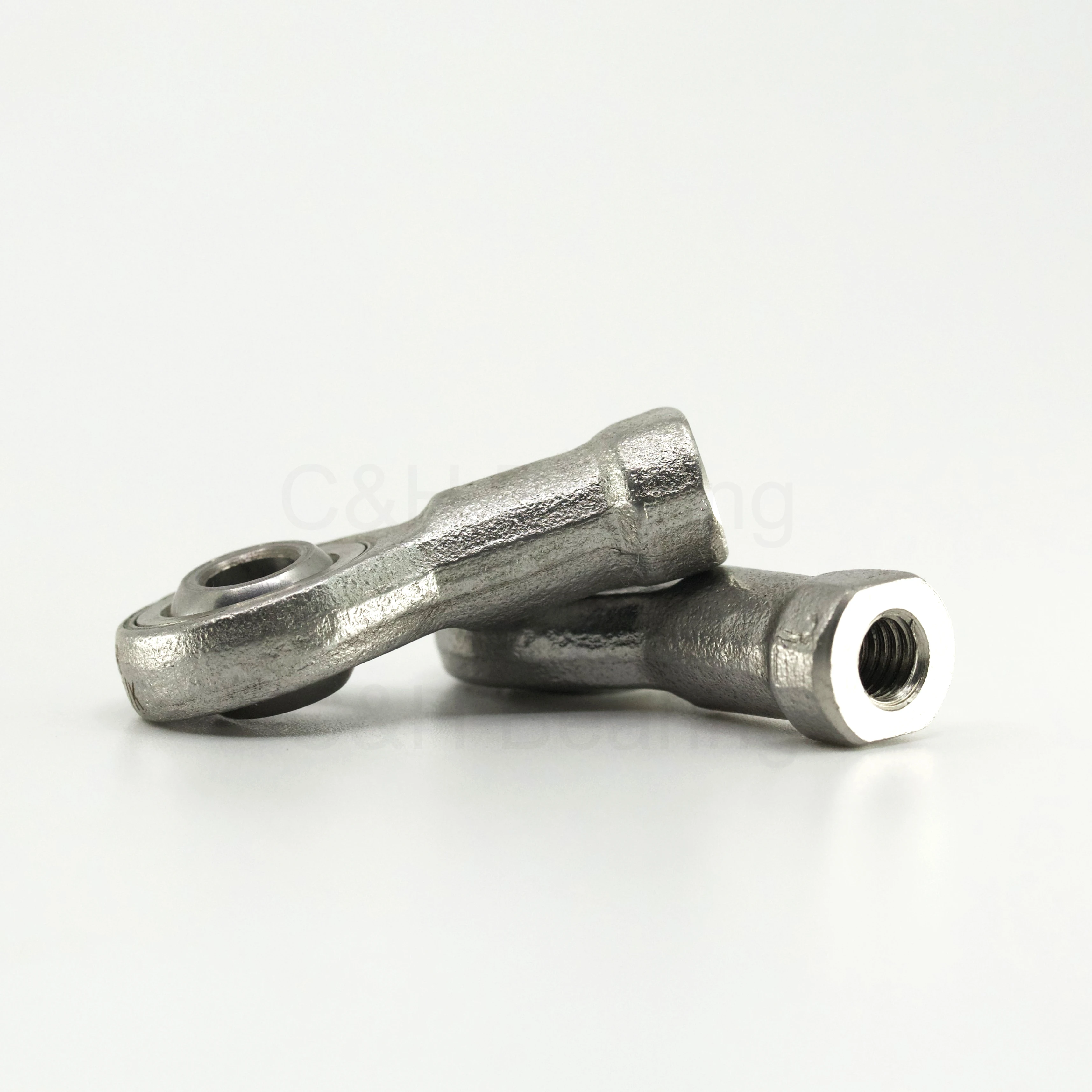

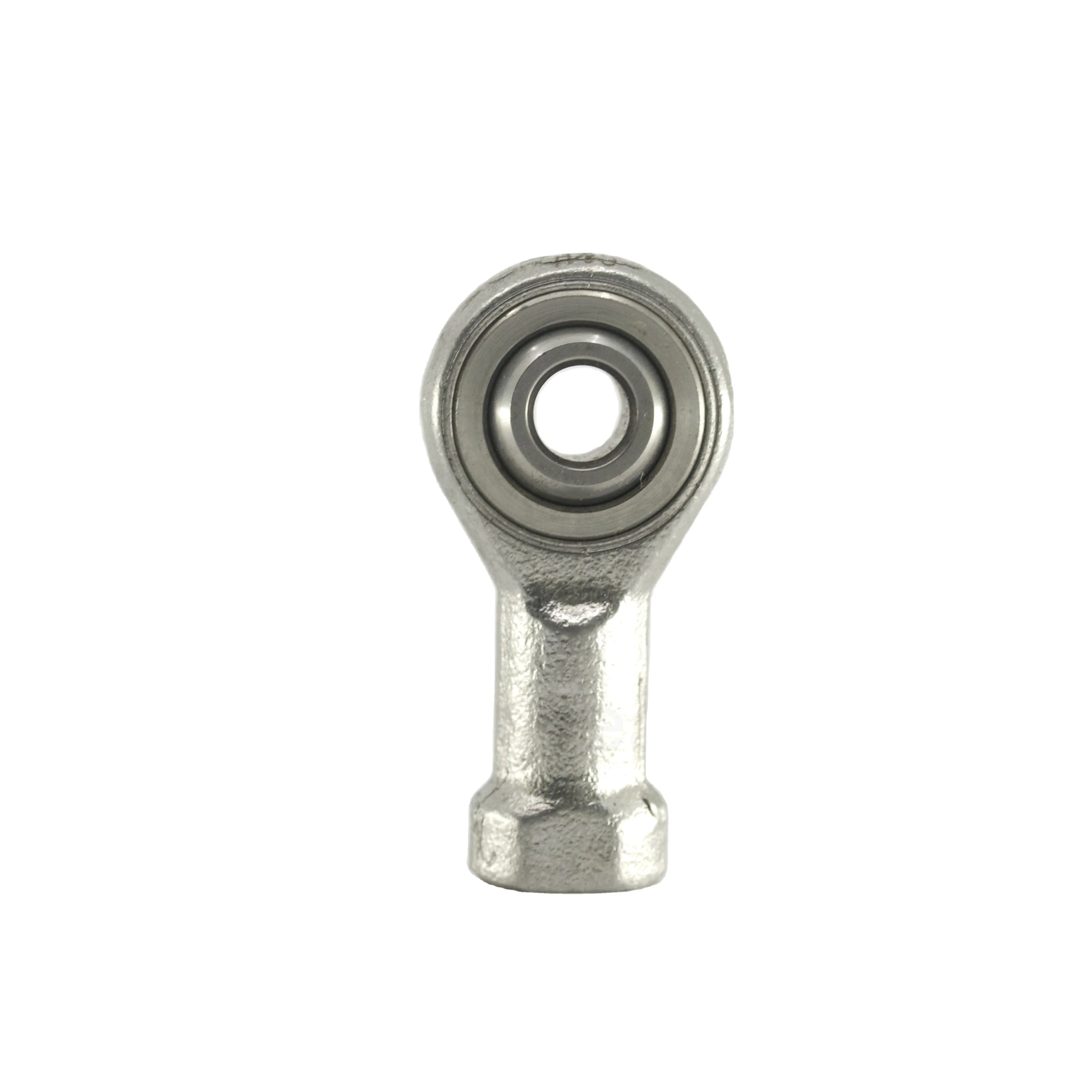

SSI6TK Series Rod End Bearing
SSI6TK Series rod ends bearings are made up of a maintenance-free radial spherical plain bearing G..PW 2RS and rod body with female thread.
 |  |
Features • Sliding contact surface: steel/PTFE • Lubricating: Maintenance-free • Housing: stainless steel • Outer ring: stainless steel • Inner ring: stainless steel |  |
| ITEM | Dimension(mm) | Loading ratings (KN) | Weight | |||||||||||
| Right hand | Left hand | d | d3 | B | C1 | L3 | d2 | h1 | L4 | d4 | a | Dynamic | Static | kg |
| 6H | min | ≈ | ||||||||||||
| SSI5T/K | SSIL5T/K | 5 | M5x0.8 | 8 | 6 | 10 | 18 | 27 | 36 | 8.5 | 13 | 4.6 | 4.8 | 0.016 |
| SSI6T/K | SSIL6T/K | 6 | M6x1.0 | 9 | 6.75 | 12 | 20 | 30 | 40 | 10 | 13 | 6.1 | 6.5 | 0.022 |
| SSI8T/K | SSIL8T/K | 8 | M8x1.25 | 12 | 9 | 16 | 24 | 36 | 48 | 12.5 | 14 | 8.5 | 9.5 | 0.047 |
| SSI10T/K | SSIL10T/K | 10 | M10x1.5 | 14 | 10.5 | 20 | 28 | 43 | 57 | 15 | 13 | 9.7 | 12 | 0.077 |
| SSI10-1T/K | SSIL10-1T/K | 10 | M10x1.25 | 14 | 10.5 | 20 | 28 | 43 | 57 | 15 | 13 | 9.7 | 12 | 0.077 |
| SSI12T/K | SSIL12T/K | 12 | M12x1.75 | 16 | 12 | 22 | 32 | 50 | 66 | 17.5 | 13 | 10.6 | 15 | 0.1 |
| SSI12-1T/K | SSIL12-1T/K | 12 | M12x1.25 | 16 | 12 | 22 | 32 | 50 | 66 | 17.5 | 13 | 10.6 | 15 | 0.1 |
| SSI14T/K | SSIL14T/K | 14 | M14x2.0 | 19 | 13.5 | 25 | 36 | 57 | 75 | 20 | 16 | 17 | 22 | 0.16 |
| SSI14-1T/K | SSIL14-1T/K | 14 | M14x1.5 | 19 | 13.5 | 25 | 36 | 57 | 75 | 20 | 16 | 17 | 22 | 0.16 |
| SSI16T/K | SSIL16T/K | 16 | M16x2.0 | 21 | 15 | 28 | 42 | 64 | 85 | 22 | 15 | 19.7 | 27 | 0.22 |
| SSI16-1T/K | SSIL16-1T/K | 16 | M16x1.5 | 21 | 15 | 28 | 42 | 64 | 85 | 22 | 15 | 19.7 | 27 | 0.22 |
| SSI18T/K | SSIL18T/K | 18 | M18x1.5 | 23 | 16.5 | 32 | 44 | 71 | 93 | 25 | 15 | 31.3 | 35 | 0.32 |
| SSI20T/K | SSIL20T/K | 20 | M20x1.5 | 25 | 18 | 33 | 50 | 77 | 102 | 27.5 | 14 | 29.8 | 40 | 0.42 |
| SSI22T/K | SSIL22T/K | 22 | M22x1.5 | 28 | 20 | 37 | 54 | 84 | 111 | 30 | 15 | 40.2 | 48 | 0.54 |
| SSI25T/K | SSIL25T/K | 25 | M24x2.0 | 31 | 22 | 42 | 60 | 94 | 124 | 33.5 | 15 | 44 | 55 | 0.72 |
| SSI28T/K | SSIL28T/K | 28 | M27x2.0 | 35 | 24 | 51 | 66 | 103 | 136 | 37 | 15 | 52.2 | 65 | 0.82 |
| SSI30T/K | SSIL30T/K | 30 | M30x2.0 | 37 | 25 | 51 | 70 | 110 | 145 | 40 | 17 | 60.2 | 78 | 1.1 |
| SSI30-1T/K | SSIL30-1T/K | 30 | M27x2.0 | 37 | 25 | 51 | 70 | 110 | 145 | 40 | 17 | 60.2 | 78 | 1.1 |

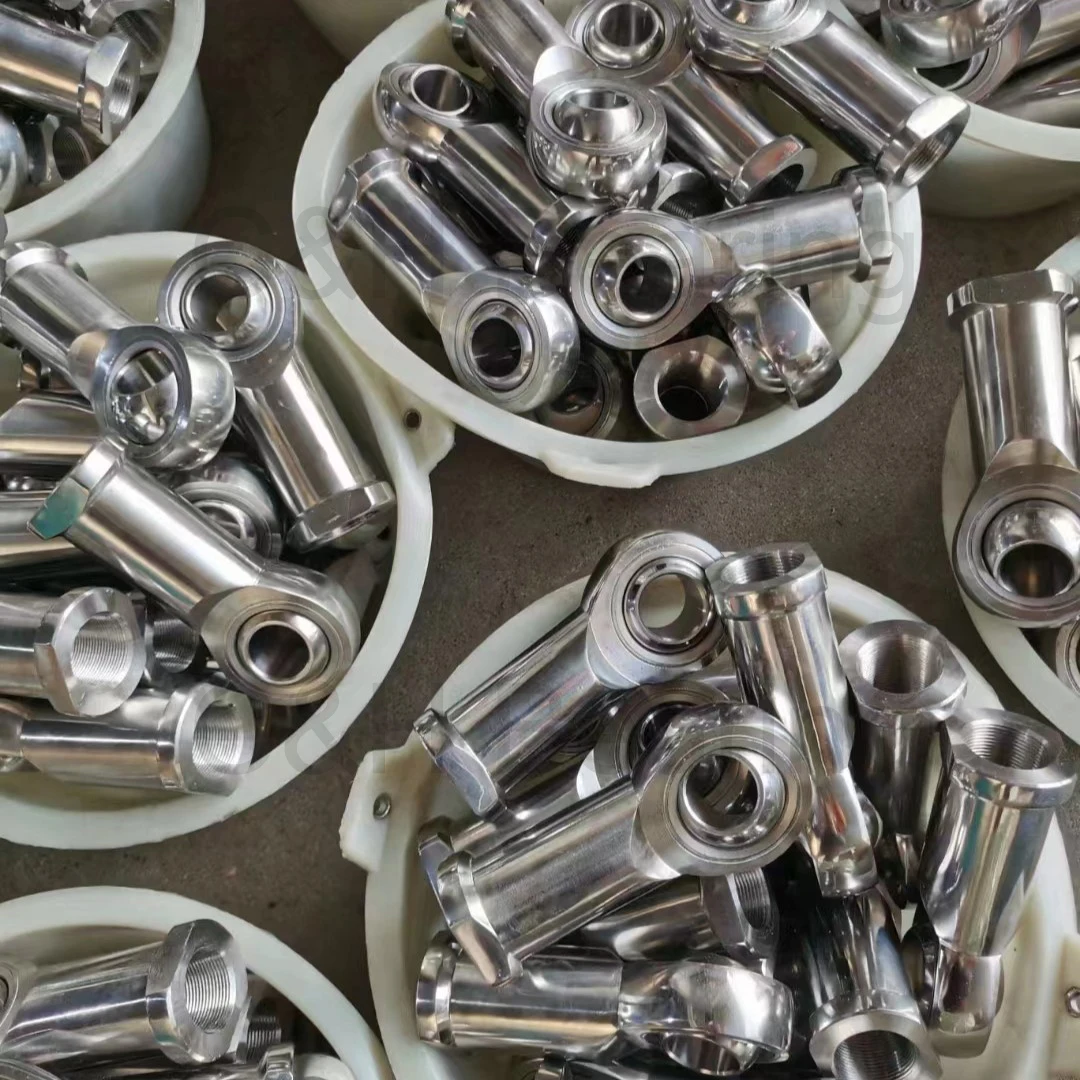

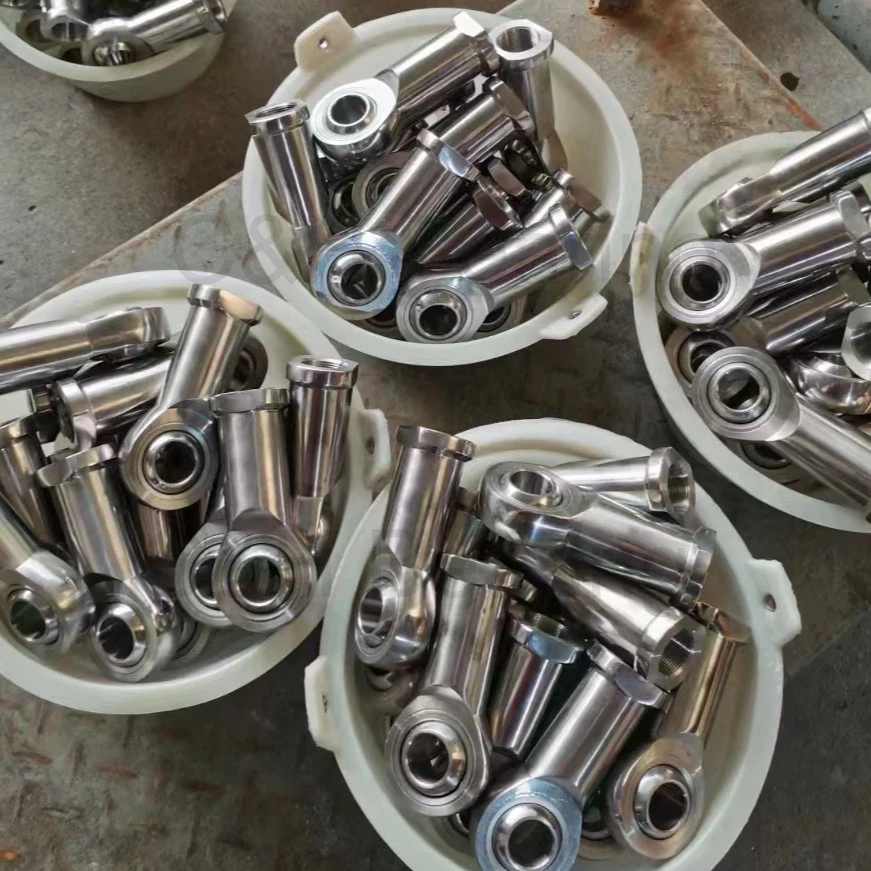

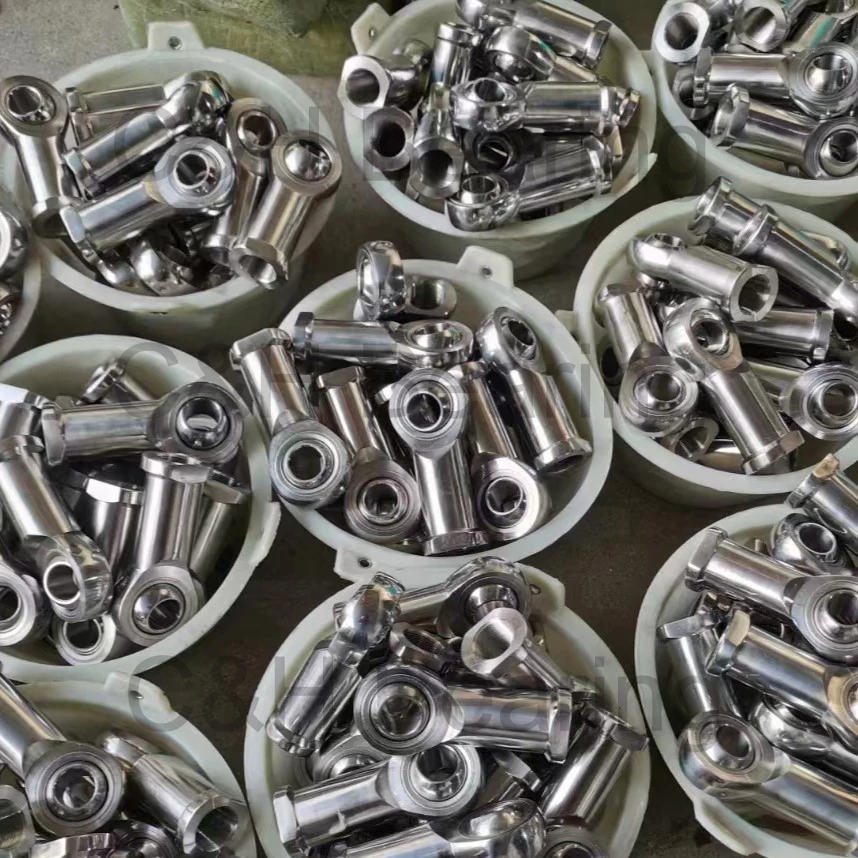

Factory Shows
Application
A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
Stick and bucket cylinders for hydraulic excavators
Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
Packing & Delivery
Our products will be delivered by a papaer box with a complete and perfect angle as well as surface.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2006, sell to South America (81.00%), Eastern Europe (8.50%), Eastern Asia (5.00%), Western Europe (4.00%), Mid East (0.80%), North America (0.50%), Southeast Asia (0.20%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.what can you buy from us?
ball joint,rod end,pillow block bearing,track roller,guide wheel.
4. why should you buy from us not from other suppliers?
Shanghai Chenghui Bearings Co.,Ltd only focus on premium quality bearings. C&H only use the best material and components, use best equipment. We commit to supply customer high performance bearing product with competitive prices.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese.
