Простые высокоскоростные 1 2 м светодиодные машины SMT для всех видов светодиодных фонарей smd led
- Категория: Industrial Machinery >>>
- Поставщик: Shenzhen,Leadsmt,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 23800.1 $* | 24990.17 $* |
| Aug-17-2025 | 23600.50 $* | 24780.11 $* |
| Jul-17-2025 | 19800.68 $* | 20790.33 $* |
| Jun-17-2025 | 23200.19 $* | 24360.51 $* |
| May-17-2025 | 20200.81 $* | 21210.71 $* |
| Apr-17-2025 | 22800.87 $* | 23940.18 $* |
| Mar-17-2025 | 22600.81 $* | 23730.96 $* |
| Feb-17-2025 | 22400.46 $* | 23520.2 $* |
| Jan-17-2025 | 22200.12 $* | 23310.69 $* |
Характеристики
Product Overview
simple high speed 1.2m led pick and place machine SMT machines for all kinds of
LED lights smd led PCB LED-2208P
1. this semi-auto 1.2m led pick and place machine ,8 heads .40000cph ,for 1.2m led tube PCB,and many different types smd led PCB ,no limitation .
contact : Alice mobile/ whatsapp no/wechat no: +86 139 2458 9253
FEATURES AT A GLANCE
machine output products
PRODUCT SPECIFICATIONS
No | Item | specification | ||||
1 | Model | LED-2208P | ||||
2 | Working Type | semi-auto | ||||

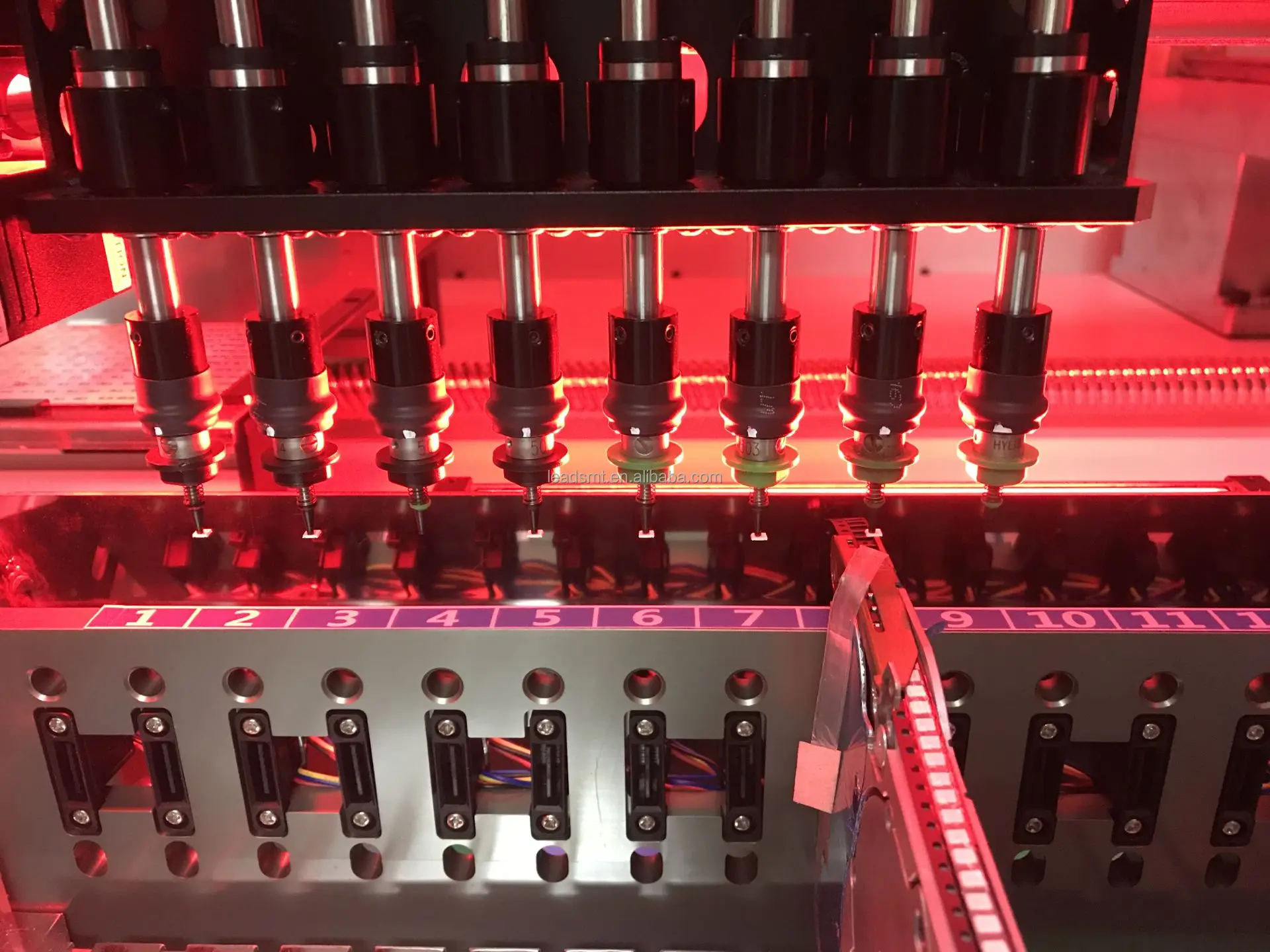

3 | Mounting Heads | 8 Pieces | ||||
4 | Stable practical Speed | 40000cph | ||||
5 | Max Speed | 50000cph | ||||
6 | Position Accuracy | ±0.03mm With 5 million pixels position Sony cameras | ||||
7 | Placement accuracy | ±0.05mm,with visual pick up check cameras for each nozzle, visual flying cameras adopt 3 millions pixels Visual Sony CCD cameras . | ||||
8 | Max moving range(X,Y) | X axis 1220mm, Y axis 430mm | ||||
9 | Z axis max moving range | 15mm | ||||
10 | Position and programming Method | 1.Keyboard and mouse input 2.Vision Mark Points Position recognition. 3.PCB Gerber file input | ||||
11 | Max Mounting PCB size | 1200mm*300mm(in One cycle) | ||||
12 | Mounting components type | Including and above 0402 smd components like resistors ,ics ,smd capacitors,all kinds of leds such as 2835,3014,3030, 4040, 5050, 5630,5730,7070 and high powers leds,resistor like 0603,0805 etc. | ||||
13 | No. of Feeder Positions | 16 Pieces of electric feeder Positions | ||||
14 | Feeder sizes available | 8mm,12mm,16mm, 24mm ,32mm | ||||
15 | Operation System | Windows 7. | ||||
16 | Pressure detective system | Negative air pressure detective system with digital display . | ||||
17 | Vacuum acceleration and system stability | Equipped with 4 sets of vacuum pumps with air blow acceleration system and stable pressure for components pick up . | ||||
18 | Weight | Approx 1000kg | ||||
19 | Power Supply | Single Phrase ,220Vac, 50/60Hz,1.8KW | ||||
20 | Dimensions | 181CM(L)*118CM(W)*162CM(H) | ||||
Successful Project
Exhibition

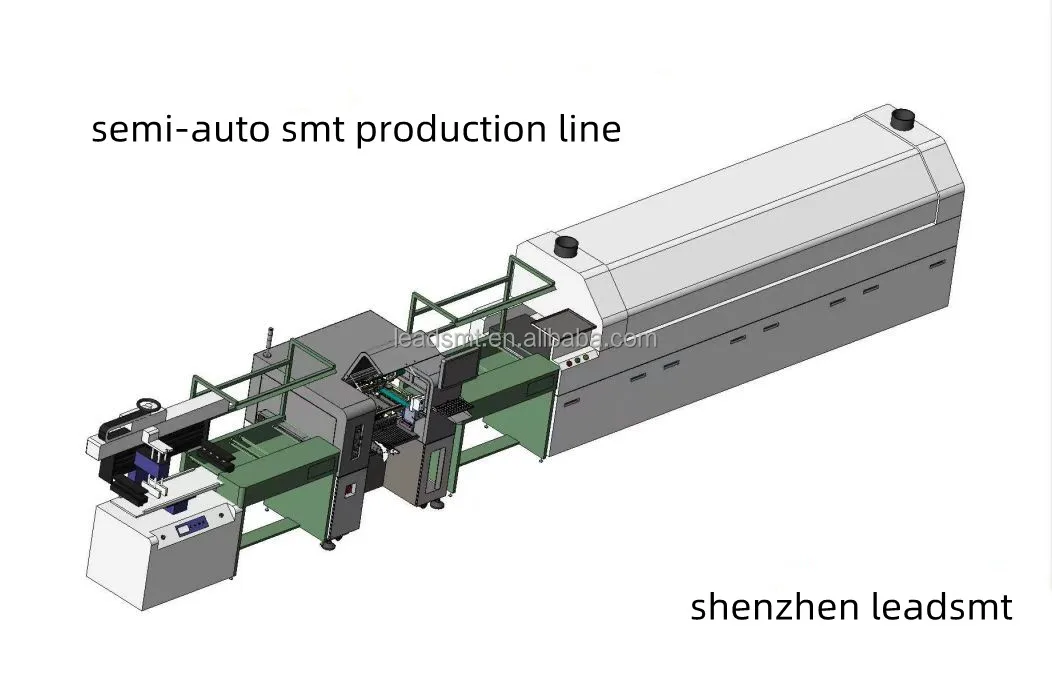

smt complete line-printer +pick and place machine +reflow oven
FAQ
Q1：does your company produce complete smt lines ,printer +pick&place + reflow oven ?
A1 : yes , our company produce complete smt line machine , printer and pick and place machine and reflow oven , we are the only one factory in shenzhen which produce smt whole line machines .
Q2.: Is this machine Online Automatic ?
A2: Yes, Lead-2208L is online automatic Smd pick and place machine ,need connection with smt link conveyor with SMEMA signal .
A2: Yes, Lead-2208L is online automatic Smd pick and place machine ,need connection with smt link conveyor with SMEMA signal .
Q3 : What is the max sizes board/pcb can the machine work for ?
A3 : The LEAD-2208L machine can work for max PCB size 1200* 300 mm
A3 : The LEAD-2208L machine can work for max PCB size 1200* 300 mm
Q4: Can this machine work for led drivers and other electronics ?
A4:Yes, it can work for smd pcb for led drivers and also can work for battery charges , mobile display ,e-cigarette control device ,appliance control board etc .
A4:Yes, it can work for smd pcb for led drivers and also can work for battery charges , mobile display ,e-cigarette control device ,appliance control board etc .
Q5:How is your after-sales services ?
A5: Leadsmt have more than 12 years experiences on machines after-sales services ,we have engineer for overseas installation and training services ,already train more than 200 smt machines expert around the world .we have core technical Engineer in smt machines manufacture .
Q6: Is this machine easy for operation ? i afraid i can not run it well by myself .
A6: It does not matter, we can train you step by step until you get it .Leadsmt after-sales team really with practical experiences and counter with different levels skill operators around the world, we have confident to get you trained as expert
A6: It does not matter, we can train you step by step until you get it .Leadsmt after-sales team really with practical experiences and counter with different levels skill operators around the world, we have confident to get you trained as expert
