Характеристики



35W dual C PD fast charging solution

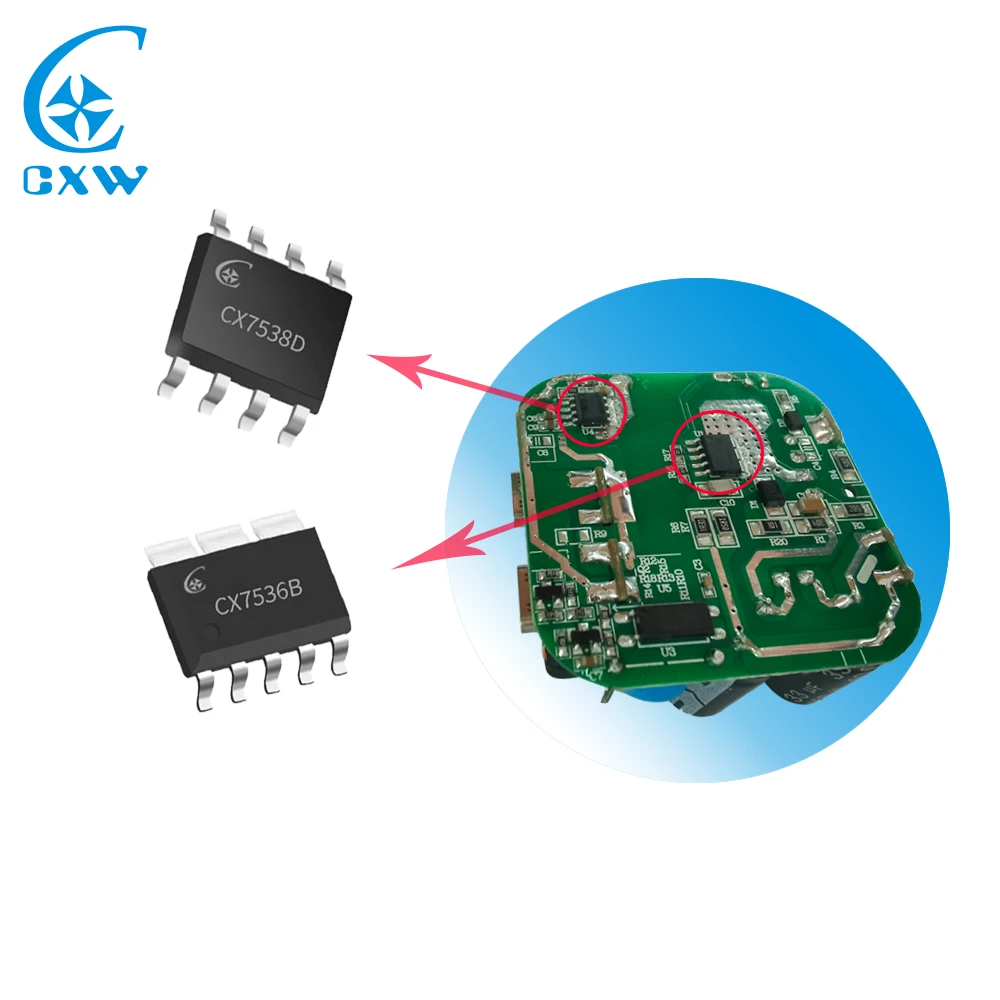

AC Circuit: CX7536B super silicon chip + CX7538D synchronous rectification

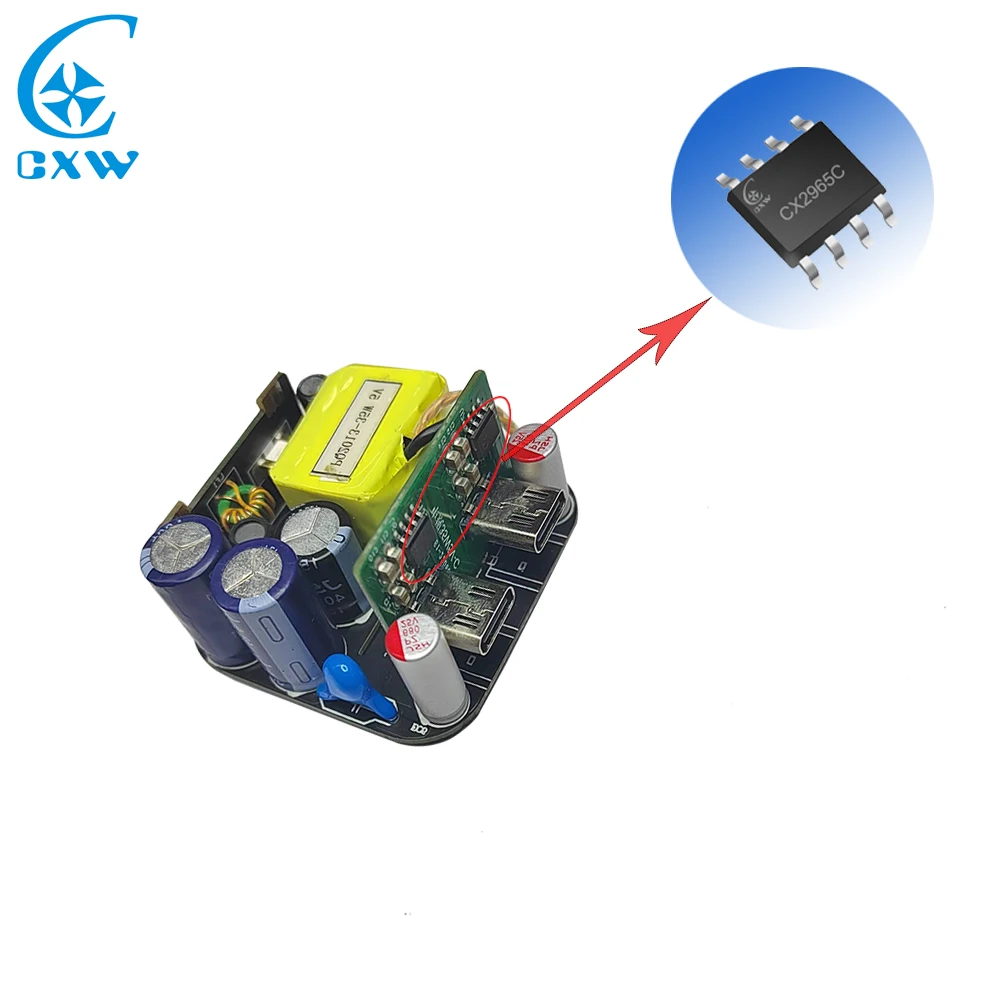

DC Circuit: CX8523 buck chip + CX2965C protocol chip


Summary
● The solution supports protocols such as QC2.0/3.0, CHARGE TURBO 27WFCP, SCP, HVSCP, AFC, VOOC 2.0/4.0, USB BC1.2 DCP, and Apple 2.4A, and supports online upgrade of protocol chips.

The maximum output voltage is 20V, which can charge lightweight devices such as iPhone, iPad, and HomePod



Specific parameters of 35W USB-C port PD fast charging scheme
Input: 90-264V 50/60HZ 0.8A (MAX)

USB-C1 single port output: 35W
5V3A / 9V3A / 12V2.92A / 15V2.33A / 20V1.75A 35W (Max)

USB-C2 single port output: 35W
5V3A / 9V3A / 12V2.92A / 15V2.33A / 20V1.75A 35W (Max)

USB-C1+USB-C2 output: 35W (Max)
5V3A / 9V2A / 12V1.5A


Single C port independent blind insertion 35W, dual C ports simultaneously fast charging, power allocation customizable


C1
C2
 total power
35W
--
35W
--
35W
35W
25W
10W
35W
20W
15W
35W
15W
20W
35W




Recommend Items


CX7536B
Standby power consumption: < 75mW
Operating mode: SSR
Control mode: built-in MOS (switching frequency 85KHz)
Application: Full voltage 40W power adapter, PD/QC charger
Package: ESOP-6
CX7538C
Standby power consumption: < 200KHz
Working mode: CCM/DCM/QR
Control mode: built-in MOS, voltage endurance 100V Application: 18W/20W/22.5W PD charger/adapter
Rds(on):10mR


CX8523
Withstand voltage: 30V
Output voltage: ADJ
Output current: 3.6A
Working mode: synchronization
Package: SOP-8
CX2935
Protection function: OVP/UVLO/OCP/OTP
Built-in MOS Rds (On): dual C-port buck protocol chip
Support protocol: QC2.0/3.0/CHARGE TURBO 27WFCP/SCP/HVSCP/AFC/VOOC 2.0/4.0/MediaTek PE protocol/USB BC1.2 DCP/Apple 2.4A
Typical applications: 5V, 9V, 12V, 15V, 20V
Package: QFN4x4-16L
