Горный дизельный локомотив электрический для широкоформатного стального рельса 3
- Категория: Locomotive >>>
- Поставщик: Yimei,Machinery,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 18802.44 $* | 19742.41 $* |
| Aug-19-2025 | 18644.0 $* | 19576.94 $* |
| Jul-19-2025 | 15642.46 $* | 16424.37 $* |
| Jun-19-2025 | 18328.87 $* | 19244.10 $* |
| May-19-2025 | 15958.59 $* | 16756.11 $* |
| Apr-19-2025 | 18012.96 $* | 18913.38 $* |
| Mar-19-2025 | 17854.31 $* | 18747.96 $* |
| Feb-19-2025 | 17696.82 $* | 18581.80 $* |
| Jan-19-2025 | 17538.46 $* | 18415.41 $* |
Характеристики
Company Profile
Products Description
Introduction of CCG 3.0/600J (B) Mining Diesel Locomotive Electric Diesel Locomotive for Wide Gauge Steel Rail
Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction. Mine explosion-proof drum & rail locomotive diesel engine series, is in line with the ideal of coal mine production safety transportation equipment. It is reasonable structure, compact, energy saving, high efficiency, easy operation and maintenance, frame lines motor vehicle, motorcycle batteries, compared does not need to set up traction power, do not need AC power and charging equipment.zmwm02
Product Paramenters
Parameters of CCG 3.0/600J (B) Mining Diesel Locomotive Electric Diesel Locomotive for Wide Gauge Steel Rail
Model | CCG 3.0/600J (B) | CCG 5.0/600J (B) | CCG-5.0/600 double cylinder explosion-proof diesel locomotive | CCG8.0/600J | |||
Matched Power Model | ZS1115FB | YH1125SFB | / | YH4108DFB(A) | |||
Dimension (L*W*H) mm | 2400*920(1000)*1600 | 3020*1000(1098)*1600 | 3500*1100*1580 | 3700*1100*1600 | |||
Weight kg | 3000 | 5000 | 5000 | 8000 | |||
Greatest Traction | 4.5 | 7.5 | 12 | 12 | |||
Force KN | |||||||
Fuel tank (L*W*H mm) | / | / | 320*280*180 | / | |||
Pulling Tonnage T | 15 | 22 | 40 | 35 | |||
Gauge mm | 600(made to order) | ||||||
Wheelbase mm | 706(712) | 880(860) | 900 | 980 | |||
Greatest Speed km/h | 15+1 | 17+1 | no-load：forward:14.6 backward:12.5; | 20+2 | |||
rated load:forward:11.6 backward:10 | |||||||
Diesel Engine Power (kw)/Rotating Speed (r/min) | 11/2200 | 14.7/2200 | 17.24/2200 | 52/2400 | |||
Smallest Railway Orbit m | 5 | 6 | 7 | 7 | |||
Greatest Braking Force N | 5000 | 8000 | 12800 | ||||
Traction Height mm | 270 320 | 320 430 | 270 320 430 | 320 430 | |||
Braking Distance m | 40 | ||||||
Height Above Ground mm | 80 | 125 | / | 125 | |||
Braking Mode | foot and machine control | / | air and hand wheel control | ||||
Exhaust Quality | CO≤0.1% NOX≤0.08% | ||||||
Details Images

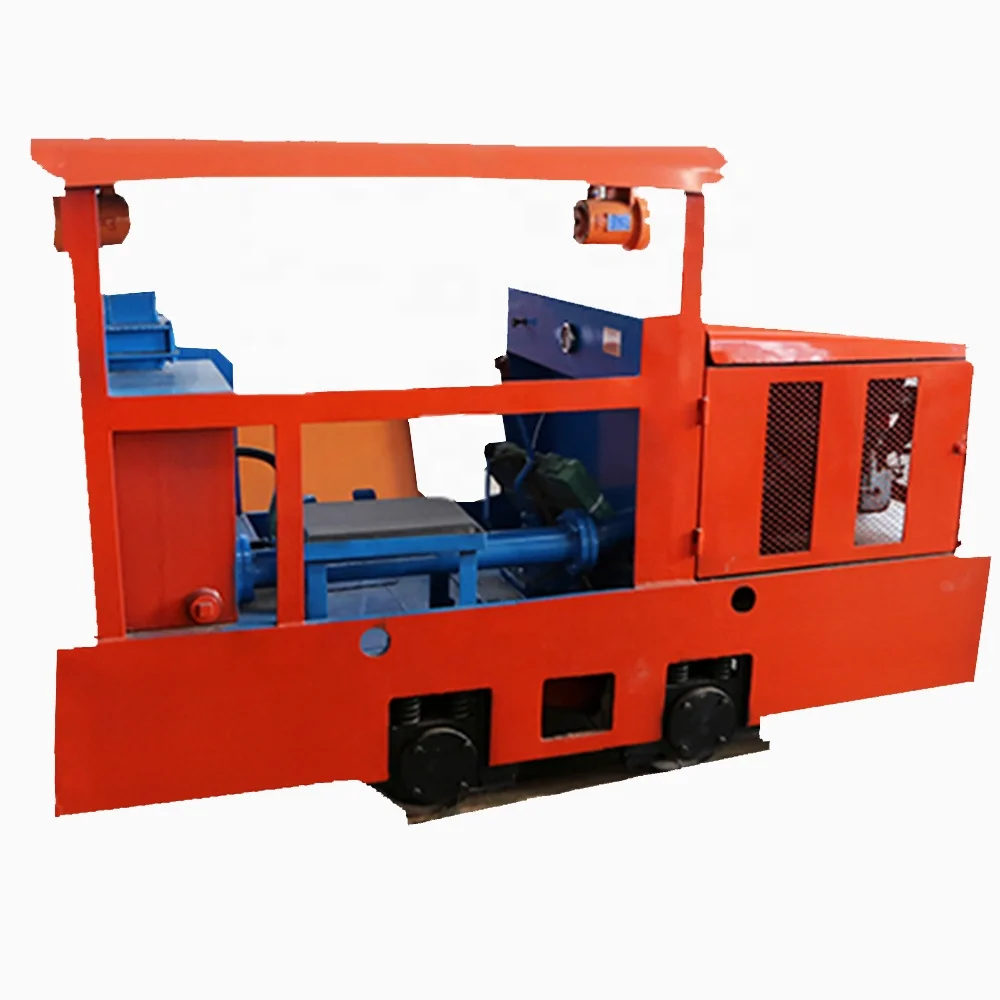

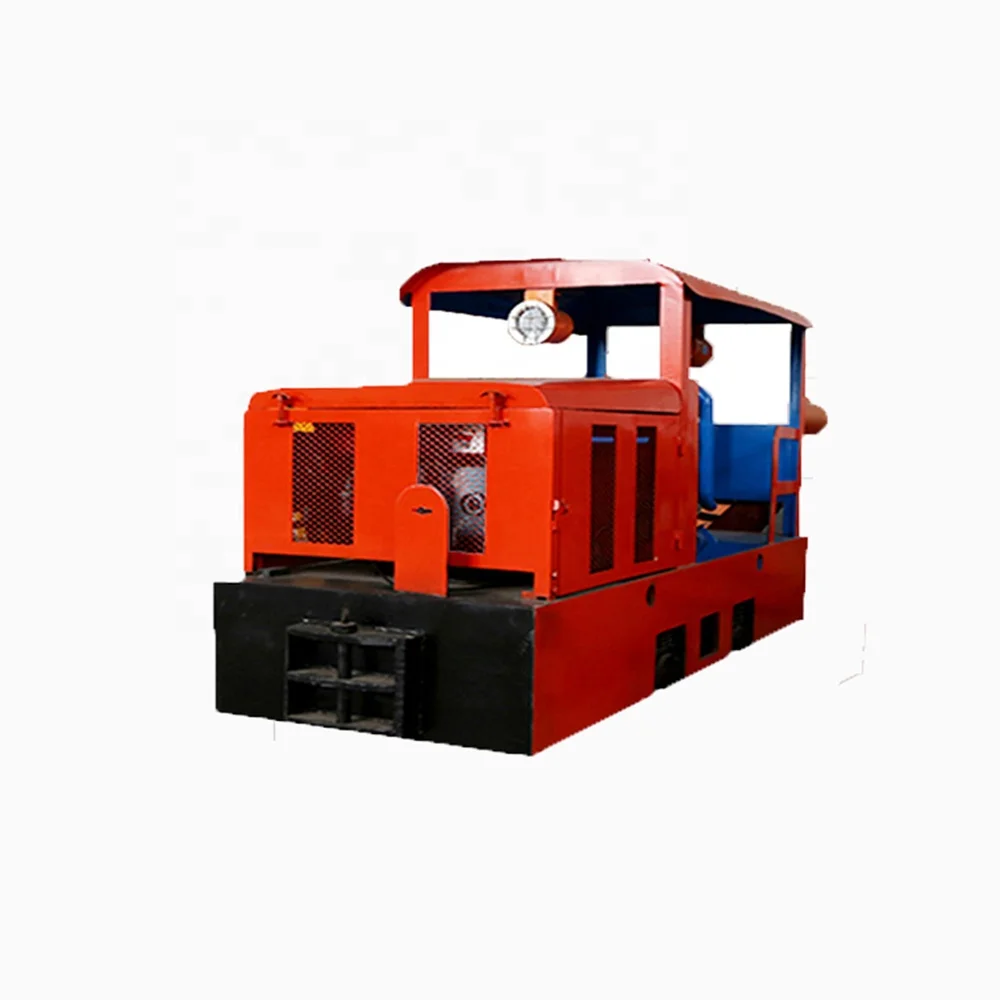

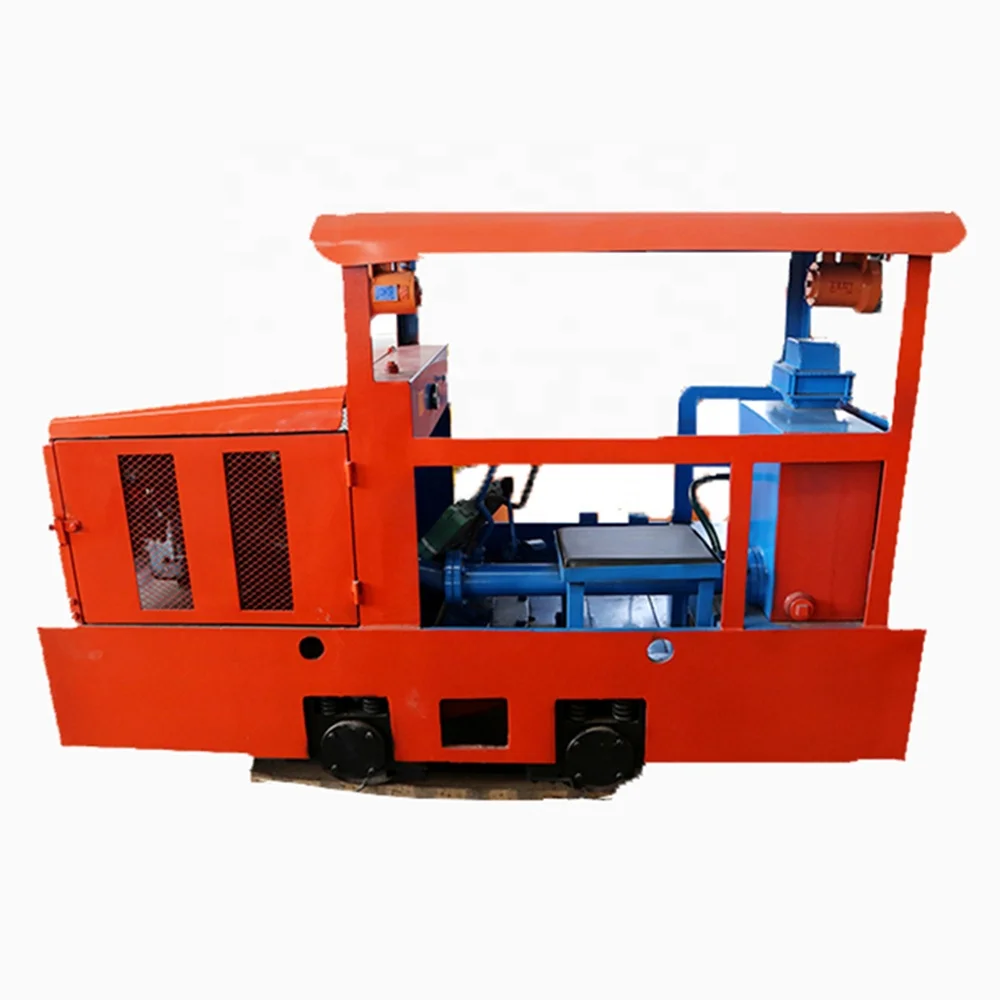

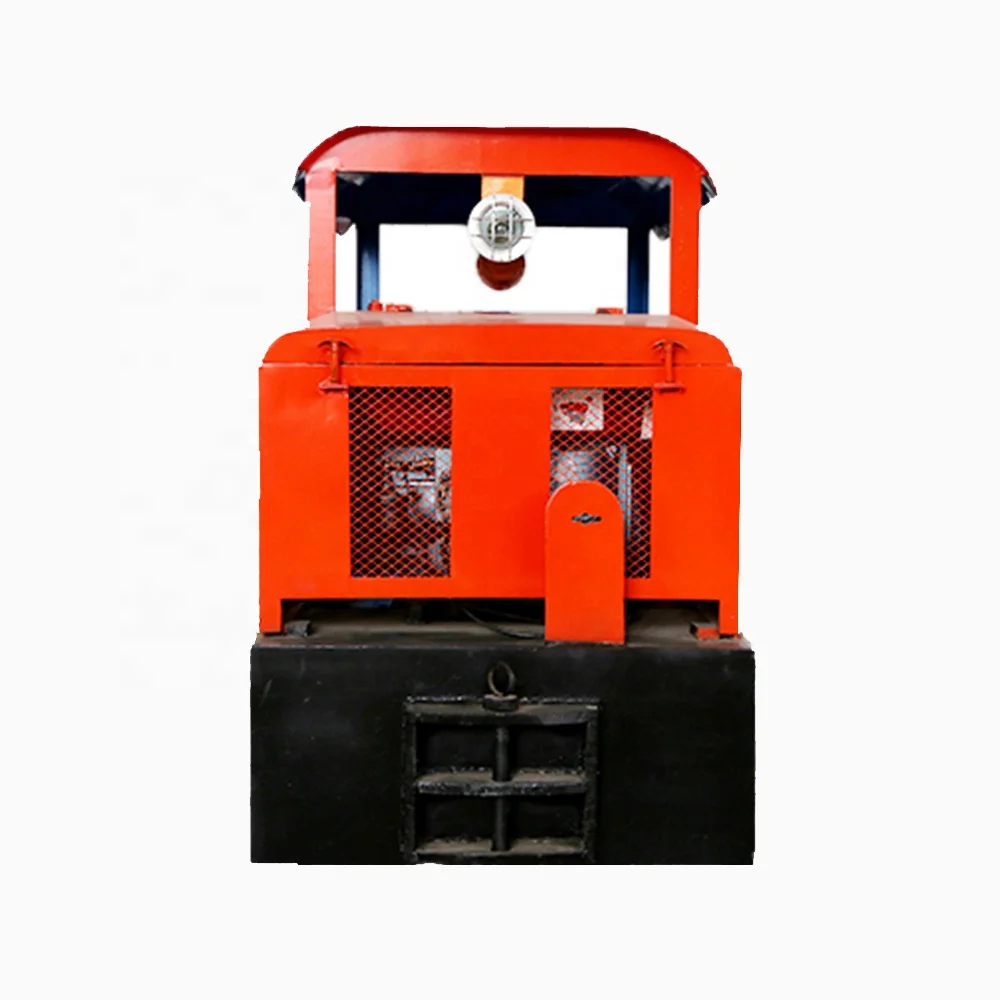

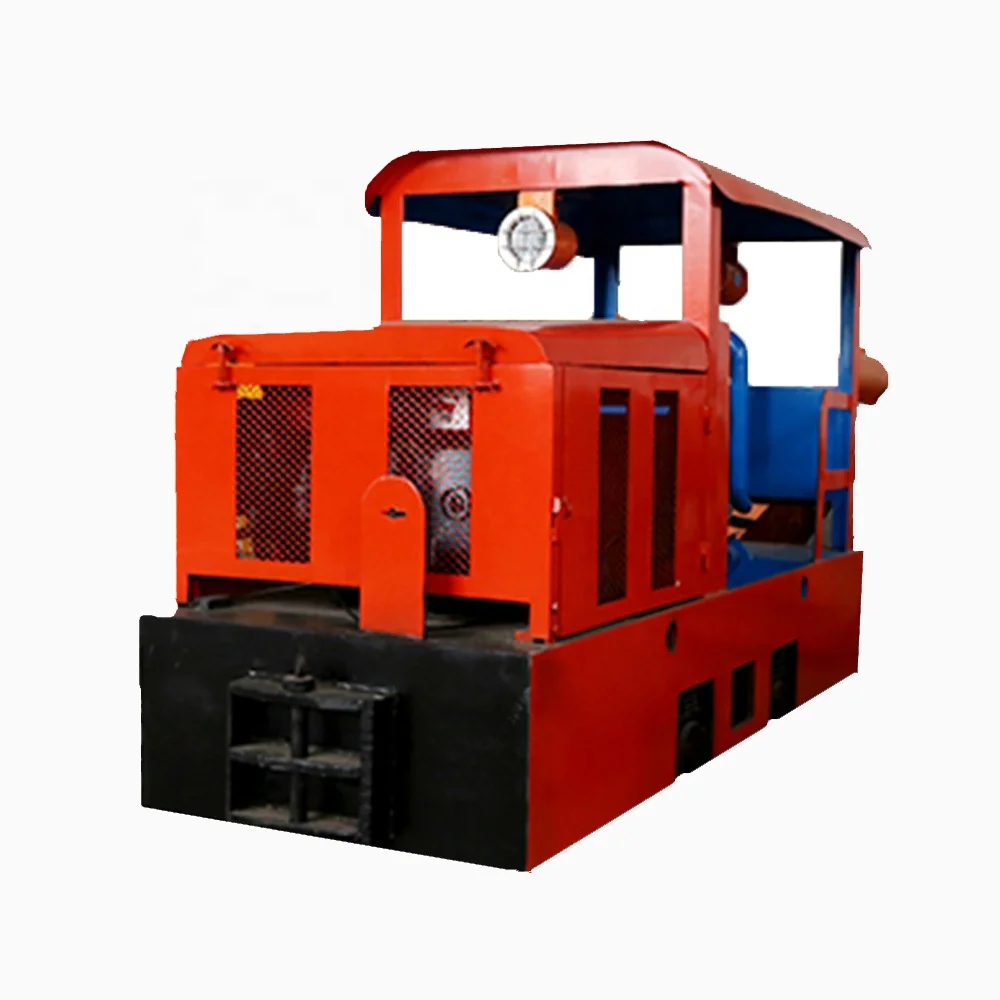

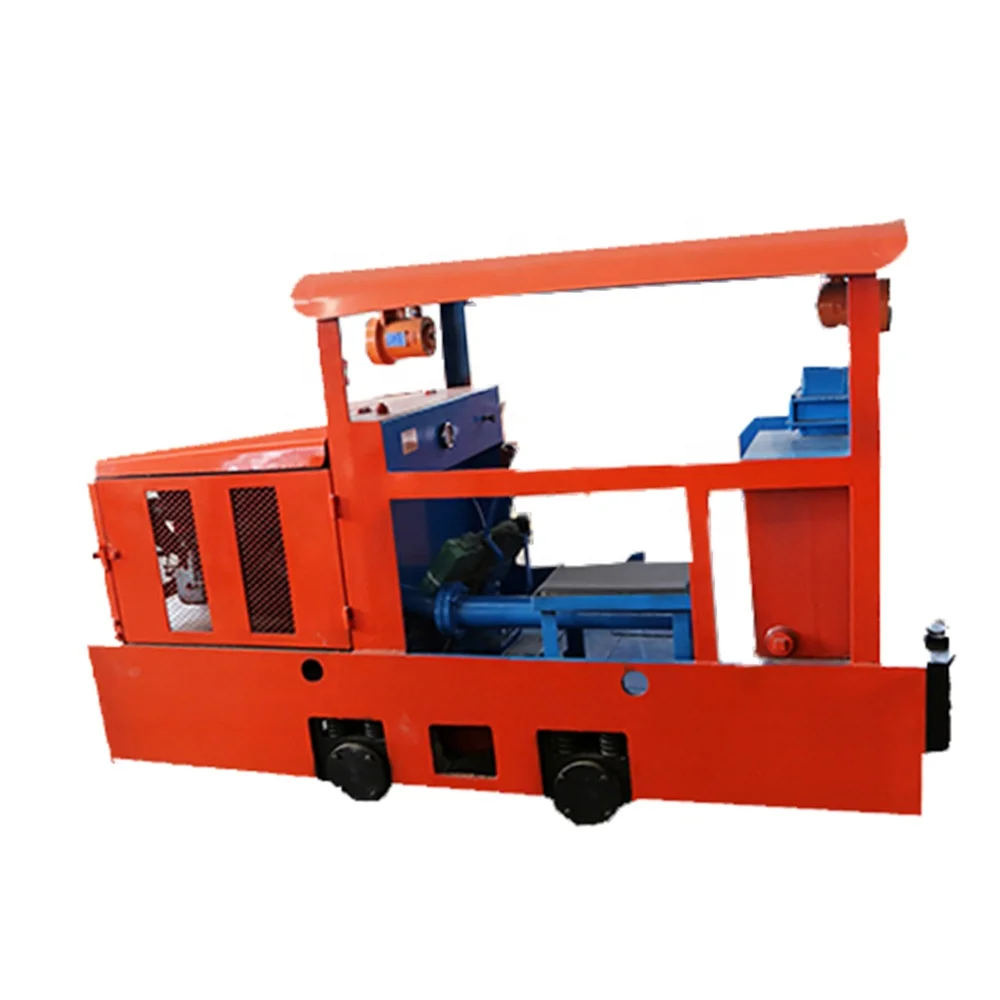

Photos of CCG 3.0/600J (B) Mining Diesel Locomotive Electric Diesel Locomotive for Wide Gauge Steel Rail
FAQ
1.Factory
Q: Are you Diesel Locomotive manufacturer?
A: We are the Mining Diesel Locomotive manufacturer. Yimei Underground Diesel Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Diesel Narrow Gauge Locomotive for sale?
A: Our Diesel Engine Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Diesel Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Diesel Train Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Q: Are you Diesel Locomotive manufacturer?
A: We are the Mining Diesel Locomotive manufacturer. Yimei Underground Diesel Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Diesel Narrow Gauge Locomotive for sale?
A: Our Diesel Engine Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Diesel Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Diesel Train Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Exhibition
Certifications
Product packaging
