Тяжелый горный самосвал 12T электрический привод жесткий Контейнер XDE130
- Категория: Dump Trucks >>>
- Поставщик: Cruking,Engineering,Equipment,(Xiamen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 345100.77 $* | 362355.18 $* |
| Aug-18-2025 | 342200.38 $* | 359310.62 $* |
| Jul-18-2025 | 287100.18 $* | 301455.17 $* |
| Jun-18-2025 | 336400.4 $* | 353220.76 $* |
| May-18-2025 | 292900.26 $* | 307545.21 $* |
| Apr-18-2025 | 330600.26 $* | 347130.46 $* |
| Mar-18-2025 | 327700.83 $* | 344085.65 $* |
| Feb-18-2025 | 324800.37 $* | 341040.90 $* |
| Jan-18-2025 | 321900.28 $* | 337995.82 $* |
Характеристики

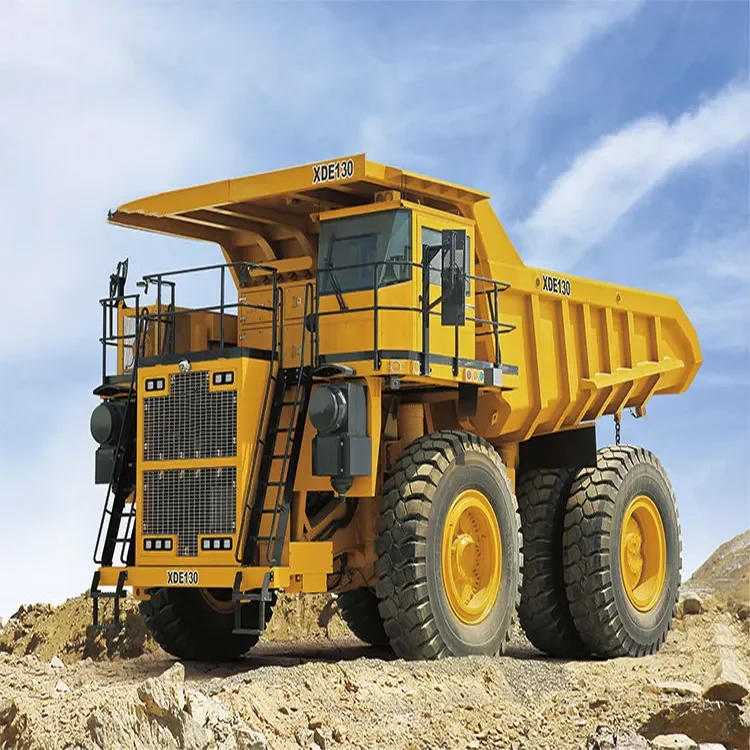

Heavy Duty Mining Dump Truck 12T Electric Drive Rigid DumpTruck XDE130 for Sale
Contact
Products Description
Full series of electrically driven dump trucks ranging from 120 t to 360 t, which are mostly applied in construction of opencast mining and large-scale earthwork transporting, making meet diverse mining and construction demands.
Characterized by exceedingly high transport efficiency, comfty operability, low maintenance cost, and long service life, etc., products of this series are of large bearing capacity, firm structure, shockproof performance, and impact resistance, so they are the optimal choice for you in purchase of opencast mining and construction equipments.
1. High performance engine
Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
2. AC-DC-AC electric drive system
trucks utilize AC-DC-AC electric drive system, safe and reliable,with fewer failure rate and maintenance costs. Constant-power and stepless speed regulation are achieved, with more traction power to maximize the productivity.
3. Structurally enhanced frame
* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.
* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.
* The computer-aid design and finite element analysis ensure the frame have enough intensity.
Characterized by exceedingly high transport efficiency, comfty operability, low maintenance cost, and long service life, etc., products of this series are of large bearing capacity, firm structure, shockproof performance, and impact resistance, so they are the optimal choice for you in purchase of opencast mining and construction equipments.
1. High performance engine
Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.
2. AC-DC-AC electric drive system
trucks utilize AC-DC-AC electric drive system, safe and reliable,with fewer failure rate and maintenance costs. Constant-power and stepless speed regulation are achieved, with more traction power to maximize the productivity.
3. Structurally enhanced frame
* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.
* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.
* The computer-aid design and finite element analysis ensure the frame have enough intensity.
Product Paramenters
Item | Unit | XDE130 | ||
Performance parameters | Rated Payload | t | 130 | |
Empty Weight | kg | 82000 | ||
Gross Vehicle Weight | kg | 202000 | ||
Drive Style | 4x2 | |||
Max. Speed | km/h | 50 | ||
Max. Gradeability | % | 20 | ||
Min. Turning Diameter | m | 22 | ||
Overall dimension | mm | 11615*6800*5660 | ||
Engine | Model | 16V2000 | ||
Rated Power/Speed | kW/rpm | 970/2100 | ||
Max. Torque/Speed | Nm/rpm | 5286/1500 | ||
Electric drive | Alternator | A920P | ||
Traction Motor | M360 | |||
Ratio | 33.67:1 | |||
Tires | Standard Tire | 33.00R51 | ||
