Зубчатая передача и вал OEM
US $1.00-$50.00
Хромированный стержень 42crmo AISI 4140 с Индукционным
- Категория: Shafts >>>
- Поставщик: Suzhou,Weipeng,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.90 $* | 1.15 $* |
| Jul-17-2025 | 1.30 $* | 1.89 $* |
| Jun-17-2025 | 1.24 $* | 1.46 $* |
| May-17-2025 | 1.75 $* | 1.47 $* |
| Apr-17-2025 | 1.28 $* | 1.44 $* |
| Mar-17-2025 | 1.72 $* | 1.54 $* |
| Feb-17-2025 | 1.63 $* | 1.80 $* |
| Jan-17-2025 | 1.58 $* | 1.84 $* |
Характеристики
Product Description
Introduction:

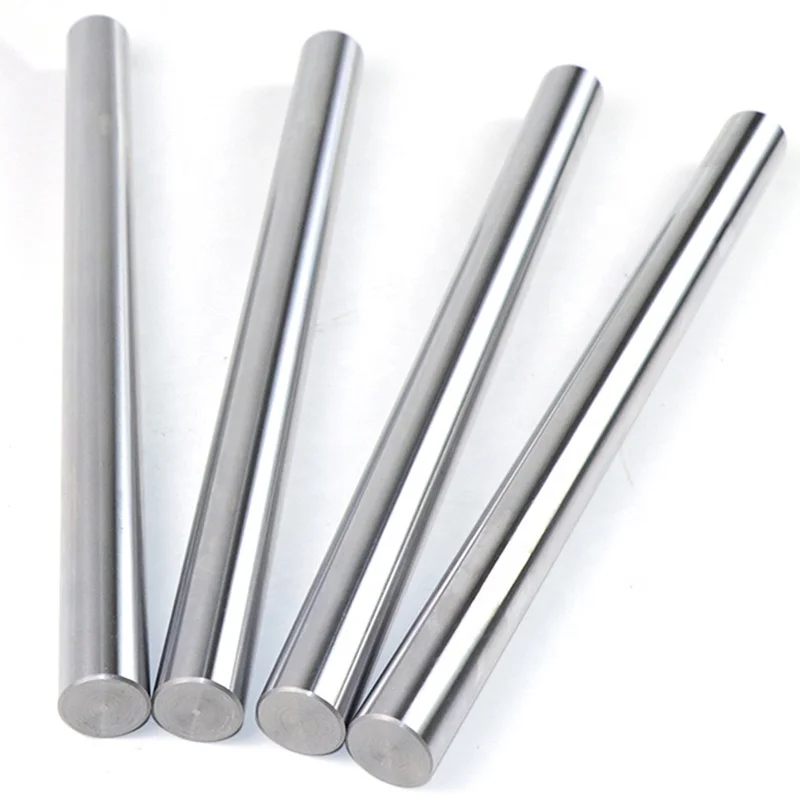

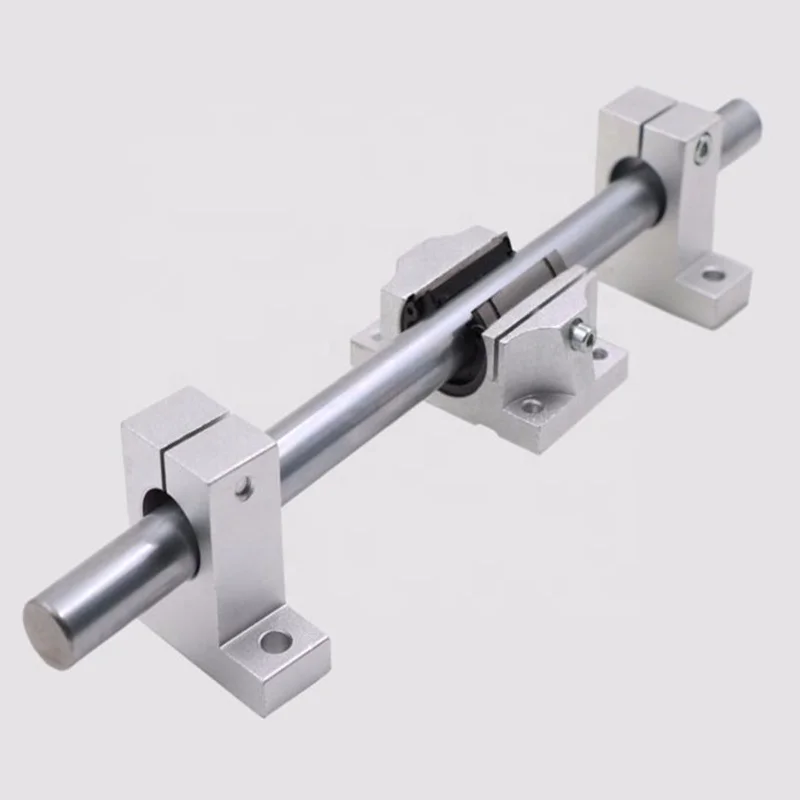

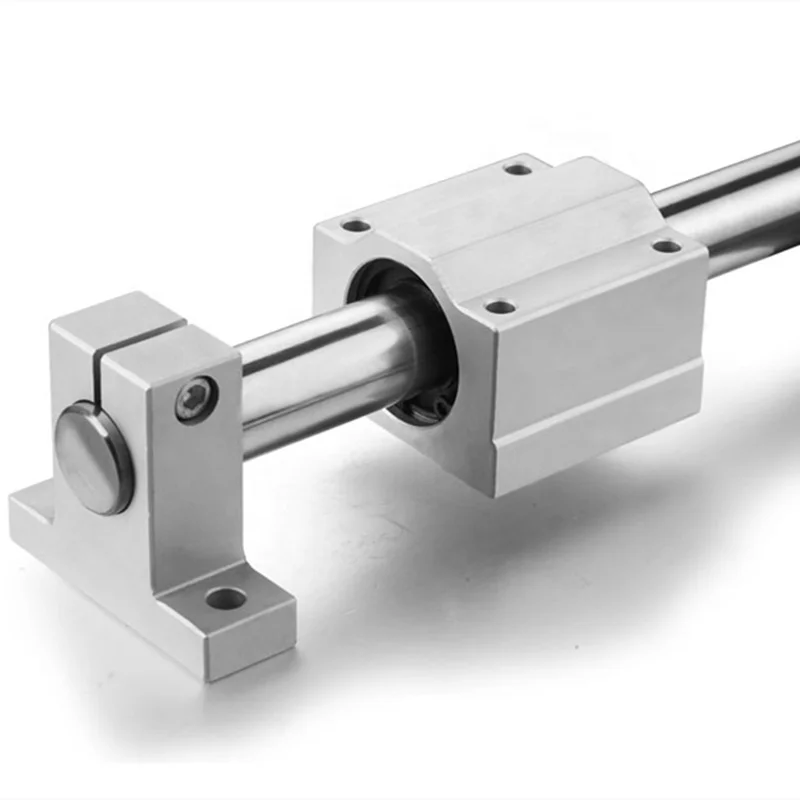

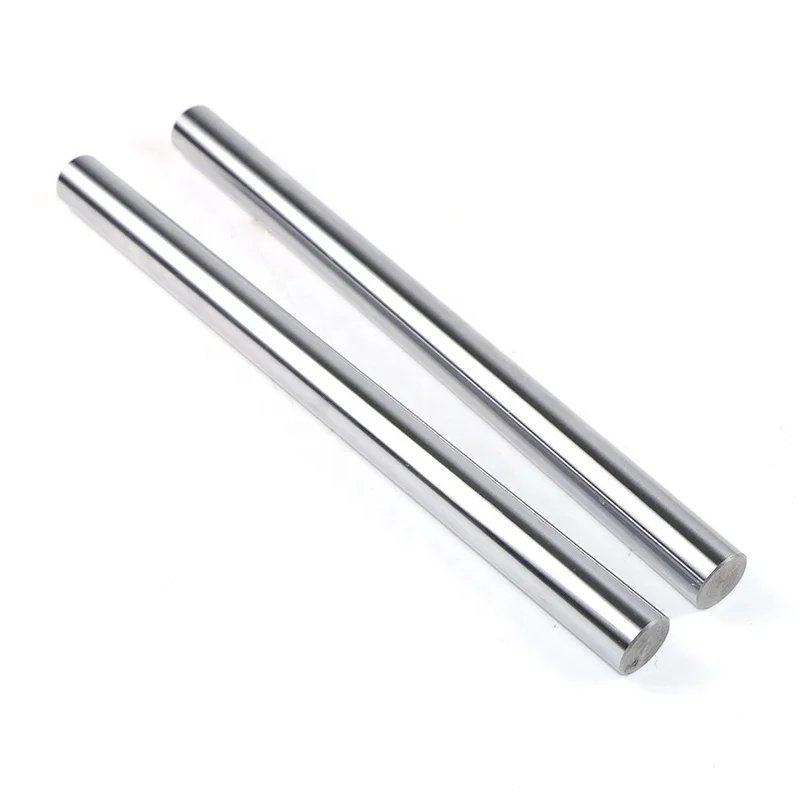

Linear shafts are steel rods made of C1045 Induction Hardened and Hard Chrome plated.The rods undergo rigorous processes like pilling, straightening, hardening, grinding, polishing, hard chrome plating and finishing under the supervision of experienced engineers.Different from the Hard Chrome Plated Piston Rods, the surface hardness of the Induction Hardened Chrome Rods is high up to HRC58-62 via high-frequency induction harden technique. Linear shafts are usually used as guide rail or slide rail matching with Linearing Bearings because of the surface high durability, abrasion resistance, longer working life and dimensional accuracy.
WHAT CAN WE SUPPLY :
1,We can offer full rangs of linear shafts with diameter 3mm- 120mm, maximum length up to 8000mm.
1,We can offer full rangs of linear shafts with diameter 3mm- 120mm, maximum length up to 8000mm.
2,We can provide customized material including GCr15/SUJ2, 42CrMo/4140.

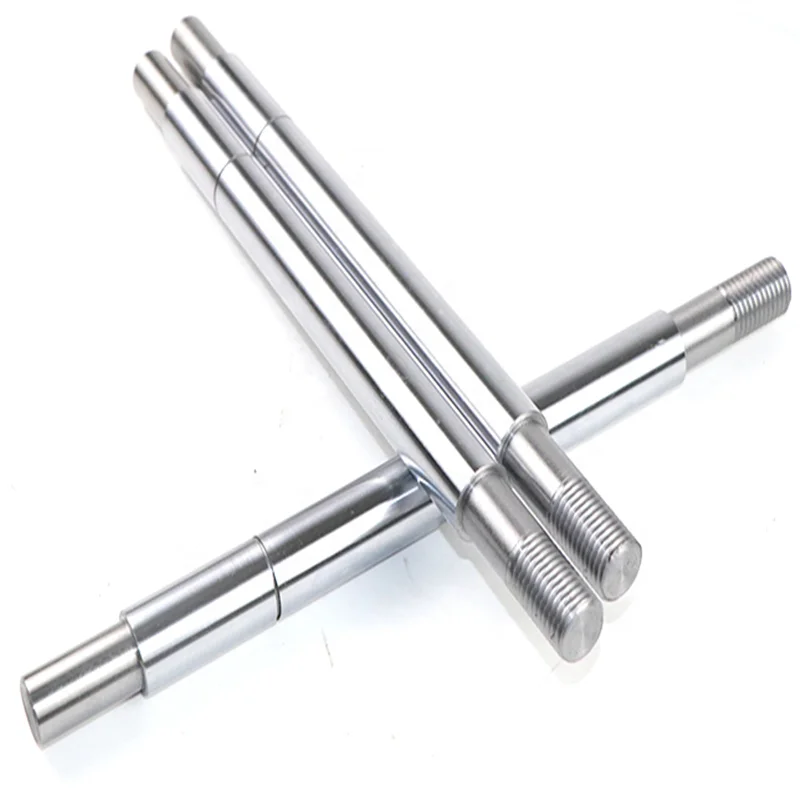

3,When you have special requirements on machining or lathing, such as threading, drilled and tapped, milling keys etc. We can lathe for you. We have high precision several milling machines, drilling machines and 14 CNC lathing centers. Our advanced equipment, skilled technical workers,scientific testing instrument and strict quality control, all of these factors to ensure the precision of our products. Our service center is at your disposal for machining of shafts according to your request or your drawings. You will be satisfied with our service.
Detailed specifications of linear shafts as follows:
Linear Shaft | ||
Structure | Induction Hardened Chrome Plated Rod | |
Material | CK45/S45C/C1045/1.1191 GCR15/SUJ2 42CrMo/4140 | |
Shaft Diameter | 3-120mm | |
Surface hardness | HRC58-60 | |
Surface hardening depth | 0.8-3mm | |
Chrome layer thickness | 15μm ~ 25μm(According to your request) | |
Chrome layer hardness | Above HV850 | |
Axis straightness | 0.15mm /1000mm | |
Roughness | Ra 0.2μm~0.4μm | |
Precision | g6/f7 | |
Product Paramenters
FAQ
Q1: Are you a manufacturer?
Yes, we have been in manufacturing and providing excellent linear motion parts for customers more than 12 years.
Q2: How long could you prepare samples?
Ans: Normally 1days if we have the sample on hand. lf customized one. about a week around.
Q3: How about batch order production?
Ans: Normally 30days or so for one container.
Q4: Do you inspect the finished products?
Ans: Yes, we will do in spection according to lsO standard and ruled by our QC staff.
Q5: How do you ship the goods?
Ans: By sea, by air by truck or by courier(UPS/DHL/Fedex /TNT etc.)
Q6: What advantage do you have?
1.Ans:We have professional engineers, customers can expect the best possible advice and support.
2,Related responsible team to answer all your questions and follow-up process for you and do update in time.
3.Strict and standard process control according to Quality Management System.
4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know
our products.
