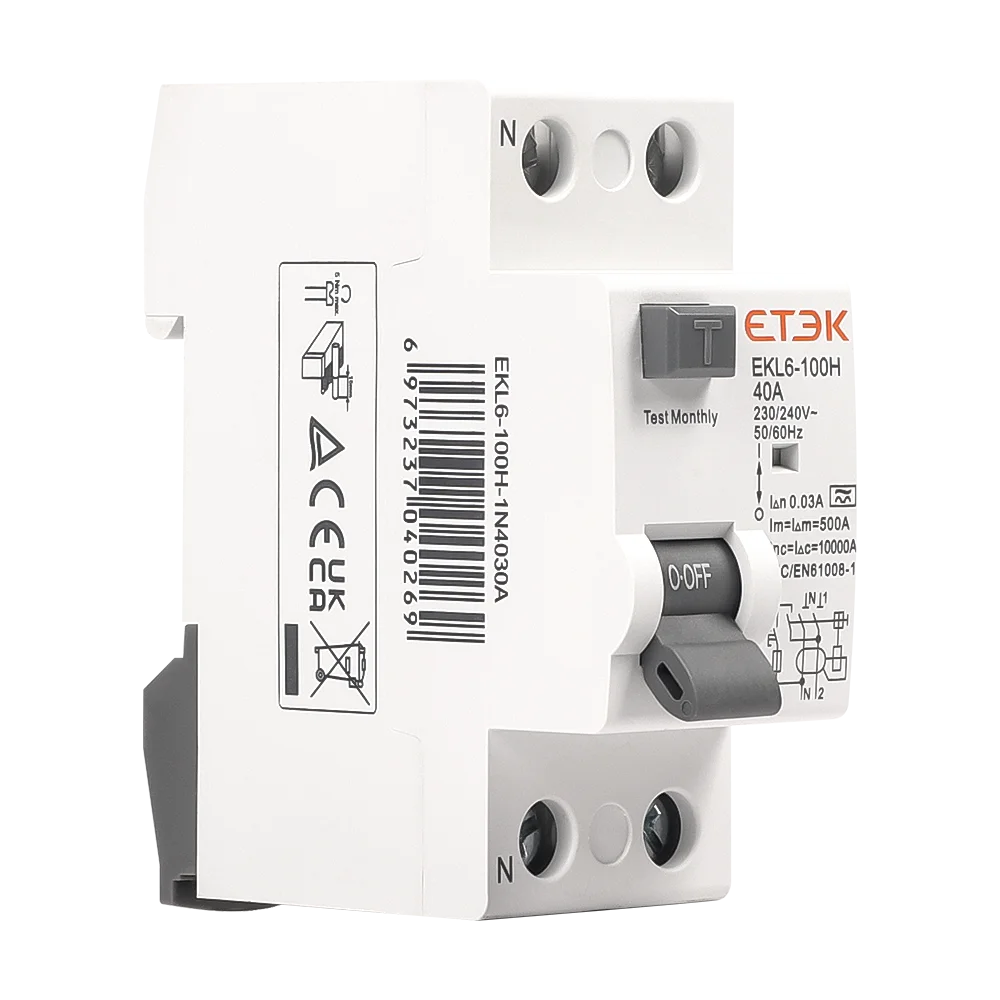

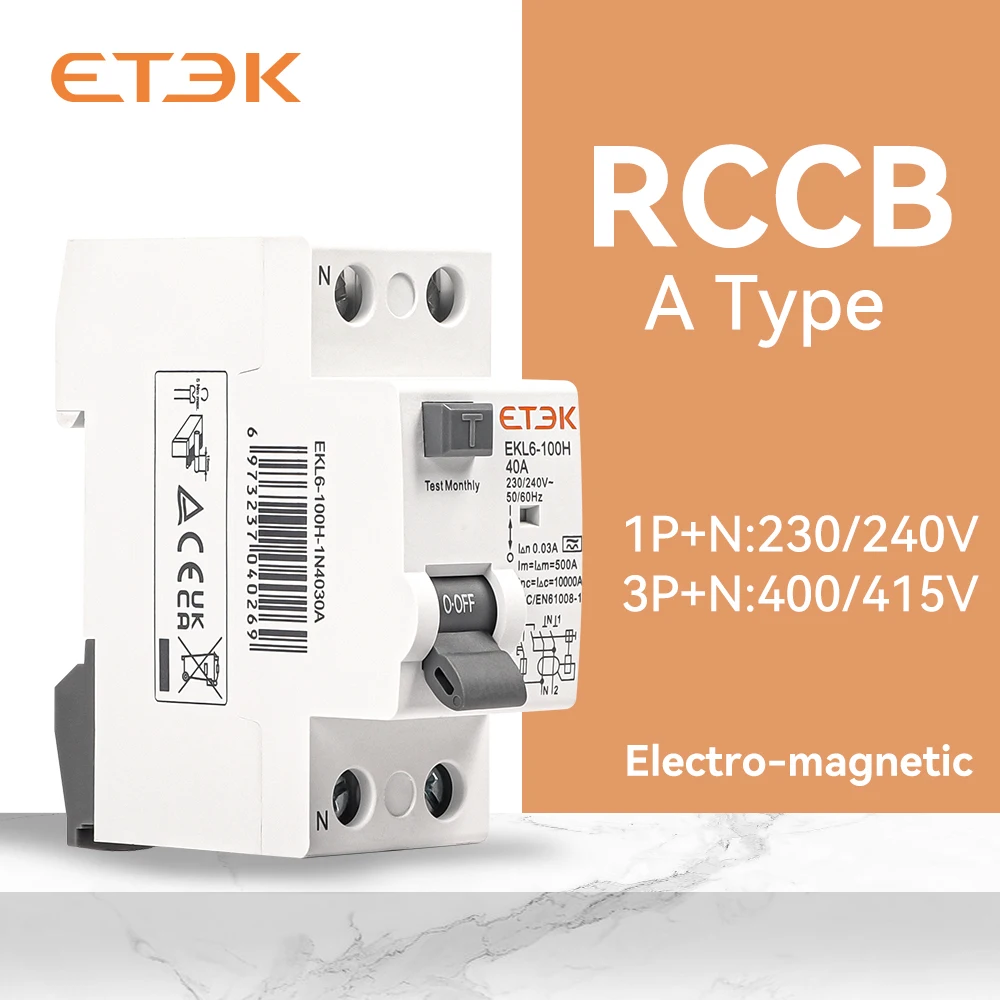

ETEK rccb EKL6-100 2-полюсный (1P + N) тип А выключатели остаточного тока 25 ампер 230 В низкое
- Категория: Low Voltage Products >>>
- Поставщик: Wenzhou,Etek,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5.5 $* | 5.31 $* |
| Aug-19-2025 | 5.31 $* | 5.46 $* |
| Jul-19-2025 | 4.74 $* | 4.62 $* |
| Jun-19-2025 | 5.6 $* | 5.6 $* |
| May-19-2025 | 4.75 $* | 4.89 $* |
| Apr-19-2025 | 5.3 $* | 5.0 $* |
| Mar-19-2025 | 5.43 $* | 5.85 $* |
| Feb-19-2025 | 4.74 $* | 4.98 $* |
| Jan-19-2025 | 4.9 $* | 4.74 $* |
Характеристики
Products Description
Recommend Products

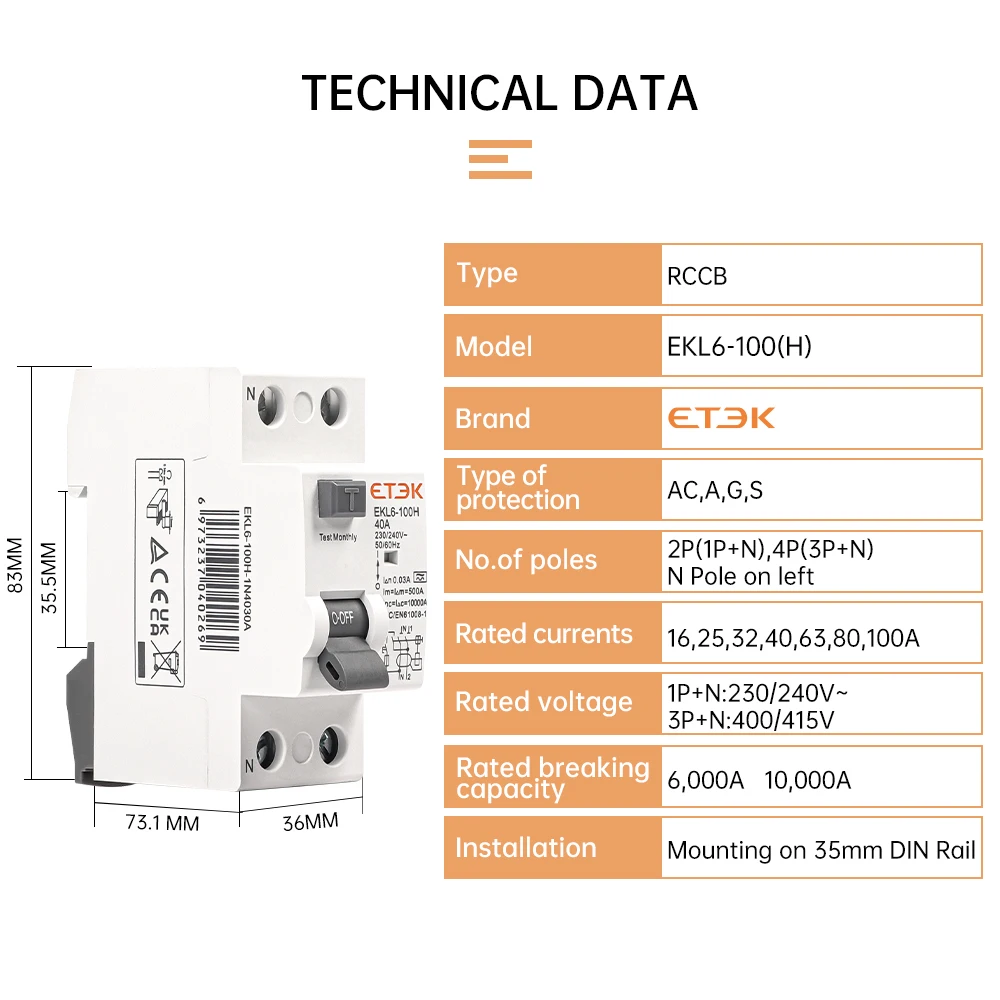

Technical Data
Standard | IEC/EN61008-1 |
Protection | Ground fault, |
Type of trip | Ground fault :Electro-magnetic |
Type of protection (electric leakage) | G,AC,A,S |
No.of poles | 1P+n, |
Rated currents In | 16-100A |
Rated sensitivity currents I△n | 10,30,100,300mA （10mA only for ln=16-25A） |
Residual current off-time under I△n | ≤0.1s |
Reted residual making and breaking capacity(I△m) | 500A |
Rated voltage Ue | 230/240V~ |
Rated frequency | 50/60Hz |
Rated breaking capacity | 6000A 10000A |
Rated impulse withstandard voltage(1.5/50) Uimp | 4,000V |
Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
Electrical life | 2,000 Cycles |
Mechanical life | 4,000 Cycles |
Contact position indicator | YES |
Protection degree | IP20 |
Ambient temperature | -5℃ to +40℃ Max.95%humidity |
Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
Max.terminal size for cable | 25mm² |
Max.tightening torque | L(in):2.5N.m |
Installation | Mounting on 35mm DIN rail |
Connection | From top and bottom |

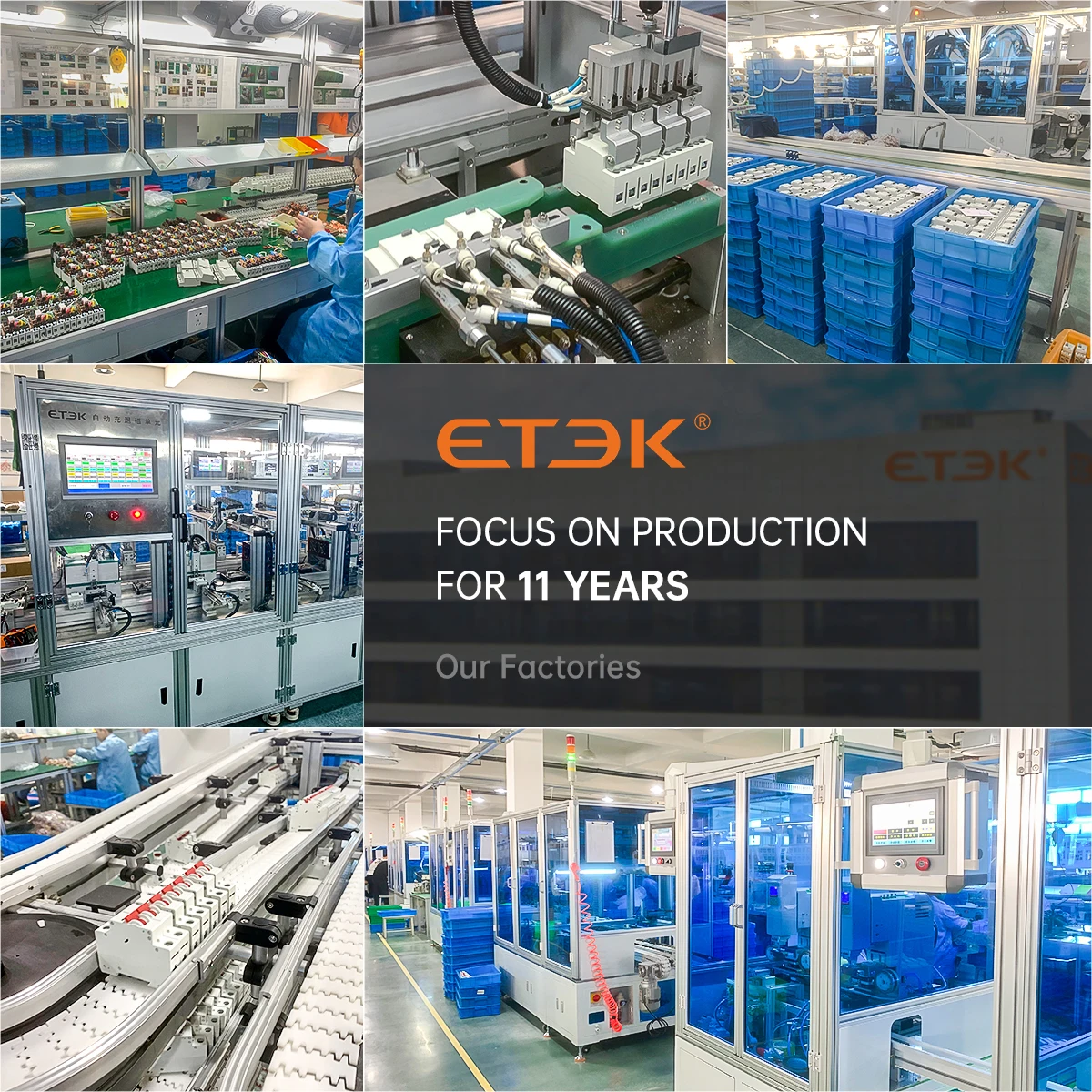

Company Profile
Packaging and Delivery
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7:Are you a real manufacturer or a trade company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q8:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goodsbefore delivery?
A: Yes, we have 100% test before delivery
A: Yes, we have 100% test before delivery
Q7:Are you a real manufacturer or a trade company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q8:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Trade Assurance
