Характеристики

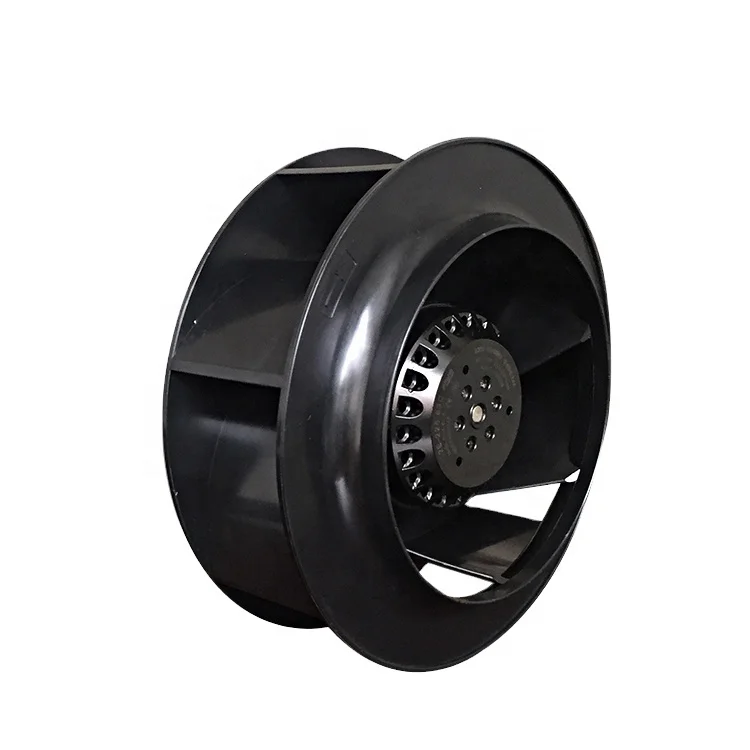

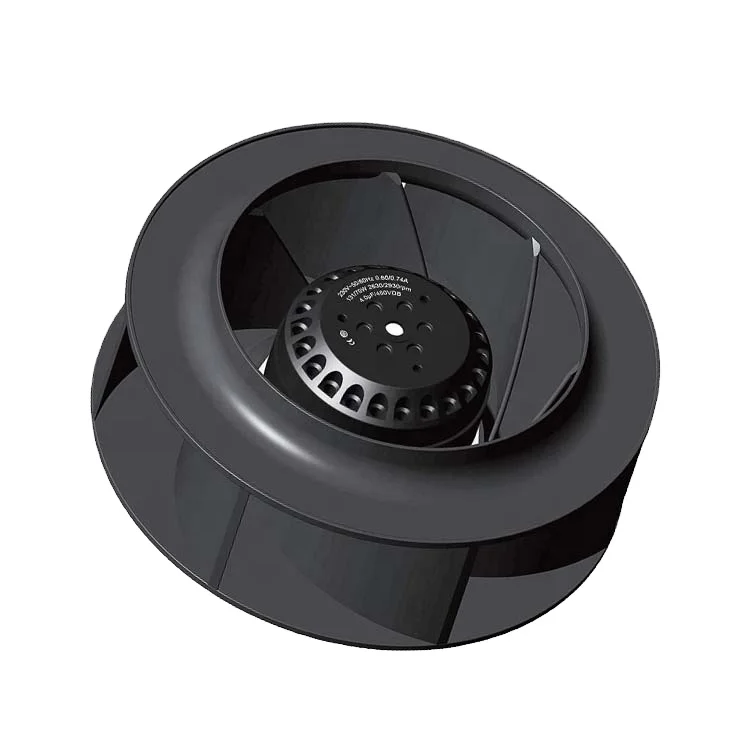

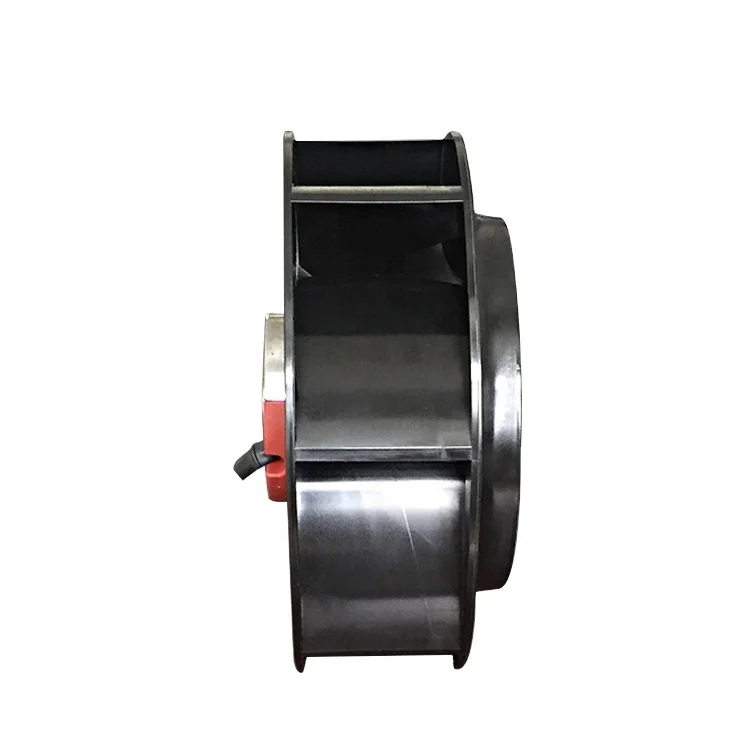

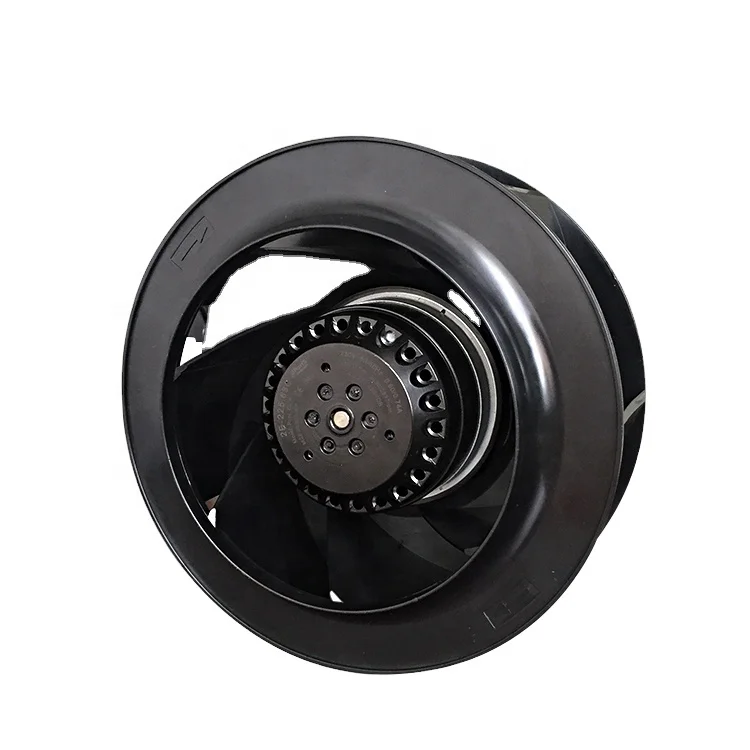

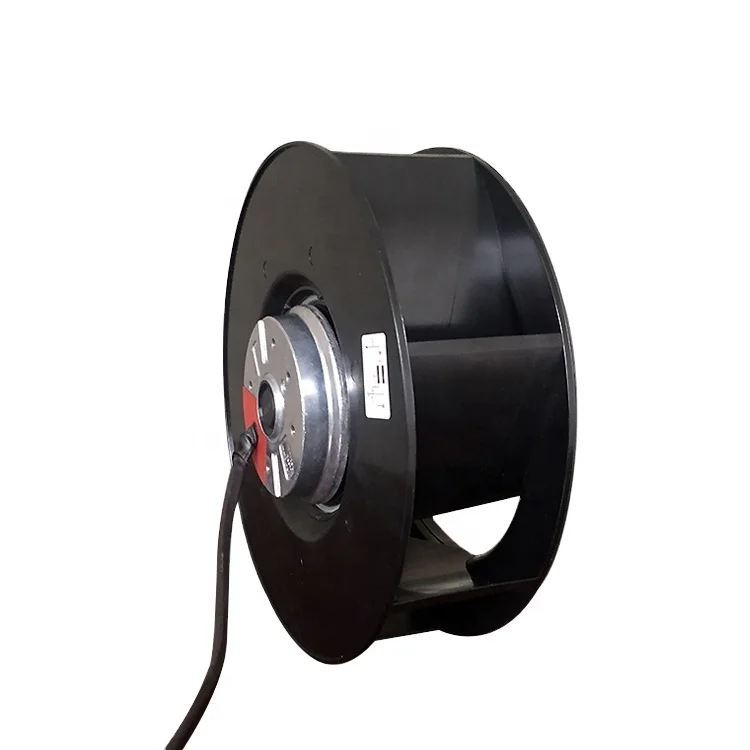

CE WST2E-225.63C Centrifugal Plastic 230V Exhaust Fan For Farms







Technical parameter


certrifugal model.jpg






























































































TypeRated voltage (V)Frequency (Hz)Current (A)

Power (W) +10%


-20%






Speed (min-1)


Max air flow (m³/h)Static pressure (Pa)Noise (dB)CurveCapacitor (μF)
CFMm³/h
WST2S-225.63C115501.30

130



2650


708120054068110.1/250
601.451702950790134073071
WST2E-225.63C230500.60131265070812005406814.0/450
600.741702950790134073071
WST2D-225.63C380500.34131265070812005406812.0/630
600.451702950790134073071




Dimension


225 63C DIMENSION.jpg


225 63C.jpg





WST2E-225.63DS















































TypeRated voltage (V)Frequency (Hz)Current (A)

Power (W)+10%


-20%



Speed (min-1)


Max air flow (m³/h)Static pressure (Pa)Noise (dB)CurveCapacitor (μF)
CFMm³/h
WST2S-133.41CS240500.38

92


23806351077485

66


13.0/450
500.378622205931005452642

225 63DS DIMENSION.jpg225 63DS.jpg








Product Description


1.Motor: Shaded pole / Cage type capacitor structure external rotor motor.


2. Impeller: Black PA nylon one-time injection moulding.


3. Allowable environment temperature and humidity range: (under unconcretionary condition) -40°C~+80°C (temperature) 0%-95% (humidity)


4. Protection:Impedance protected / Automatic recovery thermal protection.


5. Withstand voltage: AC 1800V, 1min at 0.5mA,  50/60Hz.


6. Insulation system: Design according to IEC.


7. Protection grade: IP44.





Features



  • Small compact structure, able to operate at very low noise under high air pressure.

  • Synthetic plastic centrifugal impeller, high efficient airfoil blade design.

  • External rotor motor ensures excellent heat dissipation effect, and increases their endurance to high temperature.

  • Applicable to run under bad air medium.

  • One-time molding integral impeller increases the actual service life.

  • Kinds of cooling types are realised by speeds controller set.

  • Certrifugal fan of IP55 protection class is available.

  • Wide choices for accessories: finger guard, inlet ring, capacitor, connection box and so on.
