Eink электронная бумага дисплей 2 13 дюйма Smart Esl полка LabelEsl ценник для Raspberry Pi 4B/3B +/3B/3A +/Zero
- Категория: EAS Systems >>>
- Поставщик: Shenzhen,SHCHV,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.85 $* | 0.8 $* |
| Aug-19-2025 | 0.21 $* | 0.71 $* |
| Jul-19-2025 | 0.76 $* | 0.42 $* |
| Jun-19-2025 | 0.42 $* | 0.11 $* |
| May-19-2025 | 0.96 $* | 0.90 $* |
| Apr-19-2025 | 0.6 $* | 0.29 $* |
| Mar-19-2025 | 0.68 $* | 0.30 $* |
| Feb-19-2025 | 0.28 $* | 0.93 $* |
| Jan-19-2025 | 0.84 $* | 0.76 $* |
Характеристики
Description
Raspberry Pi 2.13 inch E-ink Display Hat Resolution e-Paper SPI Screen for Raspberry Pi 4B/3B+/3B/3A+/Zero for Arduino
Introduction:

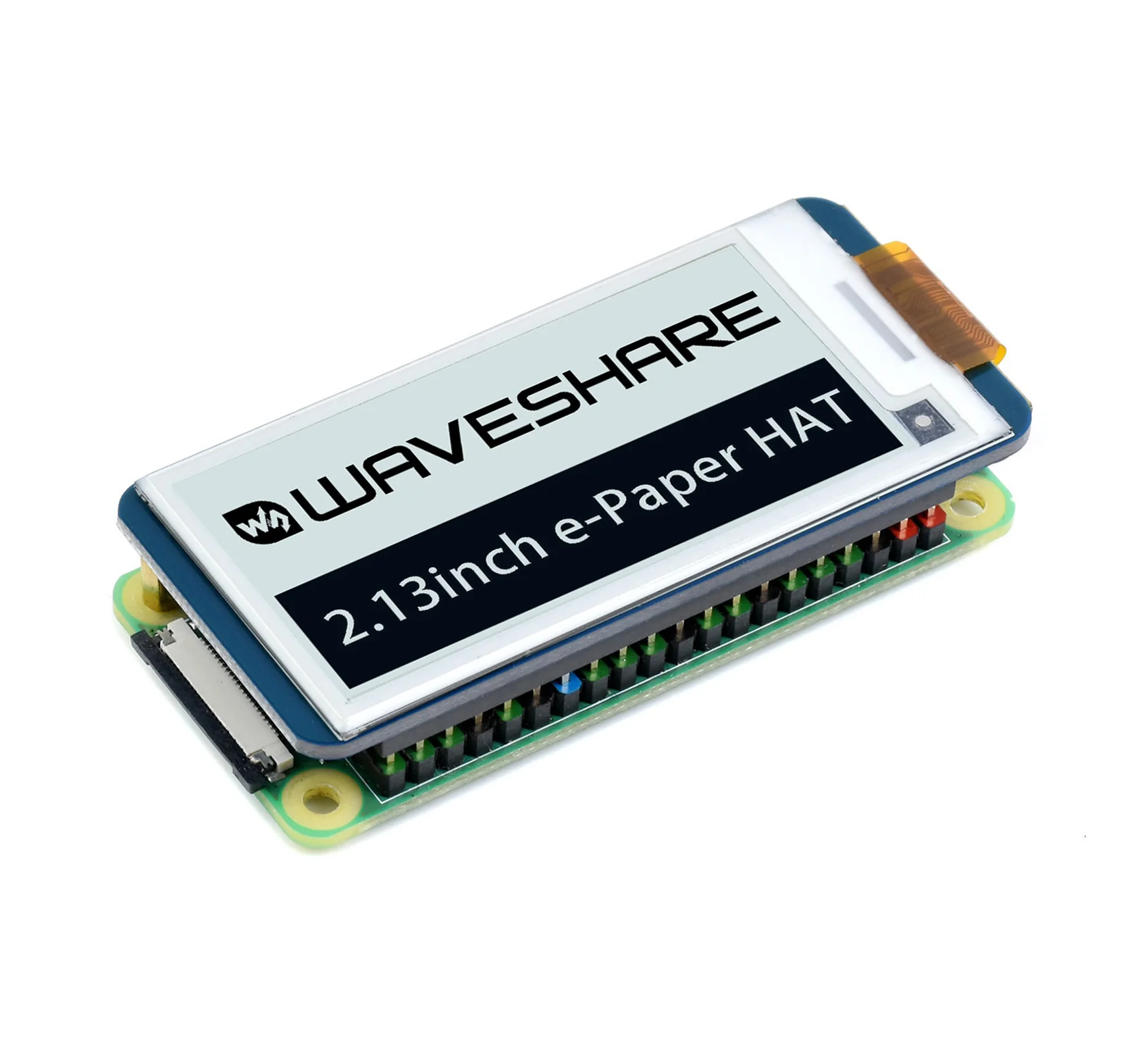

This is an E-Ink display HAT for Raspberry Pi, 2.13 inch with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal
choice for applications such as shelf label, industrial instrument and so on.
This is an E-Ink display HAT for Raspberry Pi, 2.13 inch with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal
choice for applications such as shelf label, industrial instrument and so on.
Features :
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

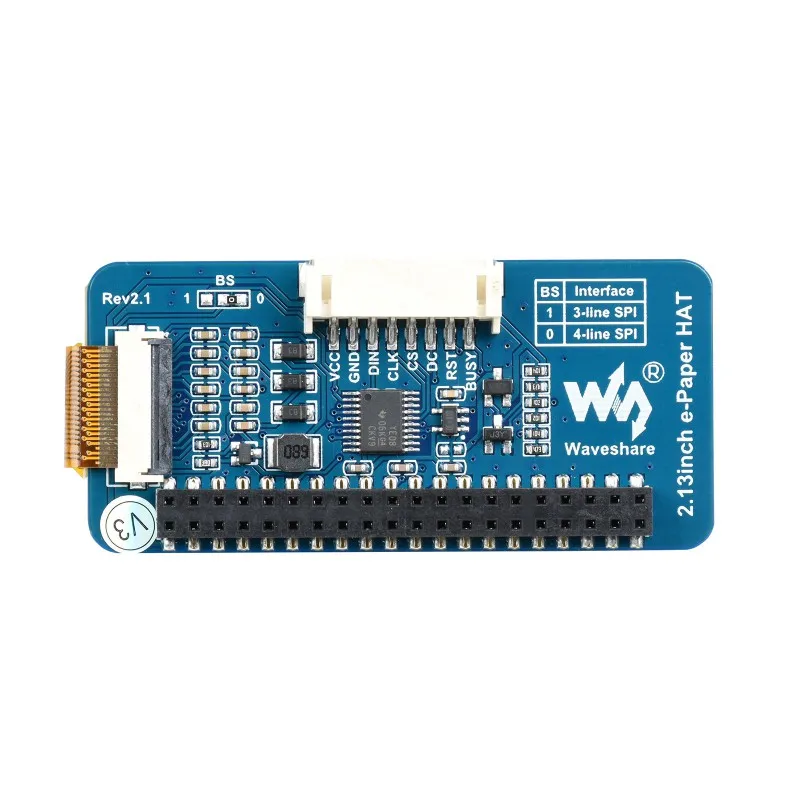

Interfaces :
• VCC: 3.3V / 5V
• GND: GND
• DIN: SPI communication MOSI pin
• CLK: SPI communication SCK pin
• CS: SPI chip select pin (active low)
• DC: data / command control pin (high level means data, low level means command)
• RST: external reset pin (low-level reset)
• BUSY: Busy output pin (low level means busy)
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Interfaces :
• VCC: 3.3V / 5V
• GND: GND
• DIN: SPI communication MOSI pin
• CLK: SPI communication SCK pin
• CS: SPI chip select pin (active low)
• DC: data / command control pin (high level means data, low level means command)
• RST: external reset pin (low-level reset)
• BUSY: Busy output pin (low level means busy)

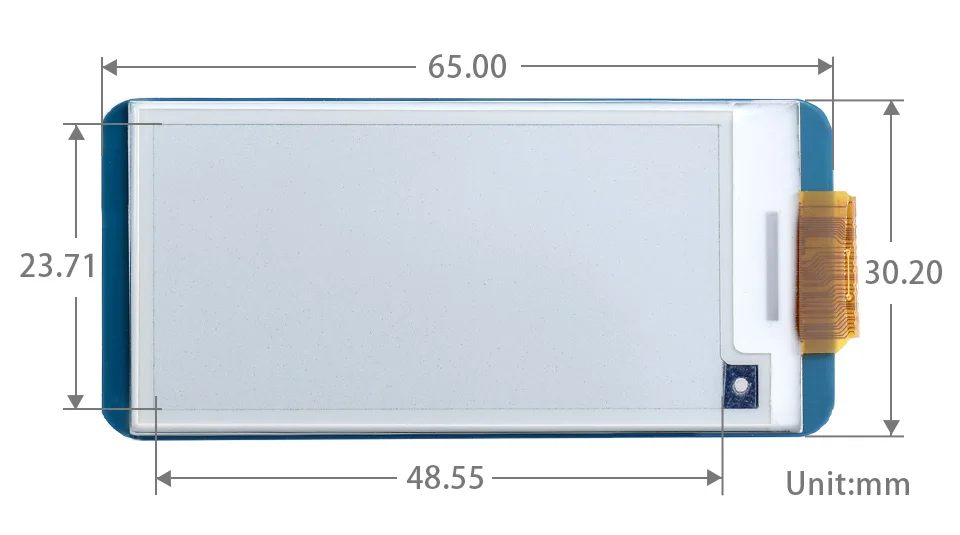

Dimensions :
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Specificaiton
OPERATING VOLTAGE | 3.3V/5V | DISPLAY COLOR | Red/Black/White |
INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 2 |
OUTLINE DIMENSIONS | 65 × 30.2mm | FULL REFRESH TIME | 15s |
DISPLAY SIZE | 48.55 × 23.71mm | REFRESH POWER | 26.4mW(typ.) |
DOT PITCH | 0.229 × 0.228mm | STANDBY CURRENT | <0.01uA (almost none) |
RESOLUTION | 250 × 122pixels | VIEWING ANGLE | >170° |
Options

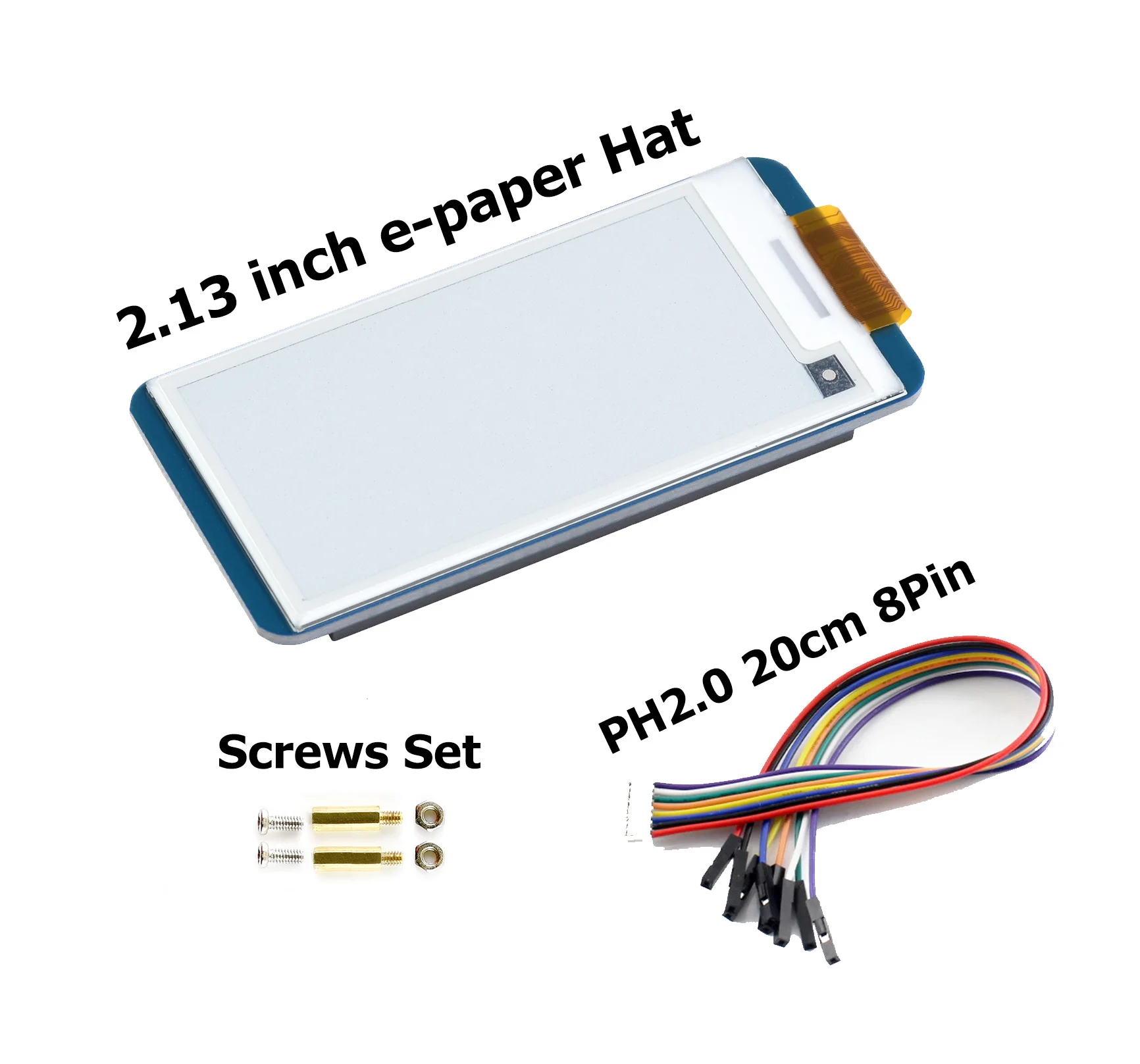

Option 1:

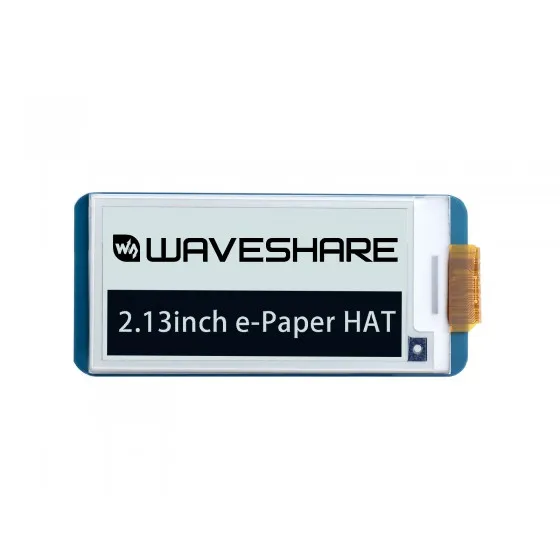

1 x 2.13 inch e-Paper HAT (Black/White Color)
1 x Screws Set
1 x PH2.0 20cm 8Pin
(not include Raspberry Pi)
1 x Screws Set
1 x PH2.0 20cm 8Pin
(not include Raspberry Pi)

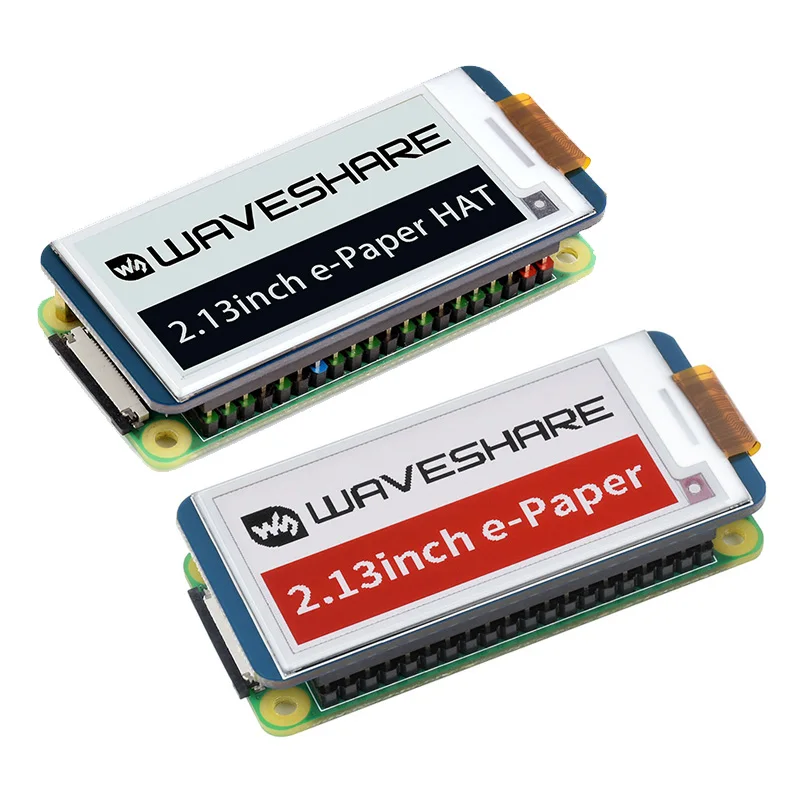

Option 2:
1 x 2.13 inch e-Paper HAT (Red/Black/White Color)
1 x Screws Set
1 x PH2.0 20cm 8Pin
(not include Raspberry Pi)
1 x 2.13 inch e-Paper HAT (Red/Black/White Color)
1 x Screws Set
1 x PH2.0 20cm 8Pin
(not include Raspberry Pi)
Note: Only for reference. Raspberry pi mainboard is not included.
