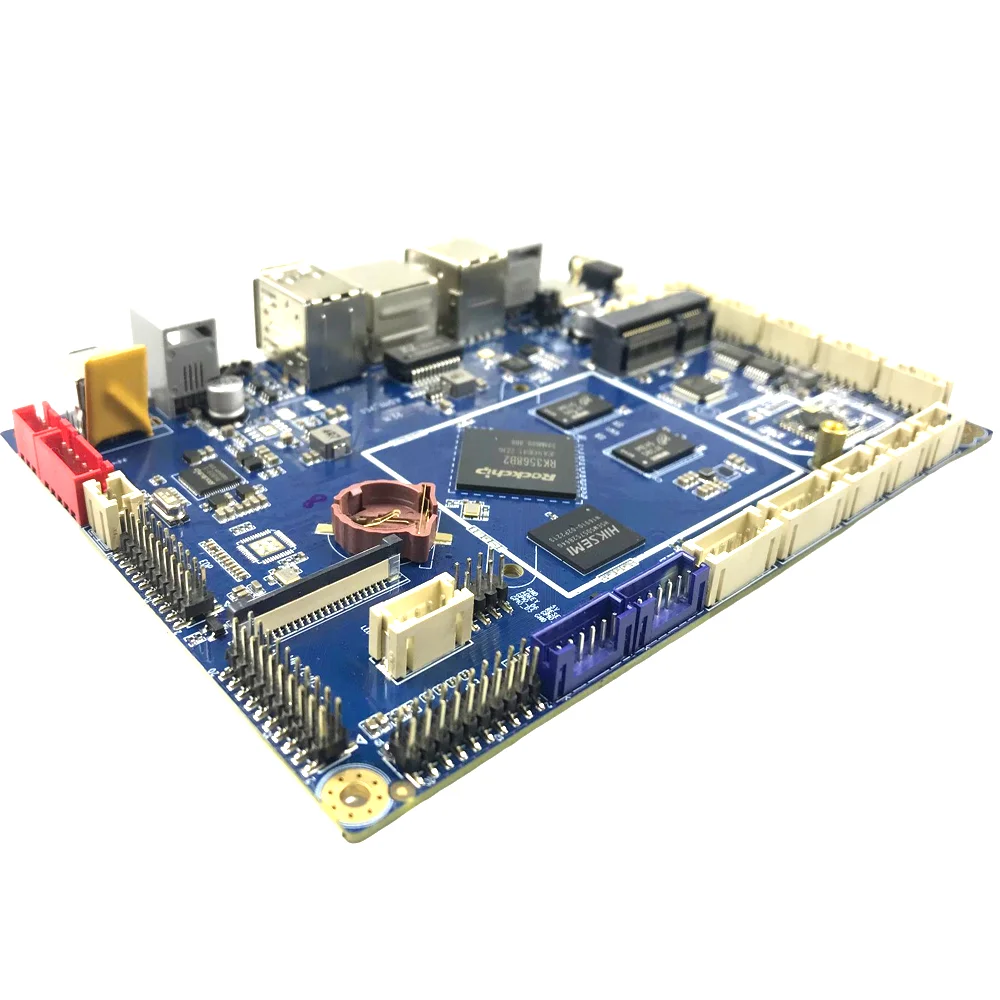

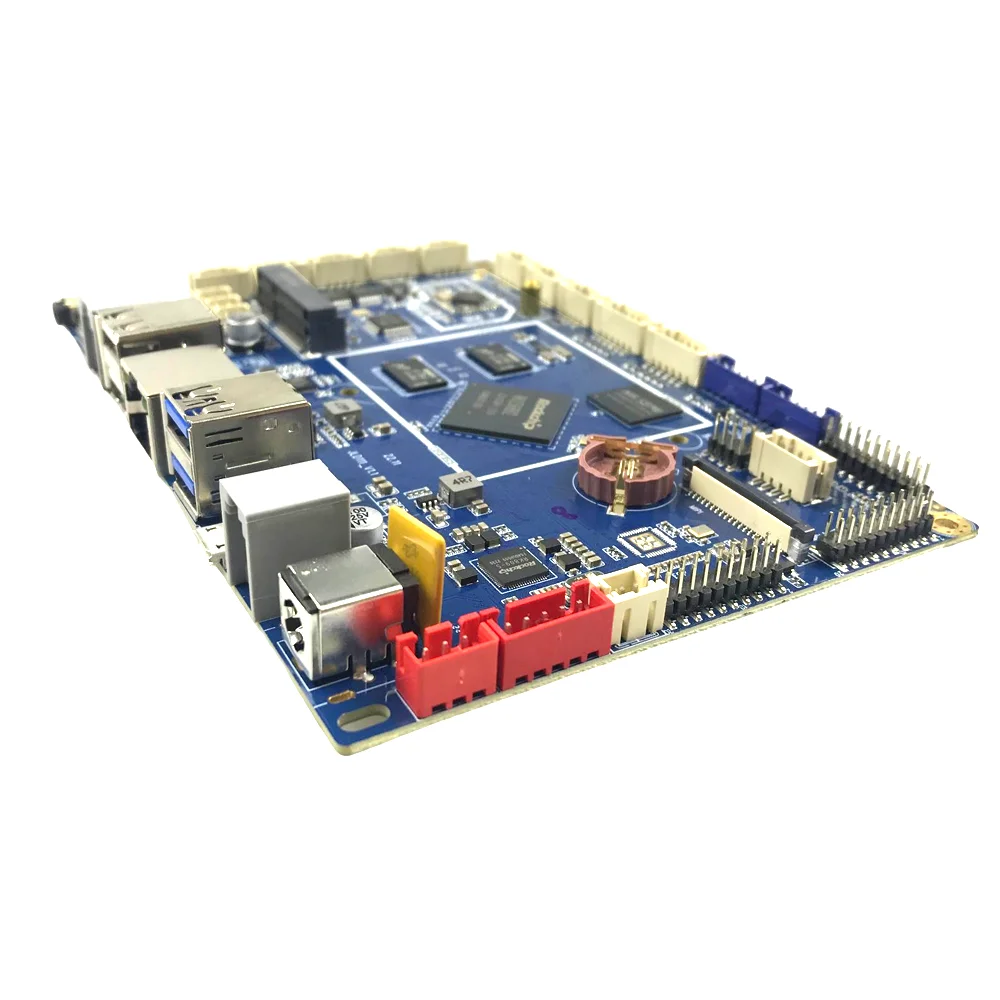

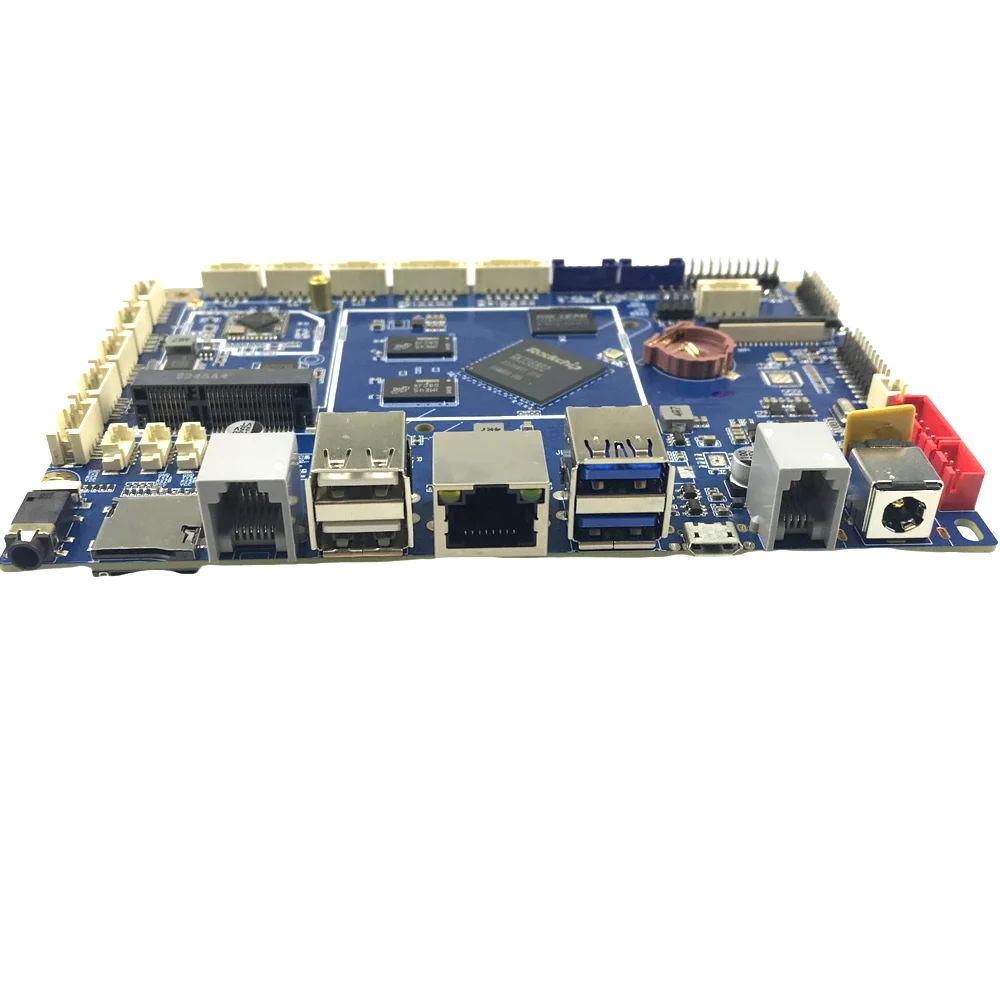

JLD-P01 промышленный сенсорный ПК материнская плата Smart Android торговый автомат киоск дисплей
- Категория: Multilayer PCB >>>
- Поставщик: Shenzhen,JLD,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 70.91 $* | 71.92 $* |
| Jul-15-2025 | 57.74 $* | 58.62 $* |
| Jun-15-2025 | 69.38 $* | 70.61 $* |
| May-15-2025 | 68.6 $* | 69.15 $* |
| Apr-15-2025 | 54.40 $* | 55.99 $* |
| Mar-15-2025 | 67.38 $* | 68.7 $* |
| Feb-15-2025 | 67.8 $* | 68.16 $* |
| Jan-15-2025 | 66.1 $* | 67.43 $* |
Характеристики
Product Description

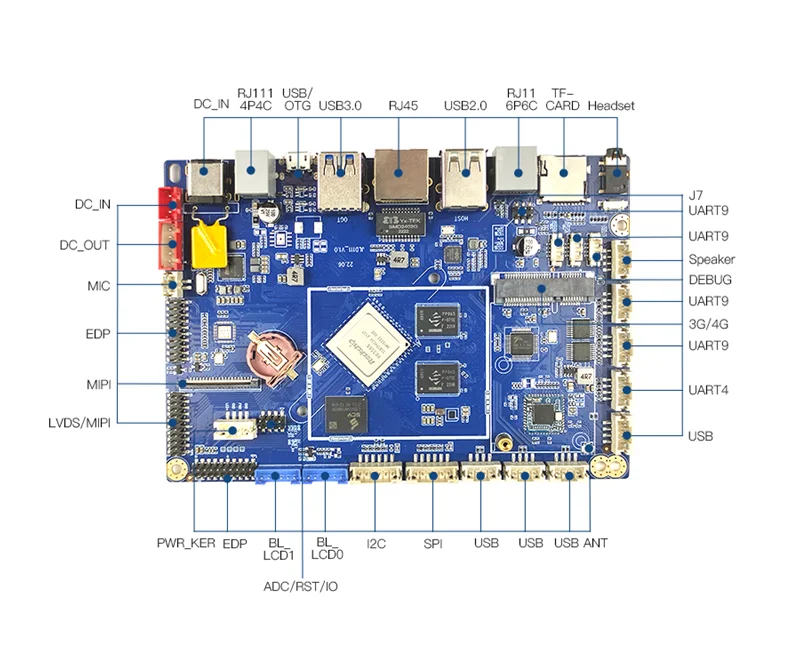

Product Name | Pos Machine Series JLD-P01 |
Operating System | ANDROID 11/Linux Ubuntu |
Master Processor | RK3568 Quad-core 64-bit Cortex-A55 processor, with the highest frequency of 2.0GHz |
Memory | 2G/4G/8G DDR4 option |
GPU | ARM G52 2EE |
NPU | Support 1T computing power, support 4 K 60fps H.265/H.264/VP9 video decoding |
EMMC | EMMC16G/32G/64G/128G option |
Wireless Network | 2.4G / 5G wireless WIFI Internet access |
PCB Size | 146mm*102mm*1.6mm |
Power Input | DC12V-28V input |
Dual Screen Display | support for dual EDP, dual MIPI |
USB Interface | USB HOST/OTG |
Serial Port | support TTL、RS232 |
Camera Interface | support USB or MIPI |
Adaptive Temperature | -20~80℃ |
Product performance description
产品性能介绍说明
产品性能介绍说明
The chip RK3568 is a high-performance, low-power, quad-core application processor, Designed for commercial POS and touch screen POS devices.
RK3568 is built with a variety of powerful embedded hardware engines, providing excellent performance for high-end applications, supporting almost full format H.264 4k@60fps decoding, H.265 4k@60fps decoding, also supporting H.264/H.265 1080p@60fps encoding, and high quality JPEG encoding/decoding.
We can also support display with motherboard.
Product Usage
POS Terminal
Vending Machine
Product usage introduction
产品使用方式介绍
产品使用方式介绍
Product Superiority:
Suitable for dual screen POS machine,can do a variety of screen combinations,various interfaces supporting POS
Apply:
POS machine, electronic scale, self-service terminal
Certificate
Packing&Shipping
Packing
1. At Buyer's Request;2. Inner, vacuum package;
3.Outer, standard export carton;
Delivery
1. Sample and mini order will be delivered within 3-4 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4weeks after the receipt of payment.
3. Please contact our sales to make sure the current inventory.
1. Sample and mini order will be delivered within 3-4 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4weeks after the receipt of payment.
3. Please contact our sales to make sure the current inventory.
Company Introduction
Shenzhen JLD Technology Co.,Ltd is founded in 2009, specialized in defferentiation intelligent terminal design development and located in applying Android operation system that design and develop PCBA based on rochchip and amlogic solving project; sell andoperate Internet and smart city finished products based on Qualcomm 4G LTE chipset. Company provides project development, PCBA andthe production and sales of finished products to all of global clients.
Since the foundation, our company has established long-time cooperation relationship with clients in Europe, North America,Korea, South-east Asia and so on and clients in many provinces in nationalwide. The content of project design service includes the design development and product sales of generic smart like smart city, mobile web of things, digital signage, POS machine, vending terminal, education terminal, video phone, smart broadcast, smart sports equipment, smart home, smart transportation, medical equipment and so on. Our brand clients includes Benz coach, Mengshi coach, Panasonic, Haier, Media, Jiumu, Hongkong Qishi, Korean Ministry of National Defense, Kangguan and so on. Our products are applied broadly in finance, education, hospital, media, car, industrial control, military, real estate and so on.
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
