Характеристики
Product Details

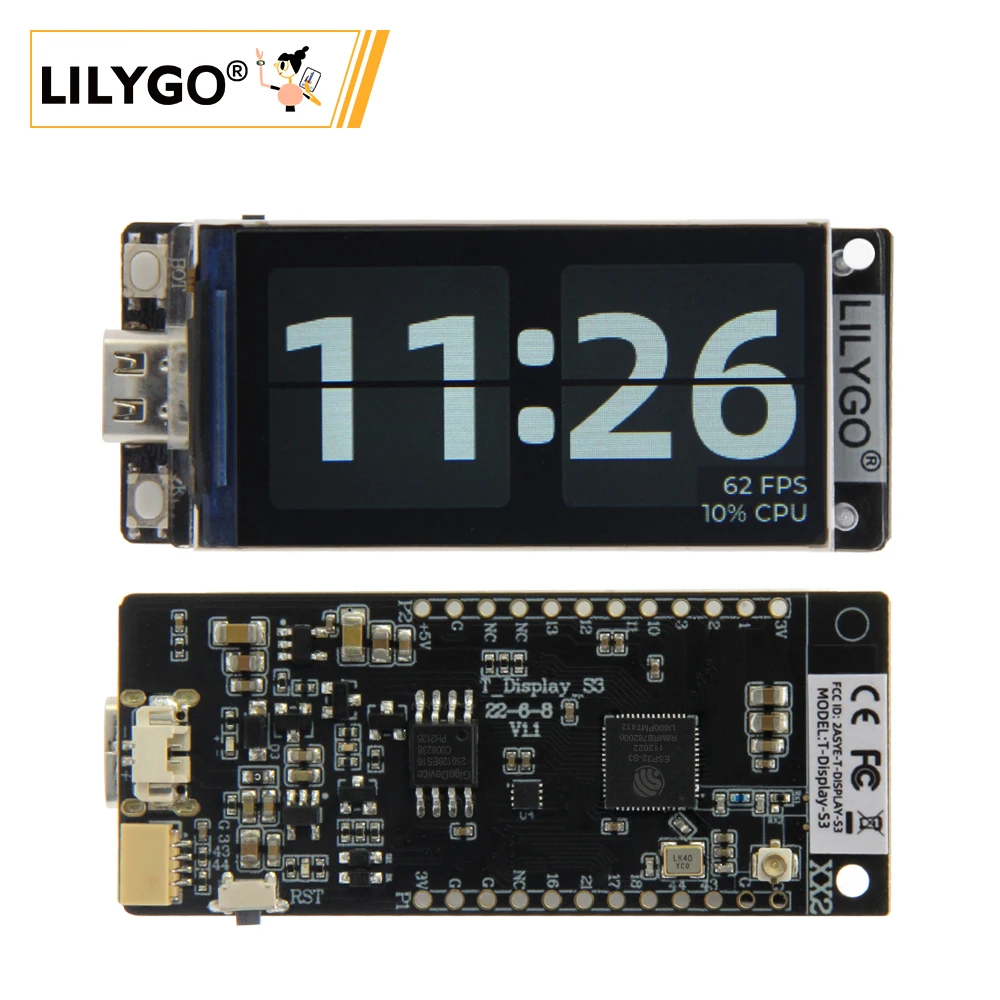

T-Display-S3 Introduction
* It comes with the latest ESP32-S3 and Bluetooth 5.0.
* The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
* This will be the second LILYGO model Display with acrylic plate fixed.
* The overall design continues the design of the T-Display series.
T-Display-S3 Specifications | ||||||
MCU | ESP32-S3R8 Dual-core LX7 microprocessor | |||||
Flash | 16MB | PSRAM | 8MB | |||
Wireless Connectivity | Wi-Fi 802.11 | |||||
Bluetooth 5.0 + BT mesh | ||||||
Programming Platform | Arduino-ide、Micropython | |||||
Bat voltage detection | IO04 | |||||
Onboard functions | Boot+Reset+IO14 Button | |||||
1.9 inch ST7789V IPS TFT LCD | ||||||
Drive Chip | ST7789 | Resolution | 170(H) x 320(V) | |||
Screen Size | 1.9"Diagonal | Interface | 8-Bit Parallel | |||
Screen Type | TFT IPS LCD | Pixels Per Inch(PPI) | 260 | |||
Screen color | Full color | |||||
Working Power Supply | 3.3v | |||||
Support USB/Li-Po Battery Dual Power Supply
More Information
* Github:
https://github.com/Xinyuan-LilyGO/T-Display-S3
* From YouTube's "Useful Electronics" presentation:
https://www.youtube.com/watch?v=88MwR-4Dy0Q
* Github:
https://github.com/Xinyuan-LilyGO/T-Display-S3
* From YouTube's "Useful Electronics" presentation:
https://www.youtube.com/watch?v=88MwR-4Dy0Q

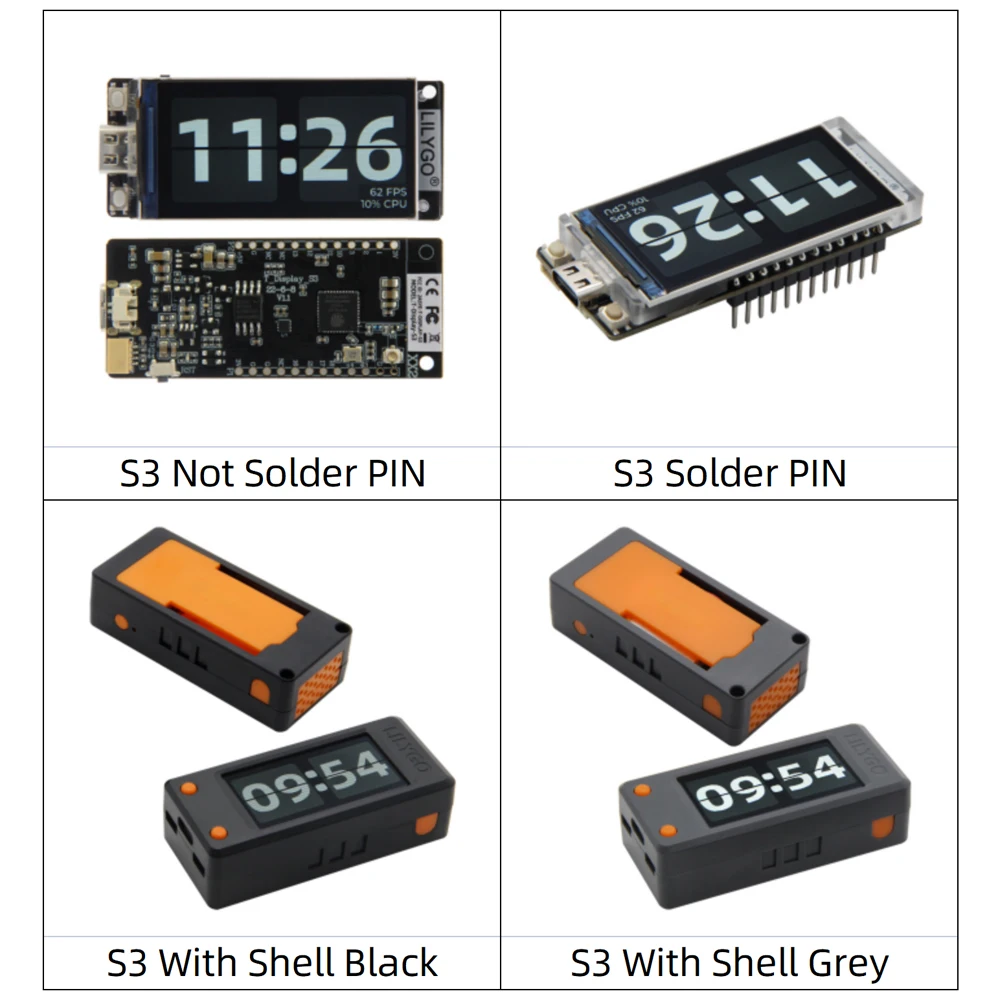

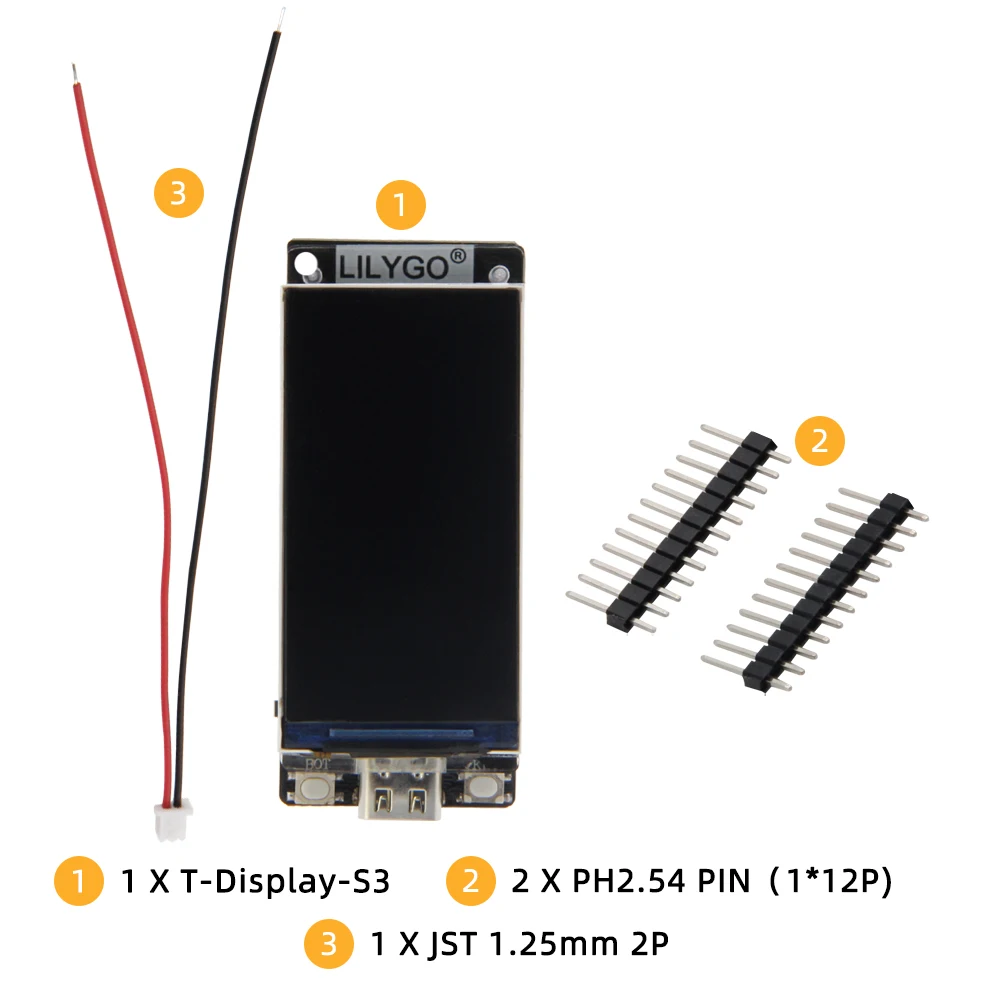

S3 Not Soldering PIN
1 X T-Display-S3
1 X 2.54mm Male PIN (1*12P)
1 X JST 1.25mm 2P

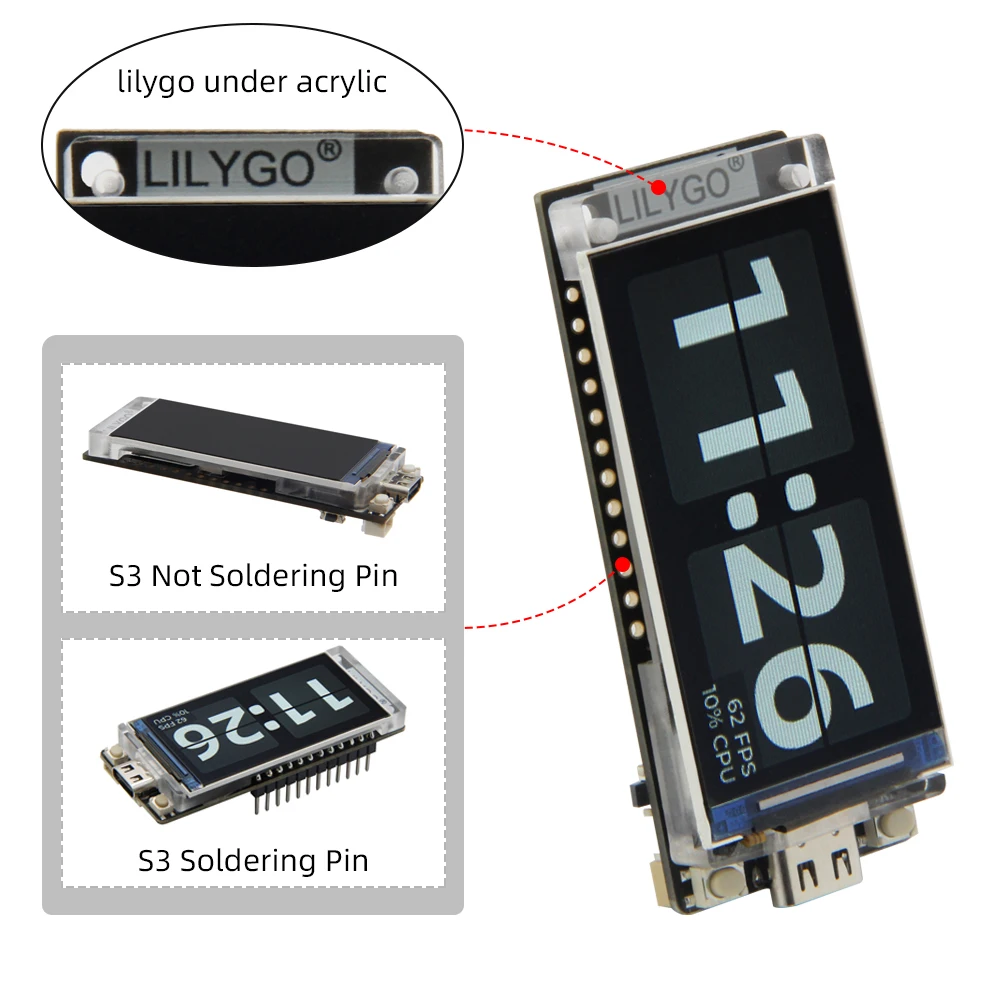

S3 Soldering PIN
1 X T-Display-S3
1 X JST 1.25mm 2P

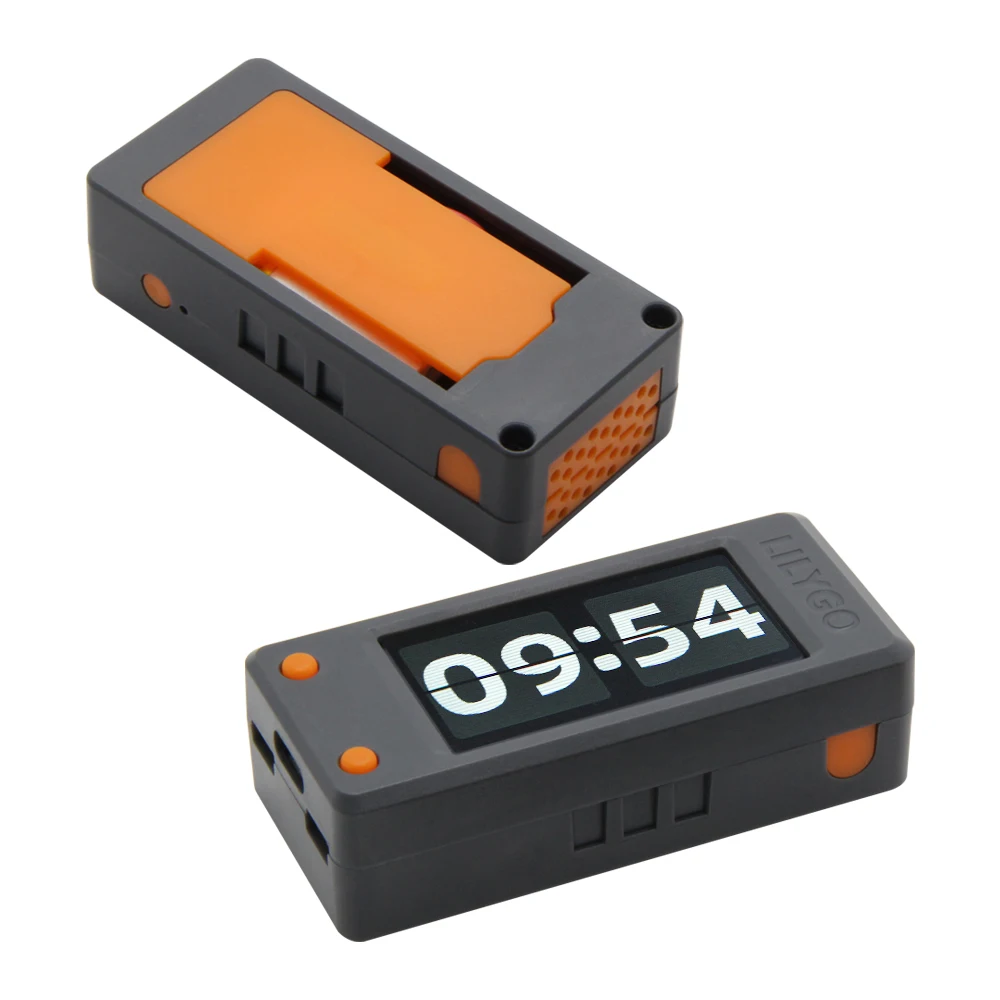

S3 With Shell (Black or Grey)
1 X T-Display-S3 with shell
2 X pins (12pin)
1 XJST 1.25mm battery cable (without battery)
Recommend Products
Company Profile
Why Choose Us
Shipping
FAQ
Q: Product with Display
A2: The specific application depends on your project, or search our brand "LILYGO"on social media to see other's project sharing.
A3: please confirm your requirements first then choose products accordingly.
Q: Commended User
A: It is recommended that personnel with programming foundation [engineer/student/manufacturer, etc..][Reference only]
Q: Sample First
A: If you haven't tested it before ,we suggest that buy 2-3 samples before buying in bulk will be better.[in this way you can test them randomly to ensure that the product meets your needs]
Q: Usage Instructions
A1: All parameters have been put in the product details.
A2: If you have any other questions about the order or product, don't hesitate to contact the Customer Service[It will be very helpful to have clear pictures or videos to point your problem out]
A3: Support hardware customization services Please list all the requirements one by one and contact customer service[facilitate check more quickly and accurately]
Q: Technical Support
A: Relevant technical or usage issues can be also discussed in our GitHub or Community .
A: Please handle the product with care to avoid display breakage.
Q: Display Protection Film
A: Please remove the protective film before use, so that the it will be more clearly.
Q: No Display
A: Ensure that the display is connected to the PCB properly , or burn the test Demo again.
Q: About Product or Application
A1: Since they are programmable development boards which can be carried out secondary development . For now we only have sample code for testing.
A1: Since they are programmable development boards which can be carried out secondary development . For now we only have sample code for testing.
A2: The specific application depends on your project, or search our brand "LILYGO"on social media to see other's project sharing.
A3: please confirm your requirements first then choose products accordingly.
Q: Commended User
A: It is recommended that personnel with programming foundation [engineer/student/manufacturer, etc..][Reference only]
Q: Sample First
A: If you haven't tested it before ,we suggest that buy 2-3 samples before buying in bulk will be better.[in this way you can test them randomly to ensure that the product meets your needs]
Q: Usage Instructions
A1: All parameters have been put in the product details.
A2: If you have any other questions about the order or product, don't hesitate to contact the Customer Service[It will be very helpful to have clear pictures or videos to point your problem out]
A3: Support hardware customization services Please list all the requirements one by one and contact customer service[facilitate check more quickly and accurately]
Q: Technical Support
A: Relevant technical or usage issues can be also discussed in our GitHub or Community .
