Оптовая продажа с завода, mp3-плеер по лучшей цене
US $9.88-$15.88
Плата MP3 декодера 5 В беспроводной аудио модуль 0 цветной экран поддержка APE USB TF FM радио автомобильные
- Категория: MP3 Players >>>
- Поставщик: Shenzhen,Robotlinking,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.36 $* | 4.25 $* |
| Jul-18-2025 | 3.61 $* | 3.55 $* |
| Jun-18-2025 | 4.70 $* | 4.14 $* |
| May-18-2025 | 4.46 $* | 4.47 $* |
| Apr-18-2025 | 3.39 $* | 3.13 $* |
| Mar-18-2025 | 4.51 $* | 4.16 $* |
| Feb-18-2025 | 4.24 $* | 4.79 $* |
| Jan-18-2025 | 4.57 $* | 4.6 $* |
Характеристики
5V MP3 Decoder Board 5.0 Wireless Audio Module Color Screen Support APE USB TF FM Radio For Car Accessories
Rated input: 5V/500MA
Power supply type: direct current (DC) 3.7~5V power supply

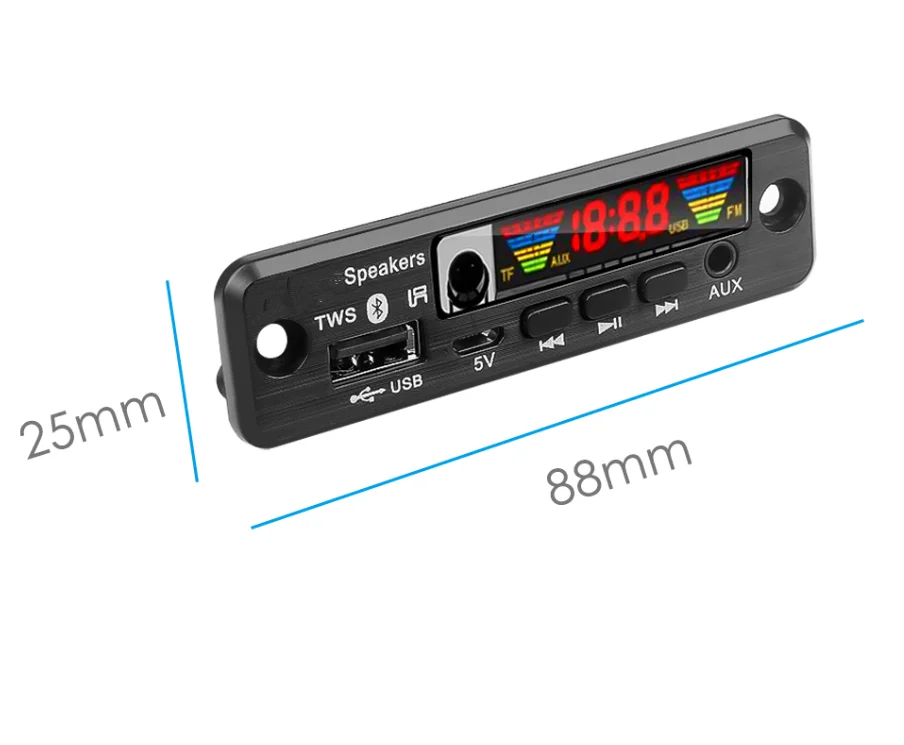

Appearance size: 88(L)*25(H)mm
Rated power consumption: USB playback current <120M
Other status: <80MA

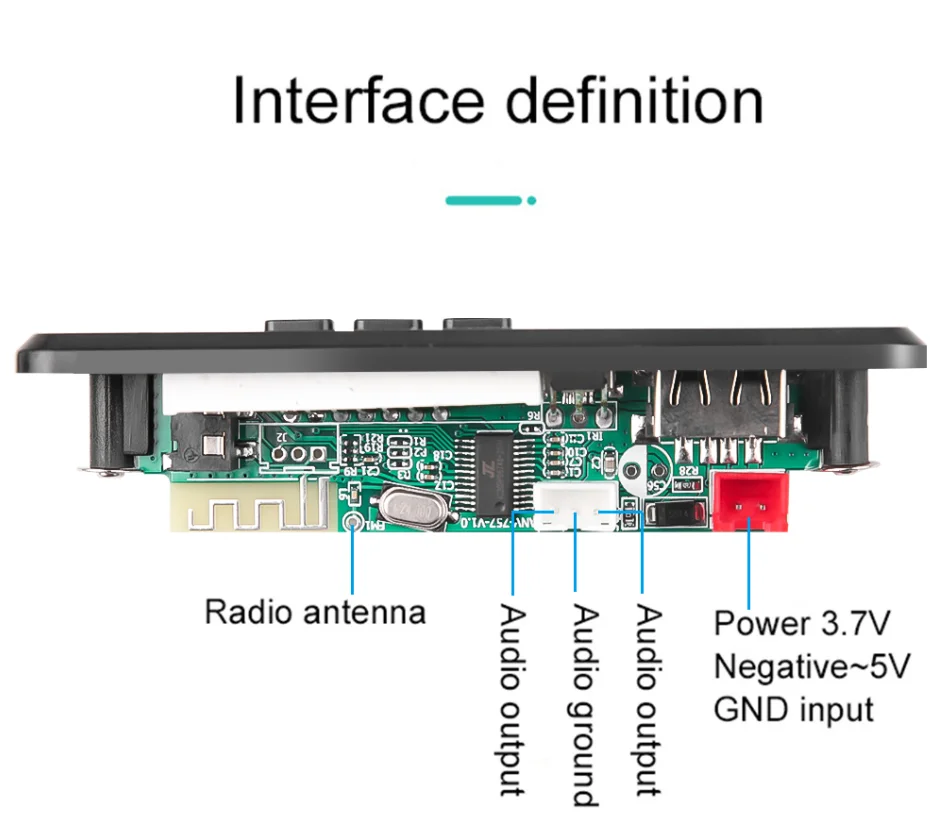

Panel interface: USB, AUX
Operating temperature: -20℃~60℃
Output amplitude: >600MV
Power supply type: direct current (DC) 3.7~5V power supply
Appearance size: 88(L)*25(H)mm
Rated power consumption: USB playback current <120M
Other status: <80MA
Panel interface: USB, AUX
Operating temperature: -20℃~60℃
Output amplitude: >600MV
Keys Usage:
Short press: previous song
Short press: play/stop
Short press: next song
Long press: volume up
Long press: mode switch
Double-click: TWS pairing
Long press: volume down
Short press: previous song
Short press: play/stop
Short press: next song
Long press: volume up
Long press: mode switch
Double-click: TWS pairing
Long press: volume down
Key Function
POWER: STANDBY ON/OFF
MODE: press this key to cycle selection input USB→SD→BLUE→FM→LINE
PREV: In the USB/SD/BT playback state, short press to select the previous song, long press to rewind (BT is invalid).
In the FM state, short press to select the previous station and long press to search backward Radio (AUX status is invalid).
NEXT: In the USB/SD/BT playback state, short press to select the next song and long press to fast forward (BT is invalid) in receiving
In the FM state, short press to select the next station
Radio (AUX status is invalid)
VOL+: Increase the volume
VOL-: Volume down
REP: Enter the loop mode during USB/SD playback, short press the loop button and enter A (full loop) →O (single loop) →FOLDER(current folder loop) → Random (random play) → NORMAL (cancel loop function and enter sequence playback)
STOP: Stop playing in the USB/SD card state and press the play button to start playing from the first song (other states is invalid)
MUTE: press mute in all states and press again to unmute
EQ: USB/SD state is sound field mode. NORMAL→BASS→ ROCKPOP→ROCK→JAZZ→ CLASSIC→CUR
PLAY PAUSE: In the USB/SD/BT playback state, short press once to pause and press again to play In the radio mode, press this button to enter the automatic search station
0~9: Directly select more than 10 numbers on USB/SD and input the number to be selected. In FM state
Select a stored radio station in the mode, or press the number keys to directly enter the radio frequency to play the radio station
POWER: STANDBY ON/OFF
MODE: press this key to cycle selection input USB→SD→BLUE→FM→LINE
PREV: In the USB/SD/BT playback state, short press to select the previous song, long press to rewind (BT is invalid).
In the FM state, short press to select the previous station and long press to search backward Radio (AUX status is invalid).
NEXT: In the USB/SD/BT playback state, short press to select the next song and long press to fast forward (BT is invalid) in receiving
In the FM state, short press to select the next station
Radio (AUX status is invalid)
VOL+: Increase the volume
VOL-: Volume down
REP: Enter the loop mode during USB/SD playback, short press the loop button and enter A (full loop) →O (single loop) →FOLDER(current folder loop) → Random (random play) → NORMAL (cancel loop function and enter sequence playback)
STOP: Stop playing in the USB/SD card state and press the play button to start playing from the first song (other states is invalid)
MUTE: press mute in all states and press again to unmute
EQ: USB/SD state is sound field mode. NORMAL→BASS→ ROCKPOP→ROCK→JAZZ→ CLASSIC→CUR
PLAY PAUSE: In the USB/SD/BT playback state, short press once to pause and press again to play In the radio mode, press this button to enter the automatic search station
0~9: Directly select more than 10 numbers on USB/SD and input the number to be selected. In FM state
Select a stored radio station in the mode, or press the number keys to directly enter the radio frequency to play the radio station
Package Content:
1 X MP3 Decoder Board

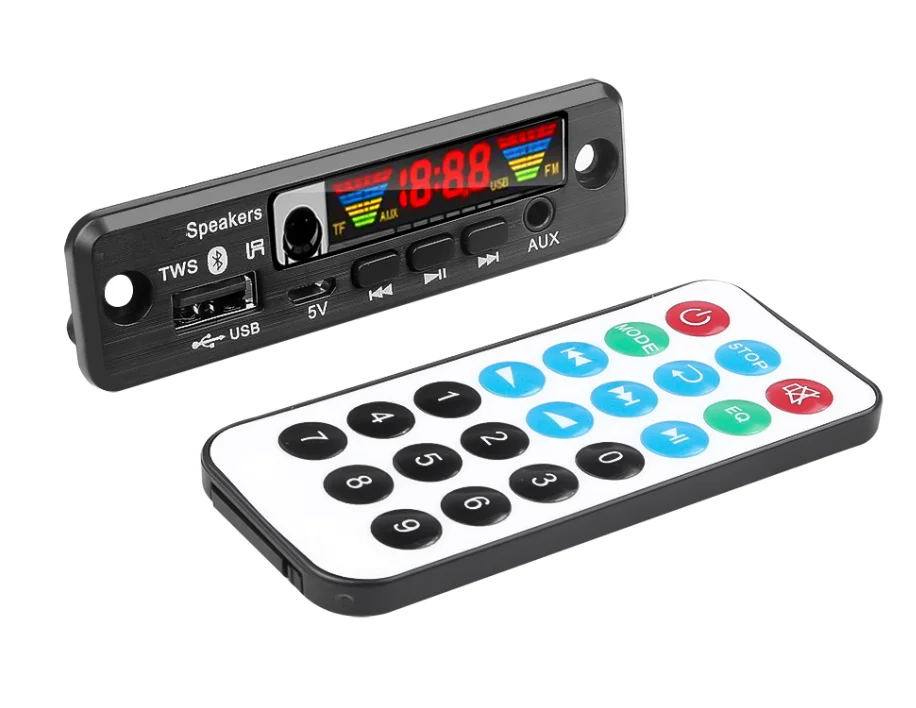

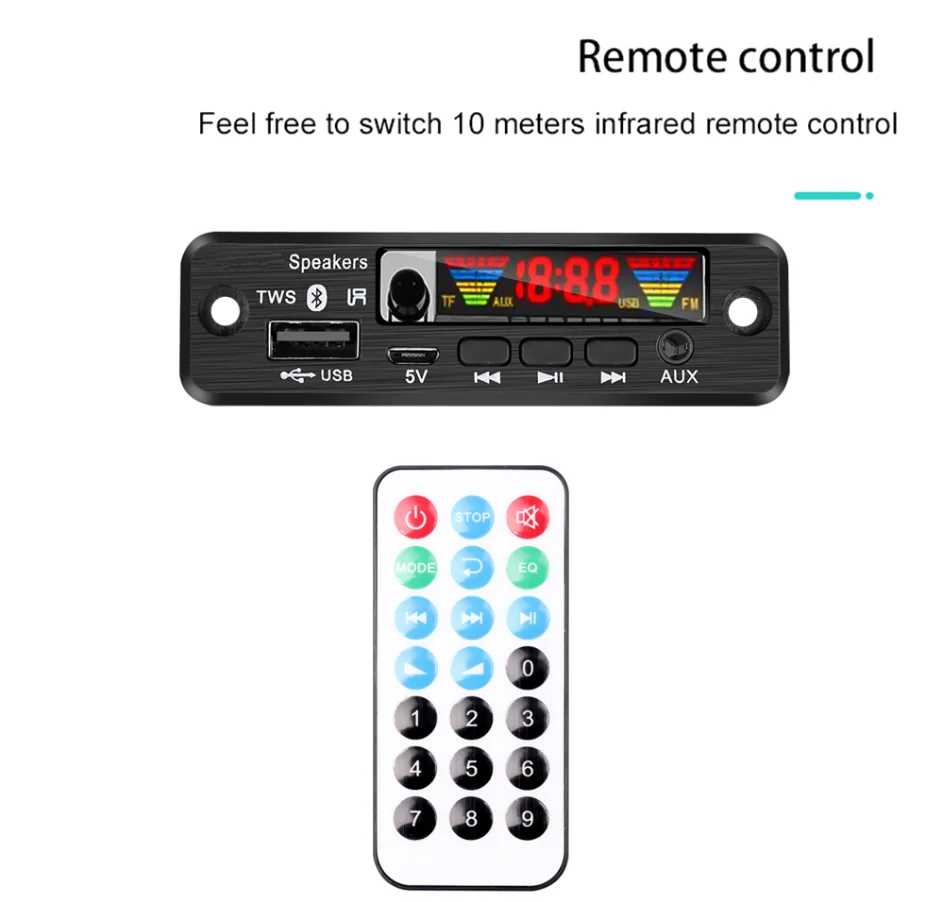

1 x Remote control (no Battery)
1 X MP3 Decoder Board
1 x Remote control (no Battery)
