Маленький сельскохозяйственный недорогой Электрический мини фронтальный компактный колесный погрузчик с литиевой батареей 0 6 тонны 1
- Категория: Loaders >>>
- Поставщик: SOCMA,INTERNATIONAL,TRADE,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 90715.76 $* | 92529.32 $* |
| Jul-20-2025 | 73572.3 $* | 75043.18 $* |
| Jun-20-2025 | 89286.86 $* | 91072.58 $* |
| May-20-2025 | 88572.11 $* | 90343.1 $* |
| Apr-20-2025 | 70715.54 $* | 72129.64 $* |
| Mar-20-2025 | 87143.57 $* | 88886.61 $* |
| Feb-20-2025 | 86429.25 $* | 88158.36 $* |
| Jan-20-2025 | 85715.29 $* | 87429.48 $* |
Характеристики
Product Overview

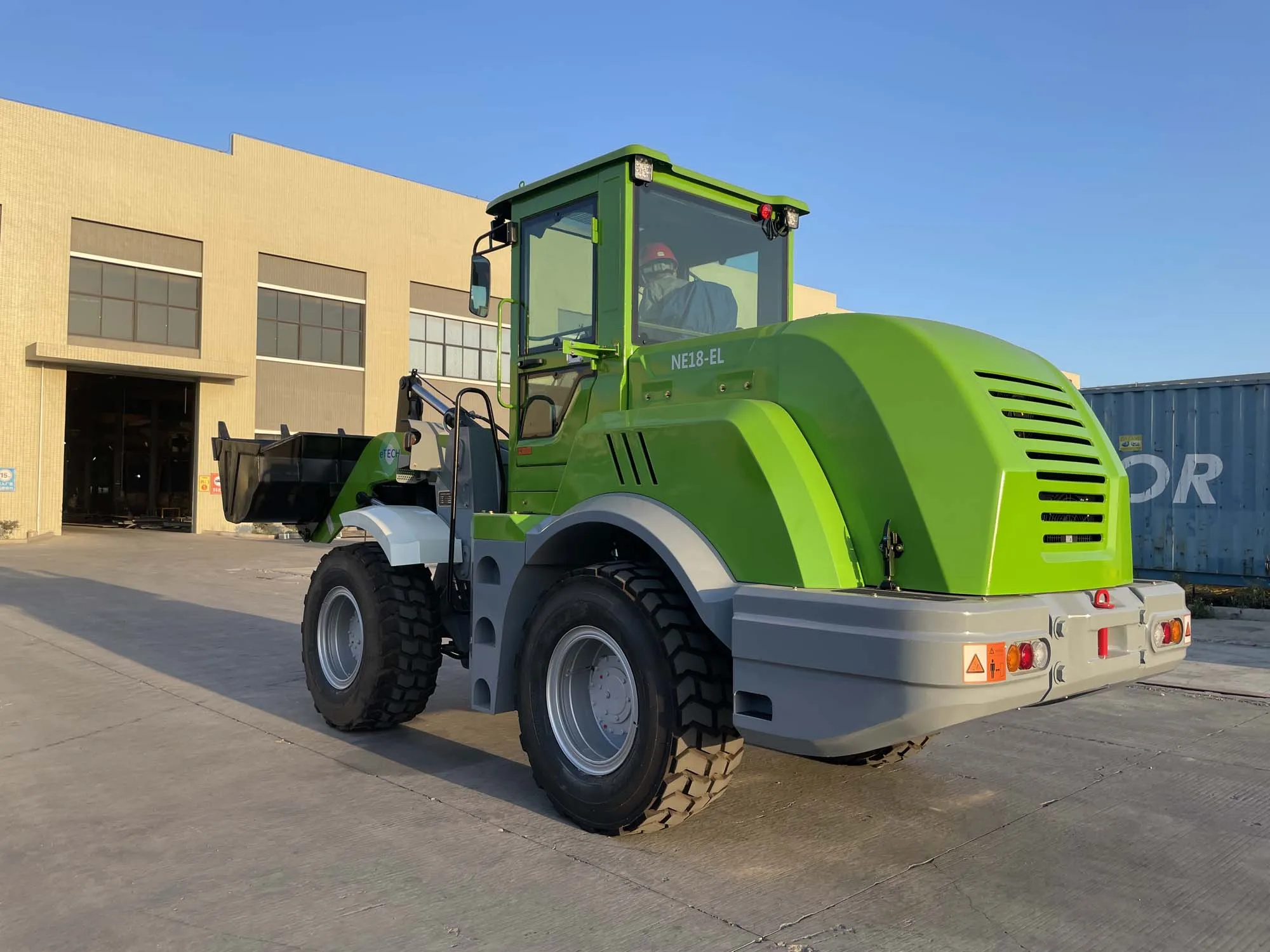

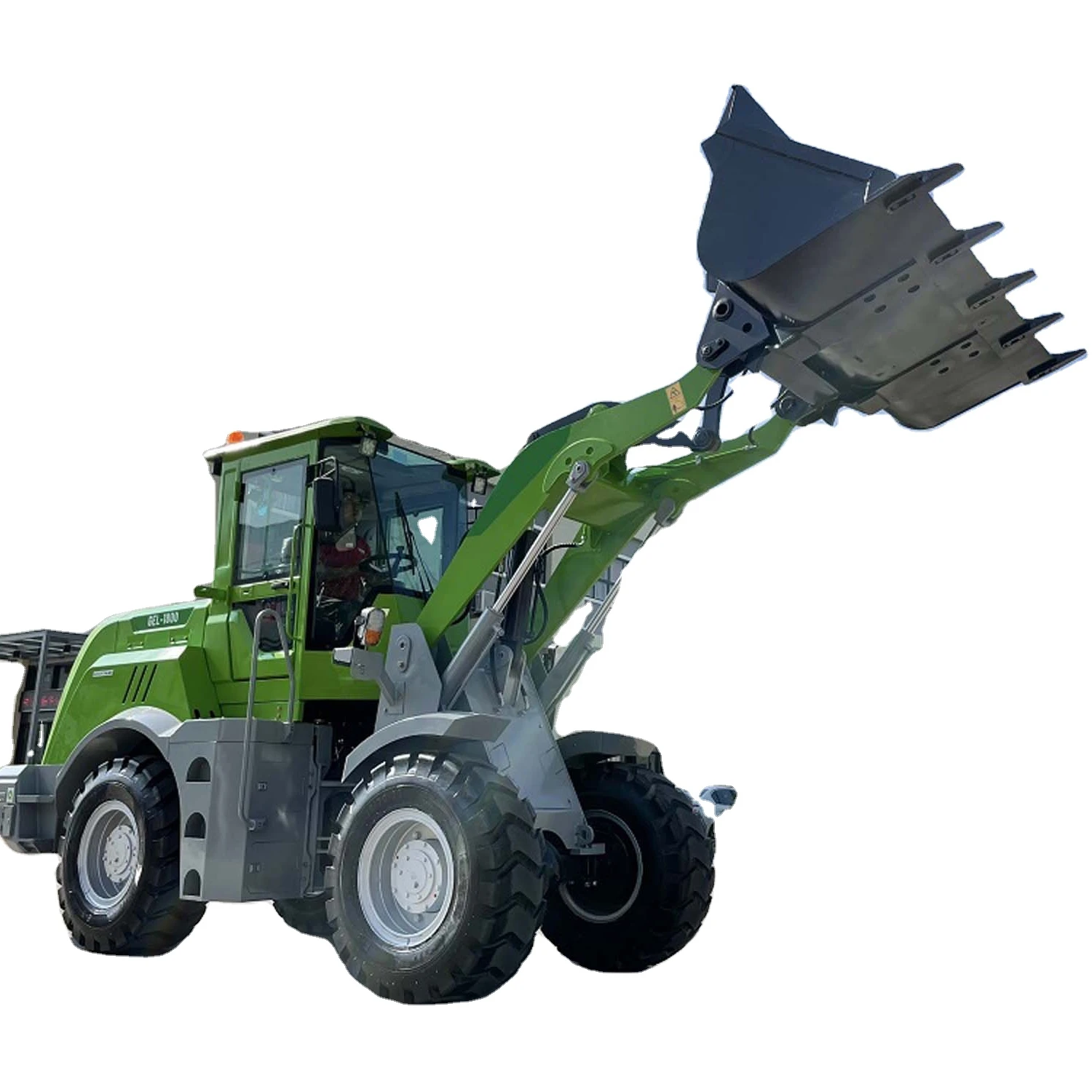

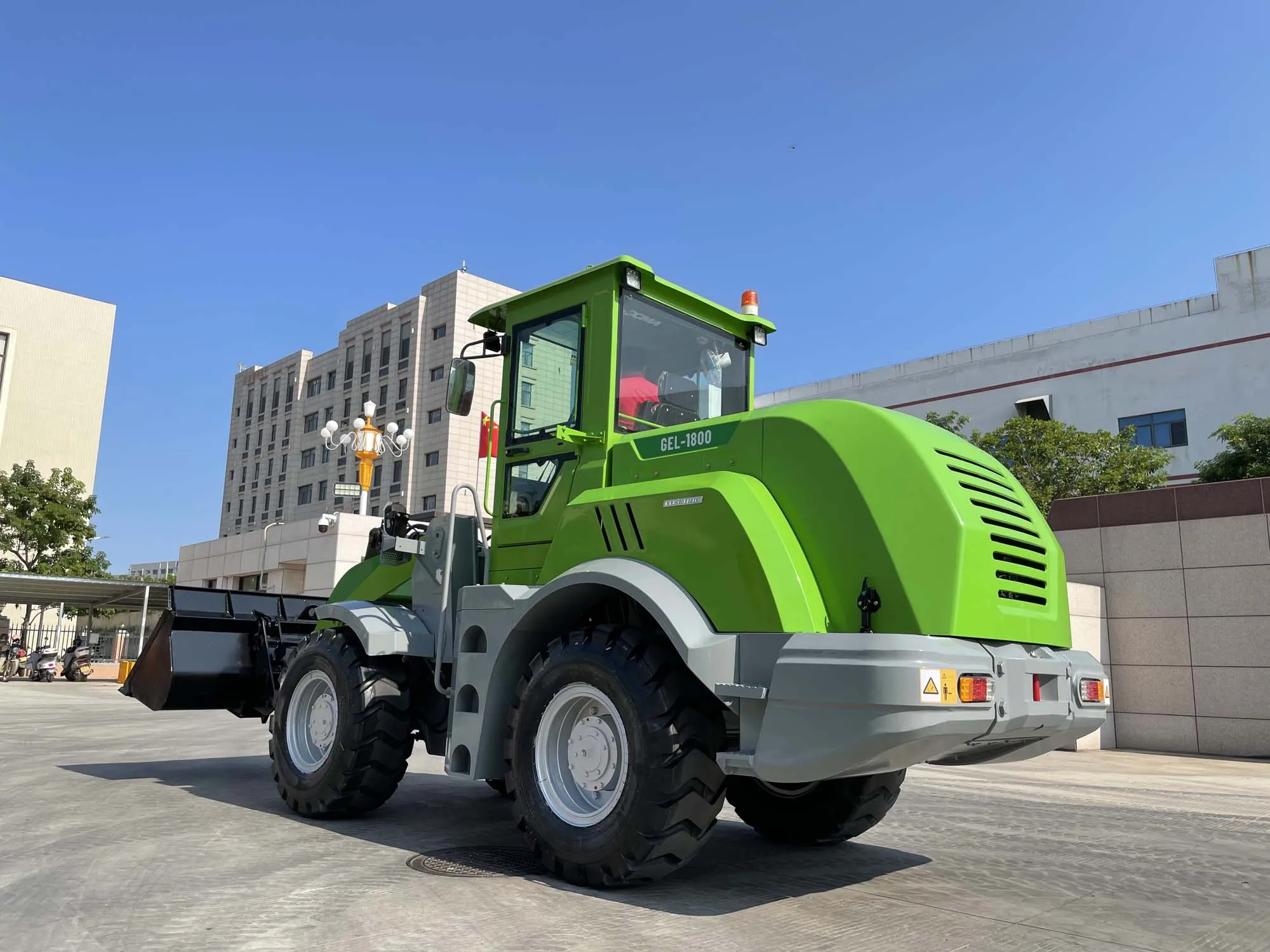

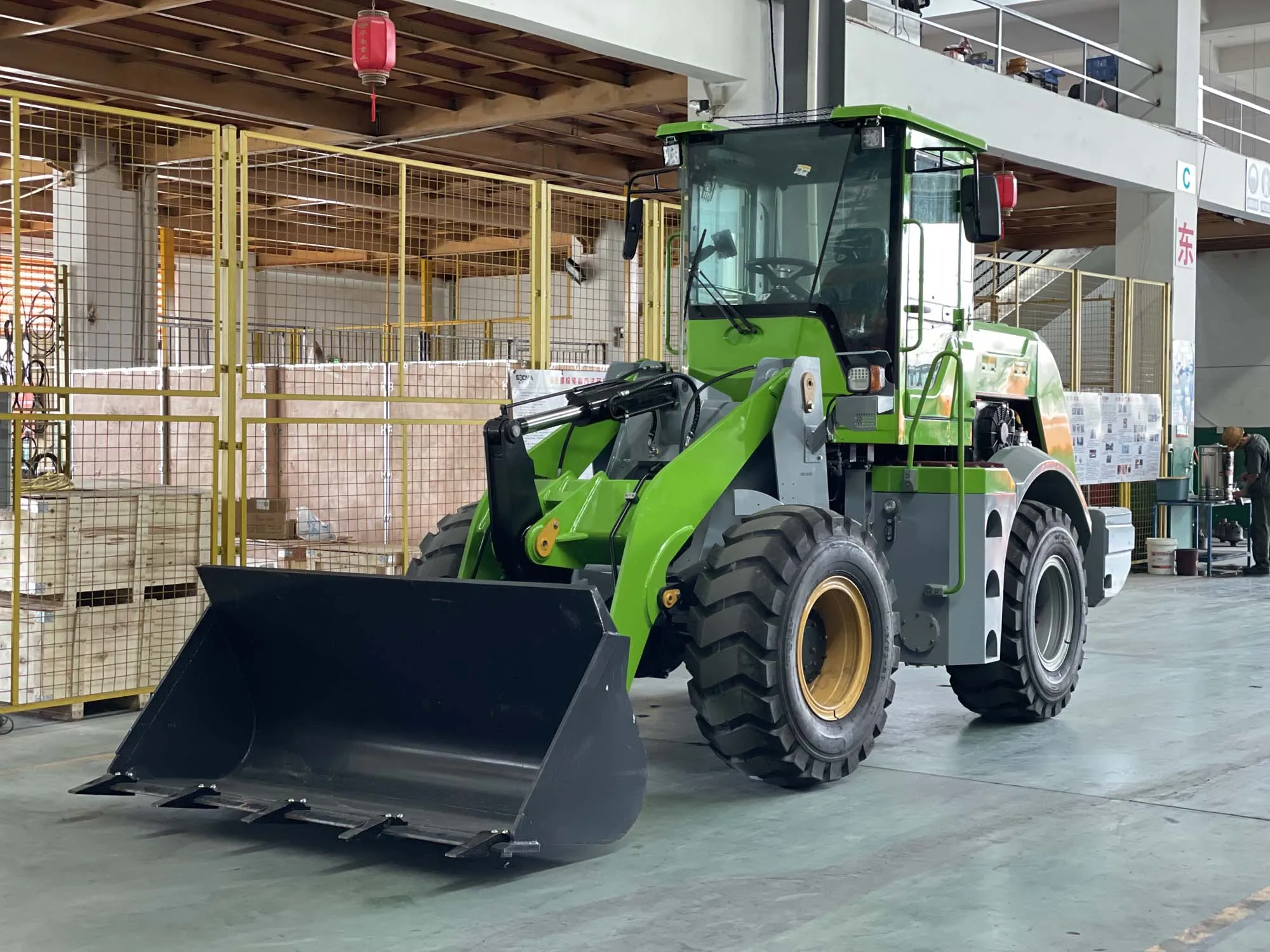

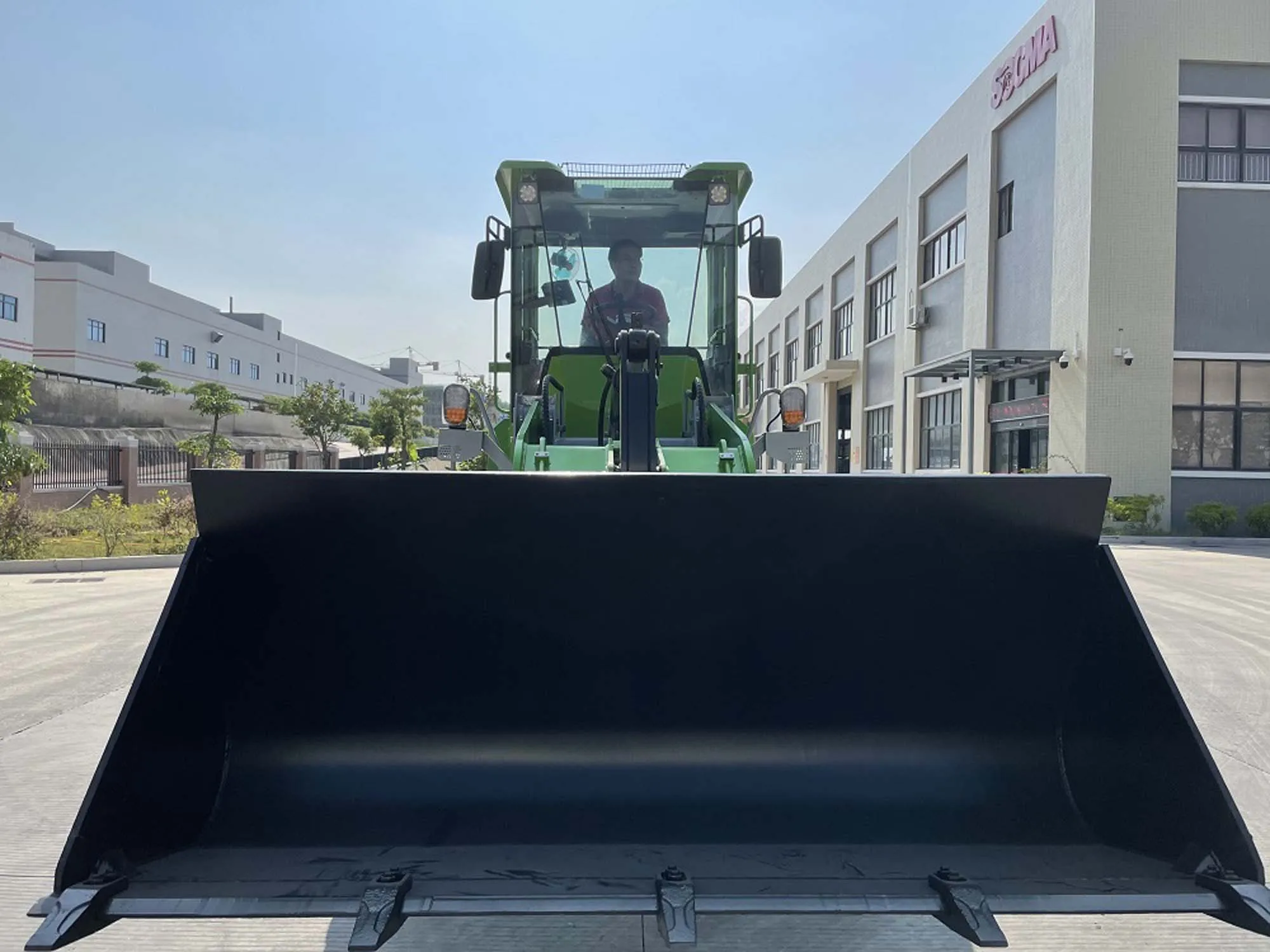

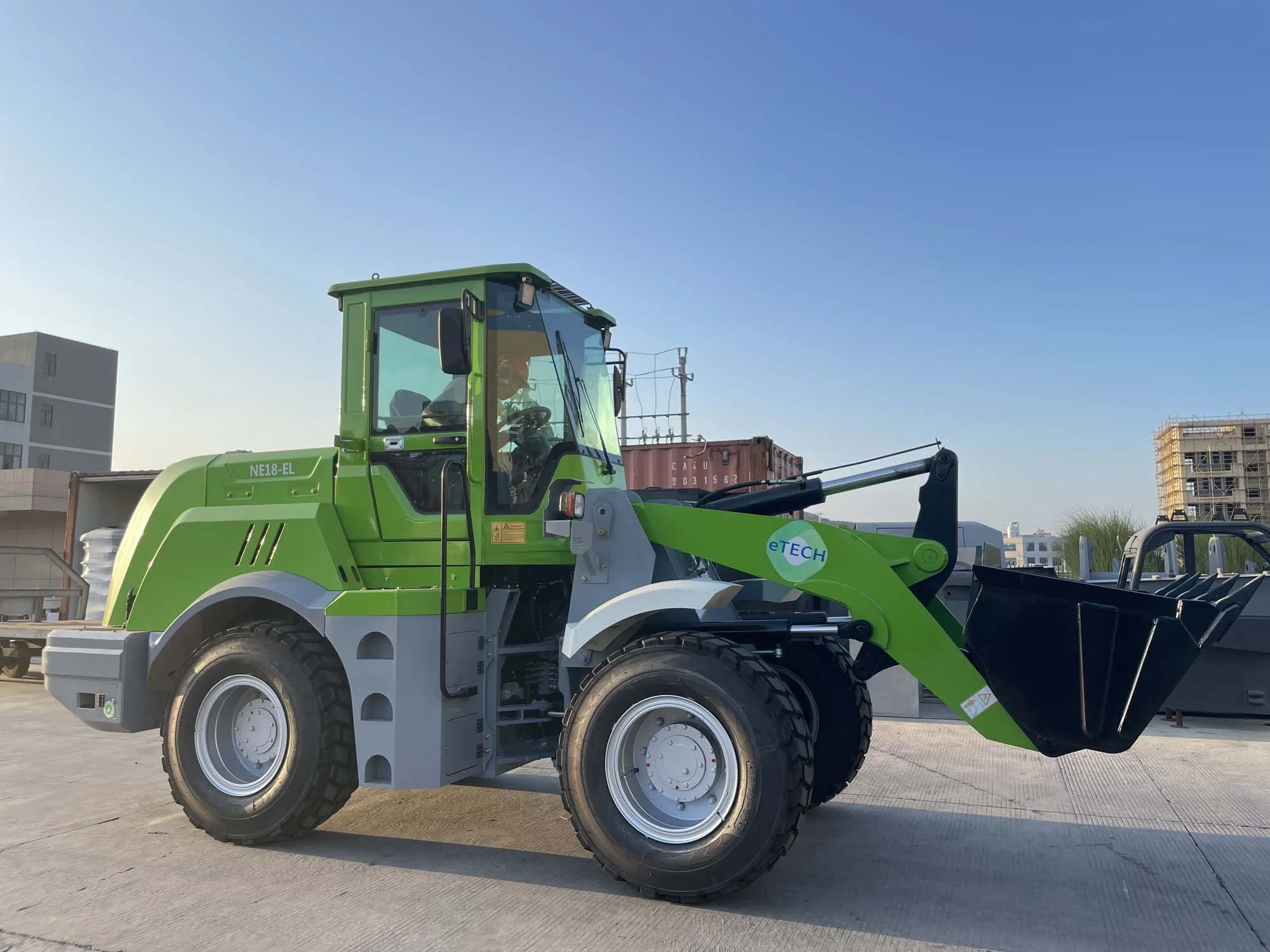

HNL-18EL 1.8 Ton Lithium Battery Electric Wheel Loader
Battery type: lithium iron phosphate, dual-motor compound mode independent drive, motor type: permanent magnet synchronous motor/card issuing motor, positive flow system based on variable speed control, brake energy recovery
PRODUCT SPECIFICATIONS
Performance | Parameter | ||
Basic parameter | Electric Consumption Rate | 10-15 km/h variance with working condition | |
Loading Rate | 1800kg | ||
Bucket Capacity | 1.0m³ | ||
Up digging Force | 47KN | ||
Operating Weight | 7200kg | ||
Max. Dumping Height | 2230 / 2450mm | ||
Dumping Distance 45°Angle | 975 / 850mm | ||
Transmission System | Transmission Type | Mechanical Transmission | |
Transmission Gear | 1 Front 2/Rear 1 | ||
Max. Speed of Forward II | 10km/h | ||
Max. Speed of Forward II | 26km/h | ||
Max. Speed of Rear I | 10km/h | ||
Max. Speed of Rear II | 26km/h | ||
Gradeability | 30.50% | ||
Traction | 55kN | ||
Travel Motor | Motor Type | Permanent Magnet Synchronous Motor | |
Motor Rated | 57kW | ||
Motor operating efficiency range | 86%-98% | ||
Main Pump Motor | Motor Type | Permanent Magnet Synchronous Motor | |
Motor Rated | 37.7kW | ||
Battery | Motor operating efficiency range | 86%-98% | |
Battery Type | LiFe PO | ||
Battery rated storage capacity | 140.92Kwh | ||
Rated Capacity of Battery | 228AH | ||
Rated Voltage | 618.24V | ||
Rounds of full charge and discharge cycles | 4000up次以上 | ||
Theoretical Service Life | over 8 years | ||
Charge time | 0.6-.5h( Variance with the Charger) | ||
Hydraulic System | Pressure | 16MPa | |
Flow Rate | 150L/min | ||
Raising Time | 5s | ||
Total cycle time | 10s | ||
Steering System | Steering gear Model | BZZ 5-E315C | |
Pressure | 15MPa | ||
Steering Type | Articulated frame steering | ||
Steering Angle | ±32° | ||
Brake Mode | Travel brake | Clamp disc brake | |
brake air pressure | 12MPa | ||
Parking Brake | Clamp disc brake | ||
Dimension | Overall Height | 3060mm | |
Overall Width | 1920mm | ||
Overall Length | 6300mm | ||
Wheelbase | 2250mm | ||
Wheel Tread | 1500mm | ||
Bucket with | 2150mm | ||
Ground Clearance | 270mm | ||
Turning Radius (External) | ≤5800mm | ||
Driver position | Central | ||
Driver seat | Sited | ||
Standard Tires(Pneumatically) | Nos. of Wheels | F2/R2 | |
Driving Wheel | 4 wheels Driving | ||
Size of Tire | 16/70-20PR | ||
