Высококачественный низкочастотный динамик из углеродного волокна 25 мм шелковые динамики автомобильный 6 5 дюйма коаксиальный BRAX Германия
- Категория: Speaker & Horn >>>
- Поставщик: Anhui,Yiluchang,Automobile,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1250.63 $* | 1313.4 $* |
| Aug-16-2025 | 1239.90 $* | 1301.21 $* |
| Jul-16-2025 | 1040.31 $* | 1092.21 $* |
| Jun-16-2025 | 1218.43 $* | 1279.91 $* |
| May-16-2025 | 1061.12 $* | 1114.19 $* |
| Apr-16-2025 | 1197.59 $* | 1257.28 $* |
| Mar-16-2025 | 1187.39 $* | 1246.97 $* |
| Feb-16-2025 | 1176.49 $* | 1235.55 $* |
| Jan-16-2025 | 1166.78 $* | 1224.90 $* |
Характеристики
BRAX, Germany | MATCH, Germany | HELIX, Germany |
Product Description
Product data
Rated power/maximum power: 600 W/1200 W
Impedance: 2 x 2 Ω
DC resistance: 2 x 1.9 Ω
Resonant frequency: 35 Hz
Mechanical Q factor: 7.78
Electrical Q factor: 0,55
Total Q factor: 0.51
Equivalent air volume: 46 L
Force factor: 11.30 Tm
Efficiency 1W/1m: 87db
Conical area: 346 c ㎡
Mobile mass: 83g
Voice coil diameter: 65mm
Voice coil winding height: 33mm
Maximum linear offset:+/- 12.5mm
Outer diameter: 275mm/10.83 "
Installation diameter: 235mm/9.3 "
Installation depth: 114mm/4.5 "
Closed net volume: 28L
Impedance: 2 x 2 Ω
DC resistance: 2 x 1.9 Ω
Resonant frequency: 35 Hz
Mechanical Q factor: 7.78
Electrical Q factor: 0,55
Total Q factor: 0.51
Equivalent air volume: 46 L
Force factor: 11.30 Tm
Efficiency 1W/1m: 87db
Conical area: 346 c ㎡
Mobile mass: 83g
Voice coil diameter: 65mm
Voice coil winding height: 33mm
Maximum linear offset:+/- 12.5mm
Outer diameter: 275mm/10.83 "
Installation diameter: 235mm/9.3 "
Installation depth: 114mm/4.5 "
Closed net volume: 28L
Product performance description BRAX

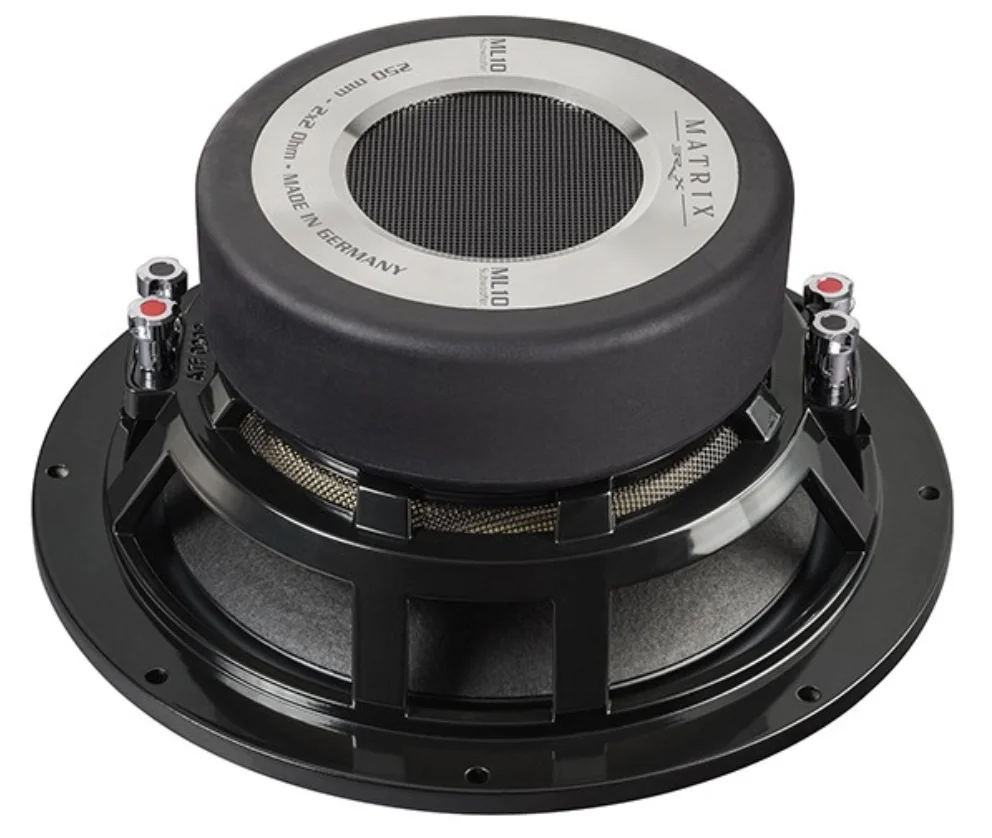

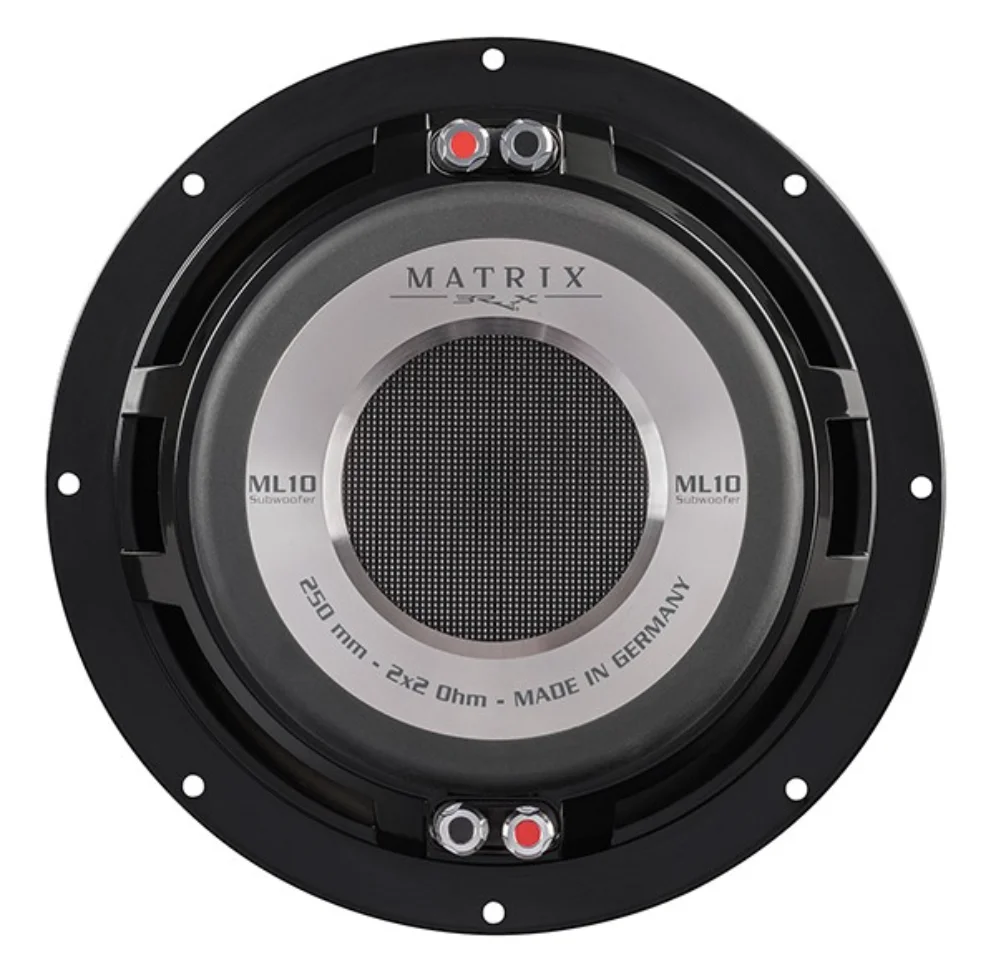

250mm high end subwoofer with 2 x 2 ohm double voice coil
Product features:
● Hard hand scooping paper basin, unique 'microsphere' coating, composed of micro-ceramic hollow balls embedded in the polymer layer, providing the best pulse response
● Rubber surround with special shape can realize long-distance linear coning movement
● 2 x 2 ohm double voice coil, with special winding height, can achieve high linear offset and as low distortion as possible
● The optimized voice coil ventilation network can almost achieve zero compression effect and maximum heat dissipation through the large T-shaped hole and voice basin
● Specially developed, aerodynamic optimization and very solid aluminum die-casting basket
● Extremely powerful precision machining magnet system to achieve the highest magnetic flux linearity
● Large push terminals for large wire gauge
Product features:
● Hard hand scooping paper basin, unique 'microsphere' coating, composed of micro-ceramic hollow balls embedded in the polymer layer, providing the best pulse response
● Rubber surround with special shape can realize long-distance linear coning movement
● 2 x 2 ohm double voice coil, with special winding height, can achieve high linear offset and as low distortion as possible
● The optimized voice coil ventilation network can almost achieve zero compression effect and maximum heat dissipation through the large T-shaped hole and voice basin
● Specially developed, aerodynamic optimization and very solid aluminum die-casting basket
● Extremely powerful precision machining magnet system to achieve the highest magnetic flux linearity
● Large push terminals for large wire gauge
