HP Shantui бульдозер тракторный гусеничный SD22
- Категория: Bulldozers >>>
- Поставщик: Shandong,Chengda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 11900.53 $* | 12495.81 $* |
| Aug-17-2025 | 11800.43 $* | 12390.45 $* |
| Jul-17-2025 | 9900.49 $* | 10395.92 $* |
| Jun-17-2025 | 11600.73 $* | 12180.46 $* |
| May-17-2025 | 10100.79 $* | 10605.20 $* |
| Apr-17-2025 | 11400.28 $* | 11970.24 $* |
| Mar-17-2025 | 11300.89 $* | 11865.68 $* |
| Feb-17-2025 | 11200.70 $* | 11760.68 $* |
| Jan-17-2025 | 11100.19 $* | 11655.48 $* |
Характеристики

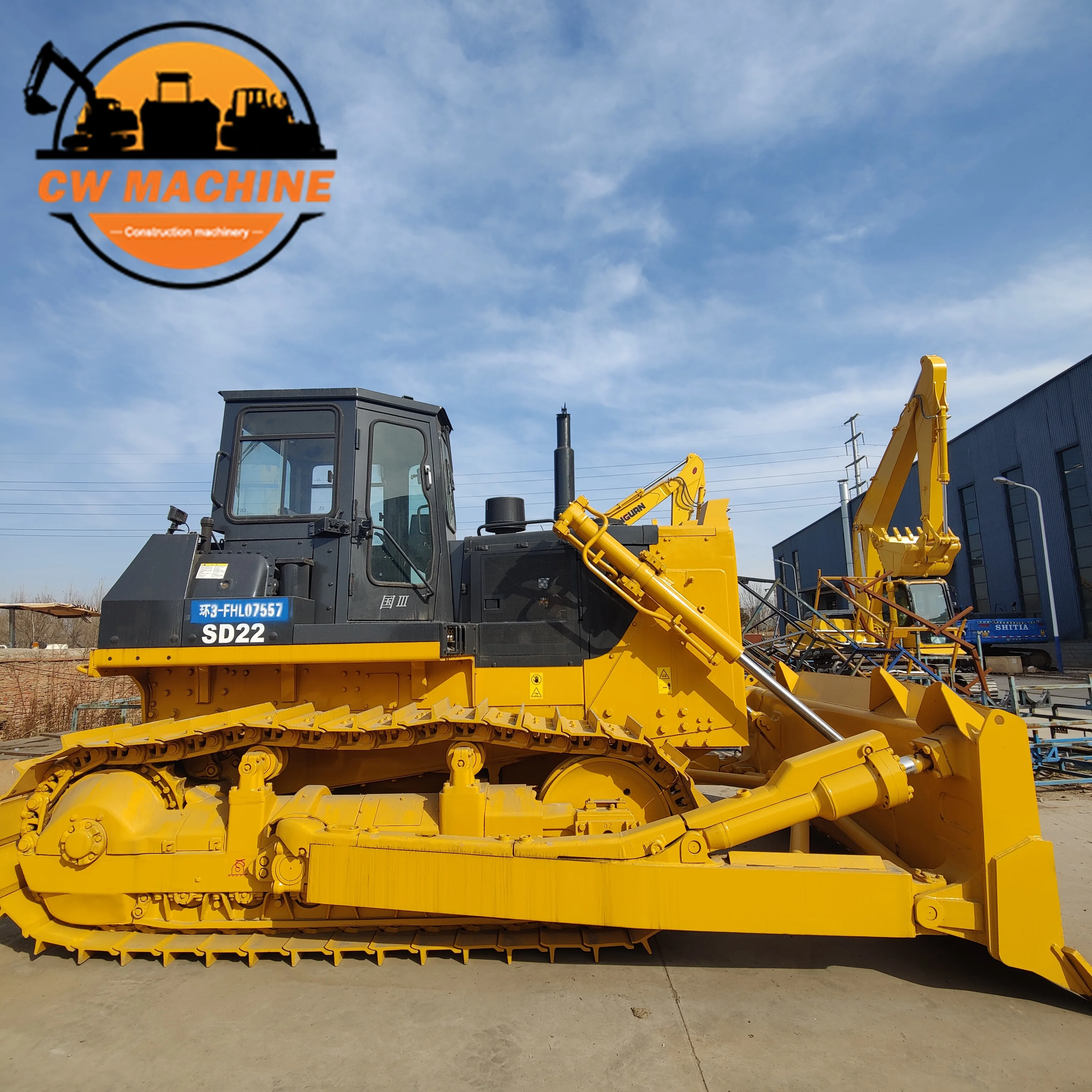

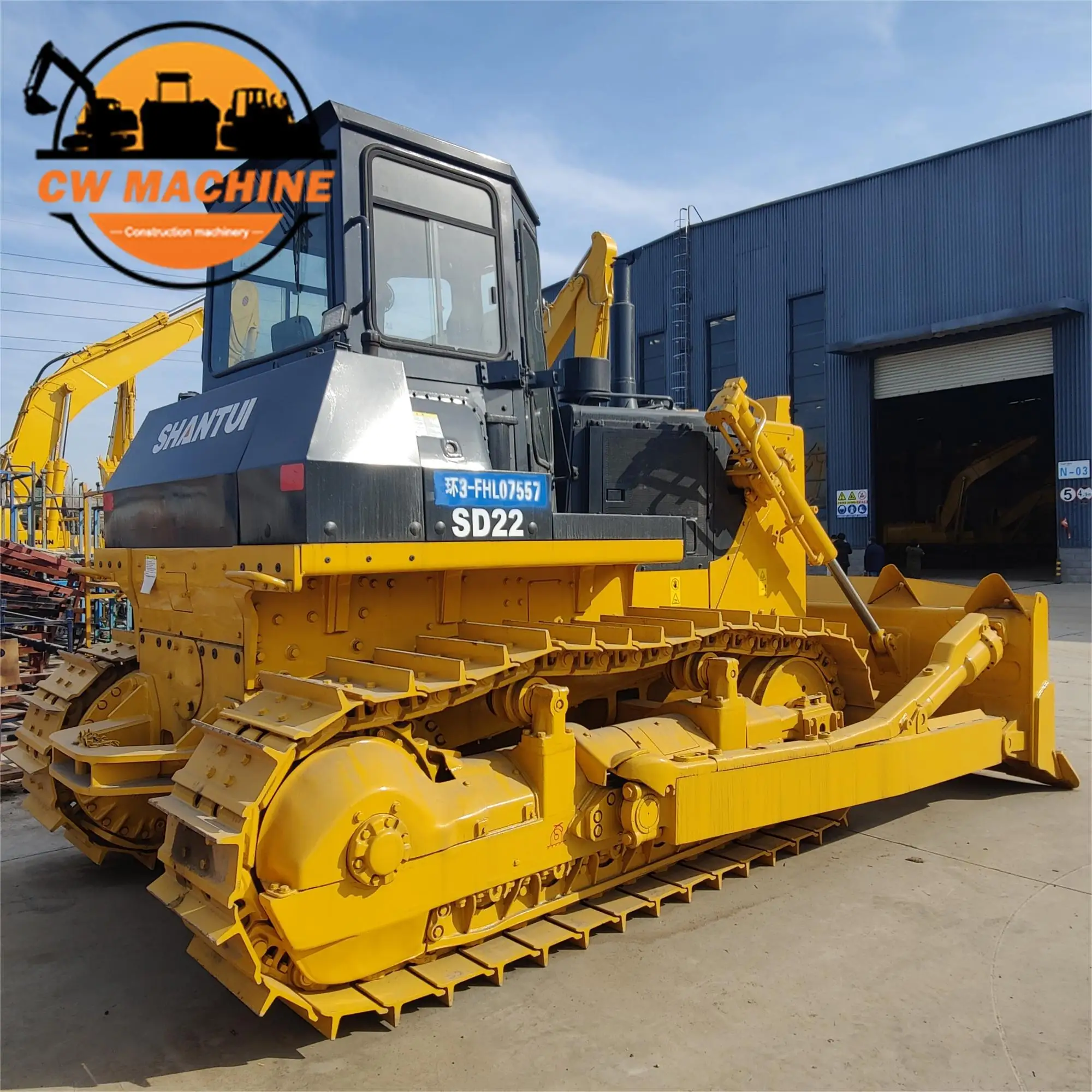

220HP Shantui Dozer Bulldozer Tractor Crawler Bulldozer SD22 for Sale
Model | SD22 (standard） | SD22C（coal） | SD22W(stone） | SD22F（Forest） |
Performance parameter | ||||
Operating mass (kg) | 23450 | 24000 | 23600 | 24700 |
Minimum turning radius (mm) | 3300 | 3300 | 3300 | 3300 |
Ground specific pressure (kPa) | 66 | 57.5 | 66 | 64 |
engine | ||||
Engine model | WP12/QSNT-C235 | WP12/QSNT-C235 | QSNT-C235 | QSNT-C235 |
Rated power / rated speed (kW / rpm) | 175/1800 | 175/1800 | 175/1800 | 175/1800 |
Overall dimensions | ||||
Length (mm) | 5495 | 5820 | 5495 | 5495 |
Width （mm） | 3725 | 4200 | 3725 | 3725 |
Height (mm) | 3402 | 3402 | 3402 | 3402 |
Walking performance | ||||
Forward speed (km / h) | F1：0-3.6 F2:0-6.5 F3:0-11.2 | F1：0-3.6 F2:0-6.5 F3:0-11.2 | F1：0-3.6 F2:0-6.5 F3:0-11.2 | F1：0-3.6 F2:0-6.5 F3:0-11.2 |
Backward speed (km / h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 |
Ground clearance (mm) | 405 | 405 | 405 | 405 |
Chassis system | ||||
Track center distance (mm) | 2000 | 2000 | 2000 | 2000 |
Track shoe width (mm) | 560/610/660 | 660 | 560/610/660 | 610/660 |
Grounding length (mm) | 2730 | 2730 | 2730 | 2730 |
Number of track shoes (piece / single side) | 38 | 38 | 38 | 38 |
Chain track pitch (mm) | 216 | 216 | 216 | 216 |
Number of supporting wheels (single side) | 2 | 2 | 2 | 2 |
Number of rollers (single side) | 6 | 6 | 6 | 6 |
Fuel tank capacity | ||||
Fuel tank (L) | 450 | 450 | 450 | 450 |
Working hydraulic oil tank (L) | 110 | 110 | 110 | 110 |
Traveling hydraulic oil tank (L) | —— | —— | —— | —— |
working equipment | ||||
Blade type | Straight shovel, angle shovel, U-shaped shovel, semi-U | Push coal shovel | Rock straight shovel, rock angle shovel, rock U-shaped shovel, rock semi-U shovel | Straight shovel, angle shovel, U-shaped shovel, semi-U |
Blade width (mm) | 3725、4365、3800、3725 | 4200 | 3725、4365、3800、3725 | 3725、4365、3800、3725 |
Blade height (mm) | 1315、1055、1343、1374 | 1350 | 1315、1055、1343、1374 | 1315、1055、1343、1374 |
Working capacity (m³) | 4.9、3.5、7.0、6.0 | 8.3 | 4.9、3.5、7.0、6.0 | 4.9、3.5、7.0、6.0 |
Blade lifting height (mm) | 1210 | 1210 | 1210 | 1210 |
Shovel depth (mm) | 540 | 538 | 540 | 540 |
Ripper type | Single tooth, three tooth | Single tooth, three tooth | Single tooth, three tooth | Single tooth, three tooth |
Soil loosening depth (mm) | Single 695 three 666 | Single 695 three 666 | Single 695 three 666 | Single 695 three 666 |
Ripper lifting height (mm) | Single 515 Three555 | Single 515 Three555 | Single 515 Three555 | Single 515 Three555 |
Winch | —— | —— | —— | Mechanical winch |
Blade | Angle, straight/U type | Coal type |
Shandong ChuangWei Machinery Co., Ltd established in 2005 is one of the qualified manufacturers of construction machine and various trailers.Integrated production, scientific research & development and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor head, dump truck, engineering machinery and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50million dollars and revenue almost 600 million yuan RMB.
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises such as SINOTRUK\\SHACMAN\\FAW\\DFAC\\XUGONG Group\\LIUGONG Group\\SEM Group etc.Besides mature after-sale systems, we can meet different needs of customers both home .
