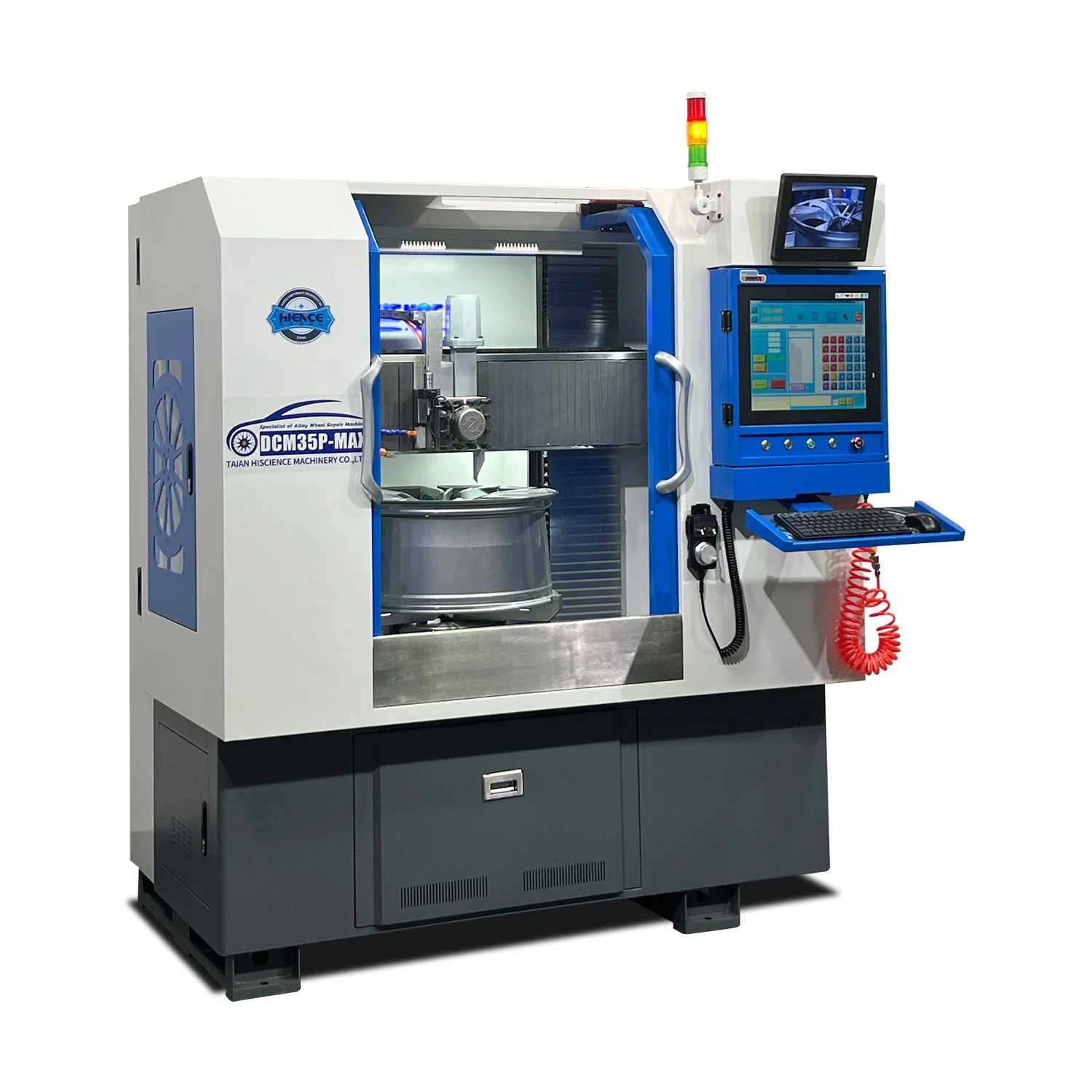

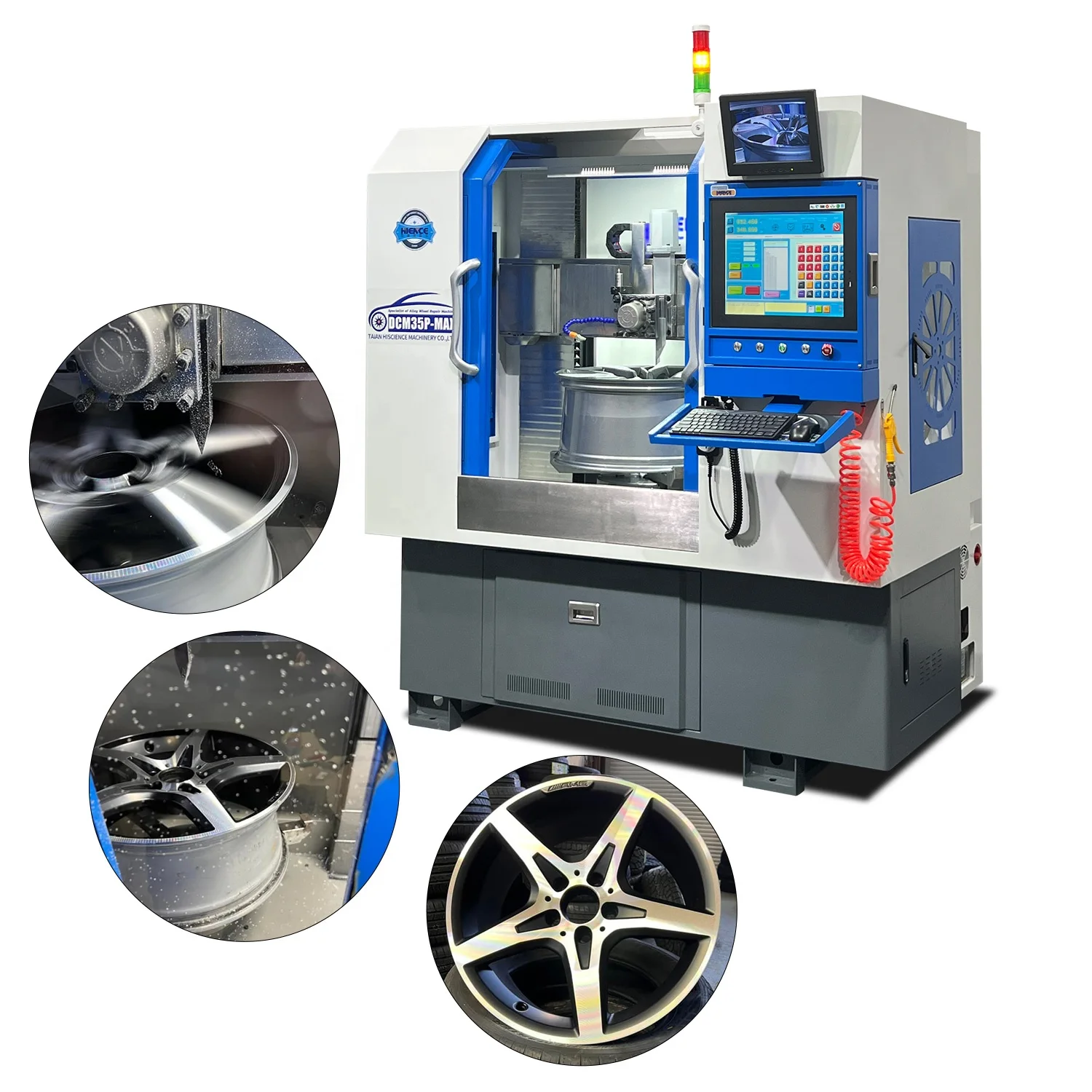

Фрезерный токарный станок с ЧПУ для
- Категория: Vehicle Equipment >>>
- Поставщик: Taian,Hiscience,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19028.65 $* | 19979.2 $* |
| Aug-19-2025 | 18868.83 $* | 19811.43 $* |
| Jul-19-2025 | 15830.14 $* | 16622.25 $* |
| Jun-19-2025 | 18548.80 $* | 19475.3 $* |
| May-19-2025 | 16150.59 $* | 16958.47 $* |
| Apr-19-2025 | 18229.44 $* | 19140.38 $* |
| Mar-19-2025 | 18069.67 $* | 18972.16 $* |
| Feb-19-2025 | 17909.65 $* | 18804.29 $* |
| Jan-19-2025 | 17749.63 $* | 18636.61 $* |
Характеристики
Item | DCM35P-MAX |
Maximum clamping wheel size | 35 inch |
Maximum diameter with tire on | 880mm |
Maximum repairable wheel thickness | 550mm |
X-axis travel (Diameter) | 920mm |
X-axis drive motor torque | 6NM |
Z-axis travel | 620mm |
Z-axis drive motor torque | 6NM×2 (With brake function) |
Total machine power | 9KW |
Spindle speed | 50-1800rpm |
Chuck Diameter/Number of Jaws | 320mm /3 jaws |

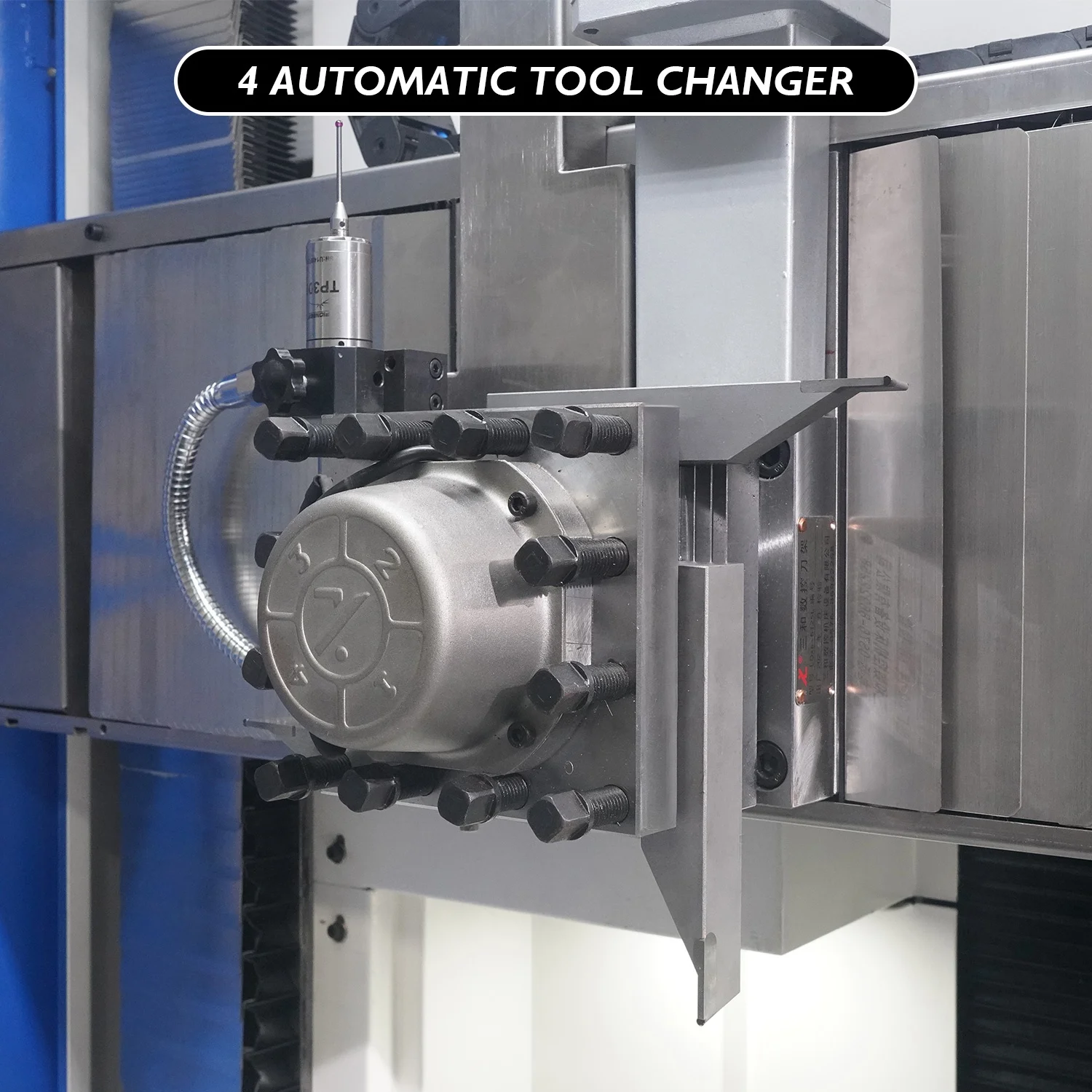

Tool changer | 4 Station automatic tool changer |
X/Z feed accuracy | 0.001mm |
Wheel detection method | Ruby probe detection system (optional laser detection system) |
Detection accuracy | Ruby probe detection 0.001mm |
Device Voltage/Frequency: | 380V 3ph/ 50HZ |
Customization for different voltages | Support |
Net weight/ Gross Weight | 1500KG/1650KG |
Machine size | 1690×1180×1890mm |
