Изготовленные на заказ формы из графитовых слиток
- Категория: Graphite Crucible >>>
- Поставщик: Zhengzhou,TCH,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 9.23 $* | 9.48 $* |
| Jul-15-2025 | 7.44 $* | 7.71 $* |
| Jun-15-2025 | 9.32 $* | 9.95 $* |
| May-15-2025 | 9.35 $* | 9.71 $* |
| Apr-15-2025 | 7.64 $* | 7.53 $* |
| Mar-15-2025 | 9.87 $* | 9.63 $* |
| Feb-15-2025 | 8.7 $* | 8.80 $* |
| Jan-15-2025 | 8.80 $* | 8.91 $* |
Характеристики
Custom graphite ingot molds, copper ingot mold
Product Description
Graphite products are widely used in lightning protection, heat treatment, super-hard material, bearing, Non-ferrous metal casting, electro-spark processing, electronicsemi-condutor, mechanial sealing, photovoltaics, glass and ceramic, automobile,carbon brush and other industry filed.
Product parameter of the Custom graphite ingot molds, copper ingot mold
| Name | High Purity Graphite Crucible |
| Material | High Purity Graphite>99.95% |
| Bulk density | >1.8g/cm3 |
| Electric resistivity | <13uΩ.cm |
| Bending strength | >40Mpa |
| Compressive | >60Mpa |
| Hardness | 30-40 |
| Grain size | <43um |
| Outside | 70*80*20mm |
| Inside | 55*65*15mm |
Product specification of the Custom graphite ingot molds, copper ingot mold
| Model | Outside(mm) | Inside(mm) | capacity(ml) | Gold(g) | Silver(g) |
| TCH-01 | 24*15*9.2 | 18*9*6 | 0.9 | 17 | 8 |
| TCH-02 | 24*22*12 | 18*16*7 | 1.3 | 25 | 14 |
| TCH-03 | 24*16*12 | 18*10*8 | 1.3 | 24 | 11 |
| TCH-04 | 24*16*14 | 18*10*10 | 1.6 | 30 | 14 |
| TCH-05 | 25*24*12 | 20*18*7 | 2 | 40 | 21 |
| TCH-06 | 24*19.5*15 | 18*13*10 | 2.1 | 40 | 19 |
| TCH-07 | 47.5*24*8 | 40*15*4 | 2.1 | 40 | 19 |
| TCH-08 | 30*24*12 | 24*18*8 | 2.5 | 50 | 26 |
| TCH-09 | 42*22*10 | 35*15*5.5 | 2.6 | 49 | 23 |
| TCH-10 | 60*24*8 | 50*15*4.2 | 2.8 | 53 | 25 |
| TCH-11 | 55*37*20 | 45*14*10 | 5 | 100 | 52 |
| TCH-12 | 55*37*20 | 45*24*10 | 8 | 150 | 84 |
| TCH-13 | 55*37*20 | 40*20*15 | 10 | 200 | 100 |
| TCH-14 | 60*30*15 | 50*20*10 | 10 | 190 | 90 |
| TCH-15 | 60*50*20 | 45*35*10 | 10 | 200 | 105 |
| TCH-16 | 50*36*30 | 35*20*22 | 13 | 250 | 136 |
| TCH-17 | 70*57*20 | 50*37*10 | 15 | 300 | 157 |
| TCH-18 | 70*67*26 | 50*47*16 | 25 | 500 | 262 |
| TCH-19 | 100*30*30 | 90*18*22 | 35 | 665 | 315 |
| TCH-20 | 85*45*30 | 65*30*20 | 35 | 665 | 315 |
| TCH-21 | 70*40*30 | 60*30*25 | 45 | 850 | 425 |
| TCH-22 | 70*80*20 | 55*65*15 | 46 | 900 | 483 |
| TCH-23 | 120*40*30 | 100*25*24 | 51 | 1000 | 535 |
| TCH-24 | 100*50*25 | 90*40*20 | 60 | 1000 | 535 |
| TCH-25 | 90*60*20 | 80*50*17 | 65 | 1100 | 585 |
| TCH-26 | 125*50*30 | 105*35*20 | 65 | 1250 | 585 |
| TCH-27 | 135*42*32 | 115*32*22 | 75 | 1400 | 675 |
| TCH-28 | 160*50*38 | 140*30*28 | 105 | 2000 | 945 |
| TCH-29 | 100*50*50 | 85*35*40 | 101 | 2000 | 1060 |
| TCH-30 | 100*60*40 | 85*45*30 | 101 | 2000 | 1060 |
| TCH-31 | 125*60*40 | 105*40*30 | 113 | 2150 | 1017 |
| TCH-32 | 180*55*45 | 155*35*32 | 152 | 3000 | 1596 |
| TCH-33 | 175*52*42 | 155*32*32 | 158 | 3000 | 1500 |
| TCH-34 | 125*80*40 | 105*60*30 | 170 | 3250 | 1530 |
| TCH-35 | 180*70*50 | 160*50*40 | 253 | 5000 | 2656 |
| TCH-36 | 150*90*40 | 130*70*20 | 273 | 5180 | 2590 |
| TCH-37 | 150*100*50 | 130*80*40 | 379 | 7500 | 3979 |
| TCH-38 | 180*100*50 | 160*80*40 | 500 | 9500 | 4500 |
| TCH-39 | 260*90*50 | 240*70*40 | 672 | 12700 | 6300 |
| TCH-40 | 40*40*20 | 20*20*10 | 4 | 76 | 38 |
| TCH-41 | 45*45*10 | 35*35*5.5 | 6 | 114 | 54 |
| TCH-42 | 50*50*20 | 35*35*10 | 12 | 250 | 108 |
| TCH-43 | 50*50*35 | 40*40*30 | 45 | 800 | 400 |
| TCH-44 | 50*50*50 | 40*40*45 | 60 | 1000 | 540 |
| TCH-45 | 100*100*25 | 85*85*20 | 130 | 2500 | 1170 |
| TCH-46 | 100*100*50 | 80*80*40 | 150 | 4000 | 1350 |

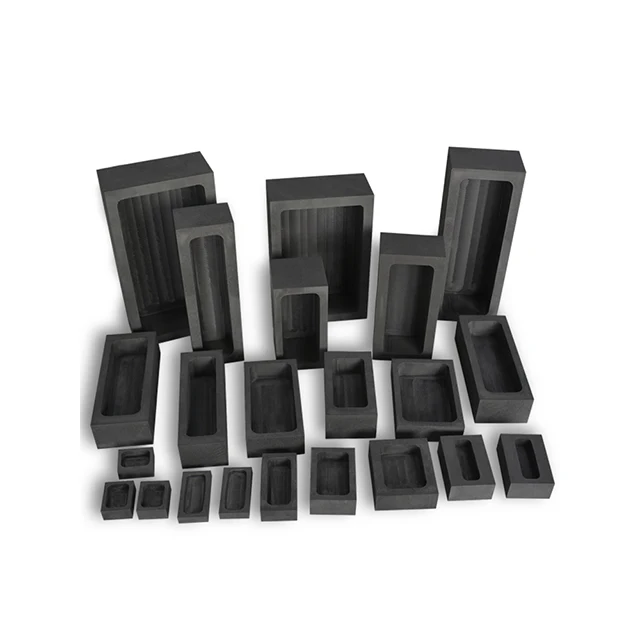

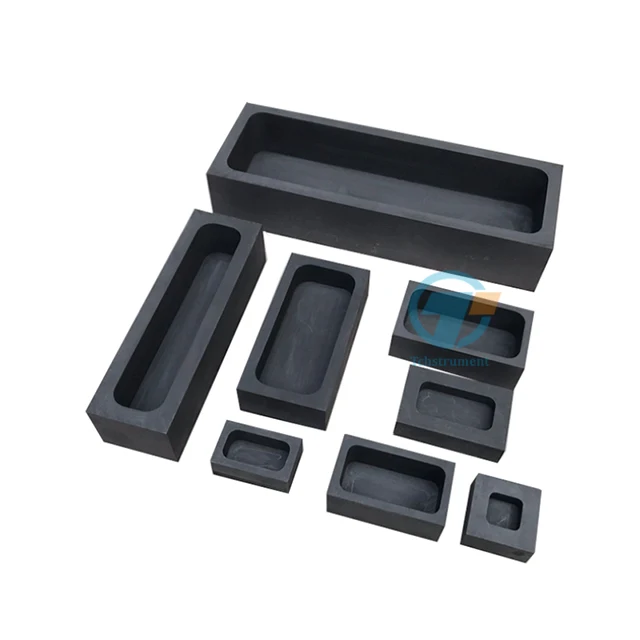

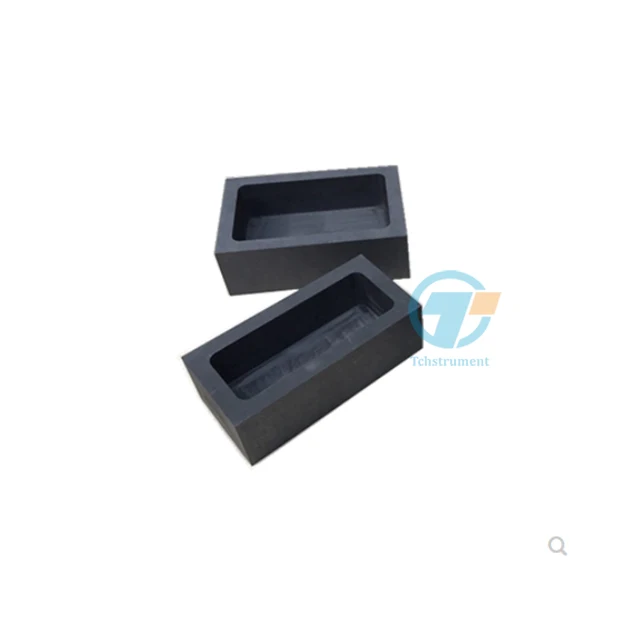

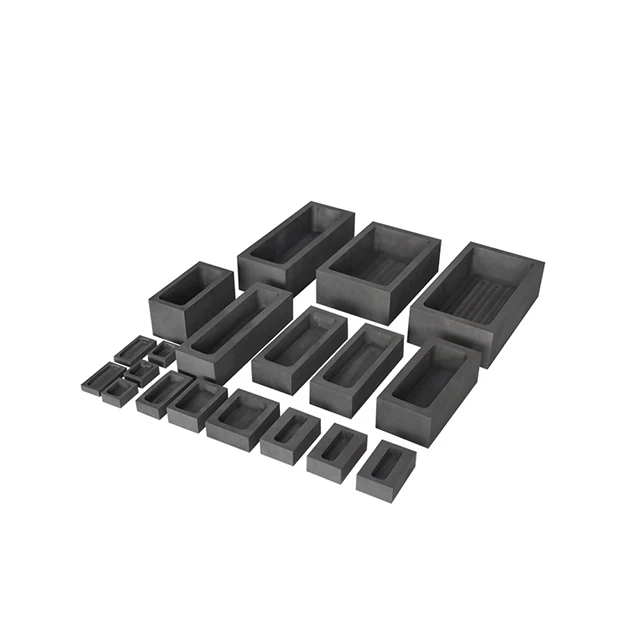

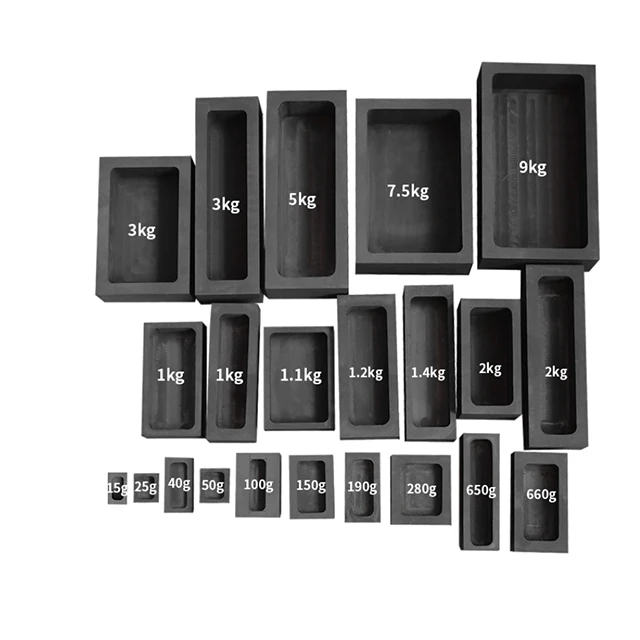

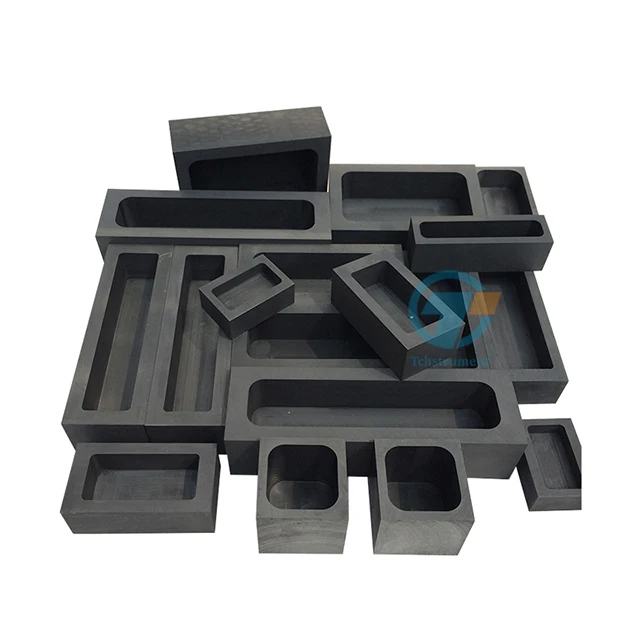

Product show of the Custom graphite ingot molds, copper ingot mold
Company Information
Zhengzhou TCH Instrument Co., Ltd. is established with the goal of providing researchers with specialized instruments designed to meet their unique demands. We has grown into one of the material science market’s sources of quality instruments overseas. Although the work of the research community has changed quite a bit over the last years,Zhengzhou TCH Instrument Co., Ltd , through constant innovation, continues to provide the highest-quality instruments and unparalleled service, to meet and exceed all of our customers’ needs.
Zhengzhou TCH Instrument Co., Ltd is a leading developer of lab instruments and related products. Our products are used by lab research professionals worldwide. Throughout our history Zhengzhou TCH Instrument Co., Ltd has been synonymous with quality.
Contact Email: tchinstrumenttch(at)163.com
