Автоматический анализатор озона с нулевой калибровкой 0-1000 м/мин озоновым


Поделиться:


Цена:192 570,00 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 229158.99 $* 240616.97 $*
Aug-16-2025 227233.17 $* 238595.90 $*
Jul-16-2025 190644.31 $* 200176.7 $*
Jun-16-2025 223381.72 $* 234550.8 $*
May-16-2025 194496.80 $* 204221.43 $*
Apr-16-2025 219530.68 $* 230507.45 $*
Mar-16-2025 217604.48 $* 228484.89 $*
Feb-16-2025 215678.7 $* 226462.77 $*
Jan-16-2025 213753.24 $* 224441.83 $*

Характеристики



our slogan







Product Description


 Factory direct sales of multi-style high-precision ozone detector


UVOZ-3300 high-precision ozone analyze, a variety of measurement range options, high accuracy, stable data, good repeatability, suitable for ozone factories, laboratories, ozone online detection...










































































































Range


0-200g/nm,0-100g/nm,0-50g/nm


0-100ppm,0-1000ppm


Display interface:


4.3 inch touch screen operation interface


Display unit:


g/Nm3   mg/NL  %WT ppm mg/Nm3


Sampling Method:


active pressure sampling    pumping sampling



Content Interface:



ozone concentration     temperature compensation



pressure compensation     Mass flow & output display



Light Source Life:


About 10000 hours


Display Interface:


4.3 inch touch screen operation interface


Auxiliary Function:


concentration&temperature & pressure compensation


Sampling Flow:


0.5L±0.2L/min


Input Pressure:


<0.1MPa


Concentration Error :


< 0.3%FS


Line Deviation :


< 0.3%FS


Zero Drifting:


<±0.3%.FS


Response Time:


the signal is 0.03S, showing is 0.3S.


Ambient Temperature :


-20~50℃;


Sampling Caliber of Series Connection:


Bypass samplingΦ6 (6*4mm fast twisting interface)


Communication Mode:


RS-485


Output Mode:


4-20mA


Relay Signal:


High alarm, Low alarm


Power Supply:


AC 110-220V;


Dimension:


230mm(height)×330mm(width)×150mm(depth)


Standard configuration:


Antiseptic  flowmeter   filter
Ozone tail gas destroyer    sampling pump

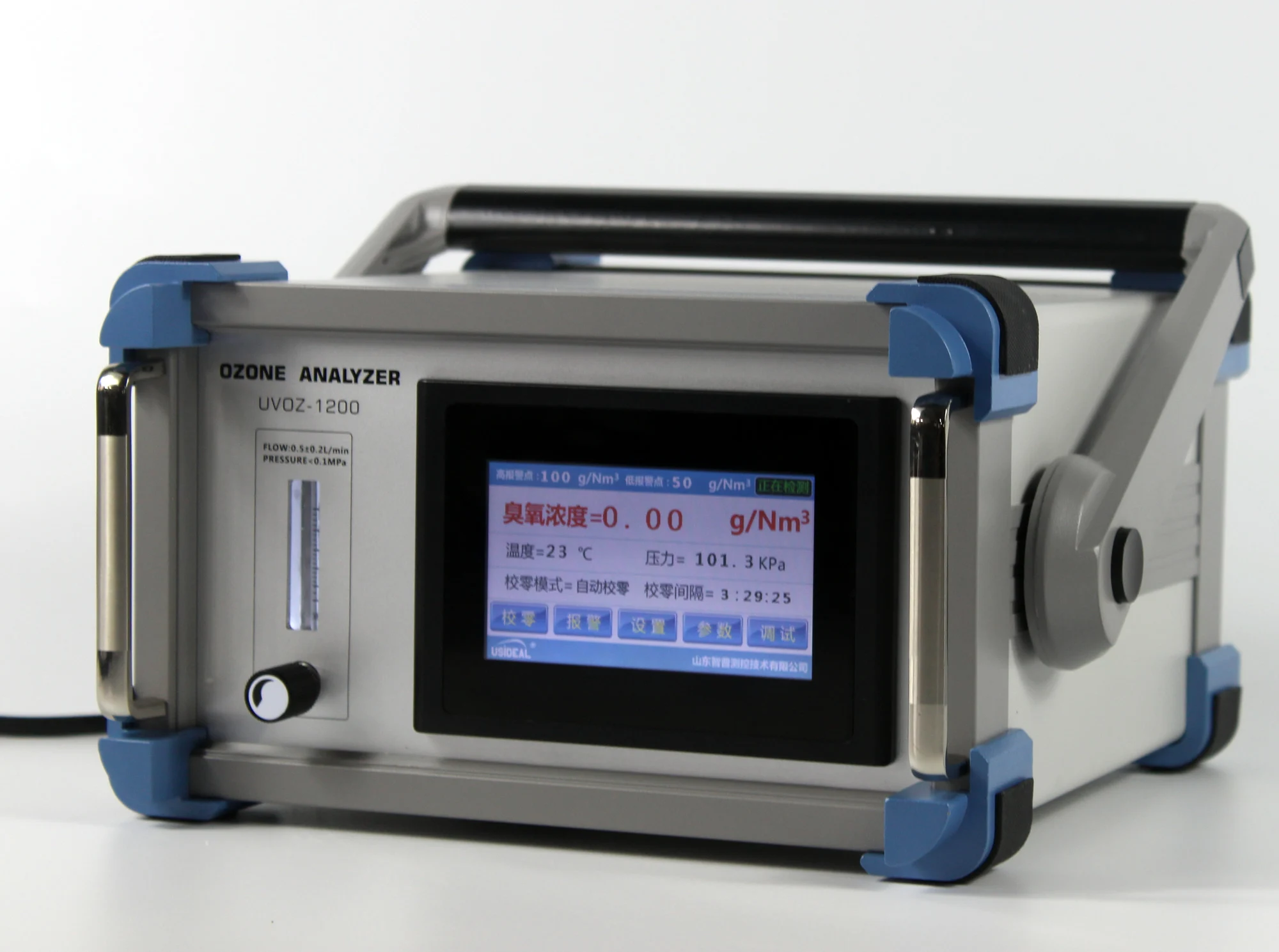

The ozone analyzer has a touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with pressure & temperature compensation display. For the high concentration (g/Nm3)range, it has the function of flow input, which can display the output of the ozone generator in real time. The core componentadopts long-life UV light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. It’s no need to close ozone inputting when zeroing to ensure the equipment can run continuously 24 hours.-4_01.jpg-4_02.jpg-4_03.jpg




OVERVIEW

• Fast response speed
• High measurement accuracy
• Good stability and repeatability
• Various parameters can be customized by the user.
• Simple operation
