Розетка переменного тока с переключателем
- Категория: Plugs & Sockets >>>
- Поставщик: Yueqing,Leniu,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.49 $* | 0.87 $* |
| Aug-16-2025 | 0.39 $* | 0.71 $* |
| Jul-16-2025 | 0.18 $* | 0.86 $* |
| Jun-16-2025 | 0.18 $* | 0.97 $* |
| May-16-2025 | 0.67 $* | 0.49 $* |
| Apr-16-2025 | 0.84 $* | 0.38 $* |
| Mar-16-2025 | 0.45 $* | 0.7 $* |
| Feb-16-2025 | 0.90 $* | 0.85 $* |
| Jan-16-2025 | 0.65 $* | 0.47 $* |
Характеристики
HI, welcome
HI ;You can bring your pictures to make an inquiry?
If you need other specifications, please remember to write to me or contact to discuss.
| AC-01 / AC-01A / AC-02 / AC-03 / AC-04 / DB-14 / DB-8 / DB-6 / AC-08 / AC-06 / AC-09 / C13 / C14 / C8 / C6 |
functional descript
Product description:
Rated current: 5A / 10A
Rated voltage: 125V / 250V
Purchase knowledge:
Fuses are not assembled by default
Discuss online,
Choose from mini / micro / button / rocker / button / power switch,
Optional cable terminal line.........
Power supply terminal wire cable
Optional authentication: UL
Optional (Custom-defined)
Length custom
Optional cable color
Optional cable diameter
Unmentioned matters, consult the seller ~
AC power jack / socket / adapter / connector / port / charger / plug
Default authentication: ROSH / CCC / CQC / CE / CB / TUV / UL / KC
If you need other certification online seller consultation ~
AC power socket with on-off / on-off-on / on-on /(on)-off-(on)/ on-(off)/ (on)-off switch
Power Socket example:
Switch example:
Cable example:
product display

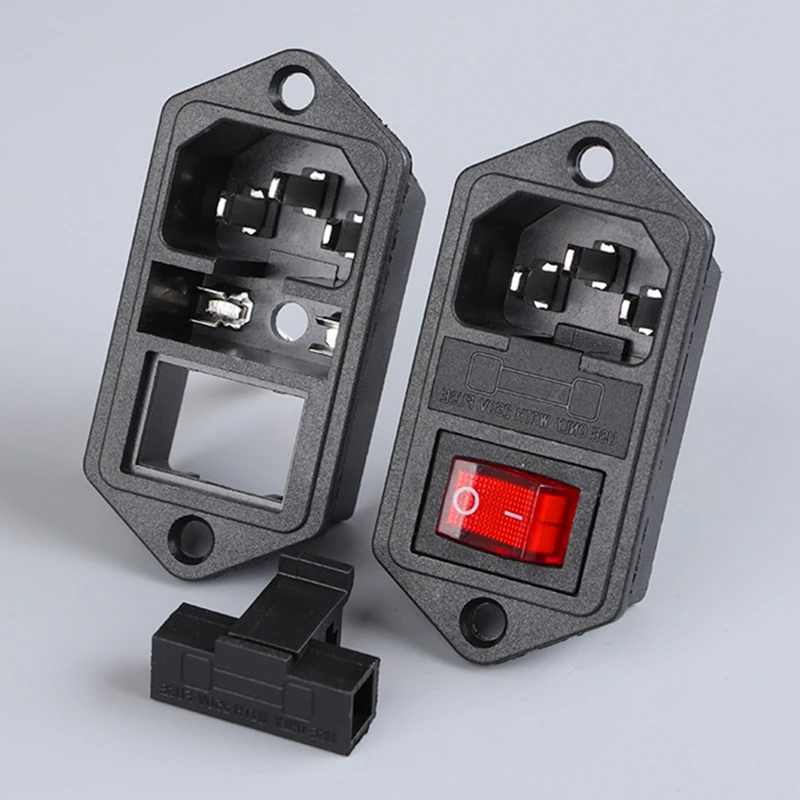

No.1: AC input jack, C13 / C14 port power connector
No.2: Fuse box, optional glass fuse, ceramic fuse 5x20mm / * 1 / * 2 PCS
No.3:15X21 MM rocker switch, installation position hole
Serial number 4:3 Pin metal connector, optional material copper, half copper, iron
No.5: rocker switch, optional 2 / 3 position with LED indicator light OR no LED lighting,
The LED support is optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization
No.6: Rocker switch Pin, optional 2 / 3 / 4 / 6 Pin, silver plated, copper, iron pin
No.7: AC socket card slot installation panel space distance is optional 1.0/1.2/1.5/2.0/3.0MM

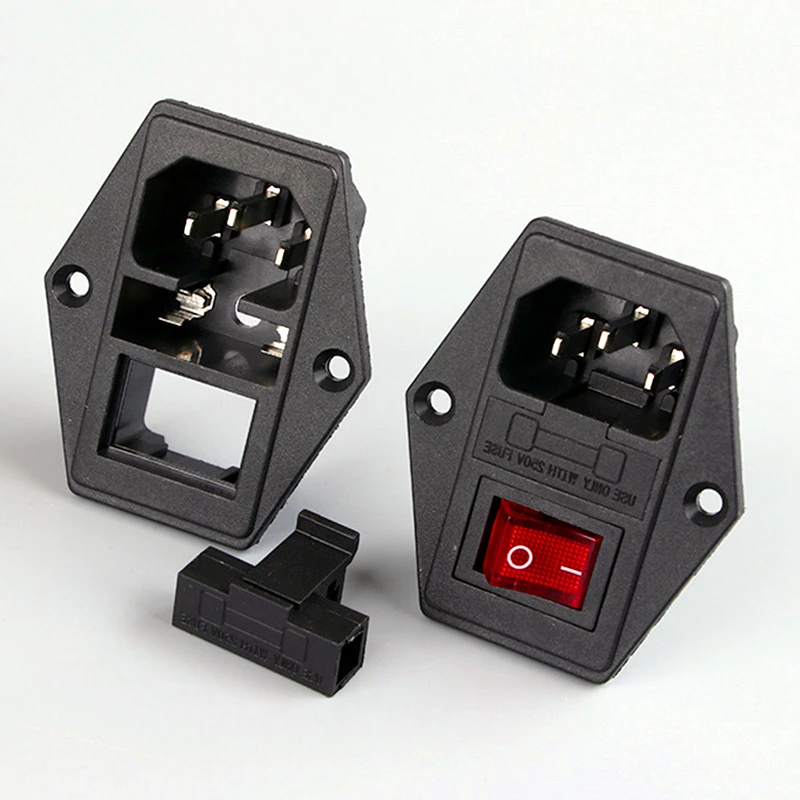

No. 1:3 Pin metal connector pin, optional material copper, half copper, iron
No.2: metal connector, optional insert 4.8 plug-in spring or direct welding cable connection
No.3: rocker switch pin, silver plating, copper, iron, 2 Pin, 3 Pin, 4 Pin, 6 Pin, switch optional
No.4: AC power jack socket, C13 / C14 port connector
No.5: Fuse box, optional glass fuse, ceramic fuse 5x20mm / * 1 / * 2 PCS
No.6: Install diameter 4.5MM screw fixing hole
No.7: rocker switch panel optional 2 position 3 position switch with LED indicator light OR no LED lighting
LED support optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization

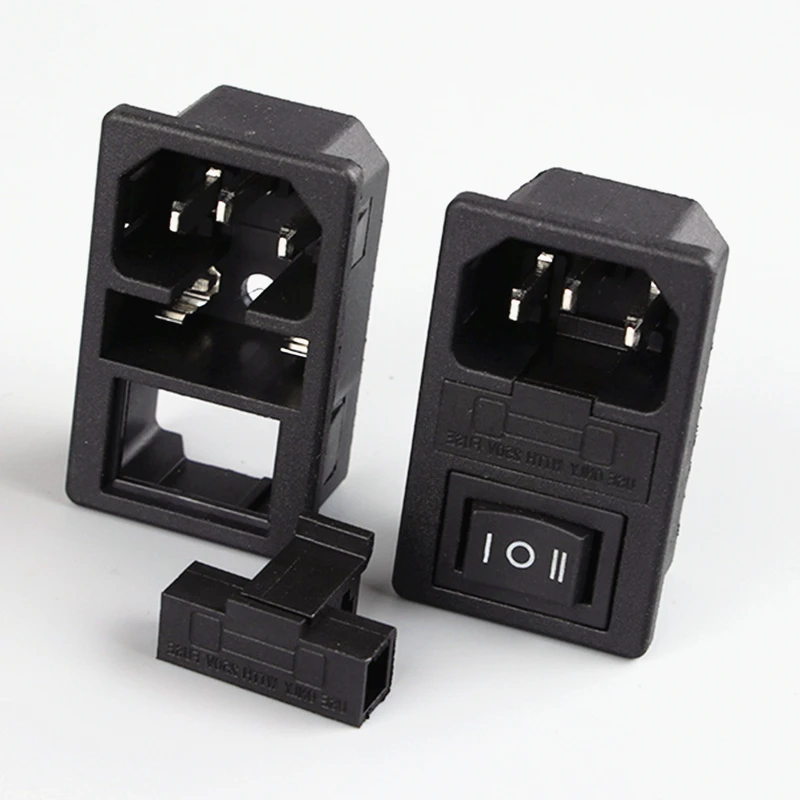

No.1: Fuse box, optional glass fuse, ceramic fuse 5x20mm / * 1 / * 2 PCS
No.2:Rocker switch panel optional 2 position 3 position switch with LED indicator light OR no LED lighting
LED support optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization
No.3: rocker switch pin, silver plating, copper, iron, 2 Pin, 3 Pin, 4 Pin, 6 Pin, switch optional
No.4: C8, eight-character power socket adapter jack
No.5: metal connection pin, optional insert 4.8X4.8 spring or direct welding cable connection
No.6: AC socket card slot installation panel space distance is optional 1.0/1.2/1.5/2.0/3.0MM
No.1: C8, power jack socket
No.2: Fuse box, optional glass fuse, ceramic fuse 5x20mm / * 1 / * 2 PCS
No.3: Rocker switch panel optional 2 position 3 position switch with LED indicator light OR no LED lighting
LED support optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization
No.4: metal connection pin, optional plug 4.8X4.8 spring or direct welding cable connection
No.5:4.5MM diameter power socket installation screw hole
No.6: rocker switch pin, silver plating, copper, iron, 2 Pin, 3 Pin, 4 Pin, 6 Pin, switch optional

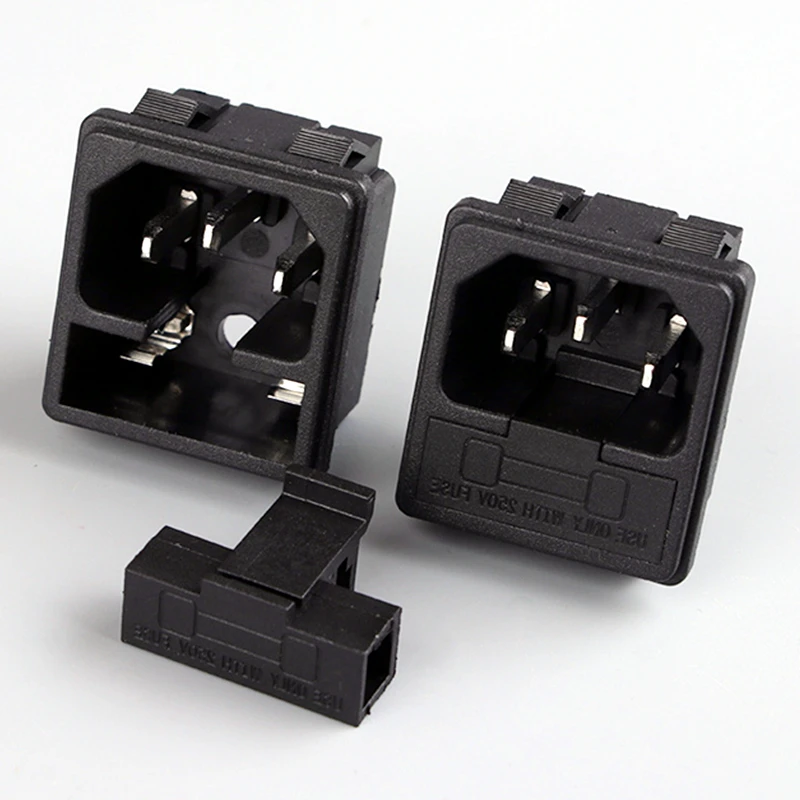

No.1: metal connection pin, optional insert 4.8 Plug-in spring or direct welding cable connection
No.2: rocker switch pin, silver plating, copper, iron, 2 Pin, 3 Pin, 4 Pin, 6 Pin, switch optional
No.3:3 Pin metal connector, optional material copper, half copper, iron
No.4: AC power jack socket, C13 / C14 port connector socket female
No.5: rocker switch panel optional 2 position 3 position switch with LED indicator light OR no LED lighting
LED support optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization

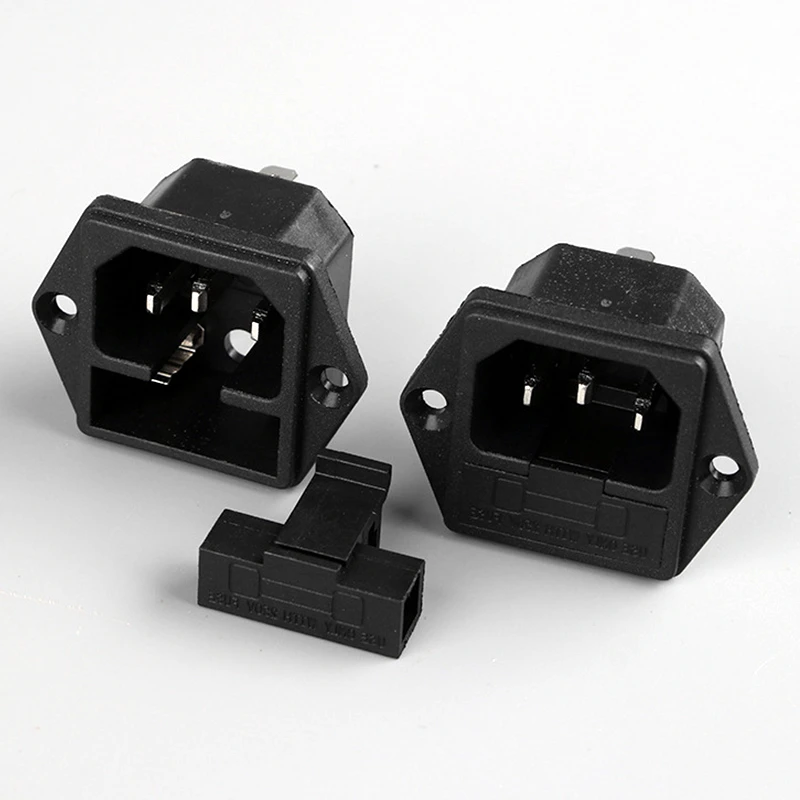

No.1: metal connection pin, optional insert 4.8 plug-in spring or direct welding cable connection
No.2: rocker switch pin, silver plating, copper, iron, 2 Pin, 3 Pin, 4 Pin, 6 Pin, switch optional
No.3: IEC C8, eight-character power socket jack connector
No.4: AC socket card slot installation panel space distance is optional 1.0/1.2/1.5/2.0/3.0MM
No.5: rocker switch panel optional 2 position 3 position switch with LED indicator light OR no LED lighting
LED support optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization
No.1: AC socket card slot installation panel space distance is optional 1.0/1.2/1.5/2.0/3.0MM
No.2: metal connector, optional plug 4.8 / 6.3 spring or direct welding cable connection
No.3: rocker switch pin, silver plating, copper, iron, 2 Pin, 3 Pin, 4 Pin, 6 Pin, switch optional
No.4: Rocker switch panel optional 2 position 3 position switch with LED indicator light OR no LED lighting
LED support optional with 12V / 24V / 110V / 220V, and the switch panel supports LOGO customization
No.5: AC power jack socket, C13 / C14 connector power socket female

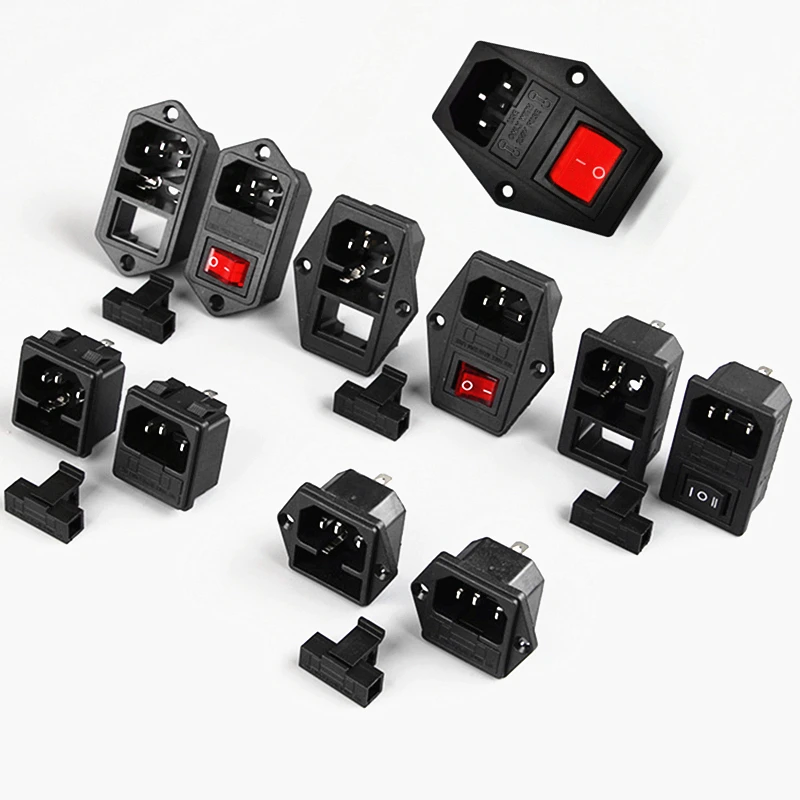

2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 10Pin IEC Connector
C6 C8 C13 C14 EU UK US AU PCB Power Male Female Plug Jack AC Fuse Switch Socket
