Характеристики
Product Description

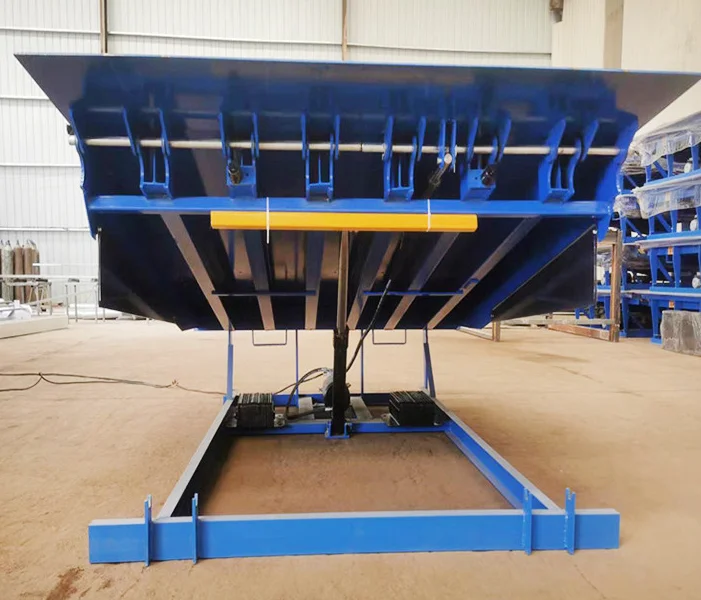

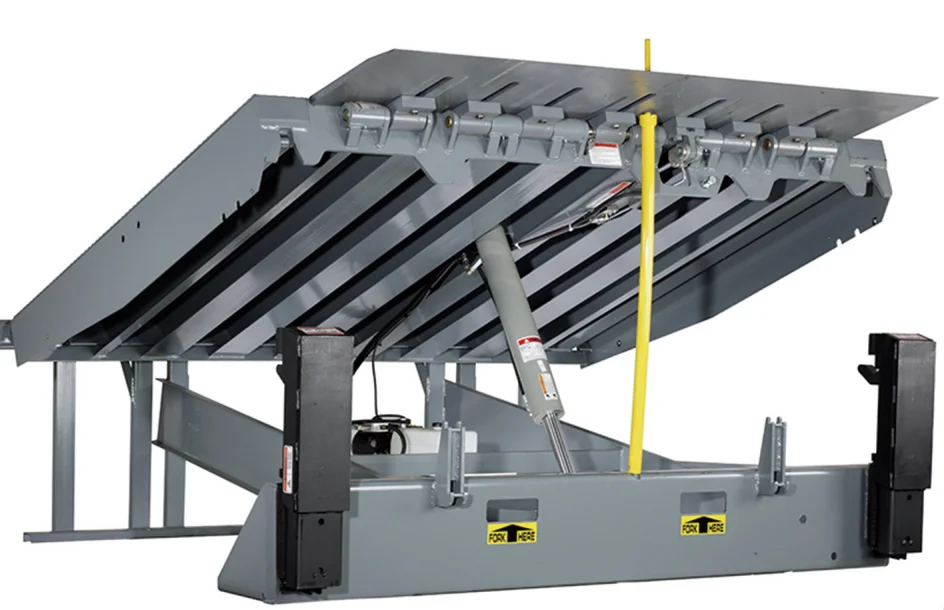

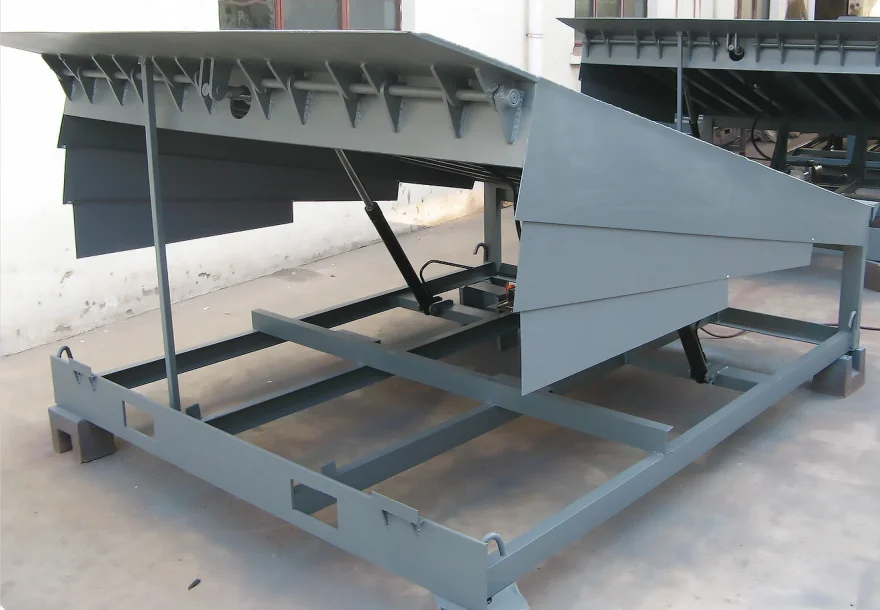

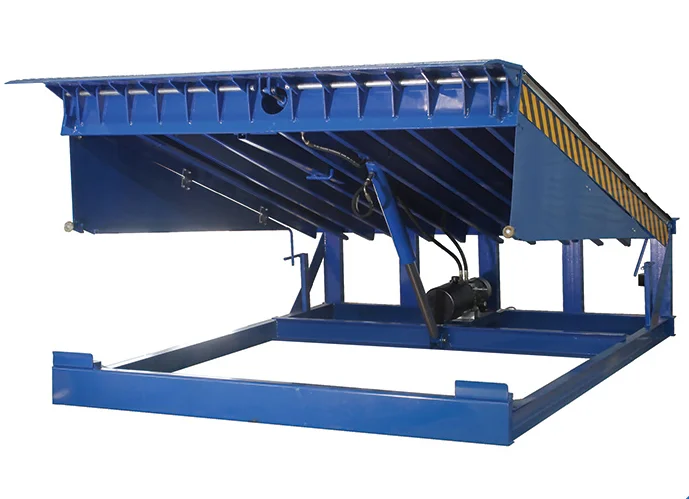

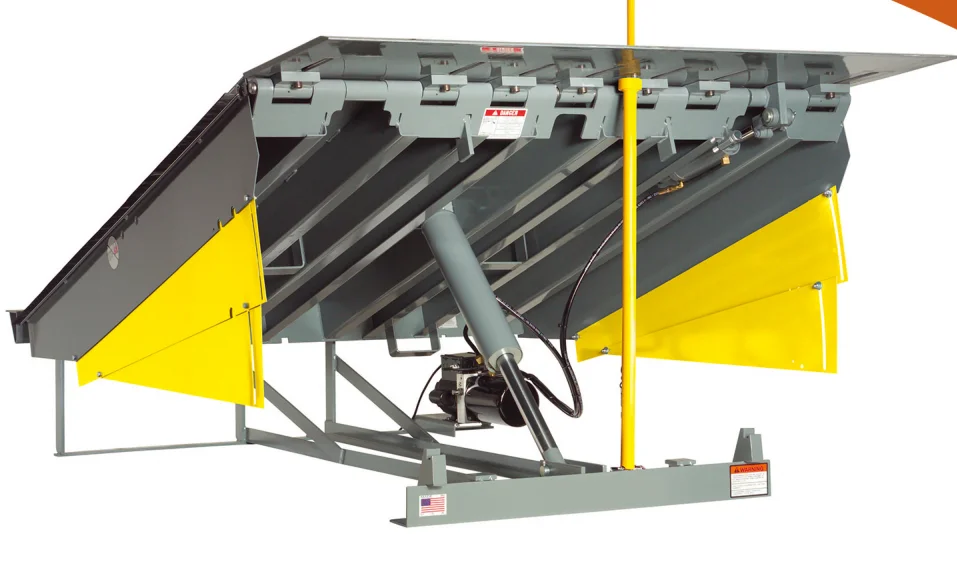

Electrohydaulic Dock leveller
Lifting platform protection
After rising to a certain height and stopping, there will be no slide down; When reduced to the lowest, there is a buffer device directly fixed
Installation form Four: lifting equipment configuration parameters
Platform material: 12# channel steel +6mm pattern plate
Chassis material: 10# Angle iron
Shearing fork material: 200x80x8 manganese steel rectangular tube
Hydraulic cylinder: 0110mm(2 sets)
High pressure tubing: three-layer wire mesh structure (48MPa)
Seal: Y/O sealing ring Buffer: buffer device
Machine color: Peacock blue Solenoid valve: hydraulic support valve
Gear pump: CBN-E316
Motor: 4.0KW380V50HZ
Electrical assembly: Transformer :BK-25
Configuration parameters: Relay :RXM4L Control button :XB23P air switch :C65 travel switch :XCK8107
Five: fixed hydraulic lifting platform related instructions:
Fixed hydraulic lifting platform is a wide range of use of lifting cargo special equipment. Its shear fork type mechanical
structure, so that the lifting platform after lifting higher stability, wide operating platform and higher bearing capacity, so
that the range of high-altitude operation is larger, fly to lift goods more efficient, more safe. Is a wide range of high-altitude
operation lifting equipment
Six: Fixed hydraulic lifting platform to meet the following requirements:
1. The design and manufacture of the lifting platform should comply with the relevant national standards and requirements, and rely on high grade standards. Mechanical hydraulic structure design to be reasonable, each part of the function to meet the requirements of the buyer and have enough Yue pin
2. The lubrication system design of the equipment is perfect to ensure the good lubrication of the rotating parts.
3. The equipment is well manufactured, and the manufacturing accuracy and quality of each component should meet the
corresponding standards. The equipment should be installed accurately in place to ensure the flexible and stable operation of the transmission system. Excellent performance of the equipment, sensitive and convenient operation; Good safety, reliability and maintainability.
4. The terminal of each motion mechanism should be set up reliable limit and extreme protection device to prevent the damage of the motion mechanism.
After rising to a certain height and stopping, there will be no slide down; When reduced to the lowest, there is a buffer device directly fixed
Installation form Four: lifting equipment configuration parameters
Platform material: 12# channel steel +6mm pattern plate
Chassis material: 10# Angle iron
Shearing fork material: 200x80x8 manganese steel rectangular tube
Hydraulic cylinder: 0110mm(2 sets)
High pressure tubing: three-layer wire mesh structure (48MPa)
Seal: Y/O sealing ring Buffer: buffer device
Machine color: Peacock blue Solenoid valve: hydraulic support valve
Gear pump: CBN-E316
Motor: 4.0KW380V50HZ
Electrical assembly: Transformer :BK-25
Configuration parameters: Relay :RXM4L Control button :XB23P air switch :C65 travel switch :XCK8107
Five: fixed hydraulic lifting platform related instructions:
Fixed hydraulic lifting platform is a wide range of use of lifting cargo special equipment. Its shear fork type mechanical
structure, so that the lifting platform after lifting higher stability, wide operating platform and higher bearing capacity, so
that the range of high-altitude operation is larger, fly to lift goods more efficient, more safe. Is a wide range of high-altitude
operation lifting equipment
Six: Fixed hydraulic lifting platform to meet the following requirements:
1. The design and manufacture of the lifting platform should comply with the relevant national standards and requirements, and rely on high grade standards. Mechanical hydraulic structure design to be reasonable, each part of the function to meet the requirements of the buyer and have enough Yue pin
2. The lubrication system design of the equipment is perfect to ensure the good lubrication of the rotating parts.
3. The equipment is well manufactured, and the manufacturing accuracy and quality of each component should meet the
corresponding standards. The equipment should be installed accurately in place to ensure the flexible and stable operation of the transmission system. Excellent performance of the equipment, sensitive and convenient operation; Good safety, reliability and maintainability.
4. The terminal of each motion mechanism should be set up reliable limit and extreme protection device to prevent the damage of the motion mechanism.
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
Project Solution Capability | graphic design, 3D model design |
Application | logistics |
Design Style | Modern |
Place of Origin | China |
Guangdong | |
Brand Name | hofic |
Model Number | HF20221230002 |
main material | GB 12 # channel, 140 rectangular tube |
Countertops | 120 * 60 * 5 high-strength manganese steel rectangular tube, tile 6mm pattern board |
hydraulic cylinder | a diameter of 80 cylinders, a cylinder diameter 40 |
hydraulic station | (built-in) |
Piston rod | 50 diameter piston rod 30, |
Tubing | double-layer steel wire high pressure tubing 42Mpa |
Hydraulic oil | 32 # anti-wear hydraulic oil |
