12 В/24 В/36 В/48 В/60 в/72 В/96 в BMS 3S-32S Smart Bms 20A/40A/60A/100A/150A/200A/система управления
- Категория: PCB & PCBA >>>
- Поставщик: Zhongyi,Technology,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 38.49 $* | 40.71 $* |
| Aug-18-2025 | 38.5 $* | 40.82 $* |
| Jul-18-2025 | 32.79 $* | 34.51 $* |
| Jun-18-2025 | 37.62 $* | 39.39 $* |
| May-18-2025 | 32.86 $* | 34.11 $* |
| Apr-18-2025 | 36.78 $* | 38.14 $* |
| Mar-18-2025 | 36.75 $* | 38.81 $* |
| Feb-18-2025 | 36.78 $* | 38.72 $* |
| Jan-18-2025 | 36.37 $* | 38.45 $* |
Характеристики
Product Description
1. Production details
BMS type : Smart bms
Number of strings : 3-32S
Batteries : 3.7V Li-ion/3.2V Lifepo4
Voltage : 12V 24V 36V 48V 60V 72V 96V
Current : 30A 35A 40A 45A 50A 60A 80A 100A 120A 150A 200A 300A

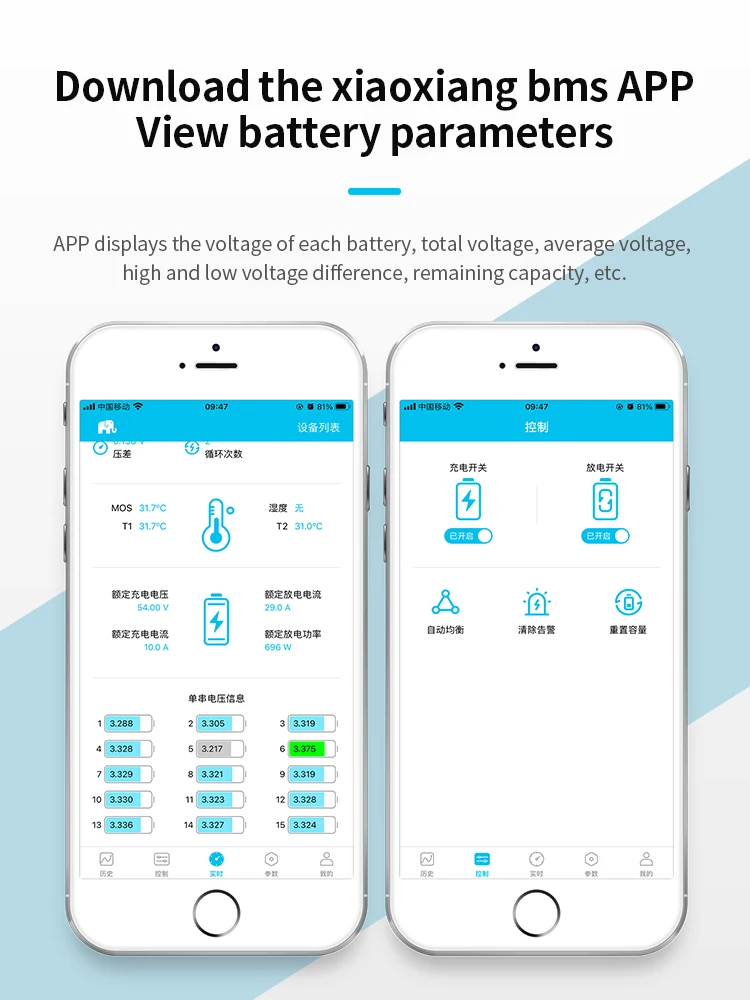

2. Download link of the smart application.
Phone - Xiaoxiang bms
Download Link - IOS : Search in the APP STORE
Download Link - Andriod : https://www.pgyer.com/Bzt1
Computer - JIABAIDA Tools ( UART)
Download Link -http://www.jiabaida.com/uploads/soft/xiaoxiangBMS.zip?spm=5261.im.0.0.7e0e4edfdzhzxA&file=xiaoxiangBMS.zip
Our Company
Certifications
Packing & Delivery
FAQ
1. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
