Product show

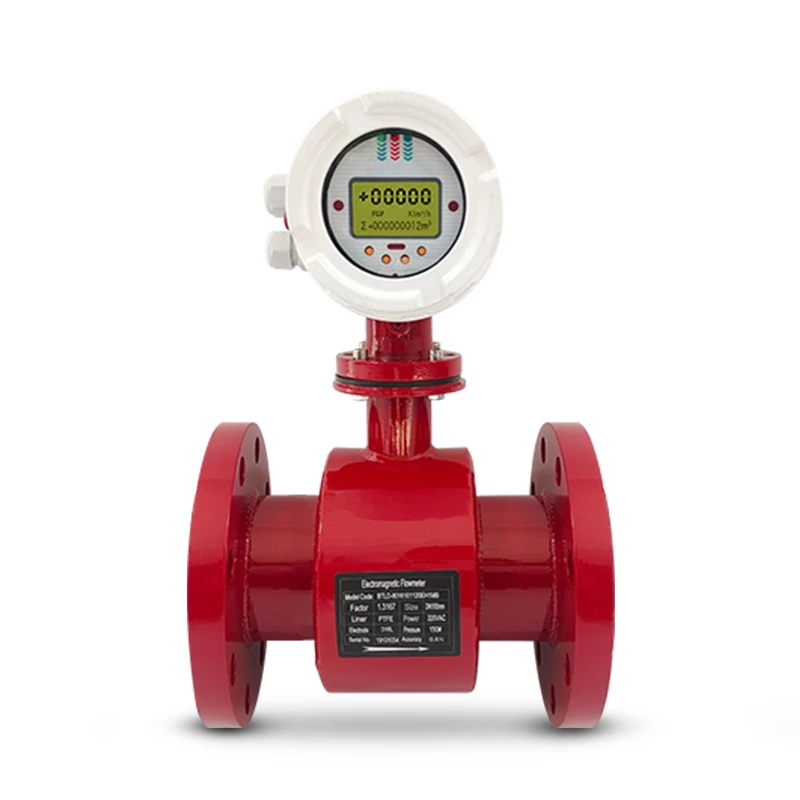

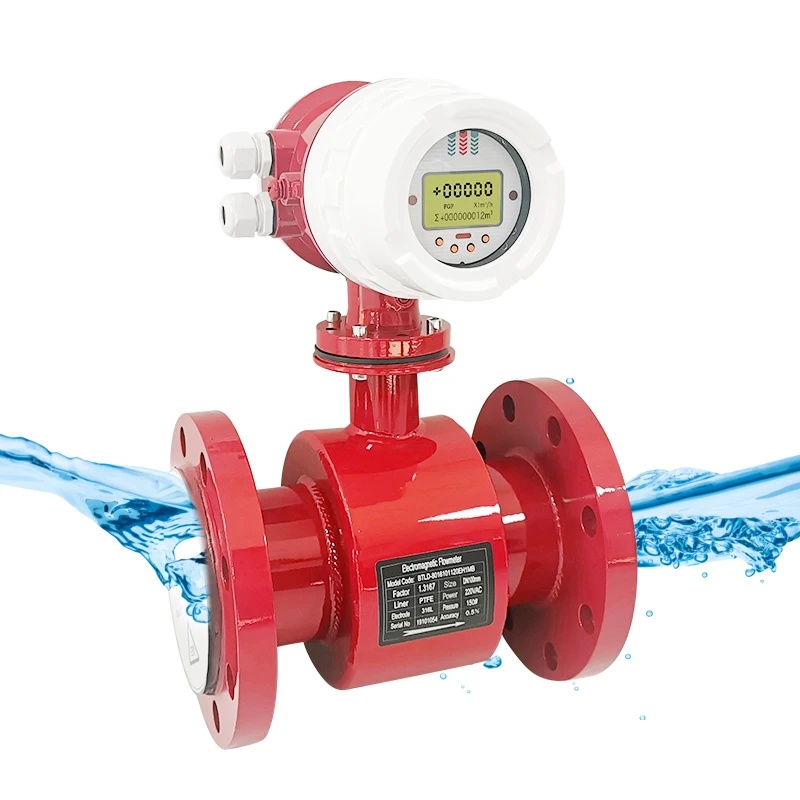

Low cost 4 inch pipeline regulation kaifeng wastewater electromagnetic flow meter digital liquid
Details Images
What are the advantages of our wastewater electromagnetic flow meter?
1. Forward and reverse flow measurement.
2. Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
3. Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4. A variety of electrodes and linings are available for a variety of complex working conditions.
5. It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
3. Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4. A variety of electrodes and linings are available for a variety of complex working conditions.
5. It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
Product parameter
Name | wastewater electromagnetic flow meter |
Nominal diameter | DN10-3000mm |
Pressure | 0.6~4.0MPa ( Special pressure customize ) |
Flow range | <15m/s |
Structural style | Integrated type , Split type , Insert type, Battery type |
Protection Class | IP65, IP68 optional |
Medium Conductivity | ≥20μs/cm |
Liner Material | PU、PTFE、CR、FPM、F46、PFA |
Measuring medium | Conductive Liquid |
Accuracy | Indicated value ±0.5%, Optional values ±0.3% |
Electrode material | HB, HC, WC, 316L, Ti, Ta, Pt |
Connection | Flange Clamp Thread |
Power supply | 220VAC/ 24VDC/3.6V |
Certification | CE, ISO，ATEX |
Signal output | Pulse / 4~20mA / RS485 / HART/Modbus |
Product usage

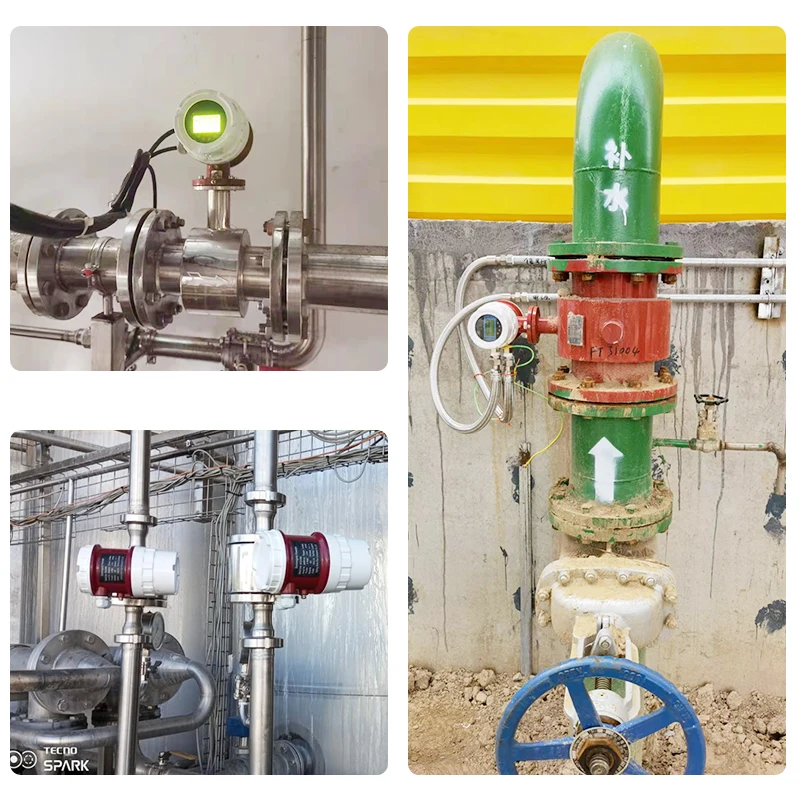

wastewater electromagnetic flow meters are used in water treatment plants to measure treated and untreated sewage, process water, water and chemicals. Mining and mineral process Industry applications include process water and process slurry flows and heavy media flows.
