Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
120 м 130 150 180 200 350 450 600 перфорадора-де-посос-де-Агуа гидравлический сверлильный станок буровая установка для водяных скважин
- Категория: Mining Machinery >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.Zhengzhou,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1441428.3 $* | 1513499.31 $* |
| Aug-19-2025 | 1429315.10 $* | 1500781.44 $* |
| Jul-19-2025 | 1199171.38 $* | 1259130.97 $* |
| Jun-19-2025 | 1405089.53 $* | 1475343.96 $* |
| May-19-2025 | 1223397.74 $* | 1284567.65 $* |
| Apr-19-2025 | 1380864.39 $* | 1449907.90 $* |
| Mar-19-2025 | 1368751.97 $* | 1437189.99 $* |
| Feb-19-2025 | 1356638.17 $* | 1424470.79 $* |
| Jan-19-2025 | 1344525.7 $* | 1411751.14 $* |
Характеристики
Products Description

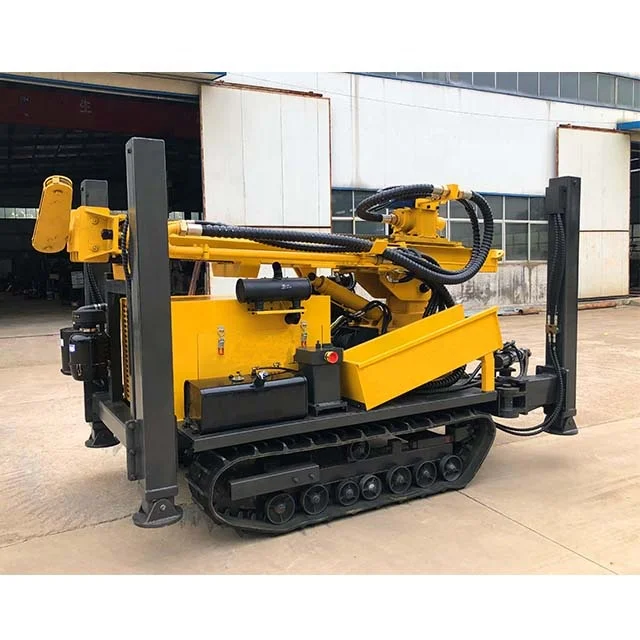

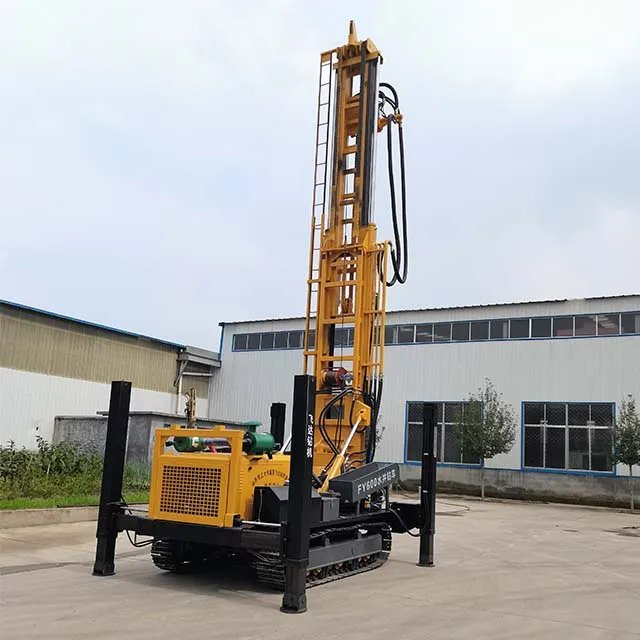

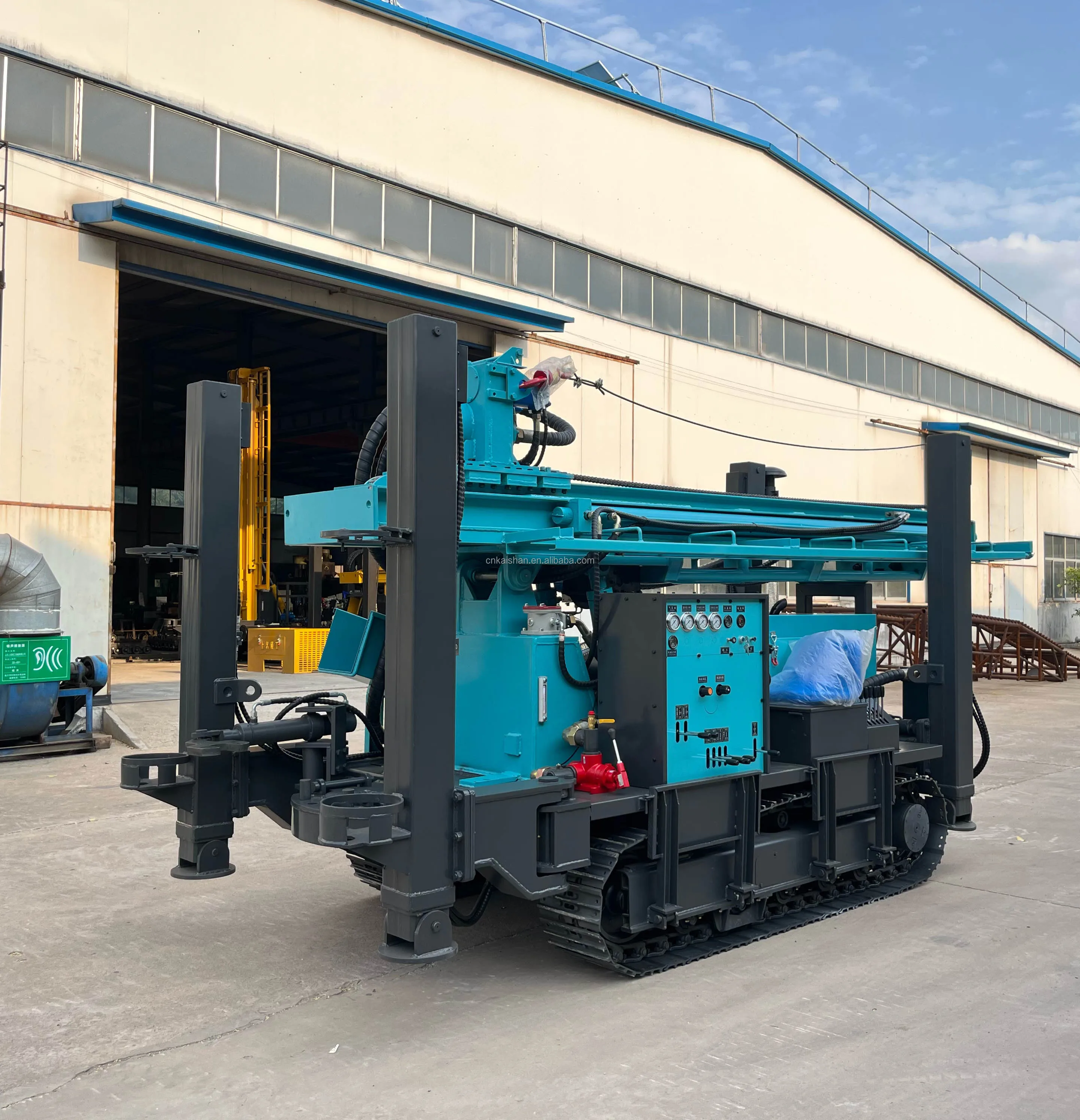

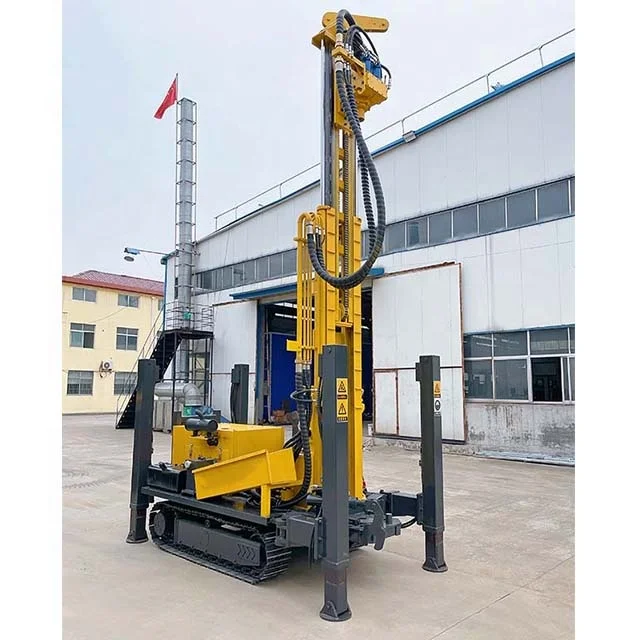

KW Series multi-function type geothermal well drilling machine is a lightweight, high efficiency, multifunctional drilling rig. KW drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
Product Paramenters
Model | KW180 | KW200 | KW280 | KW300 | |||
Drilling depth | 180m | 200m | 280m | 300m | |||
Diameter of hole | φ140-254mm | φ140-204 mm | φ140-305mm | φ140-325mm | |||
Advance Length | 3m | 3.3m | 6.6m | 3.3 m | |||
Working pressure | 1.7-2.5MPa | 1.7-3.0MPa | 1.7-3.0MPa | 1.7-3.3MPa | |||
Air consumption | 15-27m³/min | 17-30m³/min | 17-30m³/min | 17-35mm³/min | |||
Length of rod | 1.5m,2m,3m | 1.5m,2m,3m | 1.5m,2m,3m, 6m | 1.5m,2m,3m | |||
Dia. Of rod | φ76, φ89,φ102 | φ76, φ89,φ102 | φ76, φ89 | φ76, φ89,φ102 | |||
Lifting power | 12 T | 13T | 17T | 18T | |||
Rotation torque | 3200-4600N.m | 3300-4700N.m | 3700-5000N.m | 5700-75000N.m | |||
Rotation Speed | 45-65r/min | 45-70r/min | 55-70-130r/min | 40-70 rpm | |||
Diesel Engine | Quanchai | Quanchai | Yuchai | Yuchai | |||
Engine Power | 55Kw/2200rpm | 65Kw/2200rpm | 70Kw / 2200 rpm | 85Kw/2200rpm | |||
Travelling speed | 0-2.5 Km/h | 0-2.5 Km/h | 0-2.5 Km/h | 0-2.5 Km/h | |||
Climb capacity | 30° | 30° | 30° | 30° | |||
Weight | 4500kgs | 5000kgs | 7500kgs | 7000kgs | |||
Dimension | 3800x1500x2200mm | 3950x1700x2300mm | 5900x1750x2450mm | 4100x1950x2600mm | |||
Application | Complicated geological conditions: Rock, Mud, Sand etc. | ||||||
Drilling Way | Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling | ||||||
Dth Hammer | 4",5",6",8" Drill hammer or CIR110, 130, 150,170 | ||||||
Model | KW350 | KW400 | KW600 | ||
Drilling depth | 350m | 400m | 600m | ||
Diameter of hole | φ140-325mm | φ140-350mm | φ140-350mm | ||
Advance Length | 6.6m | 6.6m | 6.6m | ||
Working pressure | 1.7-3.3MPa | 1.7-3.5MPa | 1.7-3.5MPa | ||
Air consumption | 17-35m³/min | 17-35m³/min | 17-42m³/min | ||
Length of rod | 1.5m,2m,3m, 6m | 1.5m,2m,3m, (6m can be choosed) | 1.5m,2m,3m,6m | ||
Dia. Of rod | φ89,φ102,φ114 | φ89,φ102,φ114 | φ76, φ89,φ102,φ114 | ||
Lifting power | 24T | 25T | 30T | ||
Rotation torque | 6200-85000N.m | 6500-9000N.m | 8500-11000N.m | ||
Rotation Speed | 55-115r/min | 45-115r/min | 45-115r/min | ||
Diesel Engine | Yuchai | Yuchai | Cummins Brand | ||
Engine Power | 92Kw/2200rpm | 92Kw/2200rpm | 6BTA5.9-C180-II, 132Kw/2200rpm | ||
Travelling speed | 0-2.5 Km/h | 0-2.5 Km/h | 0-2.5 Km/h | ||
Climb capacity | 30° | 30° | 30° | ||
Weight | 9000kgs | 10000kgs | 12000kgs | ||
Dimension | 5900x2000x2850mm | 5900x2100x2850mm | 6000x2200x2950mm | ||
Application | Complicated geological conditions: Rock, Mud, Sand etc. | ||||
Drilling Way | Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling | ||||
Dth Hammer | 4",5",6",8" Drill hammer or CIR110, 130, 150,170 | ||||

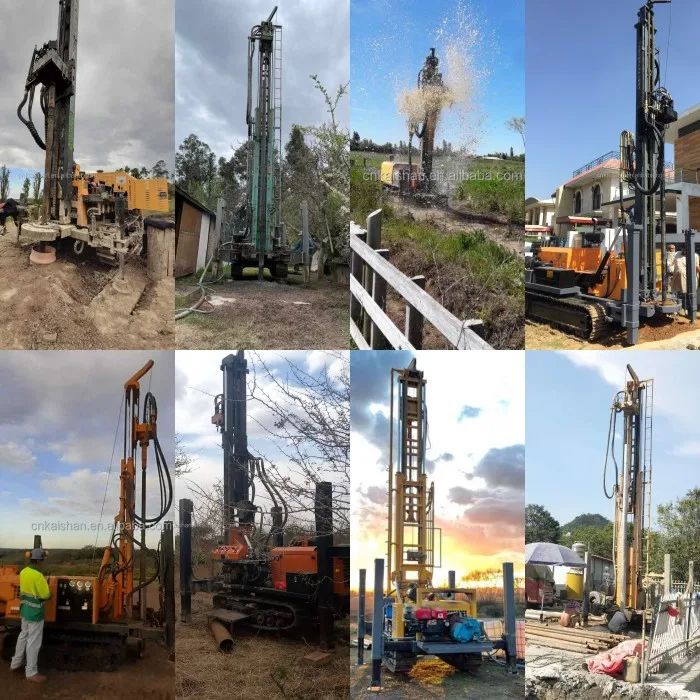

Application
Works with mud pump
Works with air compressor
DTH hammer
Drill pipe
Drill bit
Related Products
Company Profile
Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Certifications
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
