FL & OEM 8-канальный регистратор системы видеонаблюдения MDVR с поддержкой SD-карты GPS 4G WIFI камера Мобильная система

FL & OEM 8-канальный регистратор системы видеонаблюдения MDVR с поддержкой SD-карты GPS 4G WIFI камера Мобильная система

Категория: Surveillance Products >>>
Поставщик: Further,Technology,(Dongguan),Co.,Limited

Цена:100,00 $ - 103,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	119.13 $*	125.69 $*
Aug-16-2025	118.81 $*	124.76 $*
Jul-16-2025	99.70 $*	104.25 $*
Jun-16-2025	116.59 $*	122.34 $*
May-16-2025	101.16 $*	106.31 $*
Apr-16-2025	114.72 $*	120.1 $*
Mar-16-2025	113.51 $*	119.49 $*
Feb-16-2025	112.41 $*	118.12 $*
Jan-16-2025	111.21 $*	117.74 $*

Характеристики

Products Description

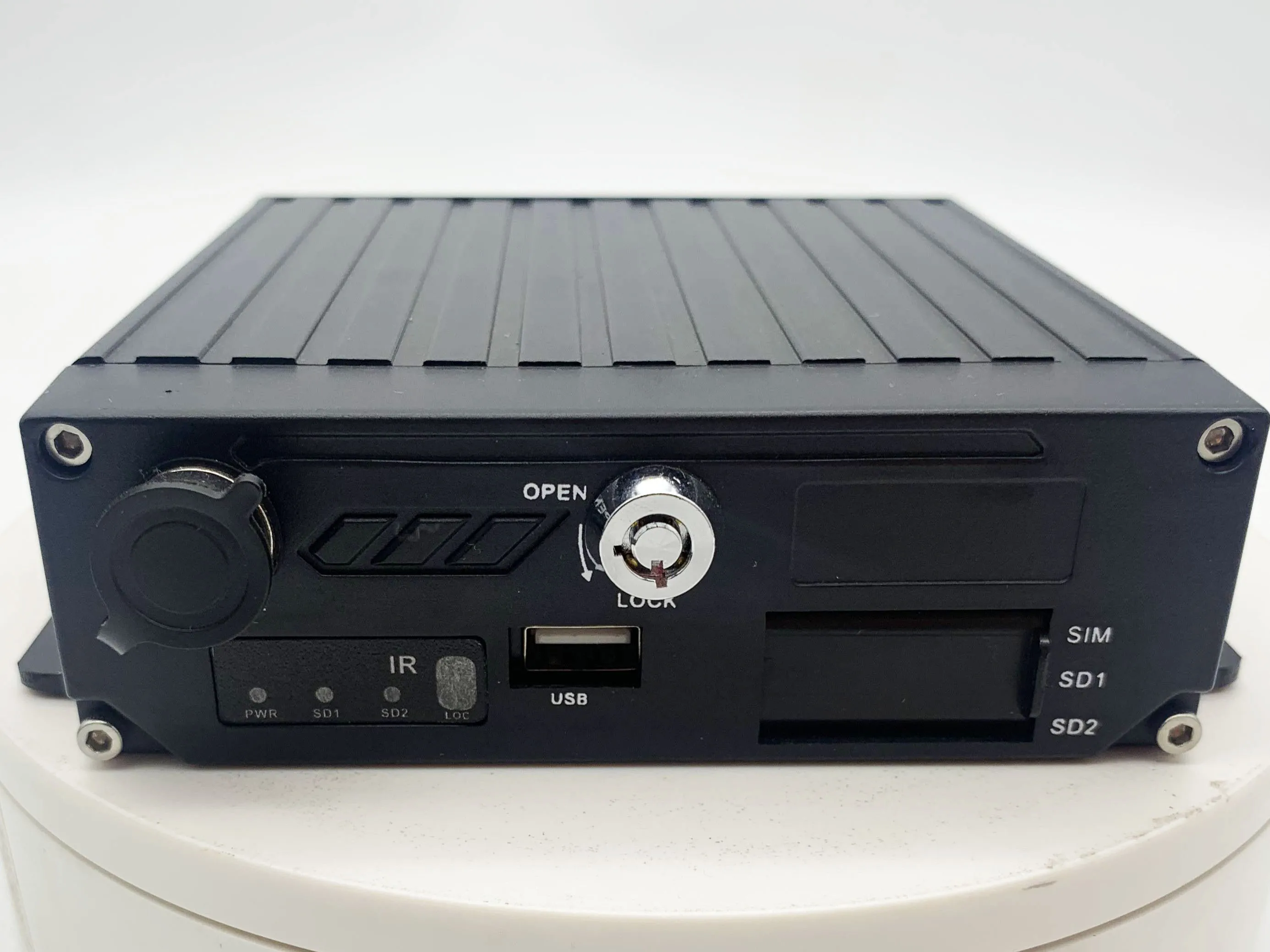

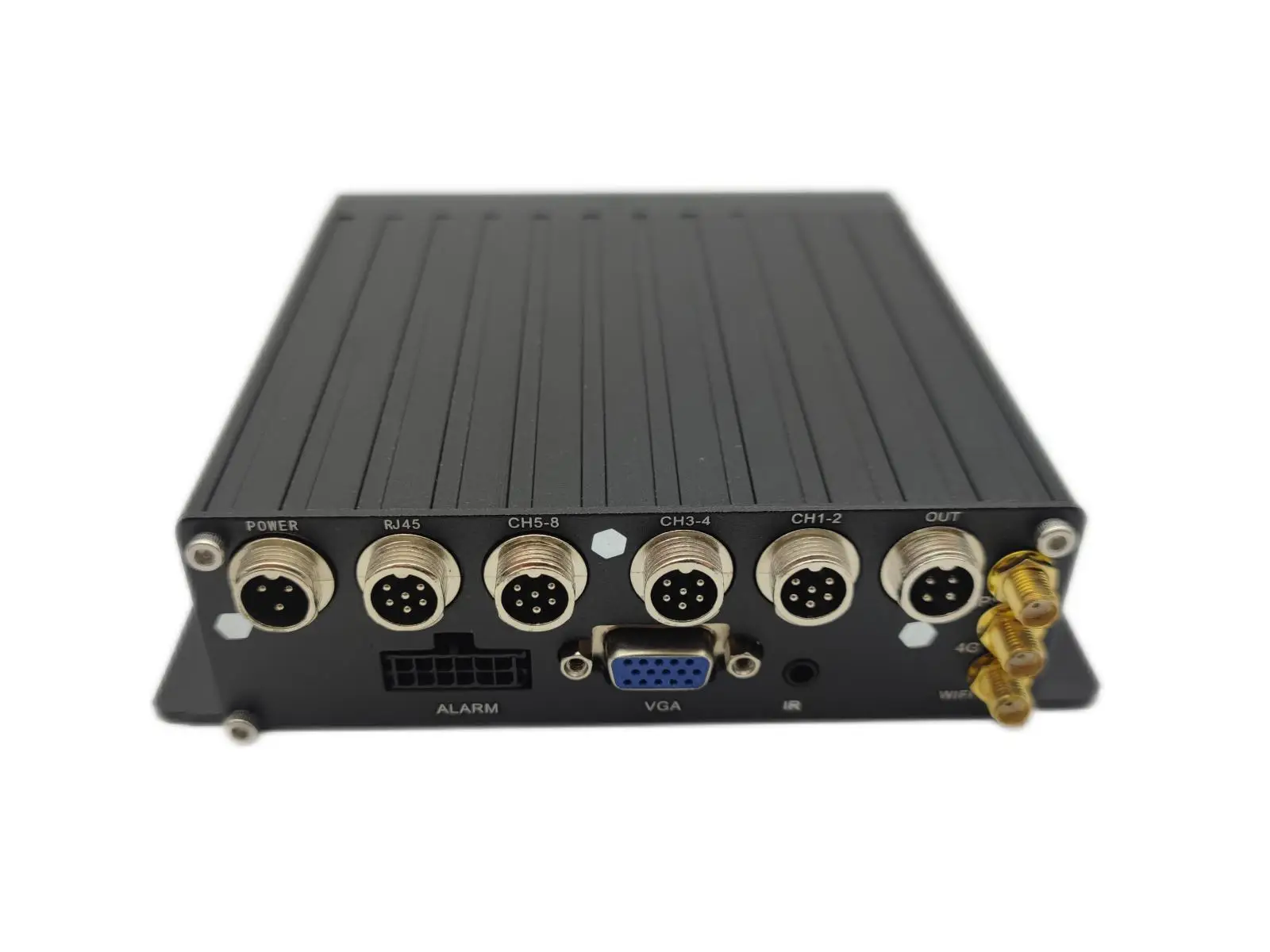

AH265 HD720P SD Card Mobile DVR

1. 8CH AV Inputs with AHD 720P/960H/D1/CIF optional.
2. : Support GPS/BD optional, high sensitivity, fast positioning.

3.Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
4. Mobile DVR:
1) 8CH local recording with 720P resolution in real time
2) ADAS, DMS, BSD are extensible.

H265 SD Card Mobile DVR

H265 Hard Disk Model All In One Device(MDVR+VPC)

Details Images

Product Advantages

1.The original Haith chip

Further Video Recorder, each of which uses the original industrial-grade Heise chip, can ensure stable operation in the severe cold and heat environment.

2. Support screen switching

Supporting reverse screenenlargement, four-way video switching, providing technical support.

3. Wide Voltage Design

Vehicle broadband power supply can work steadily in the range of DC8V-36V voltage.

4. Humanized USB Interface

Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

Monitor screen

MDVR GPS 4ch HDD 4G Mobile DVR bus mdvr people counter

Four-channel simultaneous recording, smooth picture quality

Support parallel preview and return visit of different channels under multi-screen splitting

Loop recording, automatic coverage

When it detects that the hard disk space is insufficient, the system intelligently deletes the early unlocked screens, without manual operation, you can cycle the recording

3G/4G remote real-time monitoring

Insert a 3G/4G phone card, download the client, you can support multi-device terminal viewing, real-time sharing, remote download,real-time video you want to watch

GPS (Beidou) positioning

Carrying out vehicle positioning through GPS, knowing the location and driving trajectory of the vehicle, realizing the real-time scheduling of the vehicle and improving efficiency

Suitable for a variety of models

Bus ,Coach ,School Bus, Truck ,Tanker, Harvester

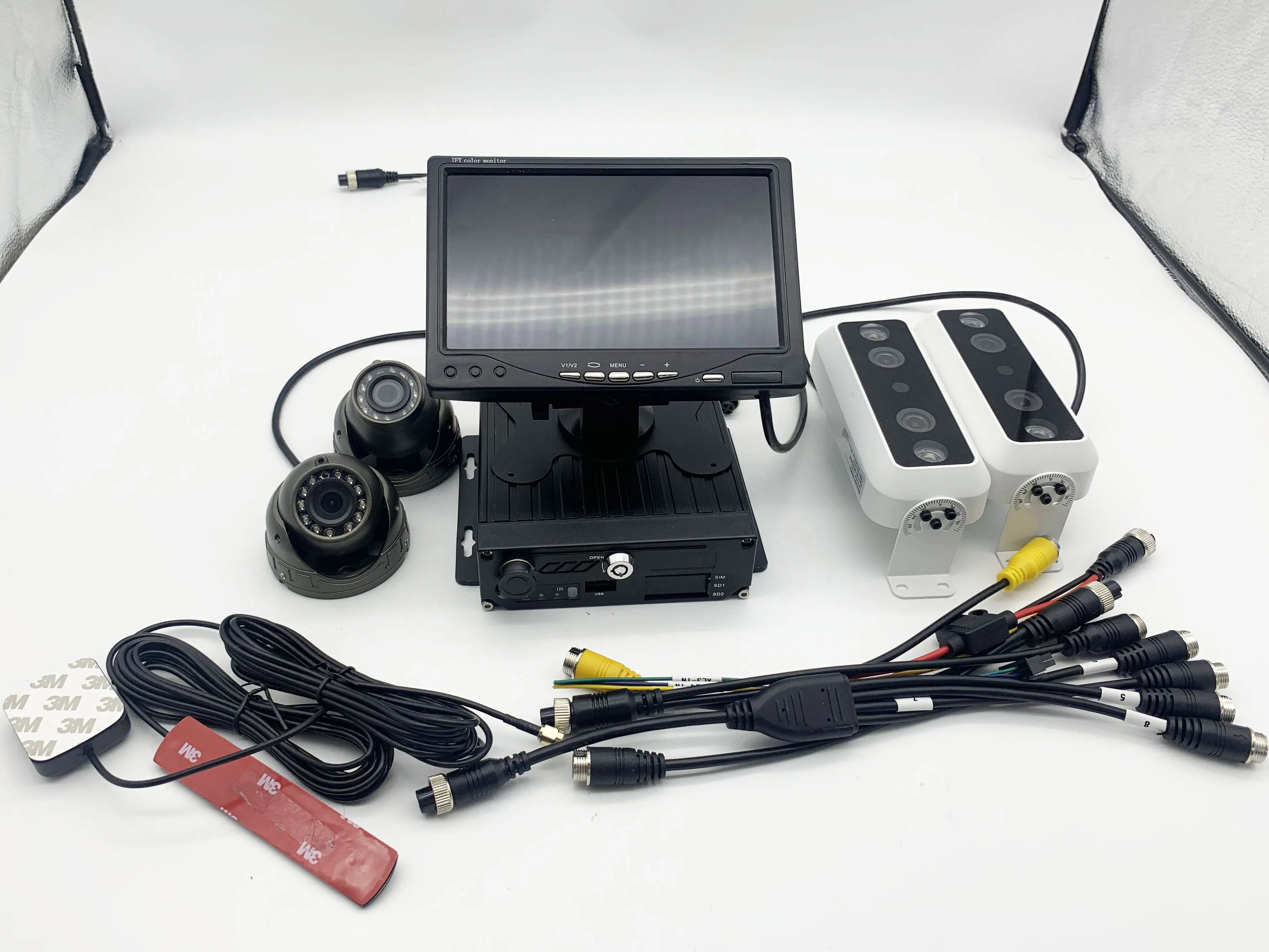

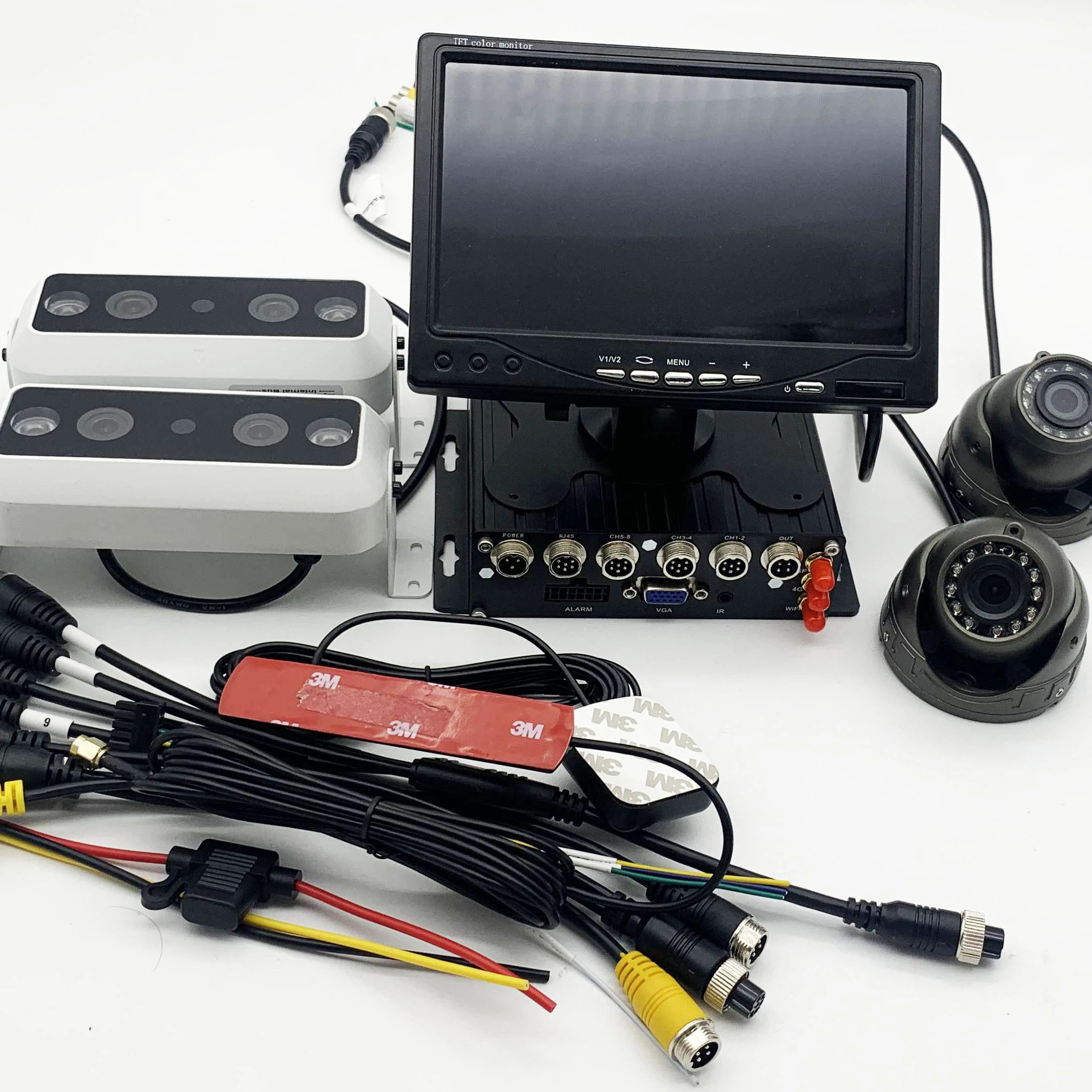

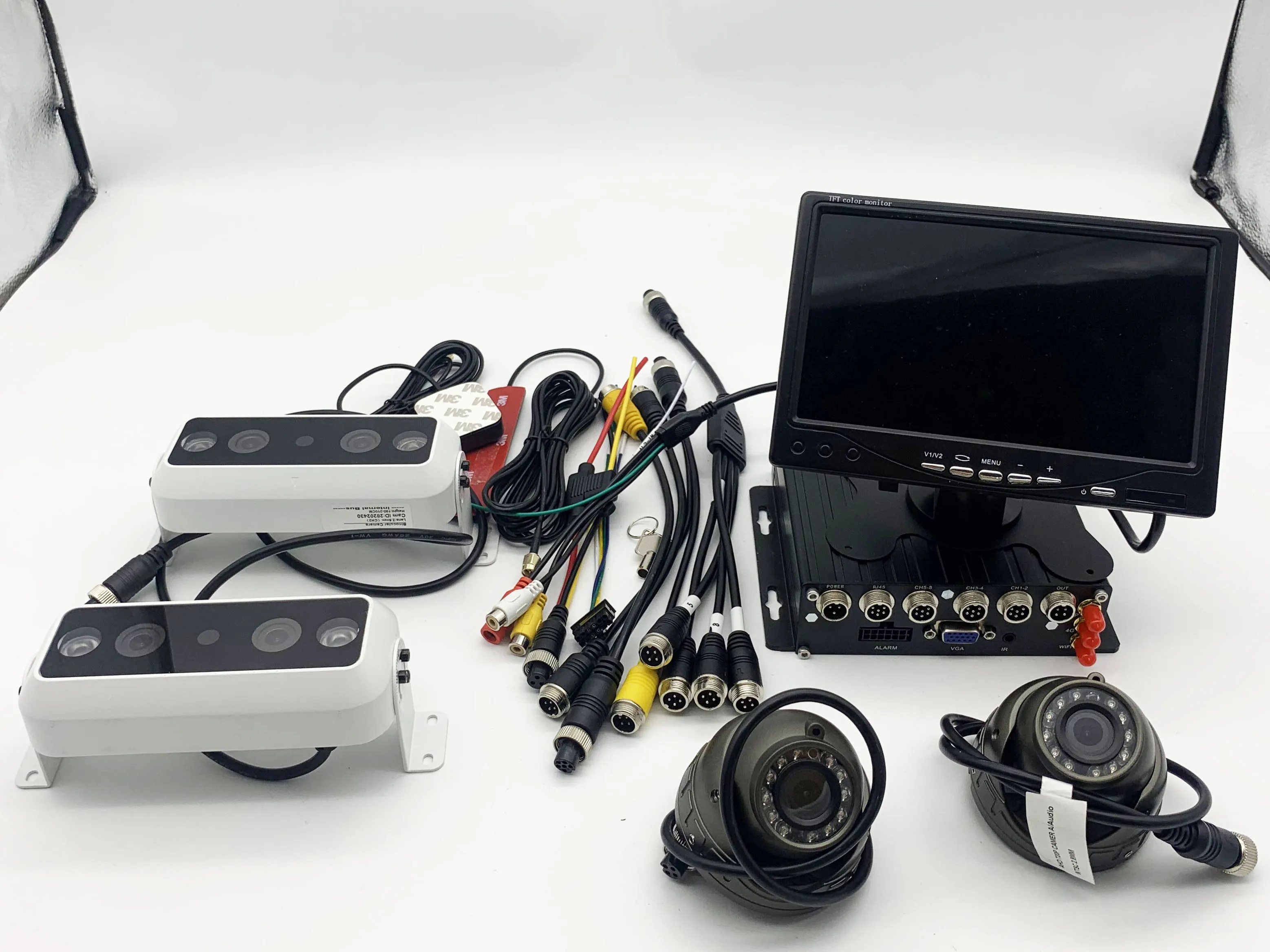

Vehicle Survilliance Solutions

H265 Hard Disk Model All In One Device(MDVR+VPC)

Cameras for mobile dvr(optional)

H265 Hard Disk Model All In One Device(MDVR+VPC)

Company

Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D,
manutactur-ing and marketing SD card Mobile DVR, hard drive DVR, 3G/4G/GPS/GPRS/WIFI
Mobile DVR/NVR,.GPS tracker and CCTV camera, which is the best manufacturer specialized
in vehicle security products in China.
In China and abroad, we have won a good reputation and had many success stories. In China,
more than 2000 transport companies choose our products. Our products are made to meet
safety standards such as CE, FCC and RoHS.

With more than 10 years of OEM ODM experience, our manufacturing has sucessfull supported
name brands worldwide with quality products with a strong R&D capability and our qualifed
products have been exported all over the world covering Asia, North &South America, Europe,
Oceania, Middle East countries.

Manufacturing Technique

H265 Hard Disk Model All In One Device(MDVR+VPC)

Certifications

CE，FCC，RoHS，ISO001

MDVR Features

◆Industrial-grade design, small appearance, ultra-low power consumption, easy installation, strong stability.
◆Military-grade highly reliable aviation head input and output interface, easy installation and insertion, stronger seismic performance.
◆Professional on-board power supply design, 10-36V DC wide voltage input; Overload undervoltage short circuit reverse connection and other protection circuits, suitable for all kinds of vehicles.
◆It adopts international mainstream video H.264, 265 main profile encoding format and audio G.726 encoding, with high compression ratio, clear image and small disk space occupation.
◆Provide 12VDC power output, which can provide constant voltage power supply for multiple peripheral devices such as cameras and small screens.
◆Abnormal restart function protection of watchdog, which can better protect the machine and video.
◆Support max 1x2T hard disk and 1x256GB SD card, which can completely resist data damage caused by vibration dust on the car.
◆Exclusive pre-allocated dedicated file system technology to solve the file fragmentation caused by repeated erasing and writing, and ensure the integrity of data.
◆Flame-out time-lapse recording function (time can be set up to 24 hours).
◆Power failure protection function under accident, using professional UPS technology to ensure the integrity of video files under unexpected power failure, convenient for accident inquiry.
◆The supporting client platform provides real-time monitoring, monitoring intercom, playback, video, high-definition screenshots and other functions.
◆Support mobile phone remote monitoring, support mobile phone 3G/4G call function.
◆It has a variety of upgrade methods for SD card, hard disk, U disk and platform remote upgrade, and adopts partition backup technology to upgrade without crashing.
◆Support the simultaneous use of multiple algorithms such as passenger flow statistics, DMS, ADAS, and BSD.
◆Ultra-simple system interface, smooth operation, intuitive and easy to understand functions.

Product Paramenters

Item	Parameter	Description
System	Operational language	Chinese. English, Others (customizable)
		Operation interface	Graphical menu operation interface (OSD menu)
		Password security	Two-level management of user password and administrator password
Video	Video input	4/8 video input
		Video output	There are two video output modes of VGA and aviation head interface
		Video resolution	Support 1080P. 720P, D1, HD1, CIF, etc
		Video loop recording	Support SD card automatic loop recording and loop overlay (auto default)
		Video mode	Support boot recording, timing recording, alarm (trigger) recording
		Image compression	H264/H265
Display	Preview features	Supports single and multi-view
Display		OSD overlay display	Channel name, time, recording status, resolution, license plate, GPS information, etc
Alarm	IO alarm	4 IO alarm inputs, with alarm linkage function
Communication interface	RS232 interface	1CH RS232, expandable card machine, oil sensor, LED advertising screen, etc
Communication interface		RS485 interface	1-way 485 interface, expandable gimbal
AI capabilities (Extensible)	Passenger counting	1 door passenger counting
				2 doors passenger counting
				3 doors passenger counting
				4 doors passenger counting
		DMS	Fatigue (closed eyes, hatcher) detection alarm
				Occlusion camera detection alarm
				Receiving and receiving phone calls to detect alarms
				Face loss detection alarm
				Distraction detection alarm
				Smoking detection alarm
		ADAS	Occlusion camera detection alarm
				Lane departure detection alarm
				Pedestrian detection warning
				Vehicle distance detection and warning
		BSD	Left blind zone detection alarm
		BSD		Right blind zone detection alarm
Platform	Remote monitoring platform	Real-time monitoring, monitoring intercom, playback, video, high-definition screenshots, GPS data, alarm data upload
Others	Power consumption	≤10W
		Operating temperature	-20℃ to +70℃
		Operating humidity	20% to 80%
		Size	180 （D）* 140（W）* 60（H） mm
		Net weight	1.119KG
		Power input	DC +10V - +36V

Video Counter Specifications

* High precision counting accuracy (>97%)
* Popular Hi3520D chips solution
* Rich RS-232 for external devices
* 4CH Video Input, 2CH Video Output
* Really Vandal-proof & EMC for buses
* Excellent power protection 9-36V,10A max
* Effectively distinguish bidirectional moving, shoulders, retention, wandering, luggage, etc.
* Well-tested design in thousands of buses over the world
* 195-300cm (height), 80-300cm(width)
* Easy setup and connection to IPAS system
* 300,000pcs of records saved in memory
* Smartly Resent records when network is lost
* 30-90MB data plans only every month
* Used in step environment
* Built-in 3G/WIFI/GPS optional
* Max 4bus doors with combination of counters

Power Supply
* 3D Binocular Camera:≤3 W
* BPC-V1≤ 8W
* BPC-V2≤ 11W

Environmental
* MTBF:>6000 hours * Temperature range:-25~+55℃
* Relative Humidity:10% - 90%
* Heat radiating:Passive heat output (natural cooling)

Binocular Cameras

Binocular Cameras
Features:
* 720P AHD CMOS Sensor
* Effective pixel 1280*720
* IP 65, Dust proof
* 0.05 Lux (LED is OFF)
* Metal IR-Cut
* 12V DC input
* 180×64×55 mm（L×W×H）
Specifications
New 3D Binocular Camera
Remarks:
Left and Right Camera must connect right with the counter.
Lighting Requirements
There are no strict lighting requirements (if the infrared LED illumination is set to maximum intensity, the BPC can even work in complete darkness). However, we recommend that, for optimal performance, users should provide constant diffused illumination (approx. 500-1000 Lux, i.e. standard light intensity for an interior office space). Users should also avoid direct sunlight or strong light pointing in the detection area.

Lens	Installation Height	Blind Zone	Detect Height	Detect Width
2.8mm	195-210	16-22cm	110-140cm	100-140cm
3.6mm	210-240	20-25cm	100-120cm	90-120cm
4mm	230-260	25-30cm	95-110cm	105-110cm

FAQ

1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(40.00%),Southeast Asia(10.00%),Eastern
Europe(8.00%),North America(7.00%),Northern Europe(7.00%),Western Europe(5.00%),Southern Europe(4.00%),Central America(4.00%),Mid East(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Mobile DVR,Mobile NVR,People Counter,CCTV Camera,Car Black Box

4. why should you buy from us not from other suppliers?
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D, manufacturing and marketing SD card and HDD Mobile DVR/NVR,GPS tracker and CCTV camera,People counter. Our products are made to meet safety standards such as CE, FCC and RoHS.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian

6.Does your Company support OEM or ODM service?

Yes, our company has our own R&D department, and factory , can support OEM & ODM Service.

7. Does your MDVR System has CE FEE E-Mark?

Yes, our MDVR System has CE FEE E-Mark Certifications.

8.How about your quality control?

We have a very strict quality inspection step , 100% full Quality inspection

9. What is about your warranty?

For MDVRS, the warranty is 12 month, for Cameras,the warranty is 24 month. But actually we give Lifetime maintenance services, over the warranty period, only need to pay the cost of replacement parts , other maintenance services are free.

10.Q:Device keep Rebooting
A:1)Check working power,I flow power device will keep rebooting;
2)HDD/SD Card error, remove storage device and turn on device checking;

11.Q:Device on with HDD but not recording;
A:1)Check SD/HDD formatted or not;if not please enter Main GUI--System Set--Format,formatHDD/SD Card;
2) Check If close Recording, or set Timed Recording mode, if yes it won(t recording
3) If the HDD is connected well, if yes the HDD/SD light is on.

12.Q: With GPS but no GPS coordinate Information
A:1)Check if GPS module exist;
2) Check GPS Antenna connection,suggest install on the outside place with strong signal;
3) If testing in office, suggest put GPS Antenna out of window;
4) If working environment not good will related to no GPS Information or wrong information;

13.Q:Deviation of GPS Location on Map?
A:The signal is effective if the GPS module has been positioning, there are so many reasons caused bias, governmentrestriction, permissible error, GPS signal break off, The actual satellite map error occurred for the security, GPS Correction can solve the problem.

14.Q:If using 3G ,what should we concern?
A:1)Choose inside wireless module WCDMA,EVDO,TD-SCDMA, relative module setting is different then SIM Card is different, please make sure the module is corresponding with the SIM Card.
2) If Server IP & Port set correct,if 3G signal strong for dialing;3G dialing successfully or not;
3) Check 3G Antenna connection,dialing will be failed if 3G signal too weak;
4) Check SIM Card 3G Flow

15.Q:Device working but can not see Vehicle and video on client software
A: 1)Check if Center Server running and device Number if using;
2) Check Server IP and Port parameter setting;
3) Check is using 3G or WIFI for connecting, if 3G check the 3G Model WCDMA or EVDO and related
SIM card,3G antenna connect normally/APN setting/Center No. setting;
If it still can not work,please offer the most detailed information to us for technical support

16.Q:Device Online but can not see video
A:1)Please set Low Sub-stream,when sub-stream set high it will affect the transmission because of the network;
2) Network environment not good;

17.Q: During playback, the map doesn't show?
A: Possible reasons are as follows: Net cable did not connect to PC; Net works, but the computer can not get to the Internet;
