Серия Aclip ACH50 640X512 50 мм 3-в-1: тепловой

Категория: Scopes & Accessories >>>
Поставщик: ARMER,TECH,(SHANGHAI),CO.,LTD.

Цена:3 399,00 $ - 3 599,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	4317.9 $*	4403.64 $*
Jul-16-2025	3501.82 $*	3571.66 $*
Jun-16-2025	4249.79 $*	4334.75 $*
May-16-2025	4215.61 $*	4299.47 $*
Apr-16-2025	3365.3 $*	3432.23 $*
Mar-16-2025	4147.14 $*	4230.77 $*
Feb-16-2025	4113.14 $*	4195.23 $*
Jan-16-2025	4079.77 $*	4161.74 $*

Характеристики

Product Description

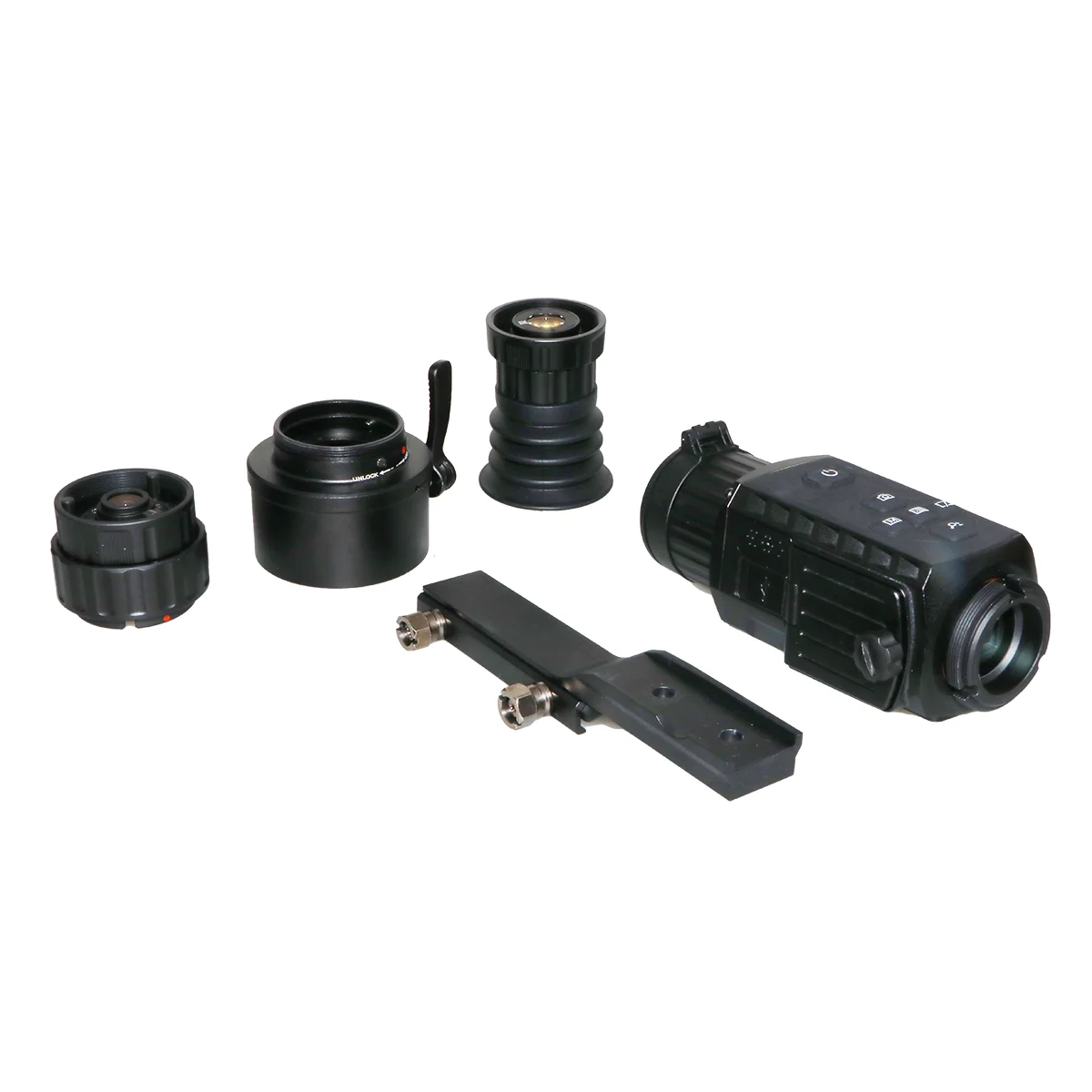

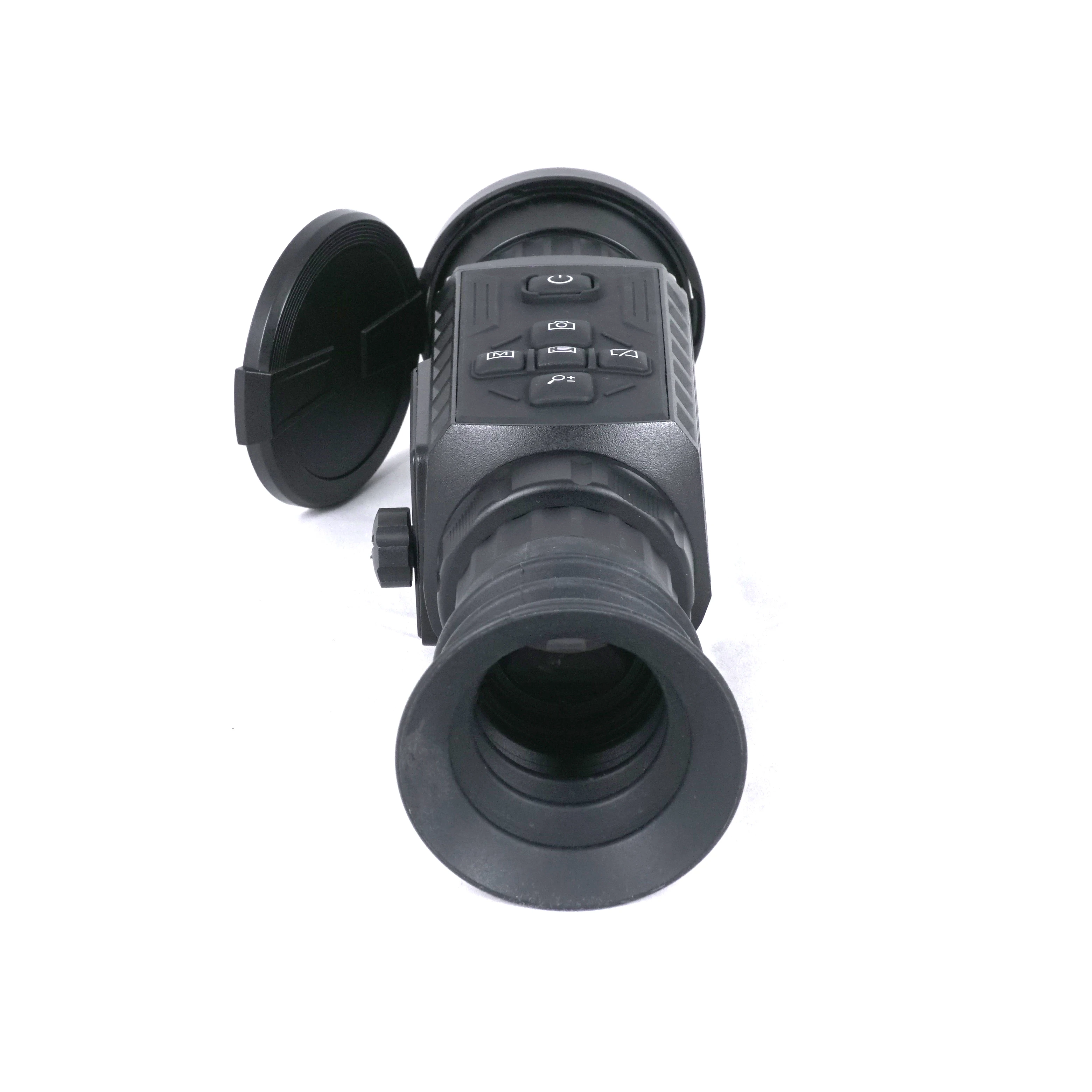

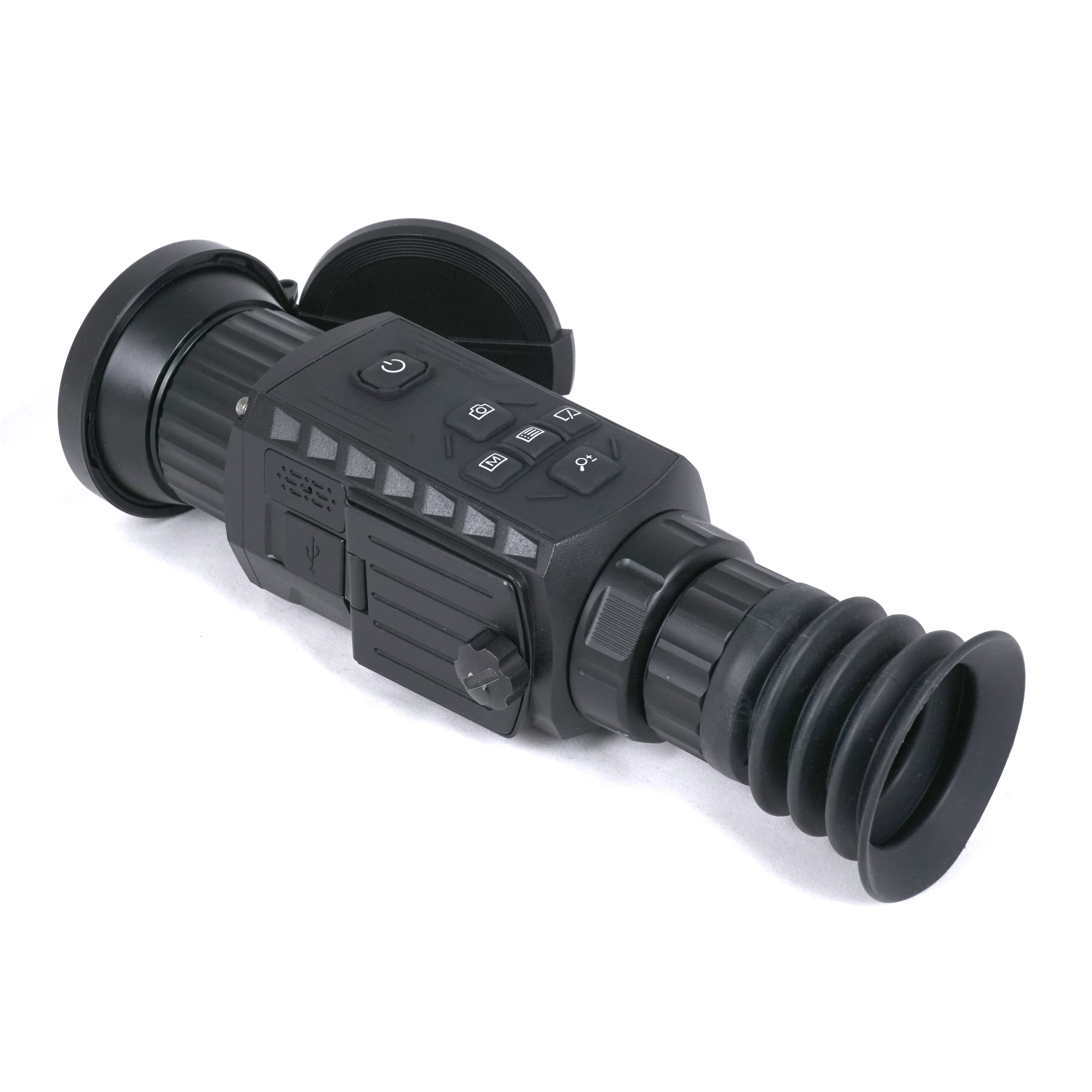

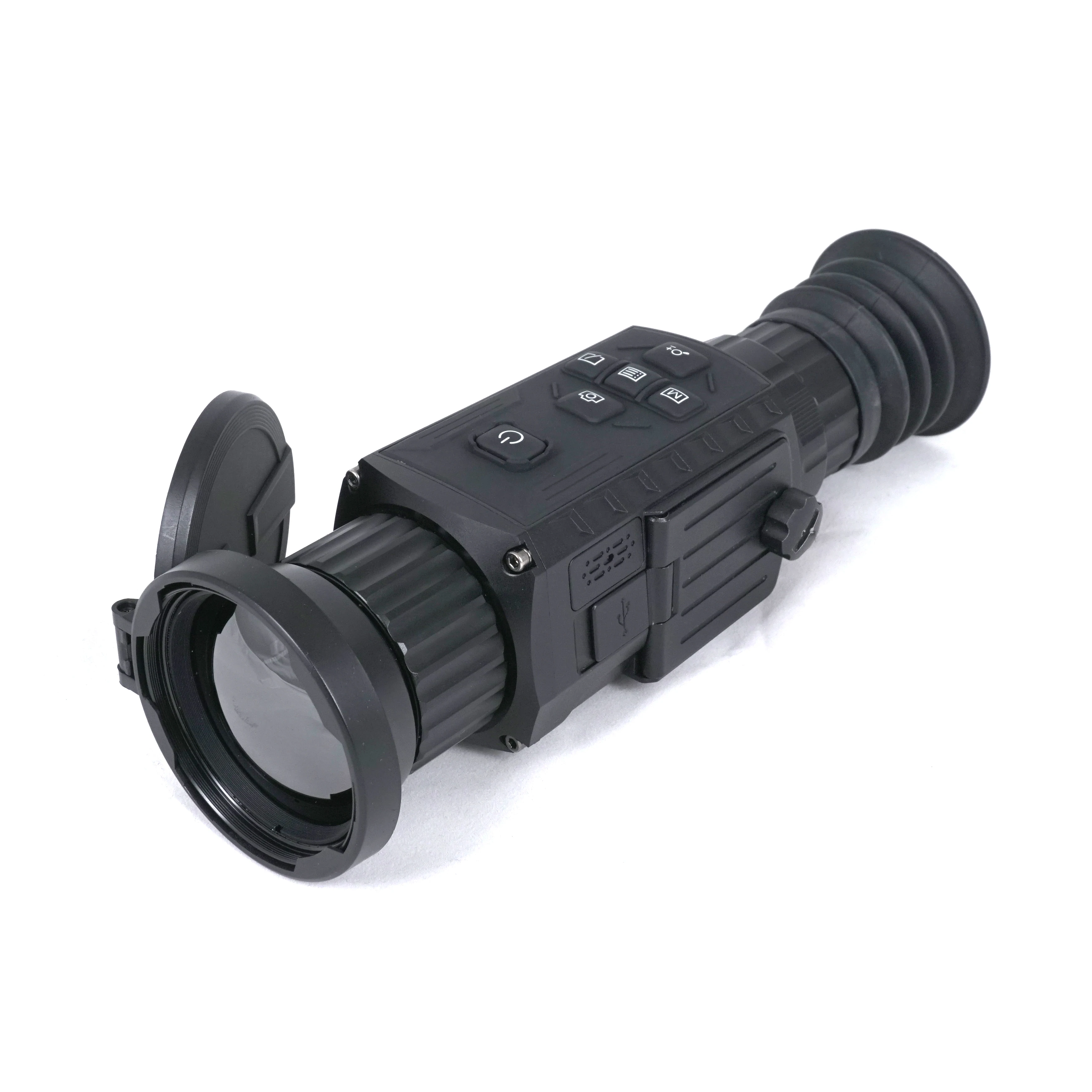

3-IN-1 AClip series thermal scop/clip-on attachment/handheld

ACH50

The ACLIP series is a multifunctional thermal imaging device that integrates a Thermal scope, clip-on attachment and hand-held monocular. It adopts a 384×288/640x512 infrared detector and a 1024×768 OLED display, which can clearly search the target in harsh environments such as total darkness, smoke, dust, rain and snow,woods, and camouflage. It can be used for night patrol, outdoor hunting and other

640x512@35NETD

The ACH50 thermal module is the centre of the system with its 50mm lens system and 640x512px . The matrices are built using 12 um technology, which makes it possible to obtain a greater optical magnification without increasing the external dimensions of the device.
Based on VOx (vanadium oxide) technologies, with high thermal sensitivity, 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions. This increases the detection range of heat-contrast objects and makes it possible to “see the substrate”

High Image Quality

A resolution of 640x512 px and high sensitive detector (less than 35mk NETD) gives a clear picture of the target.

Long Detection Range

With the advanced imaging sensor and lens, a 1.7m object can be detected from a distance, up to 2500 meters.

4 colar plates

Four Colar plates are selectable: Black hot, white hot, red hot, fusion

Optional reticle types

Optional reticle types are available

Zeroing

Zeroing the scope by making the offset on the reticle after first shot.

Specification

Aclip Series ACL35 3-in-1 scope
Sensor	640x512 @ 12um
NETD	< 35mk(@25°C,F#=1.0)
Frame	50Hz
Lens	50mm/f1.0
Detection range	2595m
Optical Magnification	1x
FOV	8.7*7.0
Color plates	Black hot, white hot, red hot, fusion
Digital zoom	1X、2X，4X、8X
Reticle	Yes
Hotspot	Yes
Wi-Fi	Yes
Rough rangefinder	Yes
Video	Yes
PIP	Yes
Standby mode	Yes
Scene Mode	Jungle, Recognition
Dead pixel calibration	Yes
Uniformity Correction	Auto, Manual, External Correction

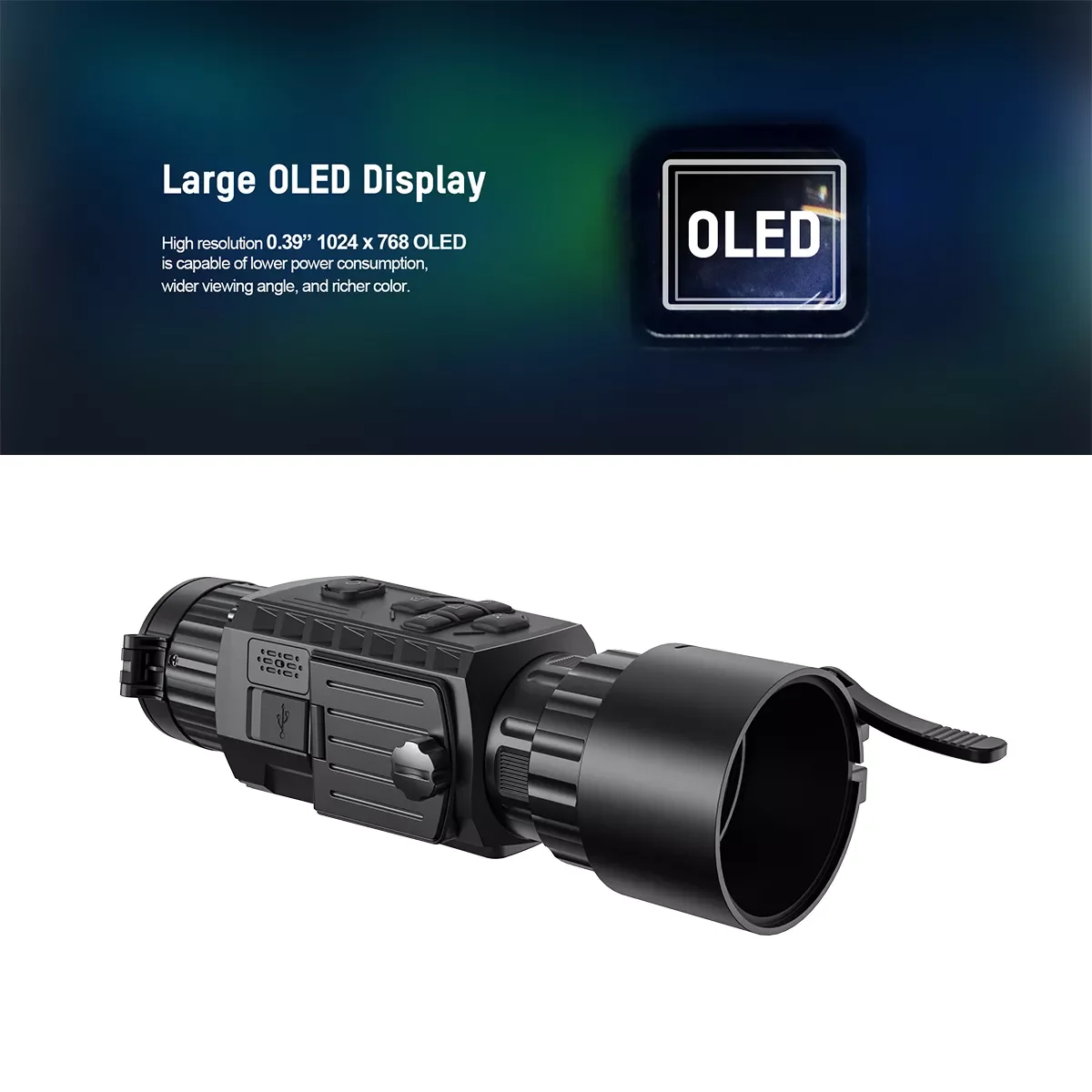

Display	1024× 768 OLED
Power	4x CR123A/RCR123A
Battery life	7h
Vibration & Shock	750 g/1 ms
Protection Level	IP67
Working Temperature	-20 °C ～ +55 °C
Dimensions	200.4 x 66.4 x 87.1 mm
Weight	< 587g（withour eyepiece and battery）
