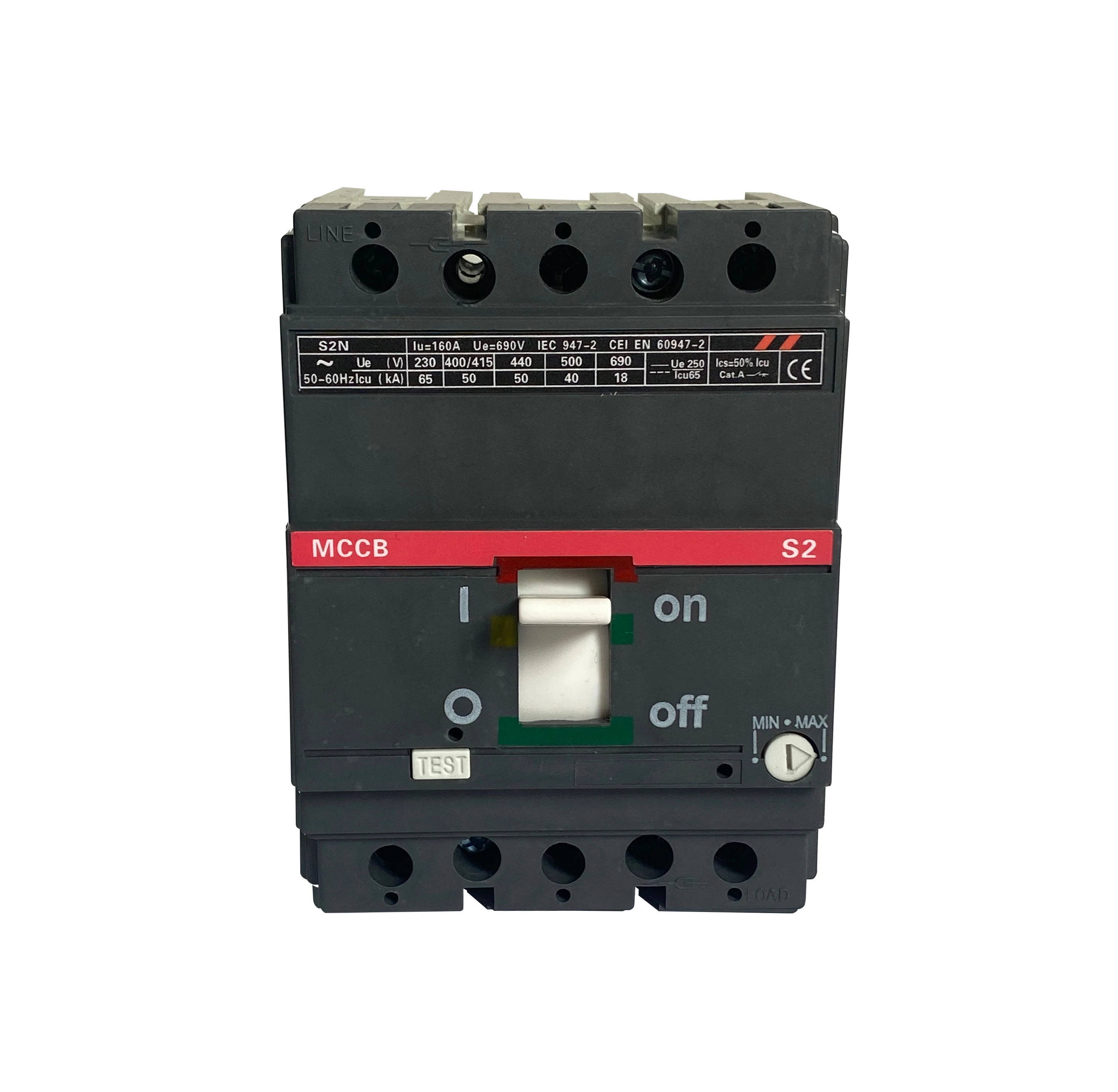

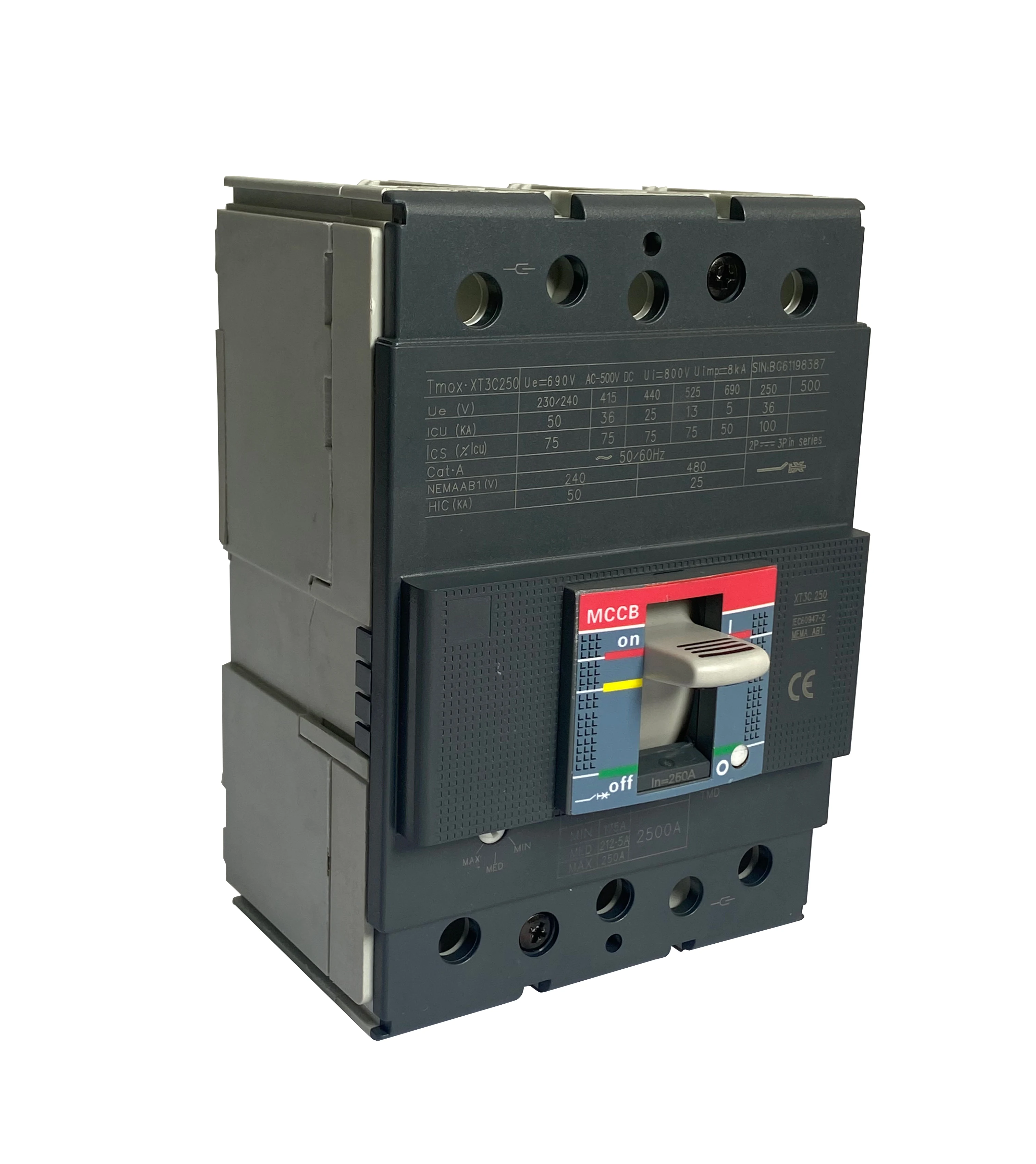

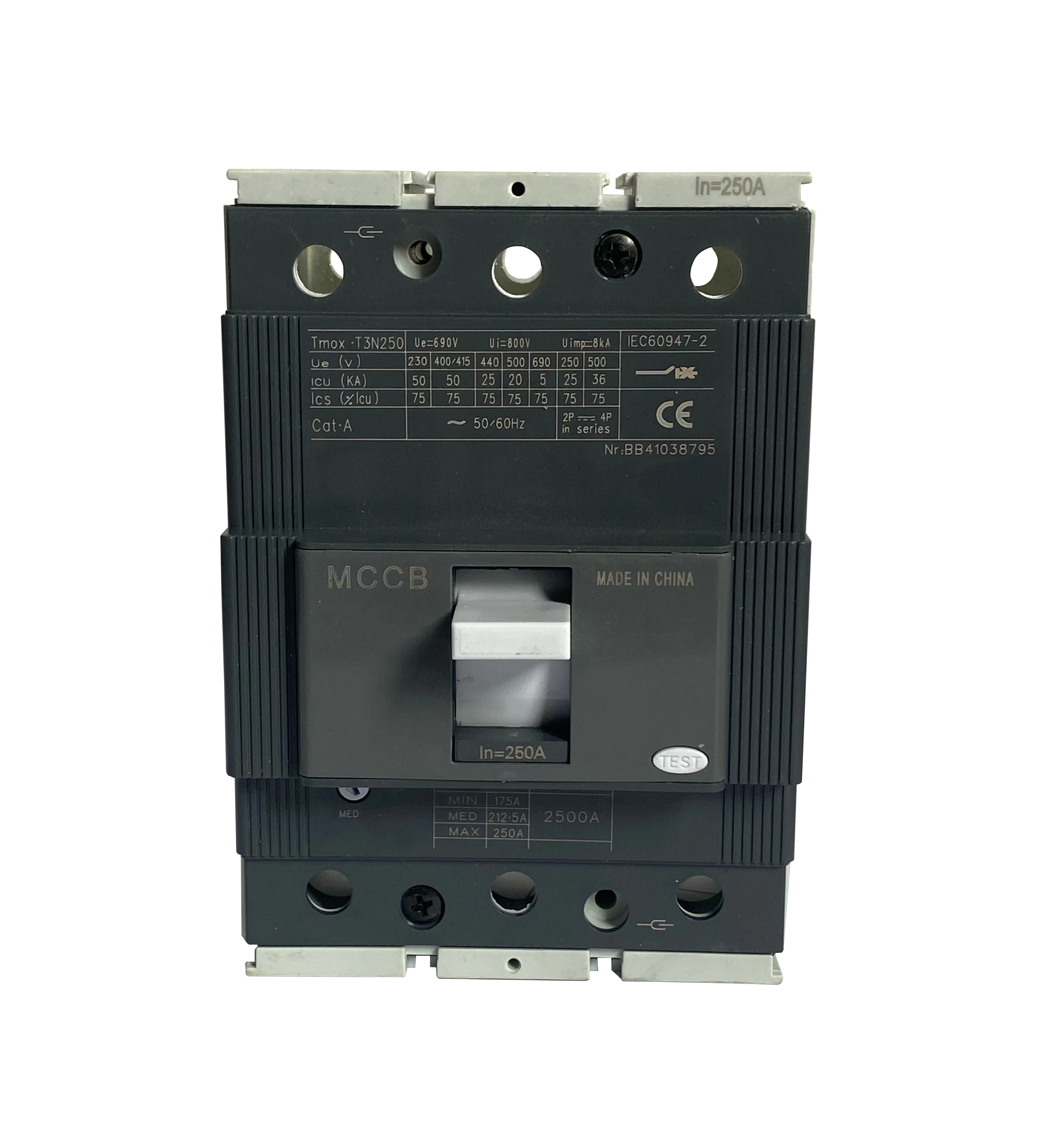

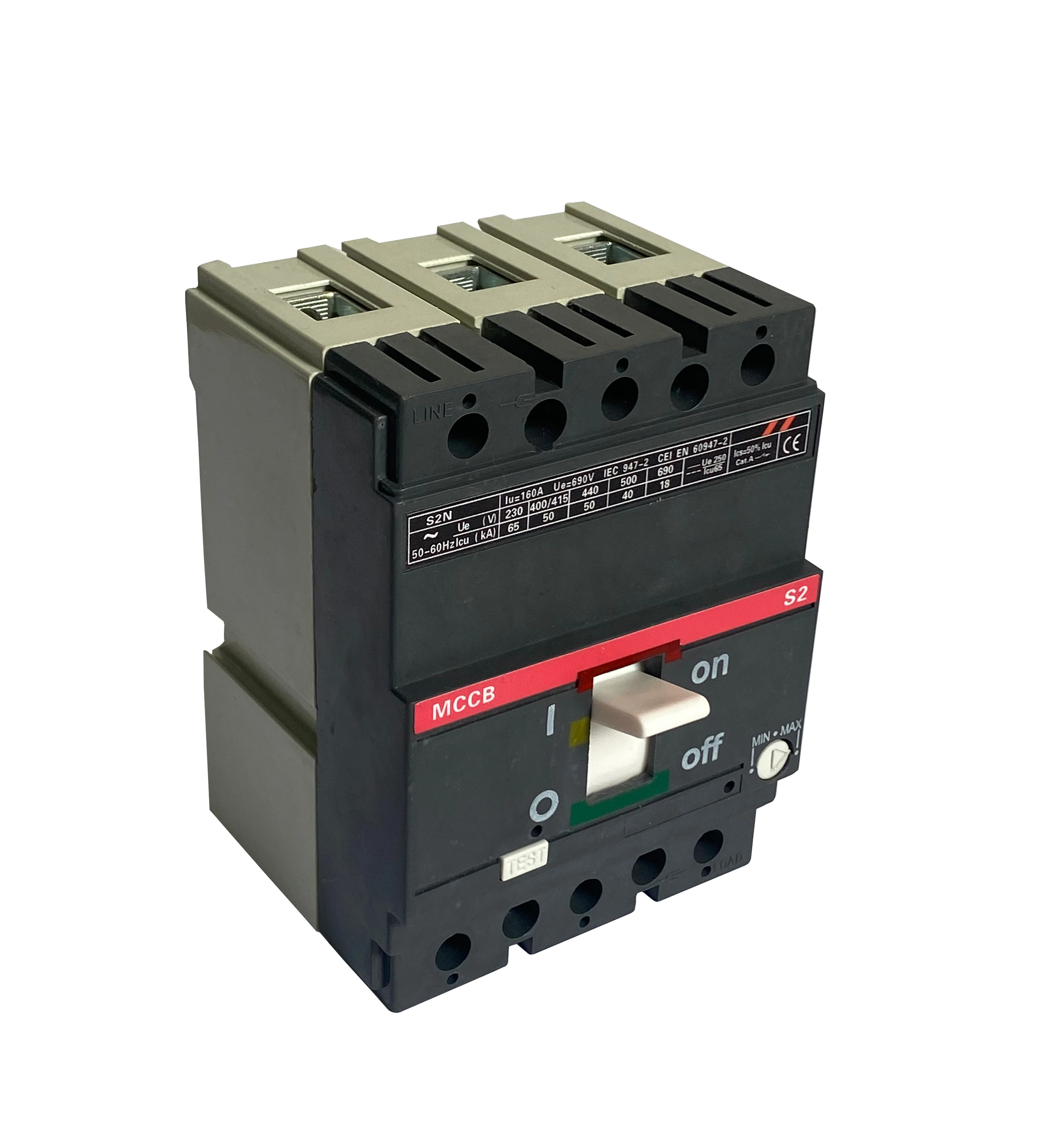

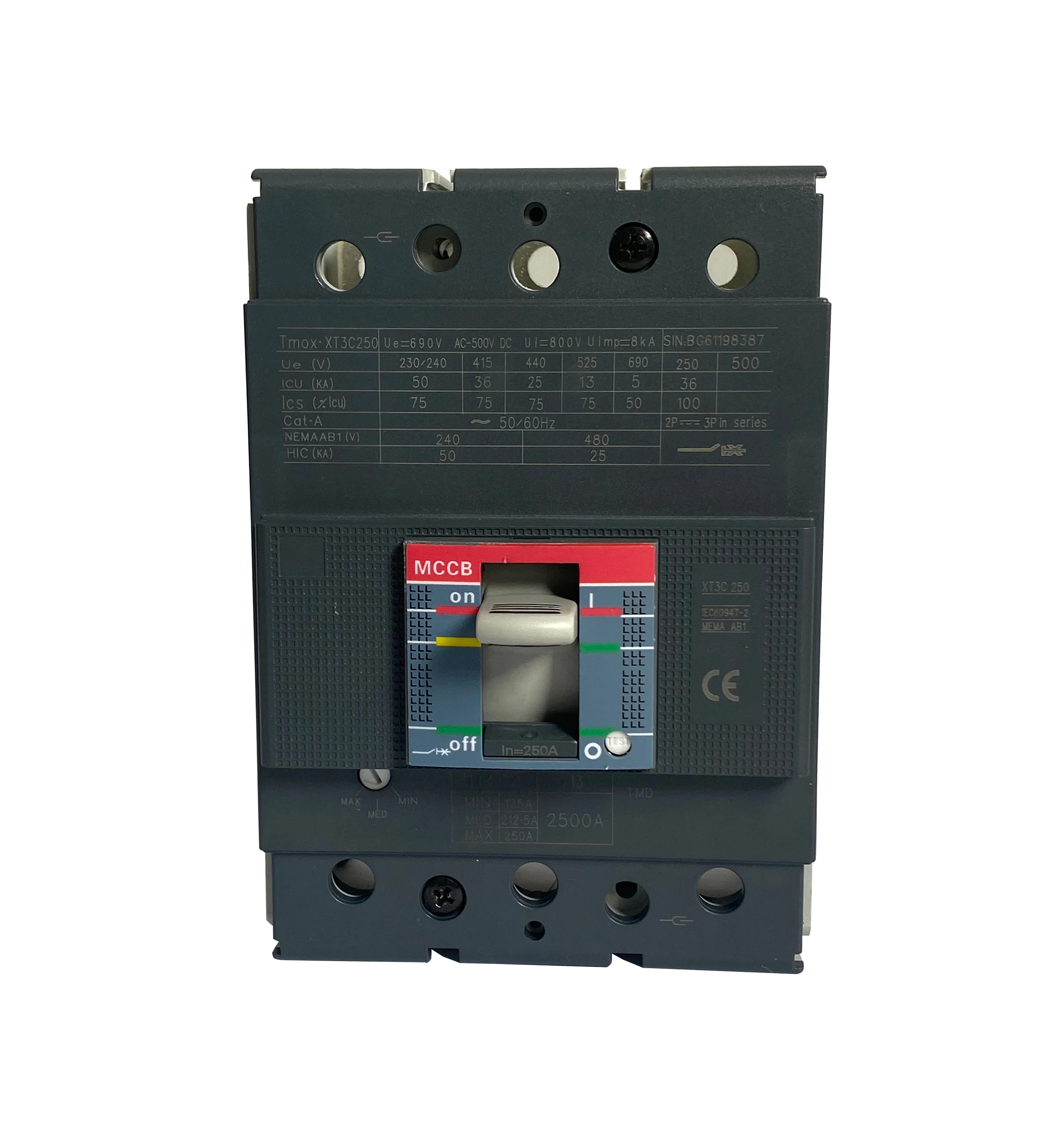

Высококачественный автоматический выключатель в литом корпусе 3P 60A 80A 100A 160A 250A 400A 600A 800A 1600A
- Категория: Circuit Breakers >>>
- Поставщик: Yueqing,LongChen,electric,co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12.19 $* | 13.13 $* |
| Aug-19-2025 | 12.83 $* | 13.3 $* |
| Jul-19-2025 | 10.69 $* | 11.88 $* |
| Jun-19-2025 | 12.50 $* | 13.21 $* |
| May-19-2025 | 10.85 $* | 11.30 $* |
| Apr-19-2025 | 11.33 $* | 12.19 $* |
| Mar-19-2025 | 11.70 $* | 12.85 $* |
| Feb-19-2025 | 11.39 $* | 12.52 $* |
| Jan-19-2025 | 11.76 $* | 12.96 $* |
Характеристики
Product Description
1) TMAX series molded case circuit breaker is a new type of breaker which adopts the international advanced design, and manufacturing technology
2) Its contact and arc suppression system adopt revolving double cot-off point design so as to improve breaking capability
3) Its tripper has thermo magnetic trip and electric trip
4) Rated insulating voltage:950V
5) Frequency:AC 50Hz (60Hz)
6) Rated working voltage:690V or below
7) Rated working current:12.5 to 1250A
8) Used in distributing energy of electricity, infrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and lacking voltage
2.Specification
NS Moulded Case Circuit Breakers | ||||||
Number of poles | 3,4 | |||||
Rated current (A) | In | 40 | 250 | |||
65 | 250 | |||||
Rated insulation voltage (V) | Ui | 750 | ||||
Rated impluse withstand voltage (kV) | Uimp | 8 | ||||
Rated operational voltage (V) | Ue | AC | 50/60Hz | 690 | ||
DC | 500 | |||||
Type of Circuit Breaker | N | H | L | |||
Ultimate breaking capacity (kA rms) | Icu | AC 50/60 Hz | 220/240V | 85 | 100 | 125 |
380/415V | 36 | 70 | 125 | |||
440V | 35 | 65 | 125 | |||
500V | 30 | 50 | 90 | |||
525V | 22 | 35 | 90 | |||
660/690V | 8 | 10 | 50 | |||
Service breaking capacity (kA rms) | Ics | %Icu | %100 | |||
Utilisation category | A | |||||
Durability (C-O cycles) | Mechanical | 7000 | ||||
electrical | 400V | IN | 1000 | |||
FAQ
1.Are you a trade company or a manufacturer?
LCELE has been a professional manufacturer for 15years to undertake design and processing of all types of energy meter to provide production service and technical support for individual users and power stations.
2.Where can I see the whole view of your products ?
You can visit our website http://www.lcmcb.com
3.What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.
4.If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please e-mail us and we will give you a quotation.
