5 8 ГГц 4 Вт усилитель Сигнала Антенна расширитель диапазона с аксессуарами для Дронов DJI Mavic FPV RC
- Категория: Electronic Components, Accessories & Telecommunications >>>
- Поставщик: Shenzhen,Anzhigang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 29.23 $* | 30.59 $* |
| Aug-20-2025 | 28.81 $* | 29.99 $* |
| Jul-20-2025 | 24.70 $* | 25.70 $* |
| Jun-20-2025 | 28.93 $* | 29.85 $* |
| May-20-2025 | 24.71 $* | 25.88 $* |
| Apr-20-2025 | 27.5 $* | 28.71 $* |
| Mar-20-2025 | 27.37 $* | 28.30 $* |
| Feb-20-2025 | 27.58 $* | 28.4 $* |
| Jan-20-2025 | 27.2 $* | 28.88 $* |
Характеристики
ACASOM 5.8GHz Signal Booster/ Etender
Working Band: 5.725-5.85GHz
Output Power: 4W(36dBm)
5.8Ghz RF transceiver and receiver amplifier module can be used for industrial data transmission, wireless remote control, wireless mouse, wireless keyboard, wireless electronic label, remote control toy, 5.8GH wireless amplifier, wireless microphone, wireless speaker,wireless led control, smart home,UAV etc.
Number | Items | Specifications |
1 | Frequency Range | 5.725-5.85GHz |
2 | Operating Voltage | 5-16V |
3 | ReceivingGain | 15dB±1 |
4 | Transmission Gain: | 18dB±1 |
5 | Max Output Power(P1dB) | |
6 | Input Trigger Power | Min:3dBm Max:23dBm |
7 | EVM | 3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz |
8 | Noise Figure | <2.5dB |
9 | Current Supply | 580mA@Pout 28dBm 12V |
10 | TX/RX Switch Time Delay | 1us |
11 | LED Indicator | Transmitter: Green; Receiver: red |
12 | OperatingTemperature | -30℃~+70℃ |
13 | StorageTemperature | -40℃~+150℃ |
14 | Operating Humidity | Up to 95% rel. humidity |
15 | RF Connector | - |
16 | Power Socket | PAD |

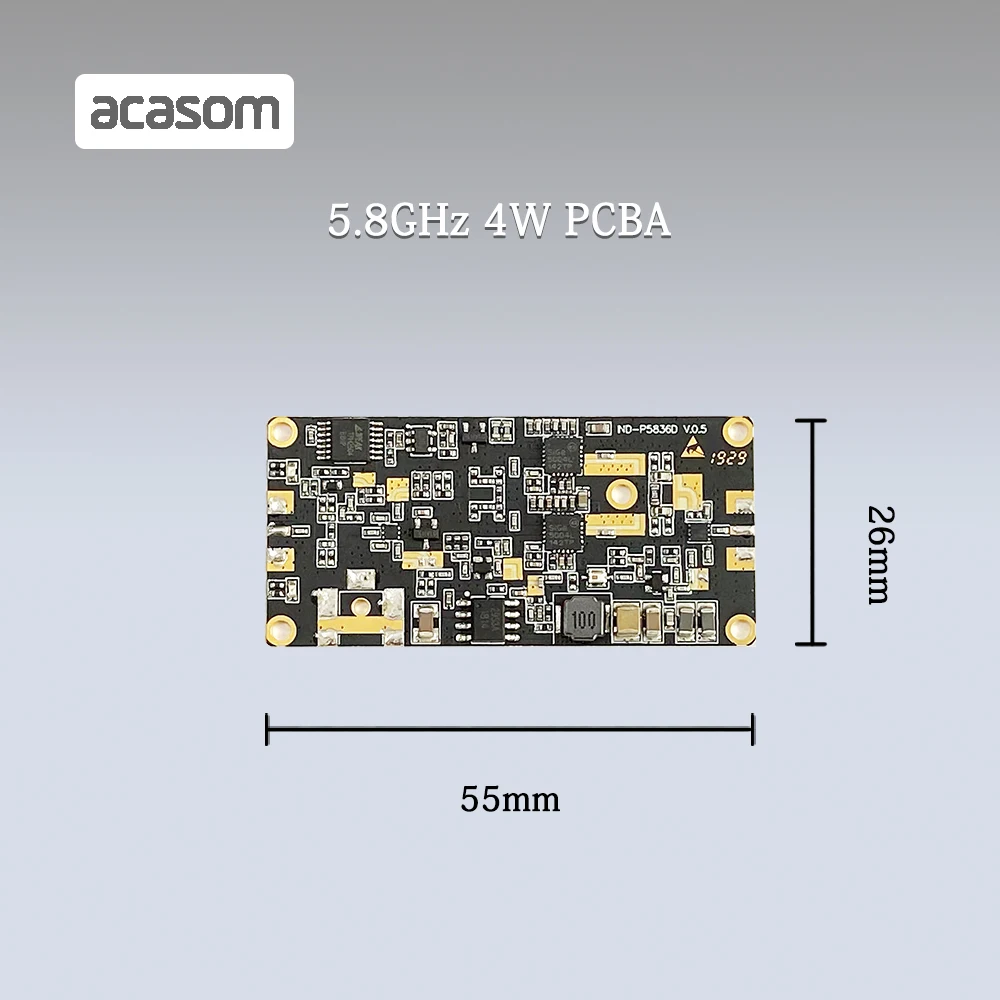

17 | Shell Size | 55*26*5mm |
18 | Shell Material | - |
19 | Net Weight | 0.05Kg |
viced process of order
Co![why choose us.jpg]()
ACASOM has been in the industry for 15 years and we have patents for more than 20 pieces. All the products are our self developed and we are willing to customize products for you. We always insist that technology and service are our core competence, we are ready and at your service.
1 I do not know whether your product satisfy my need, how can i know more?
Answer: Please start an inquiry, we have sufficient experienced engineer and existing products for you.
2 Could i customize my products, like frequency?
Answer: Yes and we will provide more information, if that is reasonable, we could provide solutions for you.
3 I want to know more details with the products like video and application, how could i manage that?
Answer: Just choose or contact any of our sale manager, we will be at your service.
4 If i can change some parts, such as switch power module to red and black wire line?
Answer: Off course. We can provide reasonable changes for you at any time.
