Характеристики
Product Description

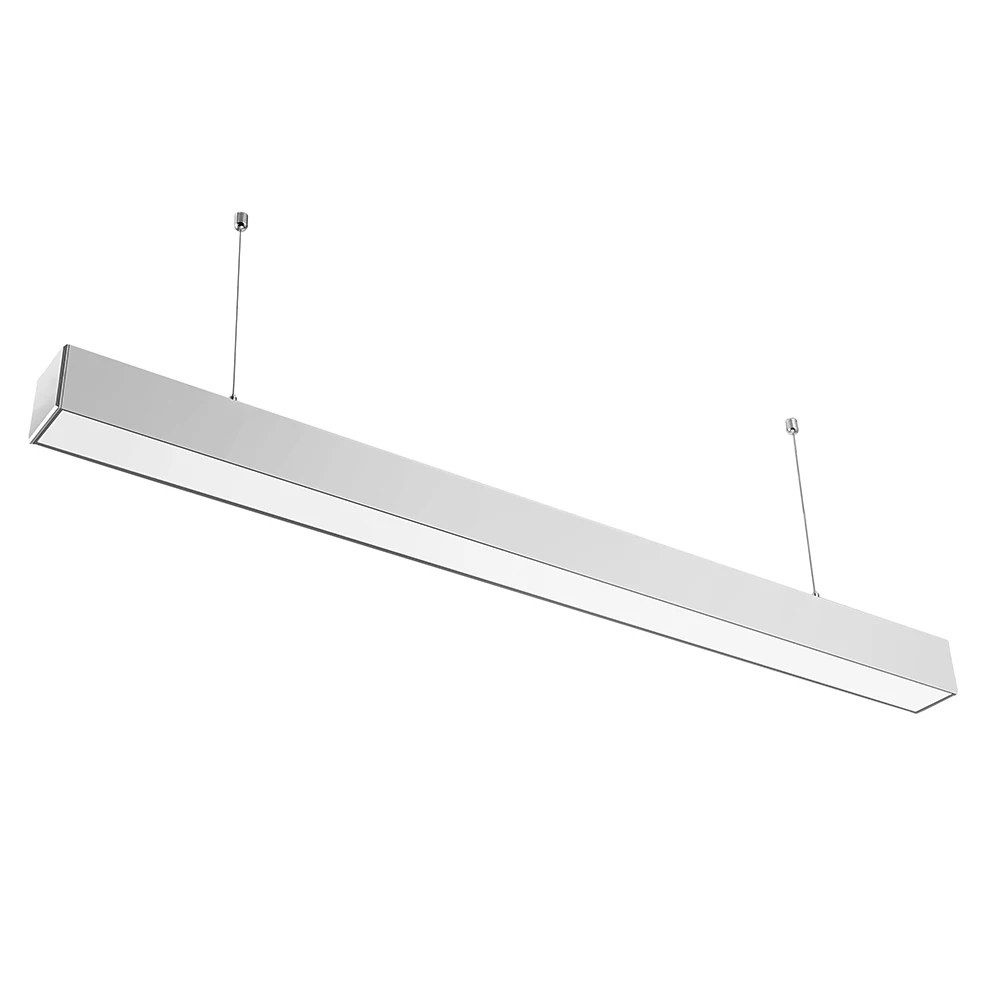

Series 75x75mm aluminum LED linear light, has 5 available lengths to choose, they are 0.6m, 1.2m, 1.5m, 1.8m, 2.4m.
And the lamps is connectable, it is allowed to connect long straight light such as 3m, 6m, 12m, 20m, 30m, etc.
Improved structure

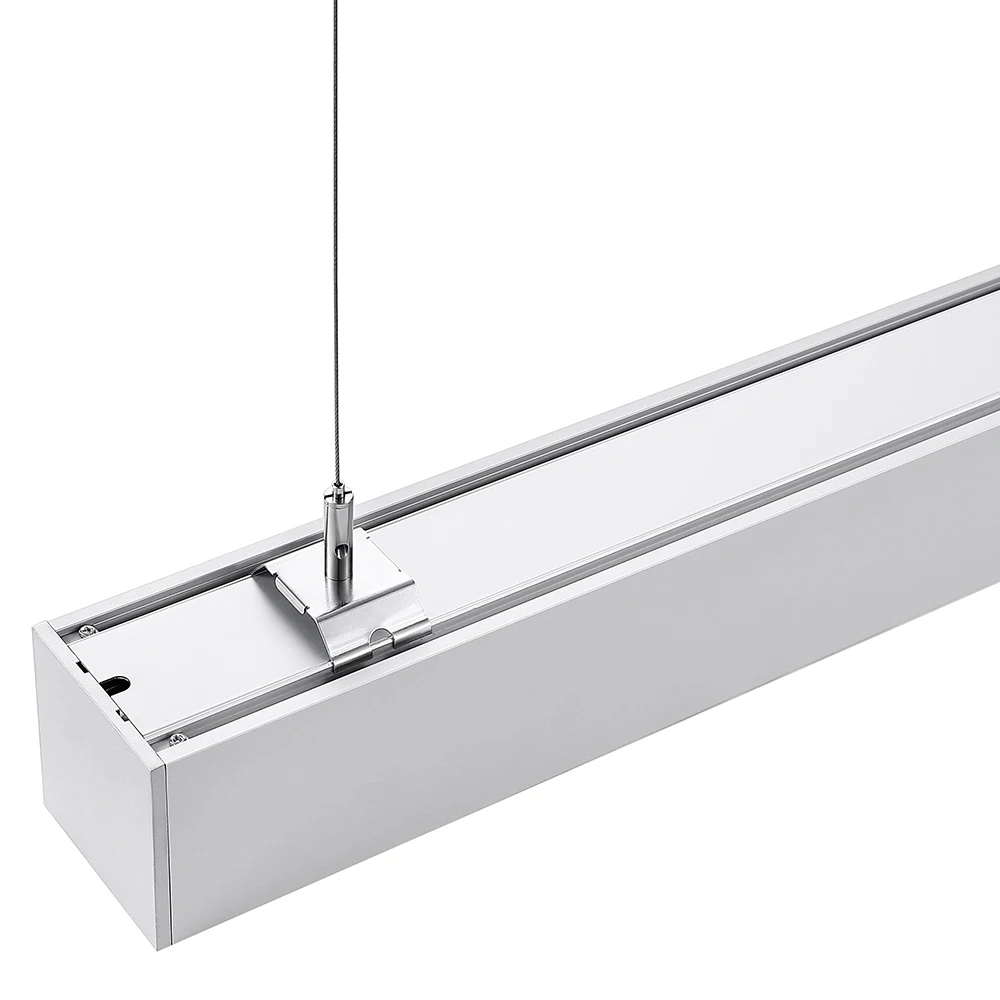

With the moveable brackets mounted on the housing back, it is able to adjust the ceiling hole postion expediently. We supply 1.5meter long hanging rope, mounting height is adjustable between 10~150cm from ceiling.
The top metal cover is able to take off and open, power driver is built-in, client can maintain or connect wires easily.
LED PCB board

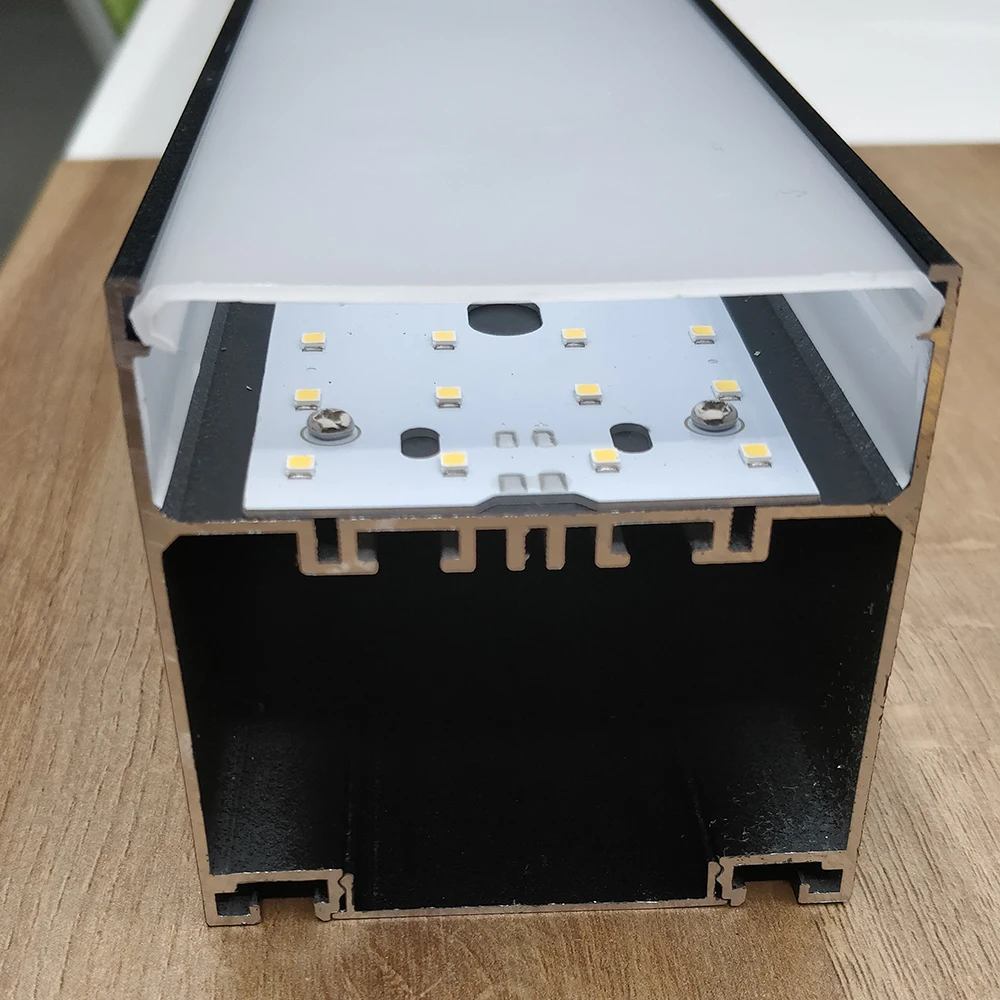

SMD2835 LED PCB board as light source, make sure the lamp has good heat dissipation. Opal PC cover is exactly recessed in housing profile, 86% transmittance, use aluminum material endcap there is no light leakage, the whole surface is lighting uniformly.
There is no visiable screws on end-cap. Nice looking.
Detailed Images
UGR19 Micromprism PMMA diffuser, product model is ON-7575B.
The lumen output efficacy is around 85lm/w, anti glare and eye protection, suitable for luxury hotel, library, office places, and etc.
Extrusion opal PC cover, product model is ON-7575D.
The opal PC cover is the most common type, it is widely used in all indoor places, with the lumen output 100lm/w.
Product Paramenters
Item Number | Dimension | Power | Shell Color | Light color | Other spec |
ON-7575-0.6M | L600xW75xH75mm | 20W | White Black Silver | 3000K 4000K 6000K | 100lm/w, CRI>83, PF>0.95, LED PCB board, FLICKER-FREE PMMA or PC |
ON-7575-1.2M | L1200xW75xH75mm | 40W | |||
ON-7575-1.5M | L1500xW75xH75mm | 50W | |||
ON-7575-1.8M | L1800xW75xH75mm | 60W | |||
ON-7575-2.4M | L2400xW75xH75mm | 80W |
Installation Instructions
Seamless linear connection
We are using 4pcs matal straps to splice together, to form a continuous run LED linear light.
There are 3 mounting options.
Wall mounting: it is allowed to install on wall, as a linear wall light.
Ceiling surface mounting: directly mount on ceiling, suitable for low ceiling height.
Suspended mounting: the most popular mounting, hang by steel rope. suitable for most projects.
(Trimless recessed mounting is also allowed, please contact our sales for more details if needed).

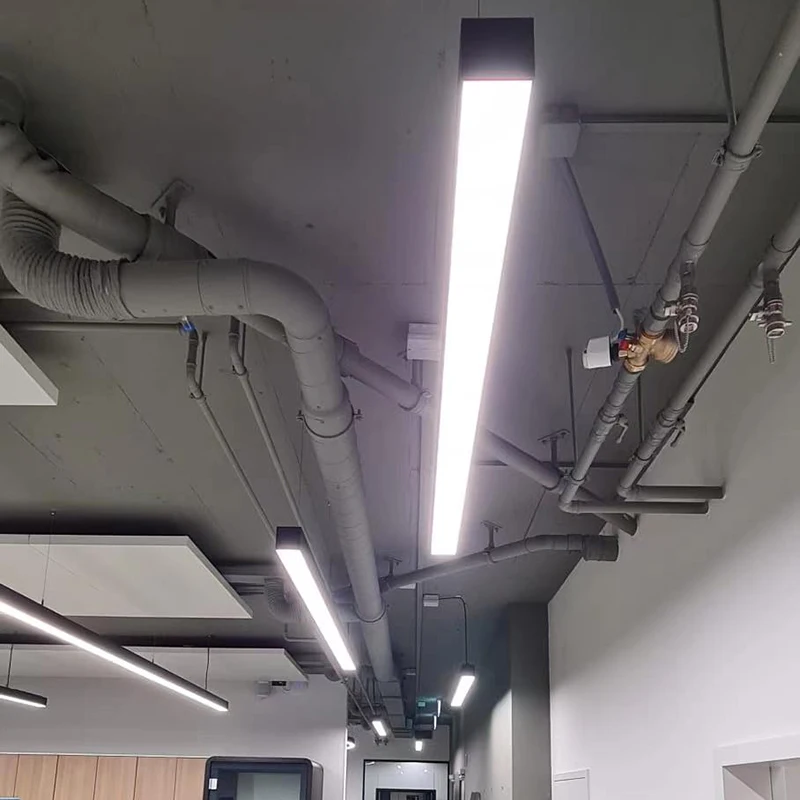

Product Application
Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, other indoor places, etc.
