KNTECH железная дорога промышленные телефоны водонепроницаемый класс Ip66 пыленепроницаемый

KNTECH железная дорога промышленные телефоны водонепроницаемый класс Ip66 пыленепроницаемый

Категория: Corded Telephones >>>
Поставщик: Koon,Technology,(shenzhen),Ltd.

Цена:228,00 $ - 257,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	271.52 $*	285.70 $*
Aug-18-2025	269.50 $*	282.73 $*
Jul-18-2025	226.27 $*	237.88 $*
Jun-18-2025	264.87 $*	277.73 $*
May-18-2025	230.22 $*	242.45 $*
Apr-18-2025	260.63 $*	273.24 $*
Mar-18-2025	258.19 $*	271.70 $*
Feb-18-2025	255.78 $*	268.64 $*
Jan-18-2025	253.14 $*	266.5 $*

Характеристики

Product Description

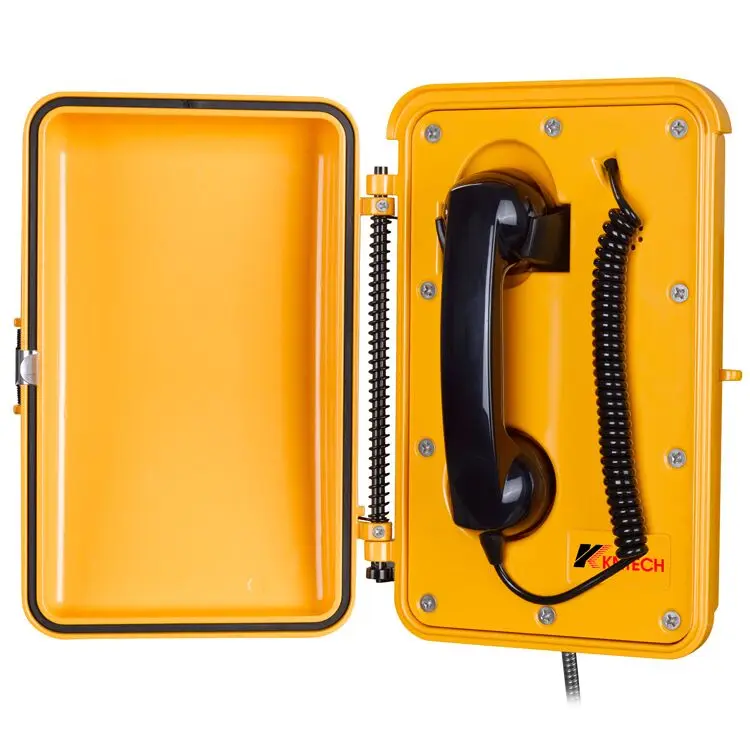

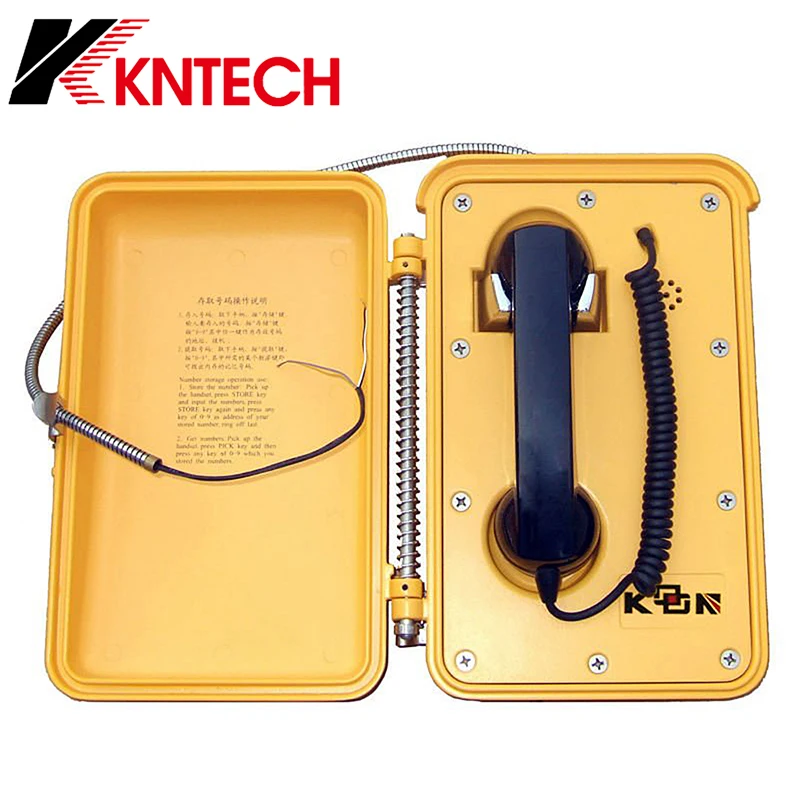

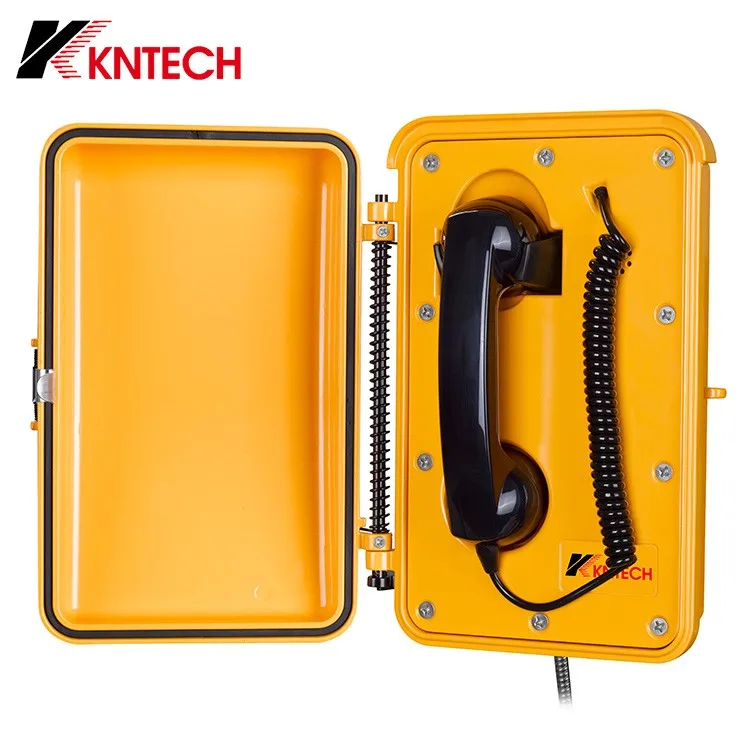

Outdoor Weatherproof Telephone KNTECH Industrial VoIP Phone System IP66 67 Waterproof Telephone KNSP-01

Industrial telephone feature:

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.
2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, 10 button programmable speed-dial telephone.
4. Door cover: orient automatically and good self - closing, convenient for use.
5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree.
6. Magnetic reed hook-switch.
7. Lightening protection to ITU-T recommendation K.21.
8. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
9. Handset with industrial strong curly cord .
10. Silicon keypad keep waterproof and dusty proof.
11. Phone integrity wiring to enable the telephone system to check if the telephone unit is still
Operational.(if PABX have this available we can provide this function).
12. Optional 7 minute time out to release the line if the handset is left off hook. This function
upon buyer’s requirement).
13. Powder coated in UV stabilized polyester finish.
14. The housing covered with a layer of reflective label for easy identification at night.Optional
15. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

Industrial Analogue Phone Specification:

1. PSTN analogue telephone
2. DTMF dialing
3. MTBF:100000hours
4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits).
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency
deviation:-1.5%~ +1.5%.
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A).

Industrial Voip Phone Specification:

1. VoIP SIP2.0 telephone 2. DTMF dialing
3. MTBF100000hours 4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A 10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE802.1x),STP(IEEE 802.1d),RSTP(IEEE 802.1d-2004)

The telephone install and the size

The telephone more detail view

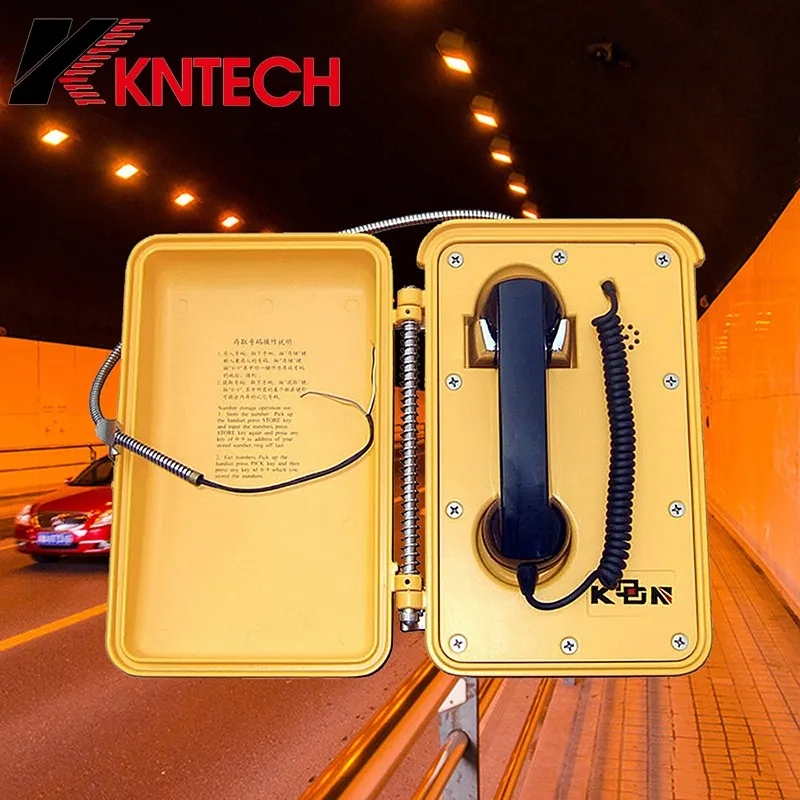

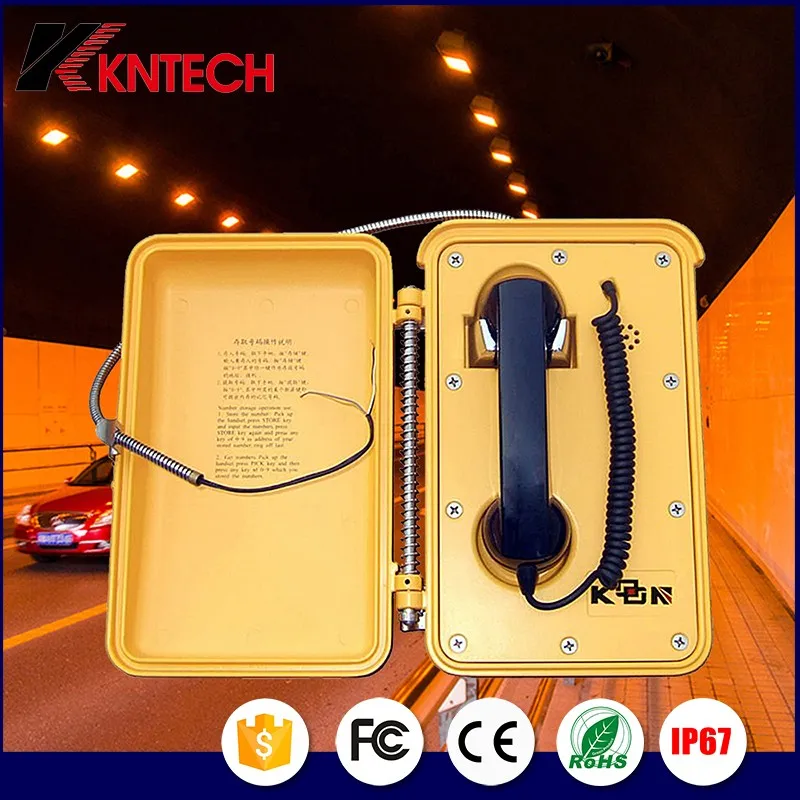

The telephone application:

KNTECH Industrial Telephones are IP66 IP67 weatherproof, anti-corrosion, dustproof, quakeproof. These industrial phones are popular in projects of mining, tunnel, marine, highway, power plant etc.

Company Profile

HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.

System & Solution

KNTECH is not only manufacturer, but also professional telecom integrator.
Except terminal, we also provide customers professional & complete system solution.
Telecom solution, IP PBX, telephone self-diagnostic system, PAGA system, customized function OEM support, SNMP unified network management system, etc.

SNMP Unified network management system, available to configurate 5,000 telephones at the same time.

IP PBX max support 5,000 user lines.

Certifications

Projects & Partners

KNTECH goods sell to over 100 countries all over the world, very popular for government projects because of high quality and complete solution. Below share some projects.

China Hong Kong

Hong Kong-Zhuhai-Macau Briage
The world's longest sea-crossing bridge

HongKong Airport

Express Rail Link XRL Contract 851

Shing Mun/ Lion Rock/ Kai Tak Tunnels

Hong Kong Eastern Harbour Crossing

Central–Wan Chai Bypass

Thailand Metros

Purple line

Red line

Green line

Blue line

Pink line

Yellow line

Australia Sydney Metro North West Line	Israel Metro	Singapore Marine Project
Brazil Sao Paulo Metro	Malaysia Kuala Lumpur Railway	Russia St. Pittsburgh Metro
Germany Berlin Metro	Norway OLSO Metro	Turkey High-speed Railway
Greek Athens Metro	Philippines Manila Railway	Turkey Highway
India New Delhi Metro	Saudi Arabia Riyadh Metro	Slovenia Metro
India Bangalore Metro	Saudi Arabia Mecca Railway	Mexico Metro
India Hyderabad Metro	Saudi Arabia Shoaiba Power Plant	Vietnam Hochimin Railway
India Mumbai Airport	Singapore Sentosa Tunnel	South Russian Railways
India Kochi Metro	Singapore SMT Green Line	Netherlands Bonaire Jail
India Lucknow Metro	Singapore Airport Project	Curacao Jail
India Mumbai Metro	Singapore Thomson Line	Peru Jail
Thailand KMUTT Project	Pakistan CPEC Project	Romanian Prison

Package

Unit Size:	320205120mm
Unit Box Size:	439277 191mm
Unit Net Weight:	5.3 KG
Unit Gross Weight:	7 KG
6pcs in 1 outer Carton
Carton Size:	730390340mm
Carton Net Weight:	31.8 KG
Carton Goss Weight:	34 KG
