ISO Высококачественная кованая пластина из углеродистой стали плоская лицевая труба литой кованый корпус трубы напольные фитинги фланцы
- Категория: Steel H-Beams >>>
- Поставщик: ZHONGXING,METAL,TECHNOLOGY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.61 $* | 0.50 $* |
| Aug-18-2025 | 0.39 $* | 0.99 $* |
| Jul-18-2025 | 0.22 $* | 0.21 $* |
| Jun-18-2025 | 0.22 $* | 0.6 $* |
| May-18-2025 | 0.8 $* | 0.51 $* |
| Apr-18-2025 | 0.40 $* | 0.31 $* |
| Mar-18-2025 | 0.7 $* | 0.80 $* |
| Feb-18-2025 | 0.7 $* | 0.27 $* |
| Jan-18-2025 | 0.80 $* | 0.53 $* |
Характеристики
ISO High Quality Carbon Steel Forged Plate Flat Face Pipe Cast Forged Pipe Cover Floor Fittings Stainless Steel Flanges
Product Information
Product name | Carbon Steel I/U/H profiles steel beams Wide Flange Section For Construction |
Shape | H&I beam |
Technique | Hot rolled / Welded |
Standard | ASTM / AS / BS / GB / JIS |
Materials | Q235B, SS400, A-36, AS300B, S355J0, S450J0-T, S275JR |
Size | 100*50*5*7-900*300*16*28mm |
Surface treatment | Galvanized / Black |
Product Display
Basic Parameters of H Beams | ||||||||||
Specification (inx1b/ft) | Height (mm) | Width (mm) | Web thicnkness (mm) | Flange thicnkness (mm) | Theoetical weight (kg/m) | |||||
W6X7 | 147 | 100 | 3.3 | 4.2 | 10.5 | |||||
W6X8.5 | 148 | 100 | 4.3 | 4.9 | 13 | |||||
W6X9 | 150 | 100 | 4.3 | 5.5 | 13.5 | |||||
W6X12 | 153 | 102 | 5.8 | 7.1 | 18.0 | |||||
W6X15 | 152 | 152 | 5.8 | 6.6 | 22.5 | |||||
W6X20 | 157 | 153 | 6.6 | 9.3 | 29.8 | |||||
W6X25 | 162 | 154 | 8.1 | 11.6 | 37.1 | |||||
W8X8 | 198 | 99 | 3.3 | 4.2 | 12.0 | |||||
W8X9 | 199 | 100 | 3.8 | 4.7 | 13.5 | |||||
W8X10 | 200 | 100 | 4.3 | 5.2 | 15.0 | |||||
W8X13 | 203 | 102 | 5.8 | 6.5 | 19.3 | |||||
W8X15 | 206 | 102 | 6.2 | 8 | 22.5 | |||||
W8X18 | 207 | 133 | 5.8 | 8.4 | 26.6 | |||||
W8X21 | 210 | 134 | 6.4 | 10.2 | 31.3 | |||||

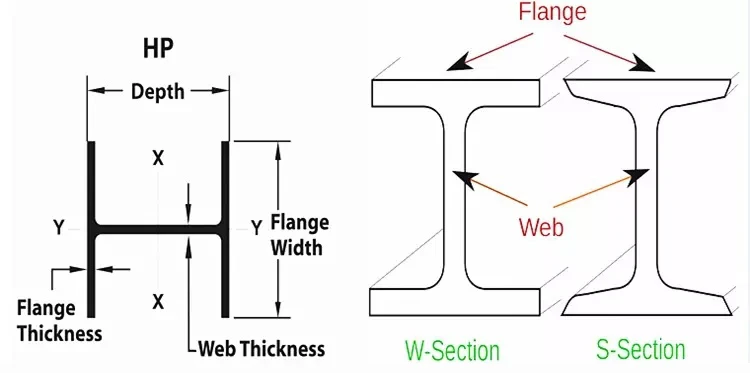

H-beam is a new type of steel for economic construction. Method for Representation of Hot - Rolled H - Section Steel. H-beam is divided into wide flange H-beam (HK), narrow flange H-shaped steel (HZ) and H-shaped steel pile (HU) three categories.
The height of H × width B × web thickness t1 × wing thickness t2, such as the H-beam Q235B, SS400 200 × 200 × 8 × 12 200mm wide and 200mm wide web thickness of 8mm, wing thickness of 12mm Wide flange H-beam grades Q235BQ, 345B or SS400.

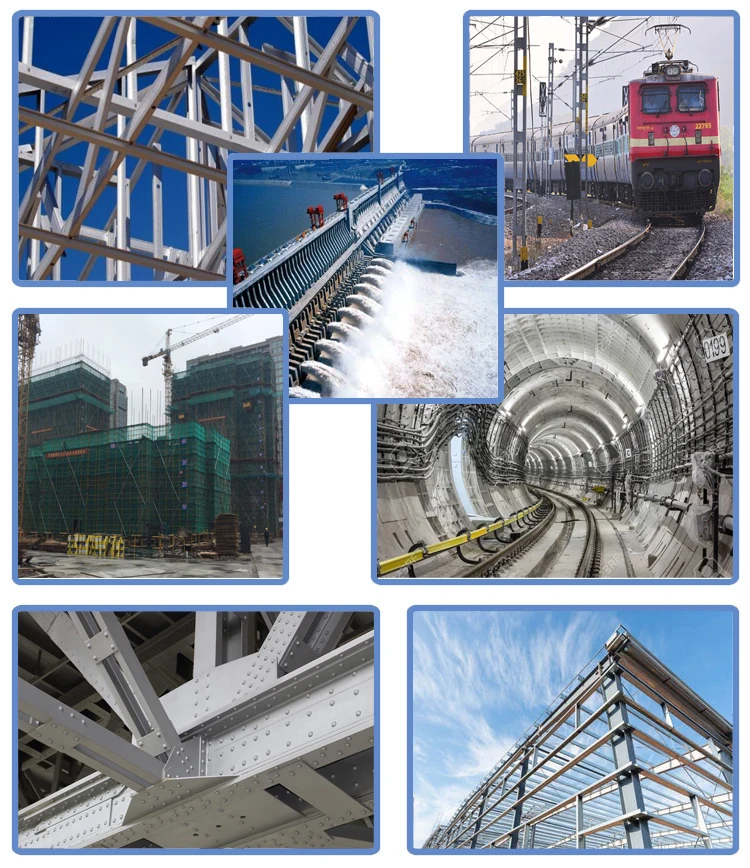

Product Application
Widely used in various building structures, bridges, vehicles, brackets, machinery, etc., for example, the industrial structure of the steel bearing bracket,steel piles and underground engineering supporting structure, petro chemical and powerand other industrial equipment structure, shipbuilding, machinery manufacturing frame structure,train, car,tractor beam bracket,port conveyors,high speed shutter stents.
Customer Feedback
Company Information
Shandong Zhongxing International Trade Co.,Ltd.We are a professional manufacturer engaged in the research, development,production,sale and service. Our main products include PPGI ,galvanized steel , steel plate , round bar,steel pipe ,Stainless steel product,angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel etc . Main market distributes in North America,South America,Africa, Southeast Asia as well as Oceania. Up to now, we have established long-term and win-win partnership with many large steel manufacturers Sincerely wish to build a long and regular business with you forever.

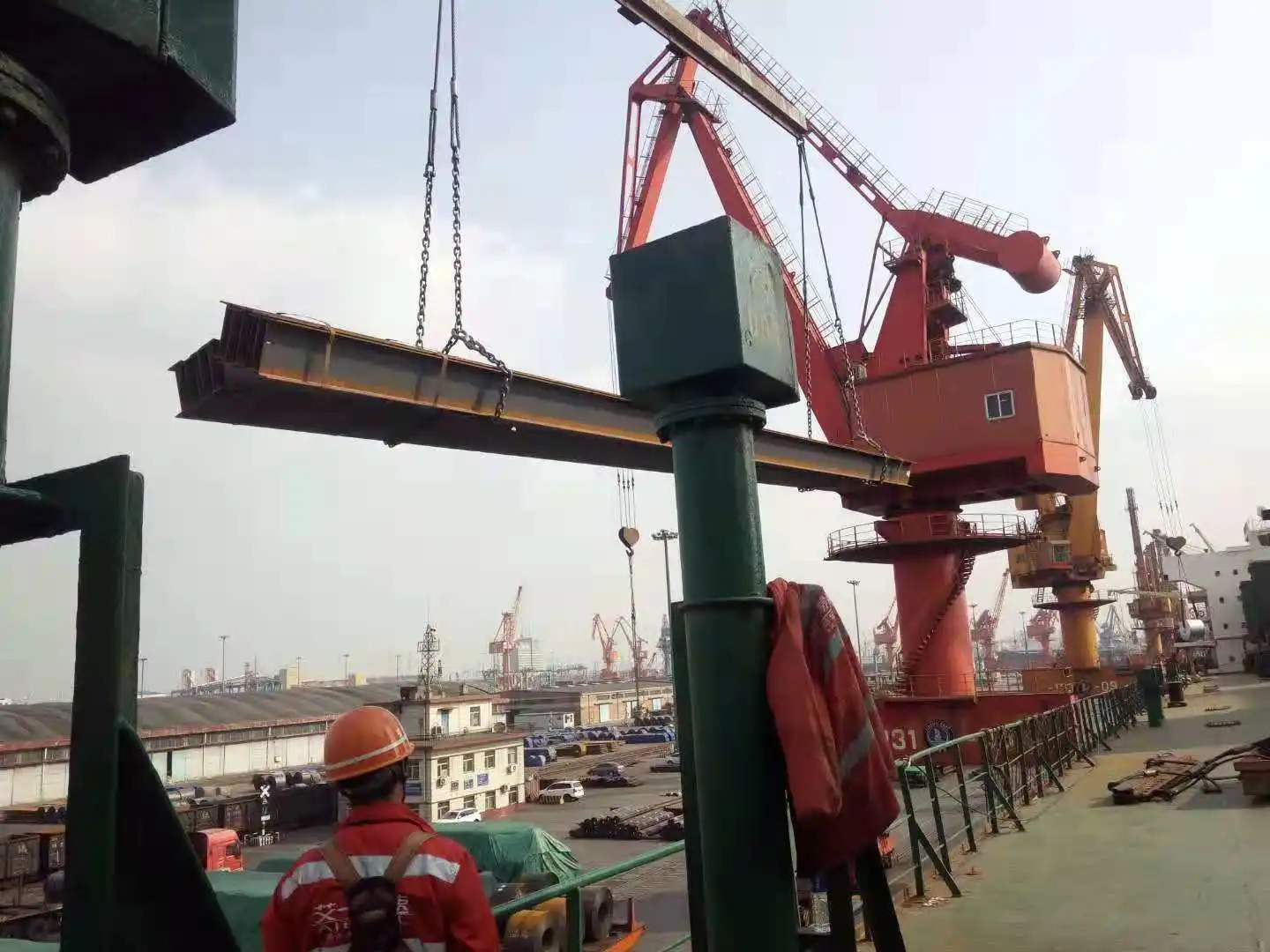

Packing & Delivery
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 7-20 days after we confirm you requirement.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 7-20 days after we confirm you requirement.
