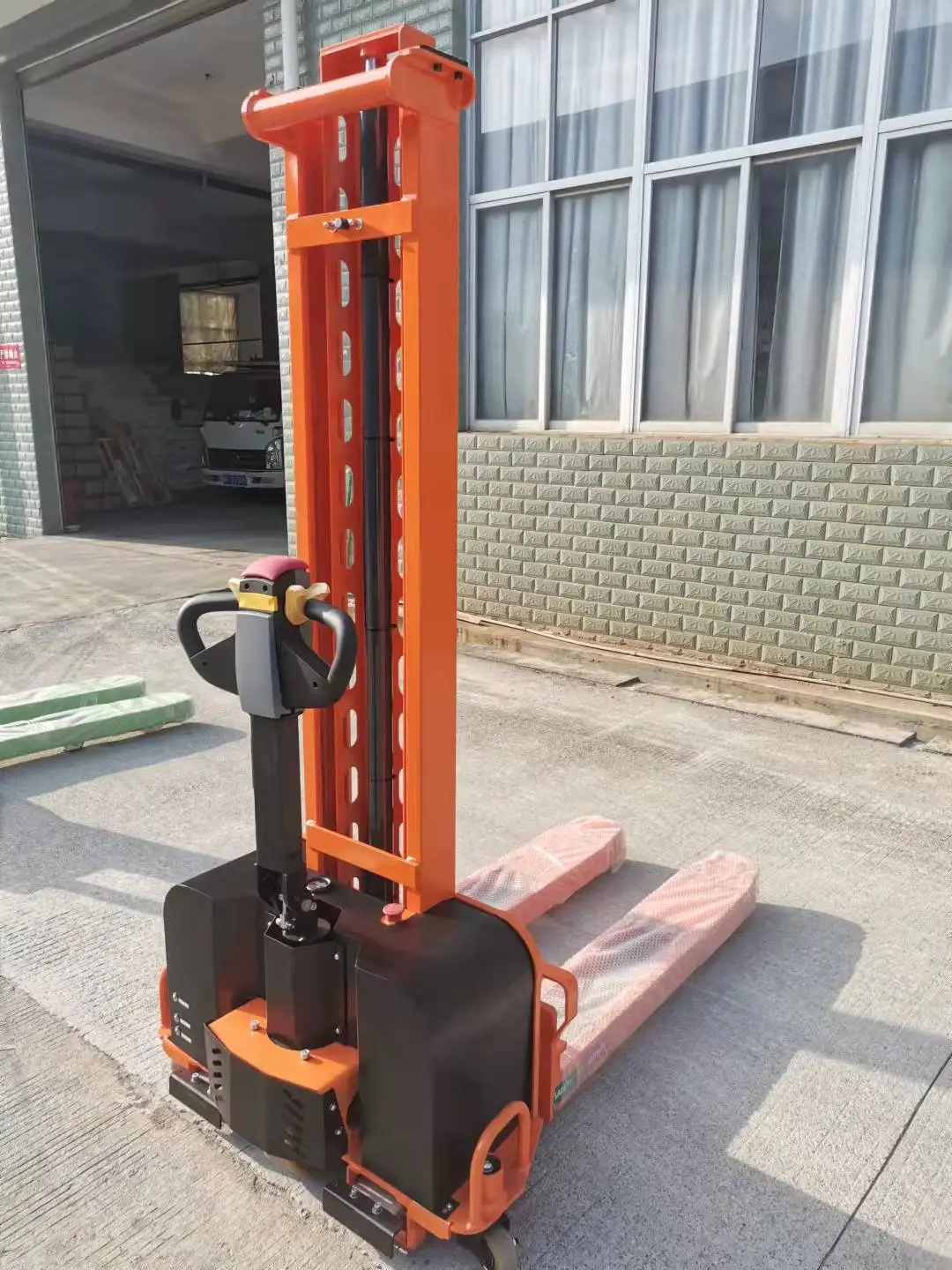

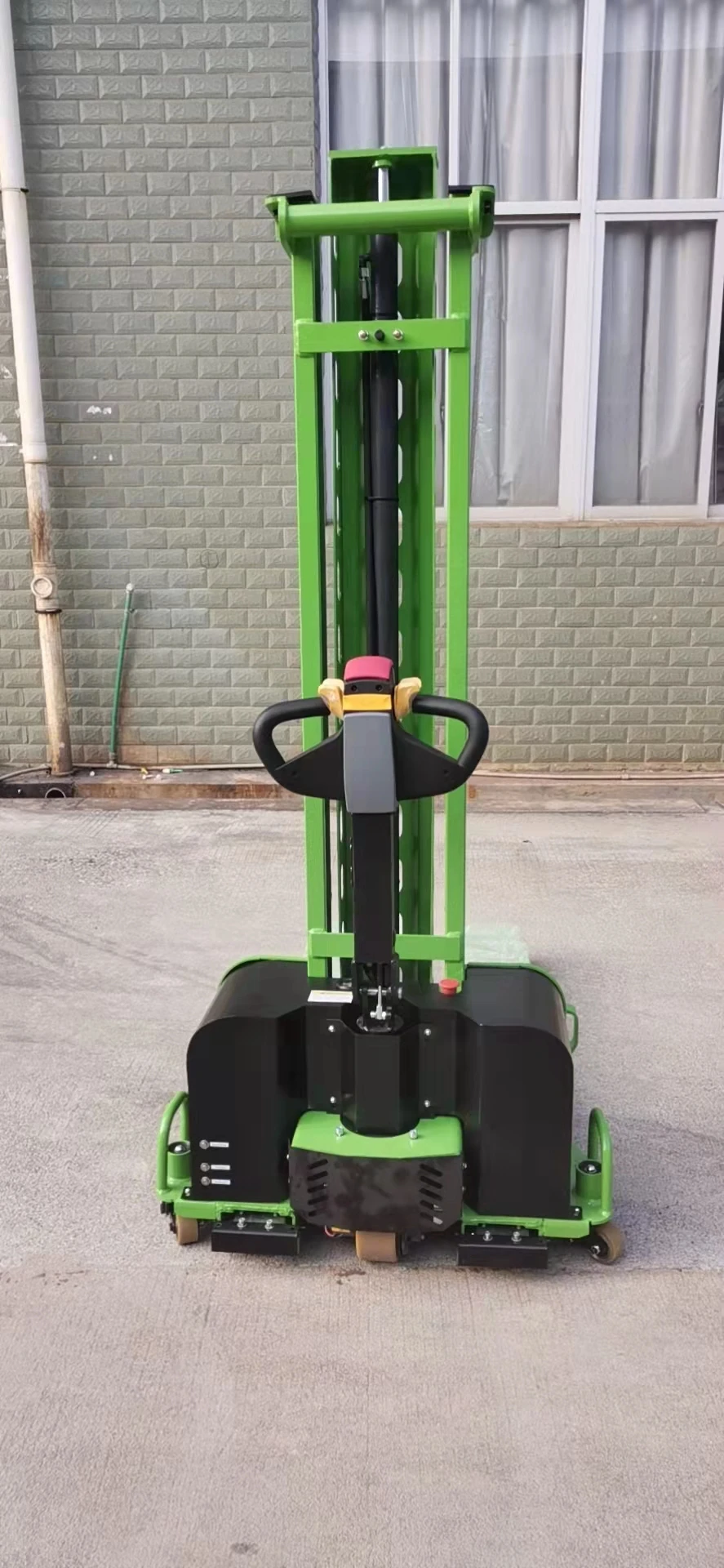

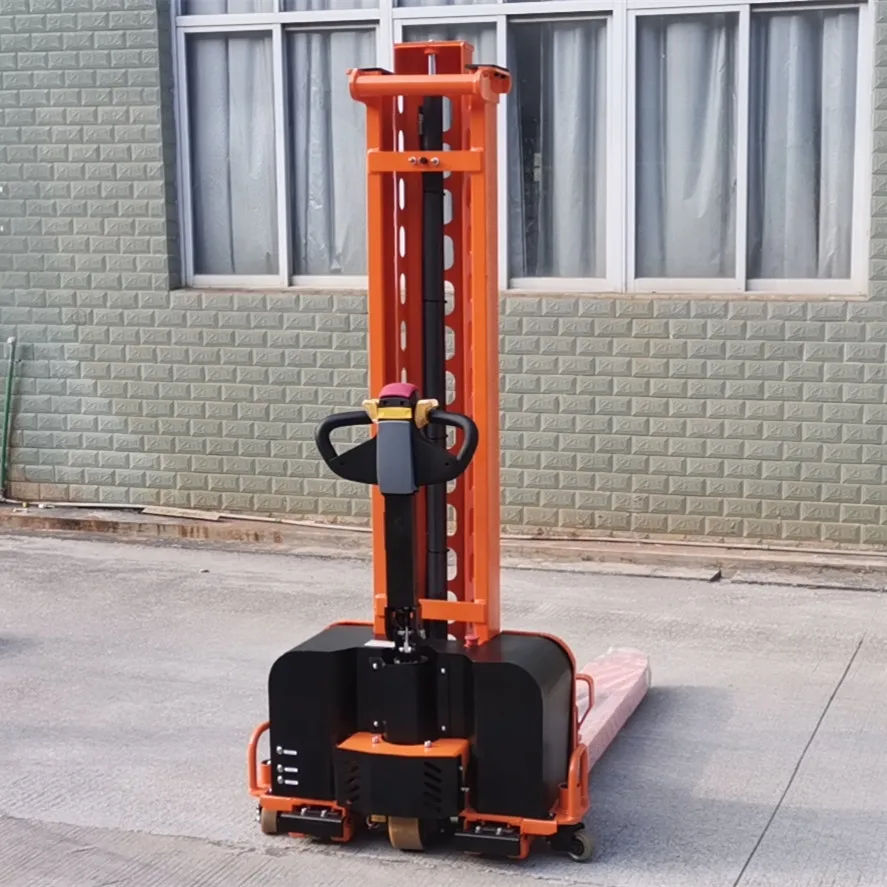

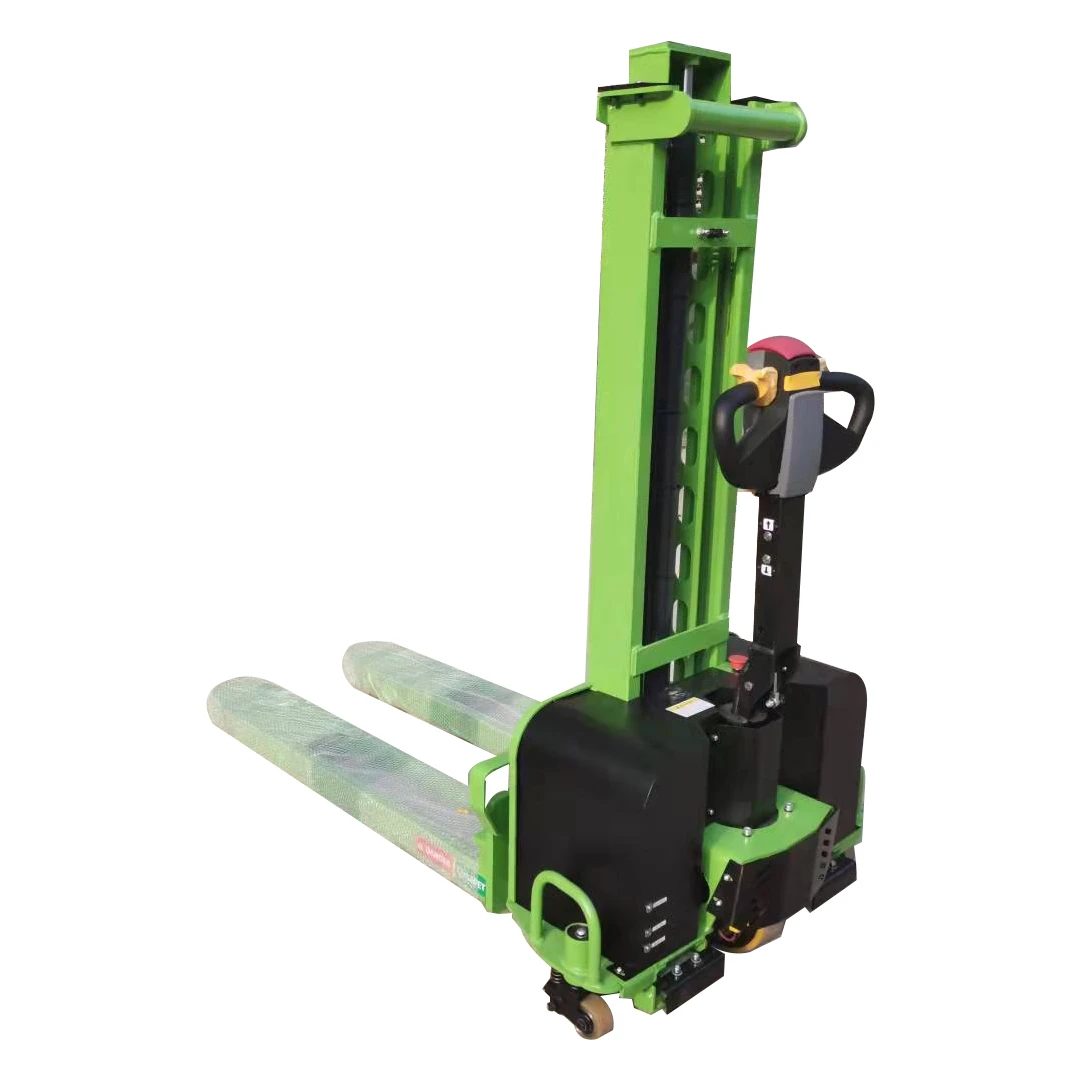

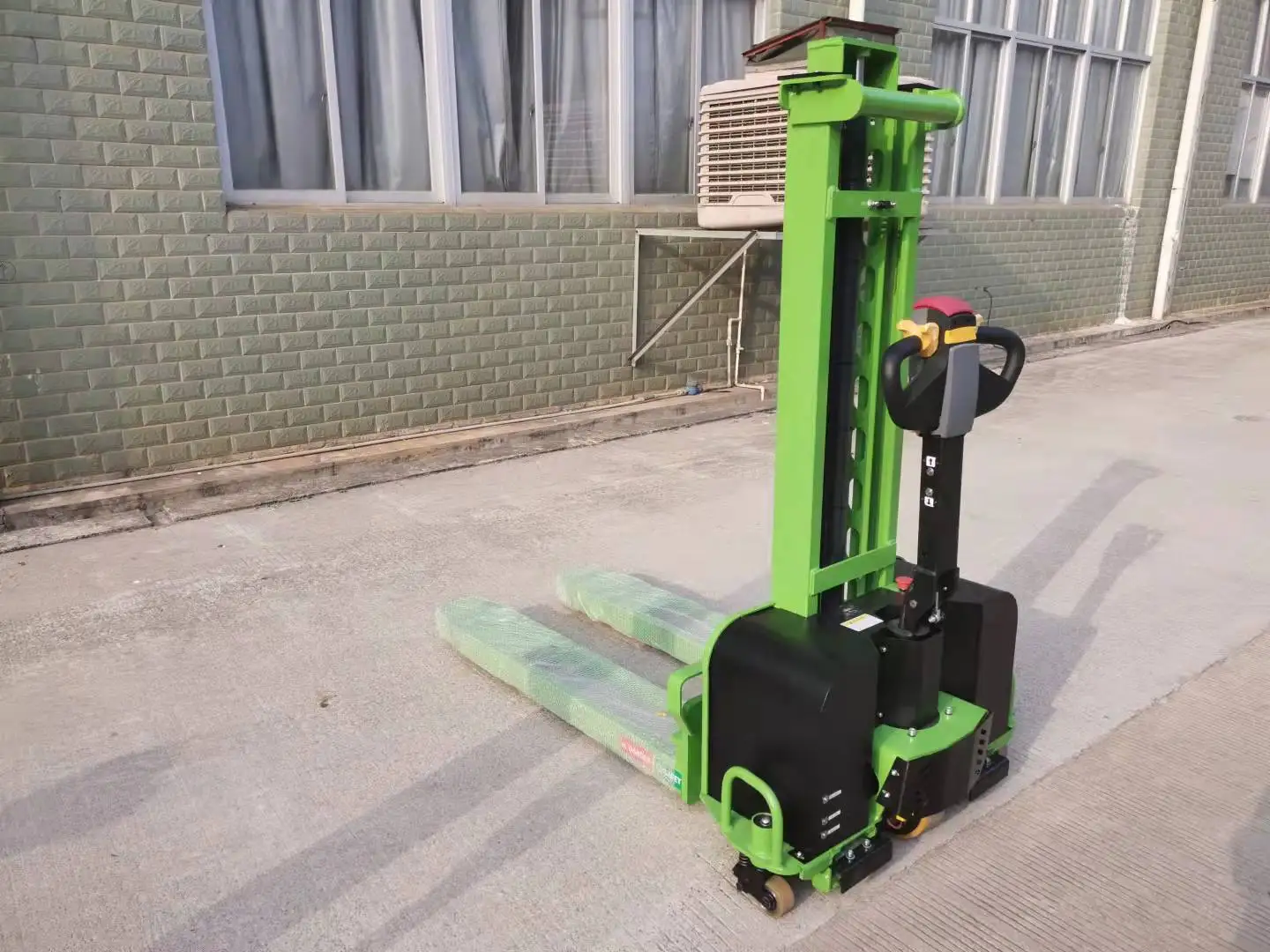

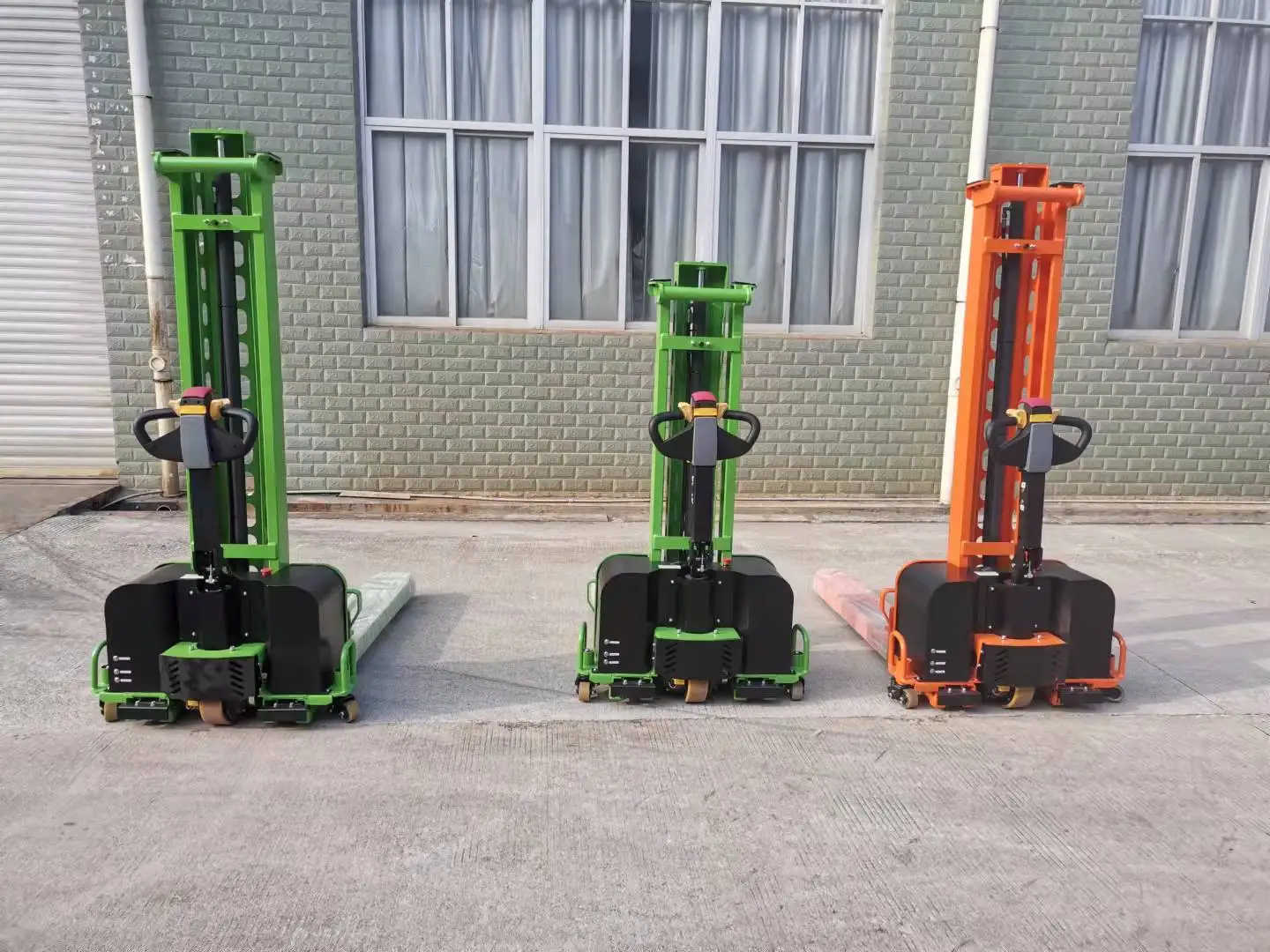

WELIFTRICH 500 кг 700 1000 1 0 тонн 1250 мм 1300 высота подъема Экономичный Электрический самоподъемный

Описание и отзывы

Трекер стоимости

Характеристики





OPERATION STEP





 DETAILS







 PARAMETERS

ZTS-10F
Model			ZTS-10F
Performanc	Maximum load capacity	kg	1000	1000	1000	1000	1000
	with load center at	mm	400	400	400	400	400
	Weight (with battery)	kg	436	440	448	456	464
	Maximum lifting height	mm	800	900	1100	1300	1500
	Lifting speed (without load)	mm/s	140	140	140	140	140
	Lifting speed (with load)	mm/s	135	135	135	135	135
	Lowered speed (without load)	mm/s	140	140	140	140	140
	Lowered speed (with load)	mm/s	145	145	145	145	145
	Overall length of frame	mm	1658	1658	1658	1658	1658
Dimensions	Overall width of frame	mm	900	900	900	900	900
	Mast lowered height	mm	1158	1258	1458	1658	1678
	Max height(mast lifted with backrest	mm	2375	2475	2675	2875	3075
	Wheelbase	mm	985	985	985	985	985
	Fork length	mm	1188	1188	1188	1188	1188
	Fork outside width	mm	680	680	680	680	680
	Fork inside width	mm	270	270	270	270	270
	Fork thickness	mm	80	80	80	80	80
	width of theoretical  minimum  aisle for right-angle  stacking (1200x1000)	mm	1500	1500	1500	1500	1500
	Min frounf height	mm	20	20	20	20	20
	Fork lowered height	mm	90	90	90	90	90
	Minimum turning radius	mm	1300	1300	1300	1300	1300
Tire	Front wheel	mm	80*50	80*50	80*50	80*50	80*50
Motor	Type or drive motor	DC
	Rated output	KW	0.75	0.75	0.75	0.75	0.75
	Lifting motor	DC
	Rated output	kw	0.8	0.8	0.8	0.8	0.8
Battery	Voltage	V	24	24	24	24	24
	Capacity	AH	45	45	45	45	45



Model		ZTS-05F ZTS-07F	ZTS-05F ZTS-07F
Capacity	Q(Kg)	500	500
Load center	C(mm)	400	400
Type of lifting		Electric	Electric
Operating type		Walkie	Walkie
Material		PU/Nylon	PU/Nylon
Wheel base	y(mm)	860	860
Front wheel base	b11(mm)	380	380
Backwheel base	b10(mm)	670	670
Quantity Steering/Bearing/Balance		2002-2-6	2002-2-6
Bearing wheel size	mm	70x60	70x60
Steering wheel size	mm	100x50	100x50
Balance wheel size	mm	40x26	40x26
Training wheel size	mm	30x26	30x26
Min. fork height	mm	90	90
Max. fork height	h3(mm)	1100	1300
Fork outside width	[mm	535,	535
Fork inside width	mm	225	225
Fork length	12(mm)	1150	1150
Single fork size	e/s(mm)	155/60	155/60
Overall length	L1(mm)	1600	1600
Overall width	b1(mm)	790	790
Overall height	h1(mm)	1400	1600
Whole height (after tape file	h4(mm)	2700	2900
Min. turning radius	Wa(mm)	1100	1120
Lifing speed (laden/unladen)	mm/s	80/110	80/110
Lowering speed(laden/unladen)	mm/s	80/80	80/80
Lift motor	Kw	12V0.8	12V0.8
Battery capacity	VIAh	12/45	12/45
Battery weight	Kg	10	10
Net weight	Kg	197	219
