Станок для металлического спиннинга с ЧПУ/формовочный

Описание и отзывы

Трекер стоимости

Характеристики

Stretch spinning



Shear spinning

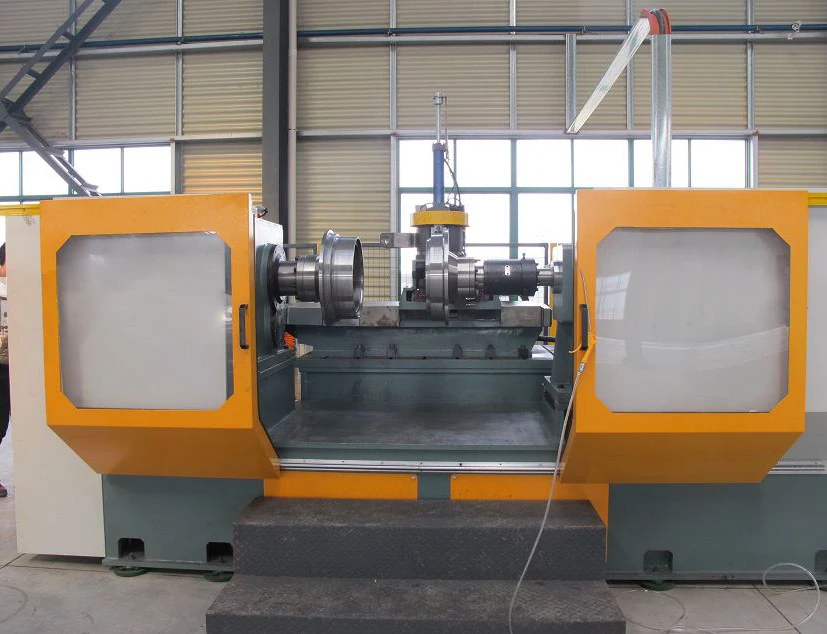

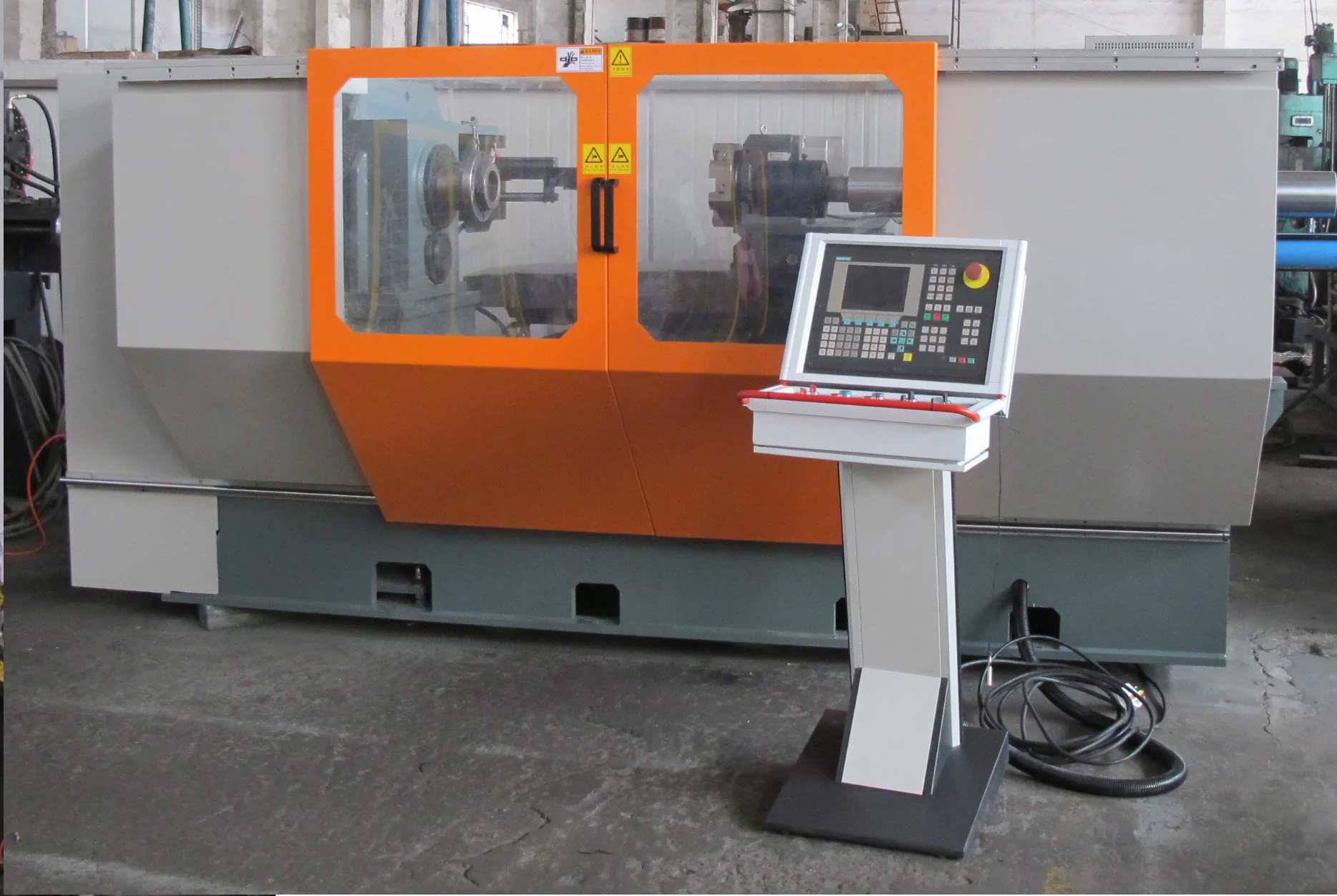

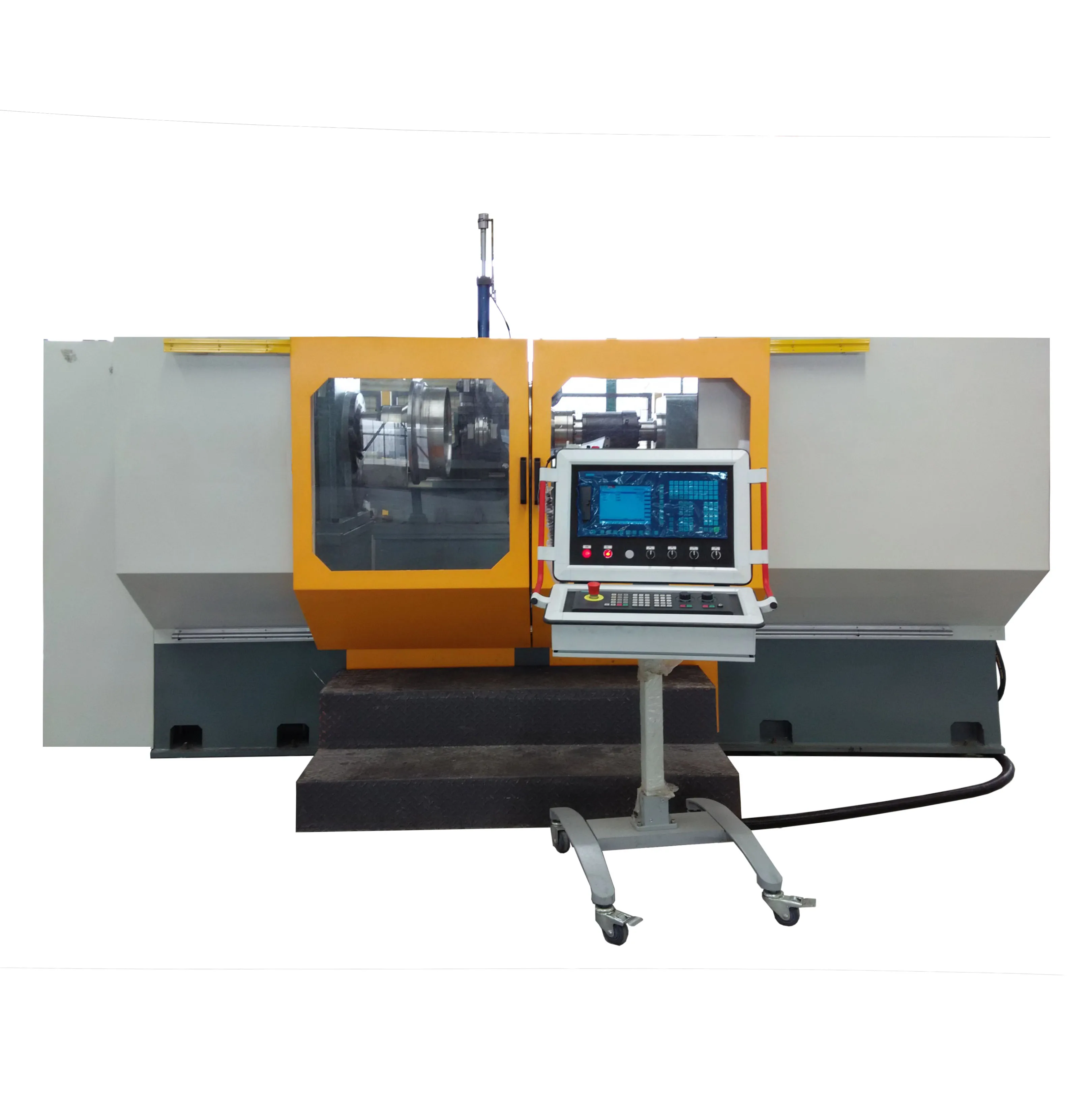

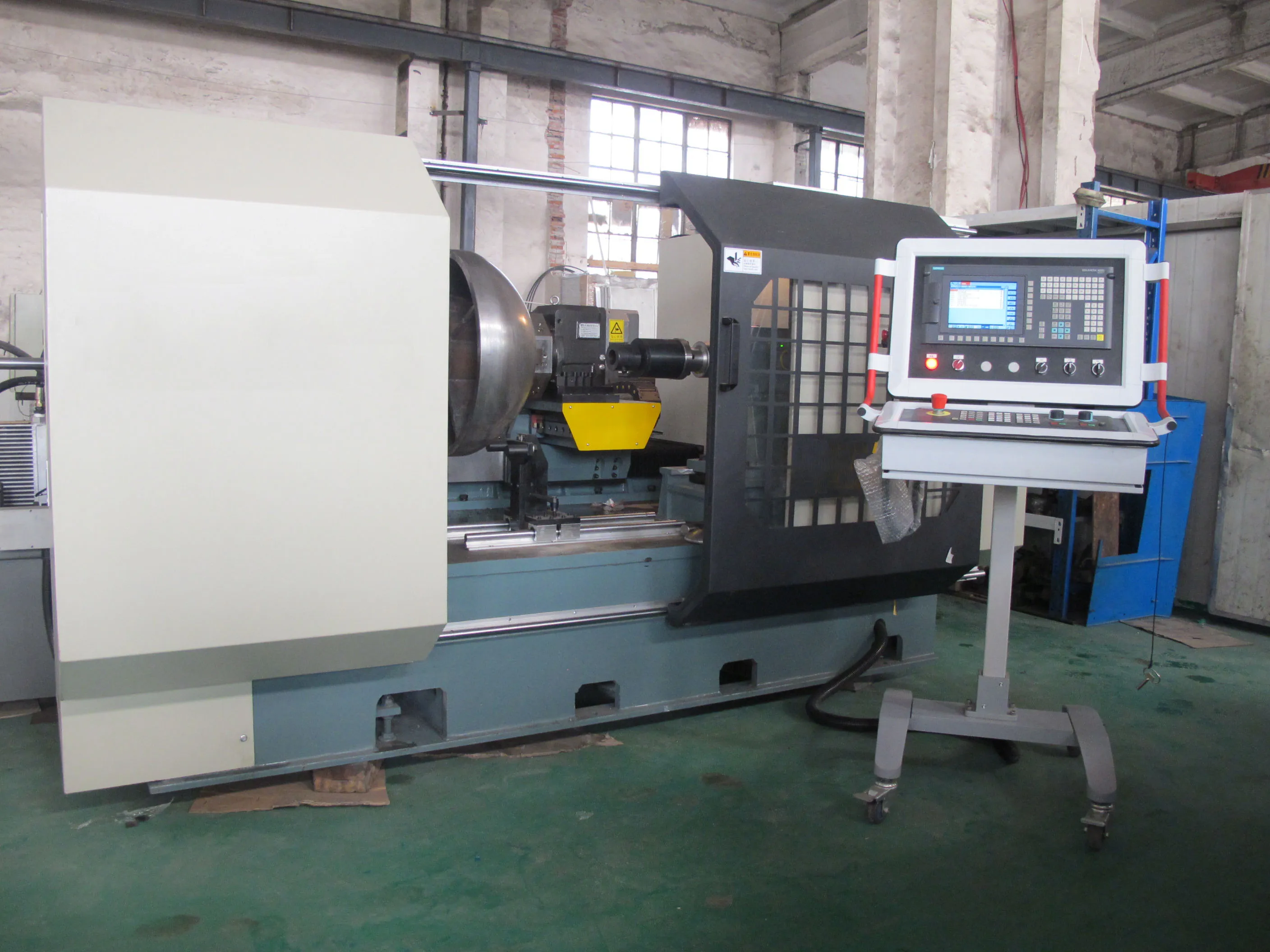

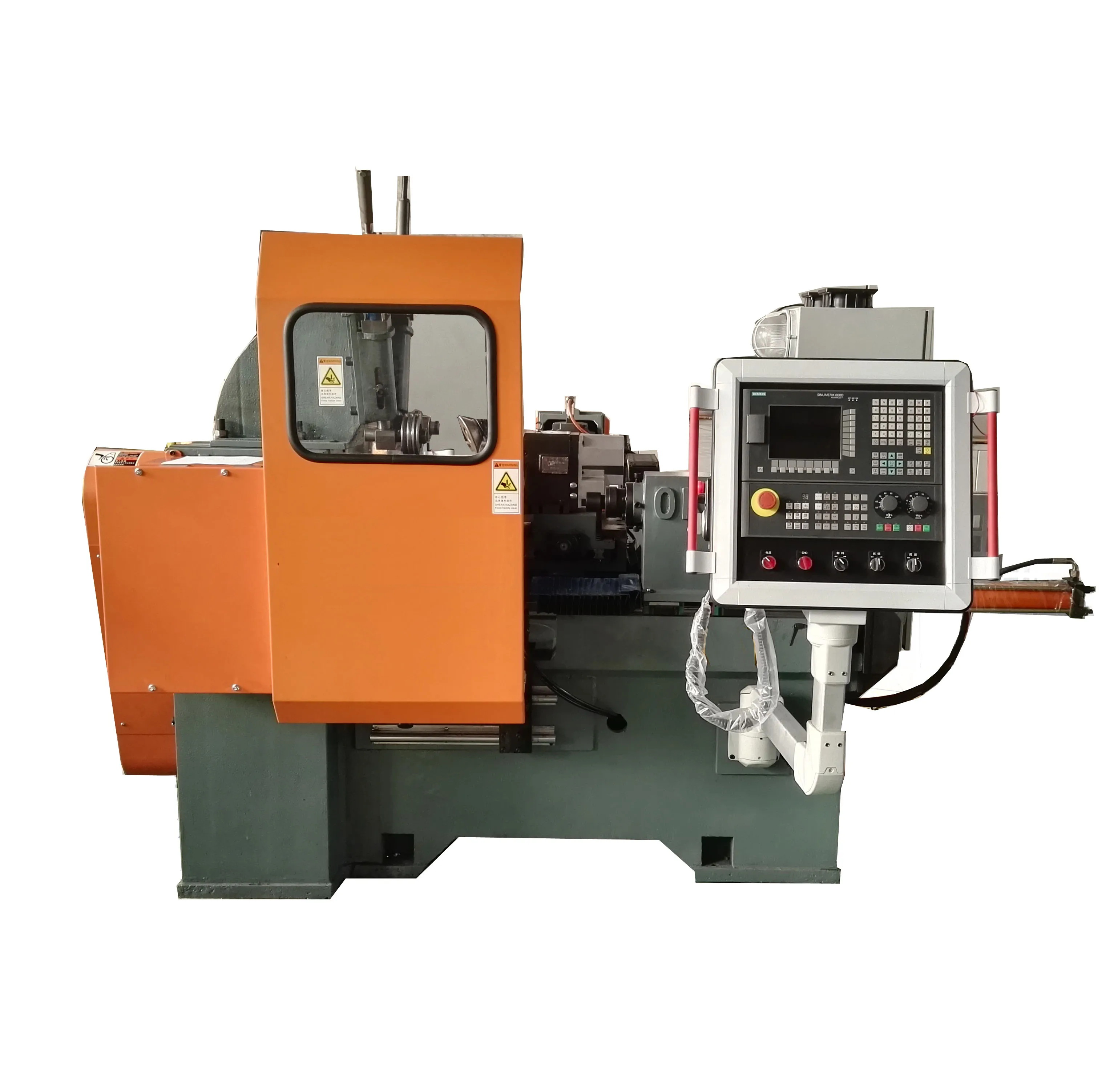

Single wheel spinning machine can process the blanks diameter up to 3500mm with high precision and good surface quality of spinning products . We design the machine with ideal structure suitable for spinning process, and especially convenient for technicians to enter the operating space . It’s the biggest characteristic of this series.





All series uses the high-end Siemens CNC control system,combined with our programming software or playback controller , can quickly complete the product programming.







Standard Configuration

SIEMENS CNC 828D

SIEMENS Servo Motor & Drive

Asynchronous Servo Spindle Motor

APEX Servo Reducer

High Strength Ductile Iron Sliding Table

Blanks Center Assembly

Back roller Assembly

CNC Tool Turret

Hydraulic Station & Air Cooling System

Air Unload Assembly

Spinning CAD

Control System Remote Maintenance



Select Configuration

Spindle Spinning Cylinder

Trimming Tool Assembly

Air Conditioner for Hydraulic Station

Hot Spinning Parts Under 700c

Teach In & Play Back System

Type	Maximum diameter	Radial Stroke	Axial Stroke	Roller Thrust	Tailstock Force	Spindle Power	Spindle Speed	Material thickness Aluminum/carbon steel/stainless steel
	mm	mm	mm	KN	KN	KN	rpm	mm
THL800	800	400	600	40	20	18.5	50-1000	5/3/2
THL1000	1050	450	650	40	20	22	50-1000	6/4/3
THL1200	1250	480	800	60	50	30	50-800	8/5/4
THL1400	1450	650	800	70	50	37	50-500	1O/6/4.5
THL1600	1650	680	800	80	50	37	50-500	10/6/4.5
THL2000	2000	750	1250	140	100	55	20-400	14/10/7
THL2500	2500	800	1750	200	140	90	20-300	14/10/7
THL3000	2500	900	2000	200	160	115	10-250	14/10/7
