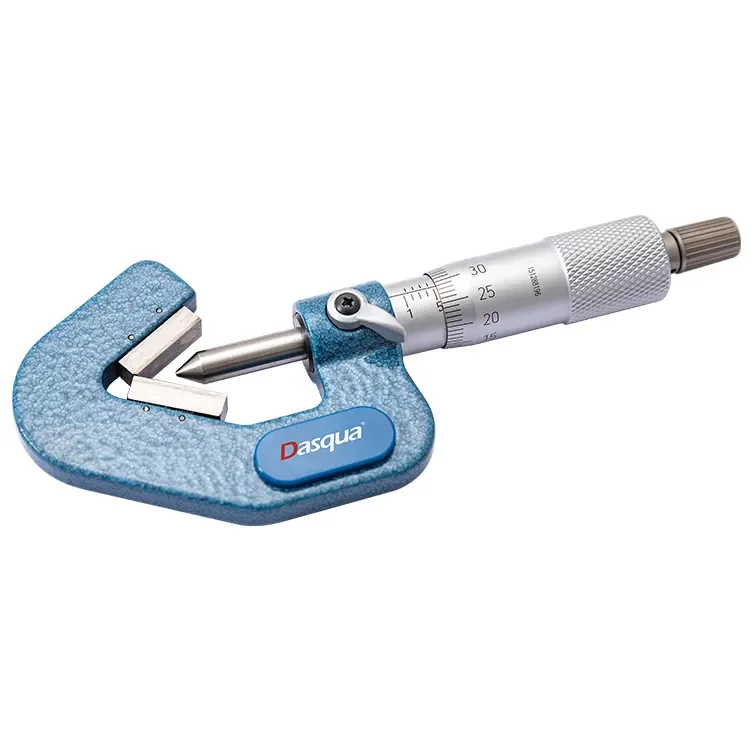

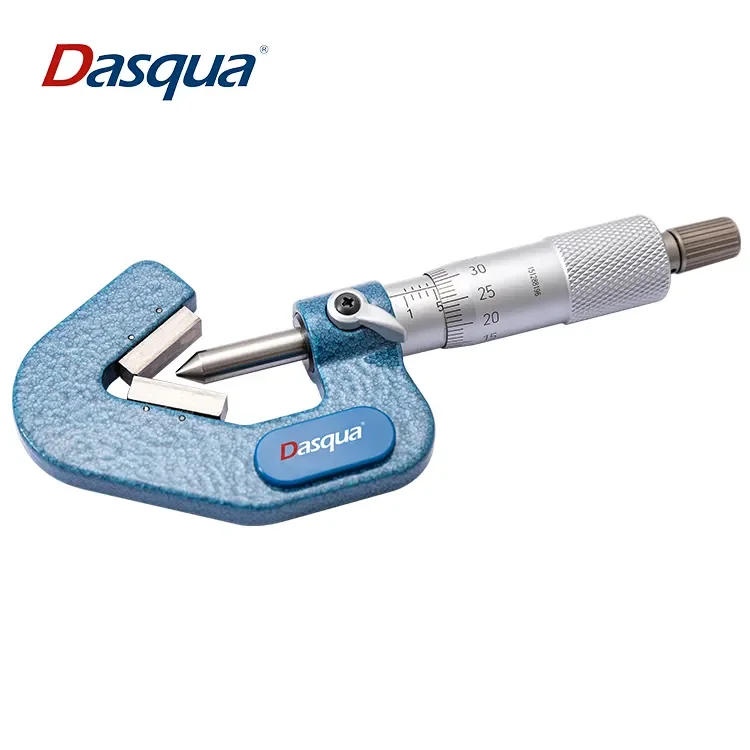

Высококачественный микрометр Dasqua 1-15 мм 5-20 20-35 0 01 градуирование 3 канавки и 5 V наковальня измерительный
- Категория: Height Measuring Instruments >>>
- Поставщик: Sichuan,Machinery,Imp.,&,Exp.,Corp.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 227.37 $* | 232.4 $* |
| Jul-15-2025 | 184.39 $* | 188.95 $* |
| Jun-15-2025 | 224.92 $* | 228.30 $* |
| May-15-2025 | 222.39 $* | 226.62 $* |
| Apr-15-2025 | 177.86 $* | 181.7 $* |
| Mar-15-2025 | 218.17 $* | 222.79 $* |
| Feb-15-2025 | 217.99 $* | 221.53 $* |
| Jan-15-2025 | 215.35 $* | 219.36 $* |
Характеристики
Company Information
Product Description
Specifications:
| Code | Range | Graduation | Ratchet Stop | Accuracy |
| 4471-0005 | 1-15 | 0.01 | 3 Flutes | 0.004 |
| 4471-0010 | 5-20 | 0.01 | 3 Flutes | 0.004 |
| 4471-0015 | 20-35 | 0.01 | 3 Flutes | 0.005 |
| 4471-0020 | 35-50 | 0.01 | 3 Flutes | 0.005 |
| 4471-0025 | 50-65 | 0.01 | 3 Flutes | 0.006 |
| 4471-0030 | 65-80 | 0.01 | 3 Flutes | 0.006 |
| 4471-0035 | 80-95 | 0.01 | 3 Flutes | 0.007 |
| 4471-0040 | 2.3-25 | 0.01 | 3 Flutes | 0.004 |
| 4471-0045 | 25-50 | 0.01 | 3 Flutes | 0.005 |
| 4471-0050 | 5-25 | 0.01 | 5 Flutes | 0.004 |
| 4471-0055 | 25-45 | 0.01 | 5 Flutes | 0.005 |
| 4471-0060 | 45-65 | 0.01 | 5 Flutes | 0.006 |
| 4471-0065 | 65-85 | 0.01 | 5 Flutes | 0.007 |
| 4471-0070 | 85-105 | 0.01 | 5 Flutes | 0.008 |
Features:
•Strictly made in accordance with DIN863
•Used to measure the outside diameter of cutting tools (such as taps,reamers, end mills) with an odd number of flutes.

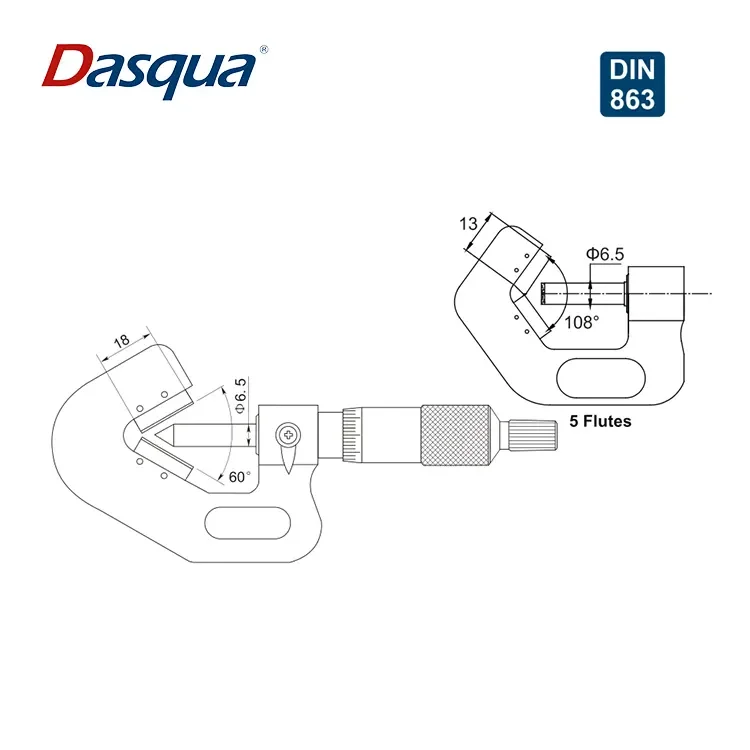

•V-anvils with a centerline groove are available. They are useful for measuring pitch diameters of taps which have a small diameter by using single-wire method.
•With carbide measuring face
•Ratchet stop for constant force
