Характеристики
Product Overview
FEATURES AT A GLANCE

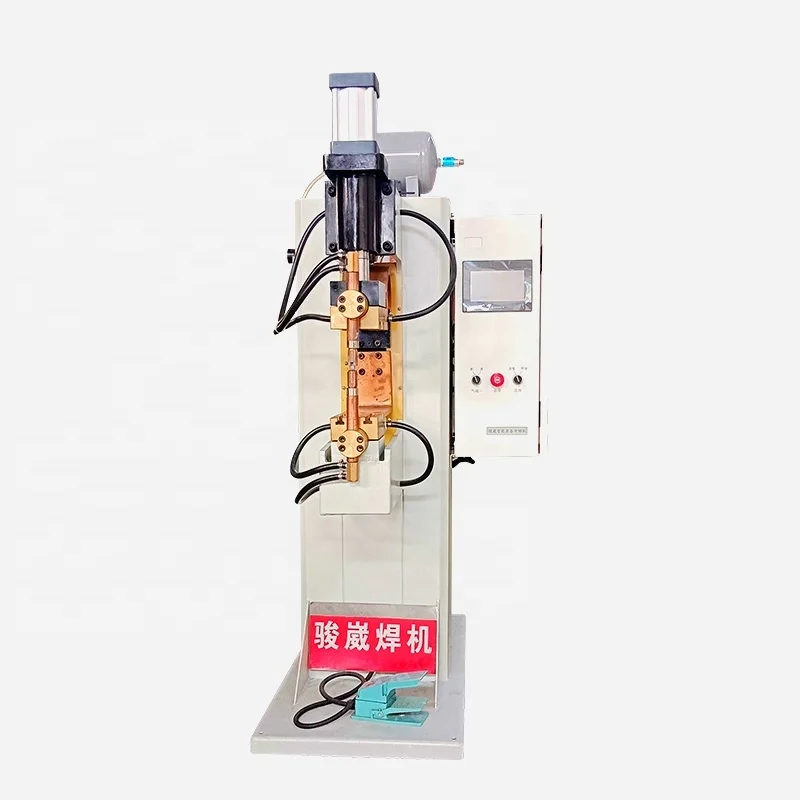

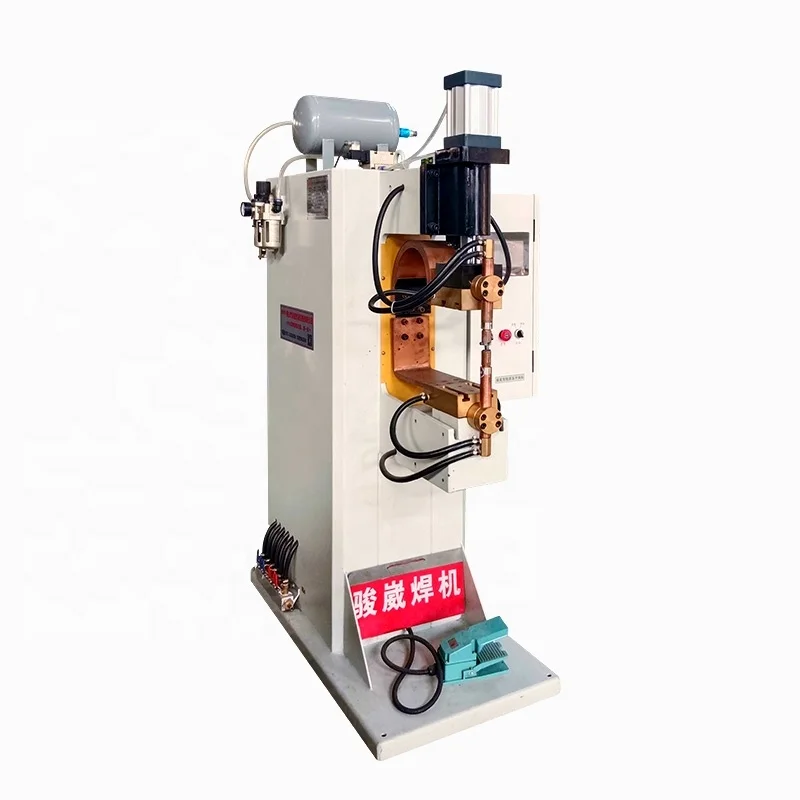

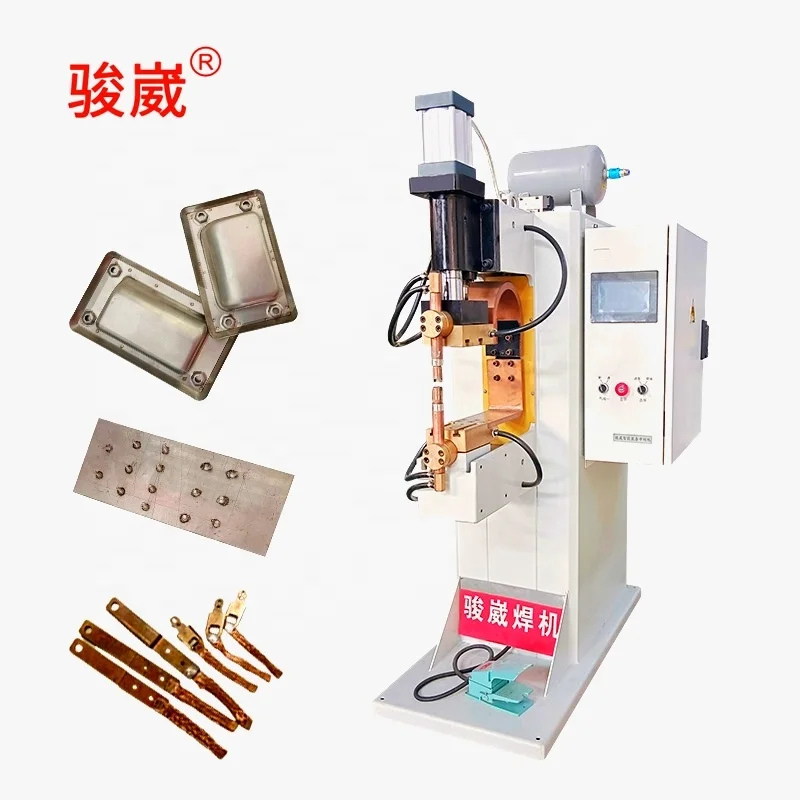

Medium Frequency DC Spot Welder
1.Three-phase power supply, grid balance, small impact on the grid The power factoris as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss;
2. Significantly improved welding control accuracy The inverter frequency reaches above 1000Hz, and the welding current controlabilityand control accuracy are 20 times higher than those of AC welding machines;
3. Great leap in welding quality The current waveform is straight, the size of the nugget is stable, the spatter isless, and the surface quality of the solder joint is good;
4. Save basic investment and save energy The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long;
5. Human-computer interface, easy to operate Multiplesetsofweldingspecifications can be stored and called with one key, real-timedisplay ofwelding current and time; monitoring and alarm functions of welding pressure, cold water flow, and welding current.
PRODUCT SPECIFICATIONS
model | Rated capacity KVA | Rated primary voltage V | Maximum short-circuit current KA | Duty cycle % | Arm Lengh MM | Maximum pressure KN | Cooling water flow L/MIN | Max welding capability（Low carbon steel two block welding MM） |
MD-90KVA | 90 | 380V | 23 | 20 | 200X400 | 6 | 8 | 2+2 |
MD-160KVA | 160 | 380V | 32 | 20 | 200X400 | 10 | 12 | 2.5+2.5 |
MD-200KVA | 200 | 380V | 42 | 20 | 200X400 | 15 | 12 | 3+3 |
MD-300KVA | 300 | 380V | 55 | 20 | 200X400 | 20 | 14 | 3.5+3.5 |
About Us
Foshan Junwei Intelligent Machinical Equipment Technology CO.,LTD. Has been focusing on R&D and production for more than 10 years: CNC resistance spot welding machine, seam welding machine, intermediate frequency welding machine,press welding machine,automatic welding machine, semi-automatic welding machine,etc.
We have a professional R&D team and strong technical power which was established in Aug. 2006. With abundant experience and professional knowledge, we are always ready to provide you with ideal technical solution and excellent welding equipment.
For more than 10 years,our company has been creating welding miracles for iron products,copper and aluminum products and stainless steel products industry. Independently developed more than 300 high-efficiency special welding machines. And esteablished the “Junwei” brand, obtained 28 patents of utility model.Applicable industries: Hardware wire products,Stainless steel products,Household appliances,Automobile manufacturing, Bathroom industry,Chassis cabinet,Copper and aluminum products,Refrigeration industry,Microelectronics,etc.
We will continue to strive and innovate,with the highest goal of customer satisfaction,to make more contributions to society and humanity.
We have a professional R&D team and strong technical power which was established in Aug. 2006. With abundant experience and professional knowledge, we are always ready to provide you with ideal technical solution and excellent welding equipment.
For more than 10 years,our company has been creating welding miracles for iron products,copper and aluminum products and stainless steel products industry. Independently developed more than 300 high-efficiency special welding machines. And esteablished the “Junwei” brand, obtained 28 patents of utility model.Applicable industries: Hardware wire products,Stainless steel products,Household appliances,Automobile manufacturing, Bathroom industry,Chassis cabinet,Copper and aluminum products,Refrigeration industry,Microelectronics,etc.
We will continue to strive and innovate,with the highest goal of customer satisfaction,to make more contributions to society and humanity.
Q: Do your factory sale directly?
A:Yes,it is.Our factory sale directly, competitive price with high quality.
A:Yes,it is.Our factory sale directly, competitive price with high quality.
Q:Where are your factory?
A:Chencun Town,Shunde District,Foshan city,Guangdong Province,China
Q:What do we need to do if the machine fails?
A: Within the guarantee time(1 year), we will send the spare parts to you for free
and provide the technical consultant for any time.(consumable not included)
Q: can I make my own design and logo on the product?
A. Yes. we do OEM.Welcome global partners.
A. Yes. we do OEM.Welcome global partners.
