Счетчик частиц с сенсорным экраном для использования в чистом помещении 28 3
- Категория: Counters >>>
- Поставщик: Suzhou,Hjclean,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3332.90 $* | 3499.61 $* |
| Aug-16-2025 | 3304.23 $* | 3469.9 $* |
| Jul-16-2025 | 2772.91 $* | 2911.21 $* |
| Jun-16-2025 | 3248.58 $* | 3410.0 $* |
| May-16-2025 | 2828.80 $* | 2969.43 $* |
| Apr-16-2025 | 3192.87 $* | 3352.51 $* |
| Mar-16-2025 | 3164.81 $* | 3322.50 $* |
| Feb-16-2025 | 3136.10 $* | 3293.22 $* |
| Jan-16-2025 | 3108.23 $* | 3263.45 $* |
Характеристики
Product Description
Product Description

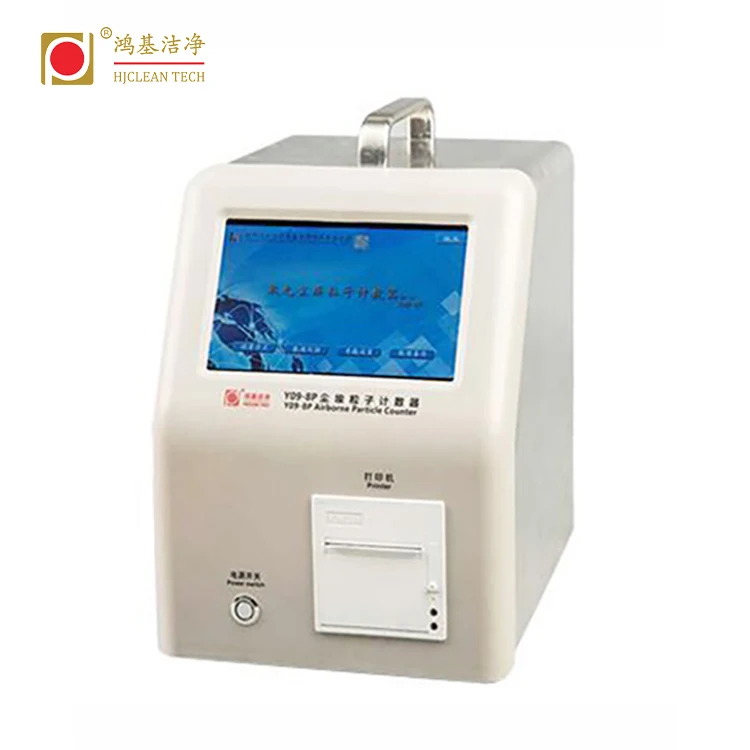

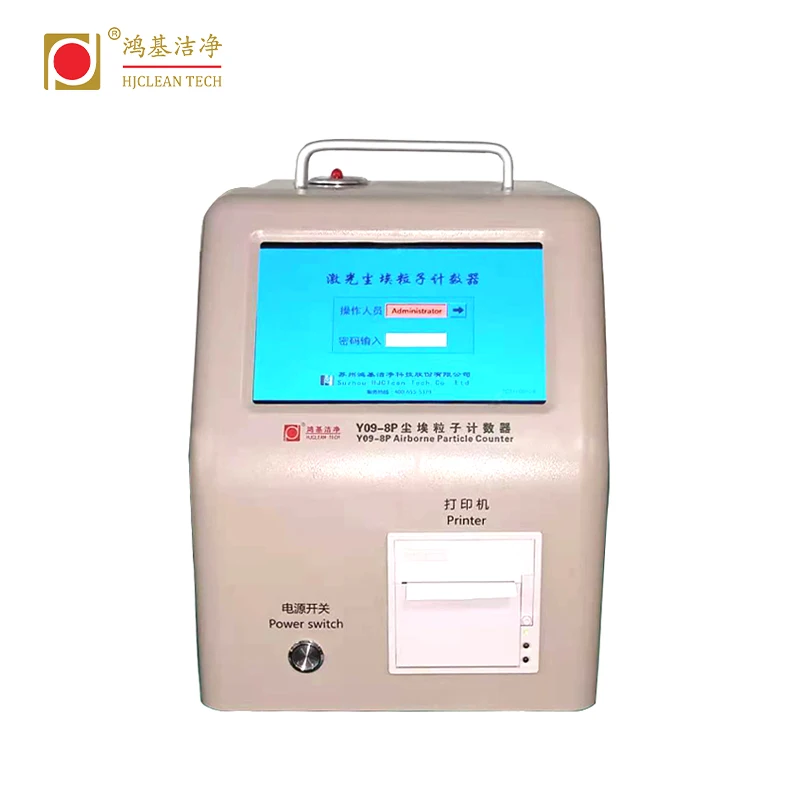

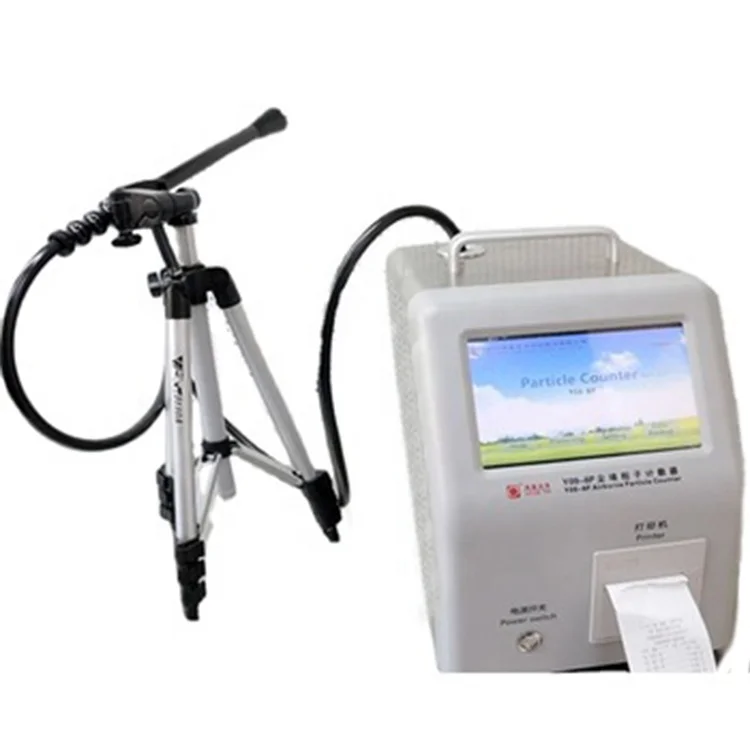

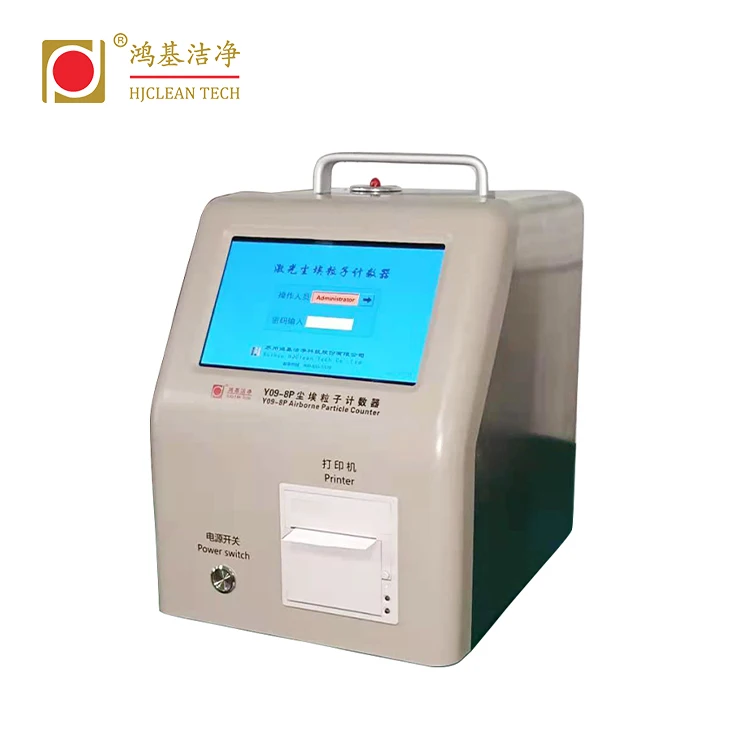

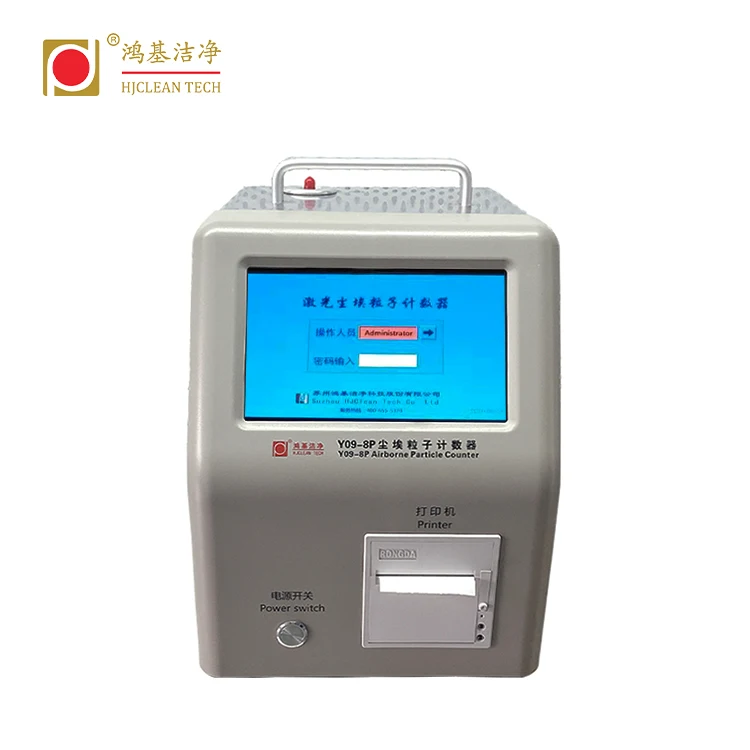

Hongji Clean Y09-8P laser dust particle counter (28.3L/min) is used to measure and analyze the size and quantity of dust particles per unit volume of air in a clean environment, and is a testing instrument to determine the cleanliness level of the clean environment according to the standard. Dust particle counters are widely used in clean workshop inspections in enterprises such as medicine and hygiene, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and so on.
Parameter | Y09-8P | Y09-516D | Y09-5106 | |
Overall dimension | 210 270 280m (W D H) | 210 270 280m (W D H) | ||
Display | 800*480 resolution,65k color,Touch panel control system | 800*480 resolution,65k color,Touch panel control system | ||
Weight | 5.5kg | 7.5kg | ||
Rated power consumption | 70W | 90W | ||
Power supply | Lithium battery 14.8V | Lithium battery 22.2V | ||
Size channels | 0.3、0.5、1.0、3.0、5.0、10 | 0.5、1.0、2.0、3.0、5.0、10 | 0.5、1、2、3、5、10(μm ) | |
Teat way | Single, repeat, continuous, caculation, GBmodel（UCL) | Single, repeat, continuous, caculation, GBmodel（UCL) | ||
Flow rate | 100L/min inlet Sampling pump | 100L/min inlet Sampling pump | ||
Sampling time | 1sec~99min59sec selected | 1sec~99min59sec selected | ||
Sampling period | 1~99 | 1~99 | ||
Zero count | ≤10min | ≤10min | ||
Print mode | Build-in Thermal Printer | Build-in Thermal Printer | ||
Counting alarm | 0.3,0.5,1.0,5.0 Each channel can set alarm data arbitrarily | 0.5,1.0,5.0 Each channel can set alarm data arbitrarily | ||
Max sampling density | 35000/L | 35000/L | ||
Continuously working time | 8H | 8H | ||
Light source and lifetime | Long life laser diode with 3000h MTTF | Long life laser diode with 3000h MTTF | ||
Data storage | 60000/USB | 60000/USB | ||
Operation envirenment | Temperature:10~35℃,Humidity:20%~75% | Temperature:10~35℃,Humidity:20%~75% | ||
Optional accessories | SS assistant vehicle | SS assistant vehicle | ||
Similar product
Company Profile
Suzhou HJ Clean Technology Co., Ltd. was founded in March 2004, has been focusing on the research and development, production and sales of aseptic ultra-clean equipment and instruments, with advanced technology and strong research and development strength, and production products are mainly used in pharmaceutical, electronics, laboratory, medical and other industries. Company is located in Suzhou industrial park venture capital industry lane 18 building, plant area of nearly 8000 square meters, the number of 95 people, which has several senior engineers, engineers, senior technicians and experienced professional and technical personnel of site construction team, and form a complete set of a set of advanced testing instruments and installation tools, plus the company introduces the overseas outstanding enterprise management concept, make us confident enough to assure users: provide users with products are high quality, cost-effective superior.
