Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Оборудование для добычи золота б/у кварцевый камень шлифовальная мельница 0 5 TPH маленький золотой фрезерный станок
- Категория: Mining Machinery >>>
- Поставщик: Jiangxi,Hengchang,Mining,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6545.70 $* | 6872.46 $* |
| Aug-19-2025 | 6490.12 $* | 6815.40 $* |
| Jul-19-2025 | 5445.42 $* | 5717.26 $* |
| Jun-19-2025 | 6380.88 $* | 6699.50 $* |
| May-19-2025 | 5555.28 $* | 5833.84 $* |
| Apr-19-2025 | 6270.46 $* | 6584.81 $* |
| Mar-19-2025 | 6215.84 $* | 6526.45 $* |
| Feb-19-2025 | 6160.83 $* | 6468.91 $* |
| Jan-19-2025 | 6105.85 $* | 6410.87 $* |
Характеристики

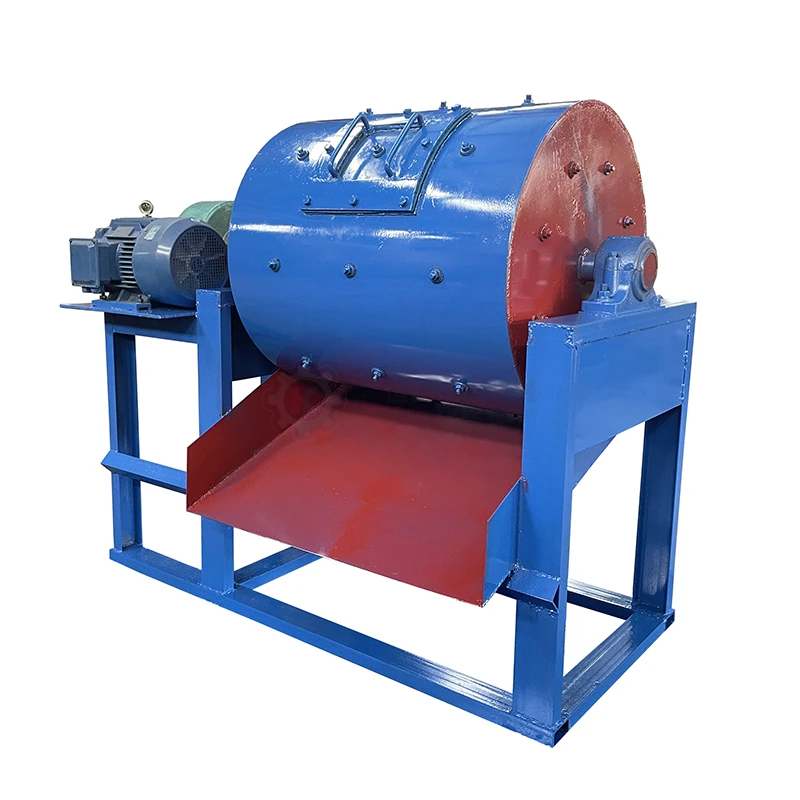

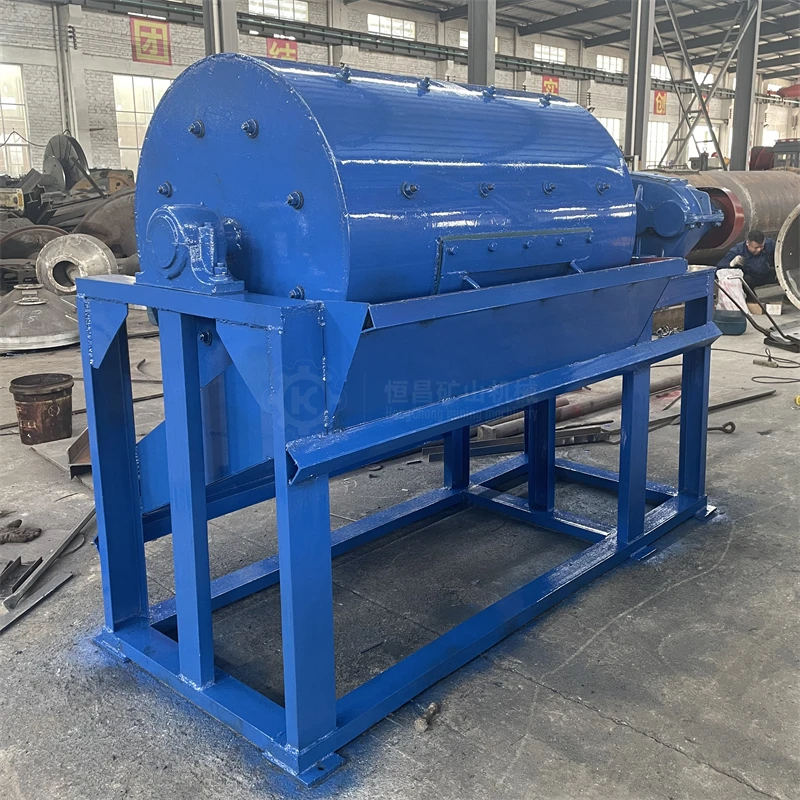

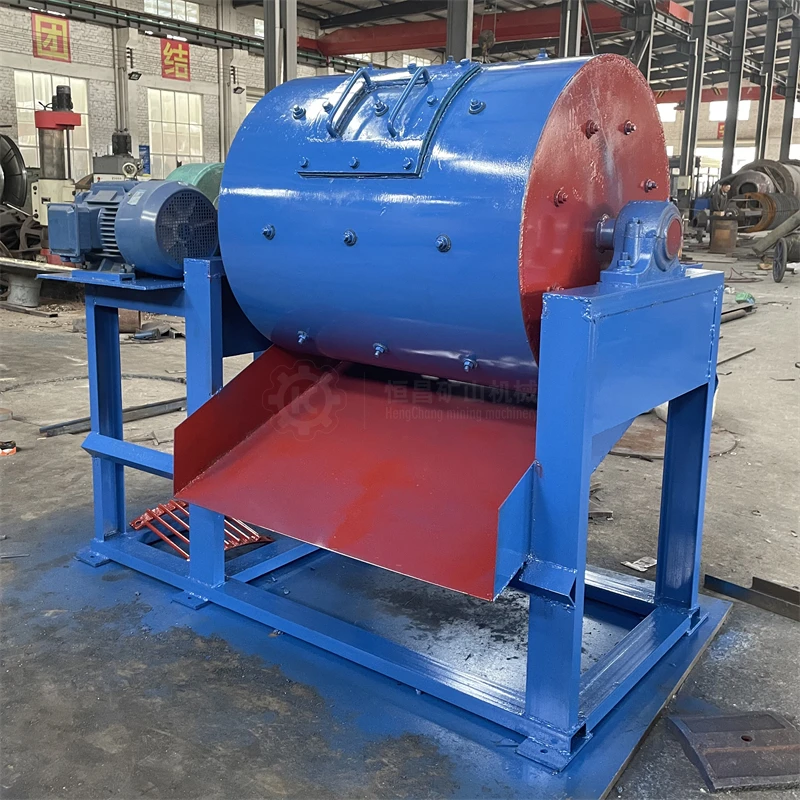

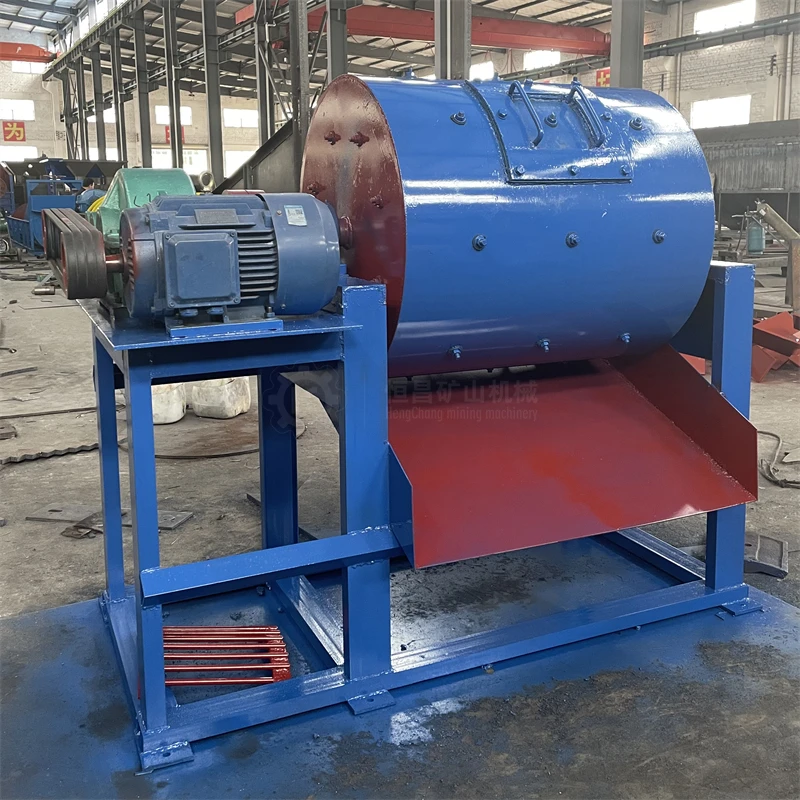

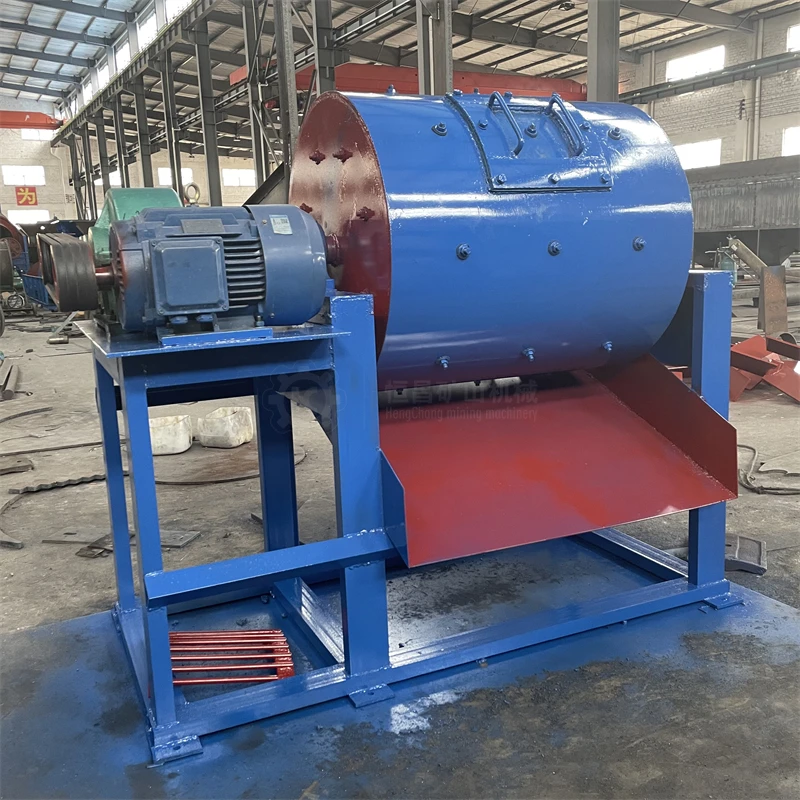

Second Hand Gold Mining Equipment Quartz Stone Grinding Mill 0.5 TPH Small Gold Milling Machine 900X900 Batch Grinding Ball Mill
Hengchang machinery ball mill can be used for many minerals grinding, such as stone, rock, gold, copper, iron and zinc ore and so on. In the industry of mining, it is used to grind kinds of materials into fine powder 20-75 micrometer. Based on discharging type, it could be grate type, overflow type, etc.
Products Description
Ball mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball mills can grind various ores and other materials either wet or dry, depending on requirements.
Hengchang ball mill is a key equipment to grind the crushed materials, which is widely used in the mining process, and it has a wide range of usage in grinding mineral or material into fine powder, such as
gold, iron, zinc ore, copper, cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity.
gold, iron, zinc ore, copper, cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity.
Product Working Principle
Ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
The grinding media is the balls, which may be made of steel (chrome steel), ceramic. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel, ceramic or rubber.
Product Features
1. High beneficiation efficiency, high fineness of ore powder.
2. Large discharge port, large handling capacity.
3. High production capacity, smooth operation.
4. Easy to install and maintain.
2. Large discharge port, large handling capacity.
3. High production capacity, smooth operation.
4. Easy to install and maintain.
Product Paramenters
Model | Revolution (r/min) | Balls (t) | Max size (mm) | Capacity (t/h) | Power (kw) | Dimension (LxWxH)mm | Weight (kg) |
GM0912 | 41.6 | 1.1 | 25 | 0.3-0.9 | 11 | 3843*1850*1400 | 4210 |
GM0918 | 41.6 | 1.5 | 25 | 0.4-1.2 | 11 | 4443*1850*1400 | 5800 |
GM0921 | 41.6 | 1.8 | 25 | 0.6-1.5 | 15 | 4743*1850*1400 | 6660 |
GM0933 | 41.6 | 2.8 | 25 | 0.9-2.3 | 30 | 5943*1850*1400 | 7770 |
GM1224 | 35.1 | 4.0 | 25 | 1.6-4.1 | 37 | 5540*2300*1850 | 10020 |
GM1232 | 35.1 | 5.3 | 25 | 2.2-5.5 | 45 | 6340*2300*1850 | 11230 |
GM1244 | 35.1 | 7.3 | 25 | 3.0-7.5 | 55 | 7540*2300*1850 | 13210 |
GM1324 | 30.2 | 4.5 | 25 | 1.5-3.5 | 37 | 5035*2370*1880 | 10210 |
GM1334 | 30.2 | 6.5 | 25 | 2.2-5.0 | 75 | 6035*2370*1880 | 13117 |
GM1524 | 30.7 | 7.0 | 25 | 2.8-6.5 | 55 | 6830*2930*2060 | 15430 |
GM1530 | 30.7 | 9.0 | 25 | 3.5-8.0 | 80 | 7430*2930*2060 | 16843 |
GM1536 | 30.7 | 11.0 | 25 | 4.5-10.0 | 95 | 8030*2930*2060 | 18649 |
GM1545 | 30.7 | 13.5 | 25 | 5.5-13.5 | 110 | 8930*2930*2060 | 20000 |
GM1830 | 25.04 | 13.0 | 25 | 3.0-17.0 | 130 | 9525*3960*2250 | 29490 |
GM1836 | 25.04 | 15.0 | 25 | 4.0-21.5 | 155 | 10125*3960*2250 | 31600 |
GM1844 | 25.04 | 19.0 | 25 | 5.2-26.0 | 180 | 10925*3960*2250 | 34210 |
GM1864 | 25.04 | 27.0 | 25 | 8.0-40.0 | 210 | 12925*3960*2250 | 42440 |
GM2130 | 23.8 | 20.0 | 25 | 4.0-30.0 | 180 | 8475*4060*3400 | 41965 |
GM2145 | 23.8 | 25.0 | 25 | 5.6-42.0 | 280 | 9975*4060*3400 | 49230 |
GM3245 | 18.7 | 65.0 | 25 | 100-145 | 630 | 13000*7200*5700 | 145000 |
Successful Case
2100*4500 Ball Mill in South Africa
For grinding chrome ore.
1830*3000 Overflow Ball Mill in Tanzania
For grinding gold ore.
2100*3000 Ball Mill in China
For grinding copper ore.
1830*4500 Ball Mill in China
For grinding lithium ore.
1200*3000 Ball Mill in Zambia
For grinding rock gold ore.
1500*4500 Wet Ball Mill in Mali
For gold processing plant.
1530 and 1224 Sag Ball Mill in Myanmar
For gridning tungsten ore.
1500*3000 Dry Rubber Ball Mill in Thailand
For gridning aluminium powder.
Company Profile
FAQ
Q1: Are you manufacturer or trade company?
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
