NV1000 Binocular multiplex intelligent observer

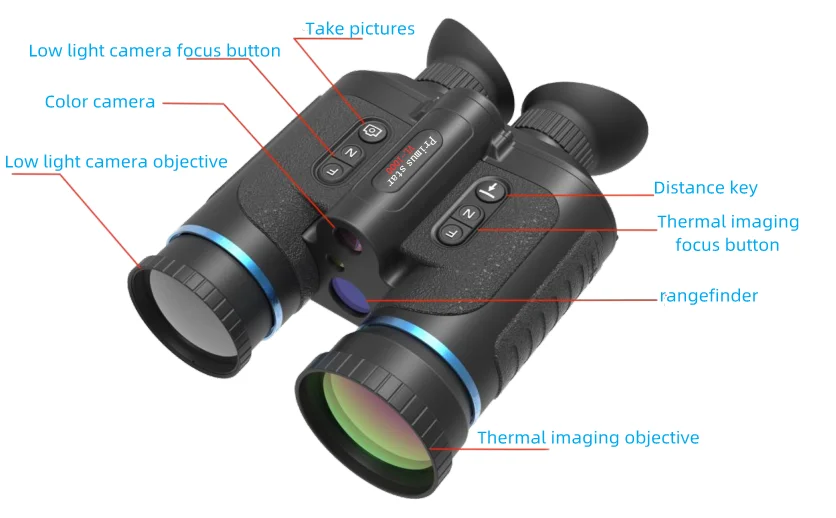

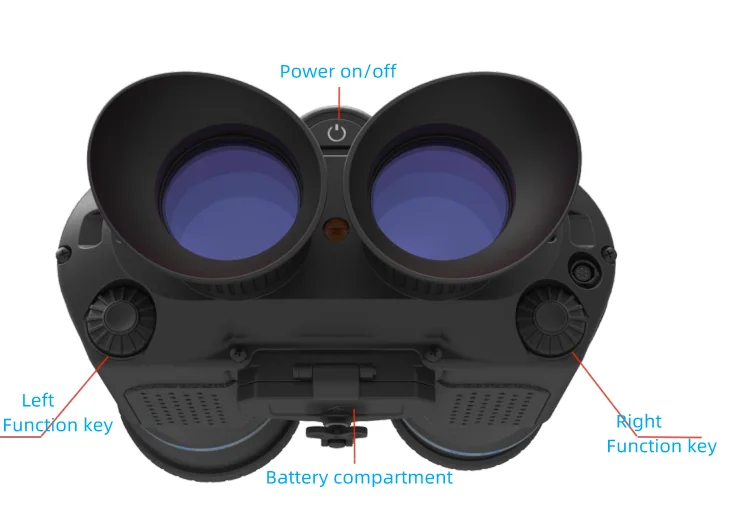

The key definition diagram is as follows:

Install the battery, long press (3 seconds) to turn on the power switch, and view the observed object through the eyepiece. Press and hold the power switch again for 3 seconds to shut it down.
After starting up, the camera system will choose the right startup among the daylight/low light cameras according to the environment, and the rest of the rest sleep standby.
Rotate the right wave wheel to switch cameras; The digital magnification (1.0X, 2.0X) can be adjusted by rotating the left wave wheel (without menu).
For low-light and thermal image mode, press the focus button to adjust the focus distance until the object to be observed is the clearest. For the fusion mode,
Focus well in low light and hot image mode.
Press the shortcut button to take a picture. Press and hold to start recording, and press and hold again to stop recording.
Press the ranging shortcut key, you can ranging. The measured distance is shown at the bottom of the picture.
Press the left wave wheel, and the menu icon will appear on the screen. Select the function to be adjusted by rotating the wave wheel, and then press down the encoder to confirm the selected function.
The product menu interface is as follows:



Status information, as shown in the figure above



Status information, as shown in the figure above
1. Status information: Mode, magnification, remaining memory capacity, and remaining battery percentage
2. Electronic compass: azimuth Angle, pitch Angle
3. Location information: location and height information
4. Time and date
OSD description:
A) Page1 status bar is located at the upper part of the display screen, displaying the actual operation status information of the sight, from left to right:
1. Brightness
2. Metering mode
3, cross cursor hiding & display
4. WIFI switch
5, fog switch



B) Page2 Status bar is located at the upper part of the display screen, displaying the actual operation status information of the observer, from left to right:
1. Mode
2. Zoom
3, laser ranging
4. Take Pictures
5. Video

8. Product menu function and operation description
Default operation instructions:
short press menu button to enter the main menu;
pulsator rotating menu, select the desired menu item
short press enter the menu item
according to the rotation gear, short press can be determined







Notes for product use:

equipment from room temperature and humidity in the fast moving to low temperature environment, is likely to be affected in the water and the surface of the lens is used, so in the cold room save or winter transportation, after again before use must be in the warm room until insulation and using the environment temperature is close to
equipment before work to 40 degrees Celsius and open, the battery must be placed in the warm place first (such as chest pocket)
accessories can only use the approved accessories and batteries, please do not connect incompatible products
to use good quality 18650 batteries, inferior battery will affect the use effect, and easy to damage equipment
avoid rain or fog, prevent fall off, touch, bump
don't often wipe the lens, if you need to wipe, please use paper or cloth wipe mirror lens
equipment to long-term preservation, more than two weeks please take out the battery, prevent damage of battery discharge
please placed in dry and ventilated place, in order to avoid the lens be affected with damp be affected with damp, moldy
only qualified maintenance personnel can install or repair this equipment
ranging, pay attention to the rangefinder use specifications, avoid damage to the human eye or ranger damage
Product packaging and accessories
binocular one supporter ranging telescope
3 18650 batteries
lens wiping cloth 1 piece
description 1
portable soft package 1
is three portable box
