DN80 электромагнитный удаленный расходомер
- Категория: Test Instruments >>>
- Поставщик: Kaifeng,Baite,Flow,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 262.13 $* | 275.5 $* |
| Aug-19-2025 | 260.54 $* | 273.24 $* |
| Jul-19-2025 | 218.92 $* | 229.40 $* |
| Jun-19-2025 | 255.71 $* | 268.82 $* |
| May-19-2025 | 222.16 $* | 233.82 $* |
| Apr-19-2025 | 251.77 $* | 264.48 $* |
| Mar-19-2025 | 249.57 $* | 261.90 $* |
| Feb-19-2025 | 246.8 $* | 258.6 $* |
| Jan-19-2025 | 244.79 $* | 256.57 $* |
Характеристики

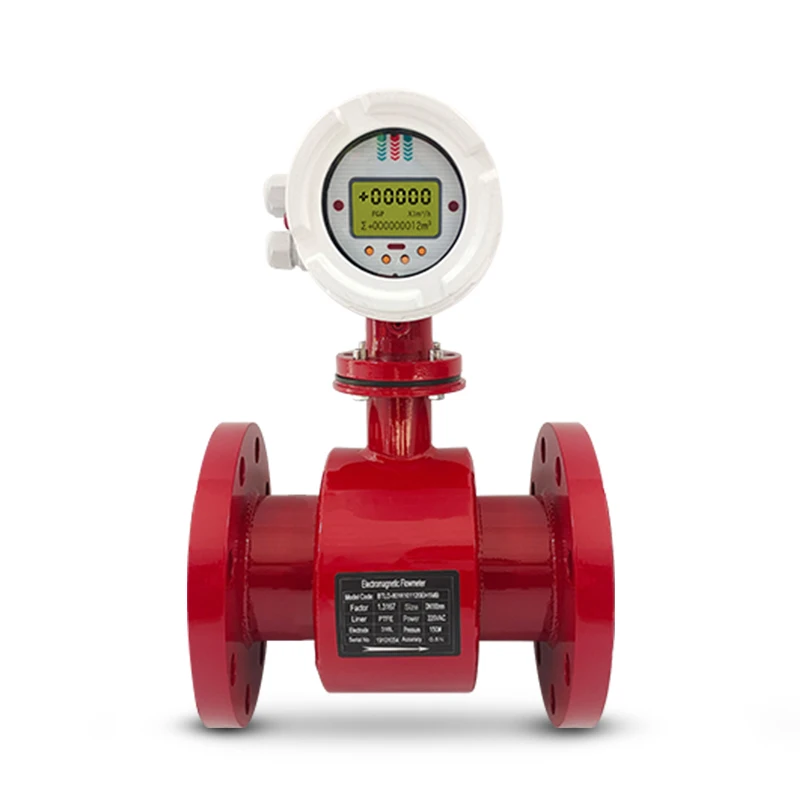

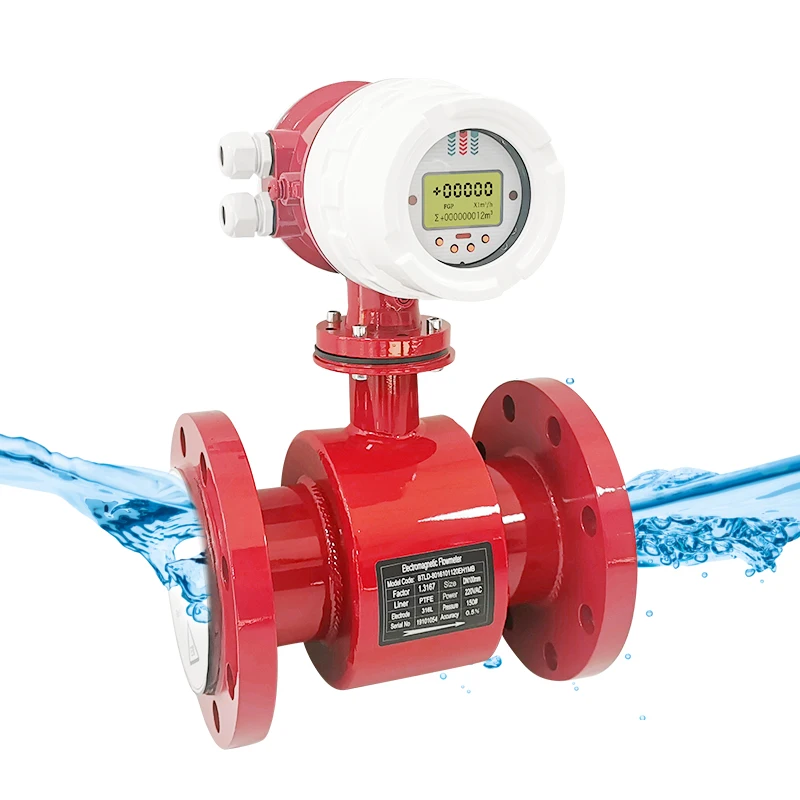

Product show
DN80 electromagnetic remote type water flowmeter electro magnetic flow meter
Details Images
What are the advantages of our water flowmeter electro magnetic flow meter?
1. Forward and reverse flow measurement.
2. Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
3. Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4. A variety of electrodes and linings are available for a variety of complex working conditions.
5. It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
3. Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4. A variety of electrodes and linings are available for a variety of complex working conditions.
5. It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
Product parameter
Name | water flowmeter electro magnetic flow meter |
Nominal diameter | DN10-3000mm |
Pressure | 0.6~4.0MPa ( Special pressure customize ) |
Flow range | <15m/s |
Structural style | Integrated type , Split type , Insert type, Battery type |
Protection Class | IP65, IP68 optional |
Medium Conductivity | ≥20μs/cm |
Liner Material | PU、PTFE、CR、FPM、F46、PFA |
Measuring medium | Conductive Liquid |
Accuracy | Indicated value ±0.5%, Optional values ±0.3% |
Electrode material | HB, HC, WC, 316L, Ti, Ta, Pt |
Connection | Flange Clamp Thread |
Power supply | 220VAC/ 24VDC/3.6V |
Certification | CE, ISO，ATEX |
Signal output | Pulse / 4~20mA / RS485 / HART/Modbus |

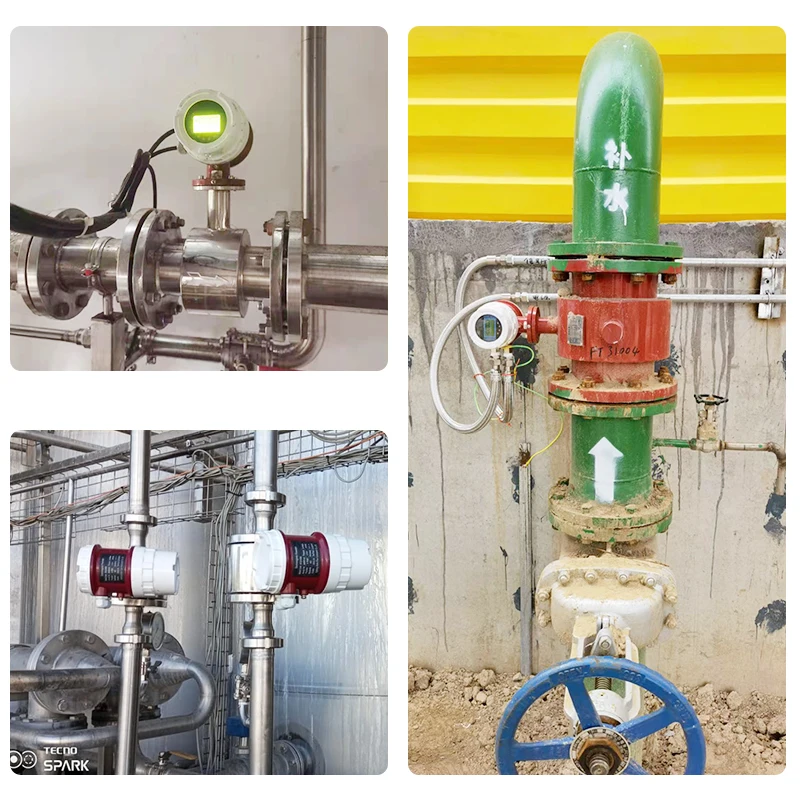

Product usage
water flowmeter electro magnetic flow meters are used in water treatment plants to measure treated and untreated sewage, process water, water and chemicals. Mining and mineral process Industry applications include process water and process slurry flows and heavy media flows.

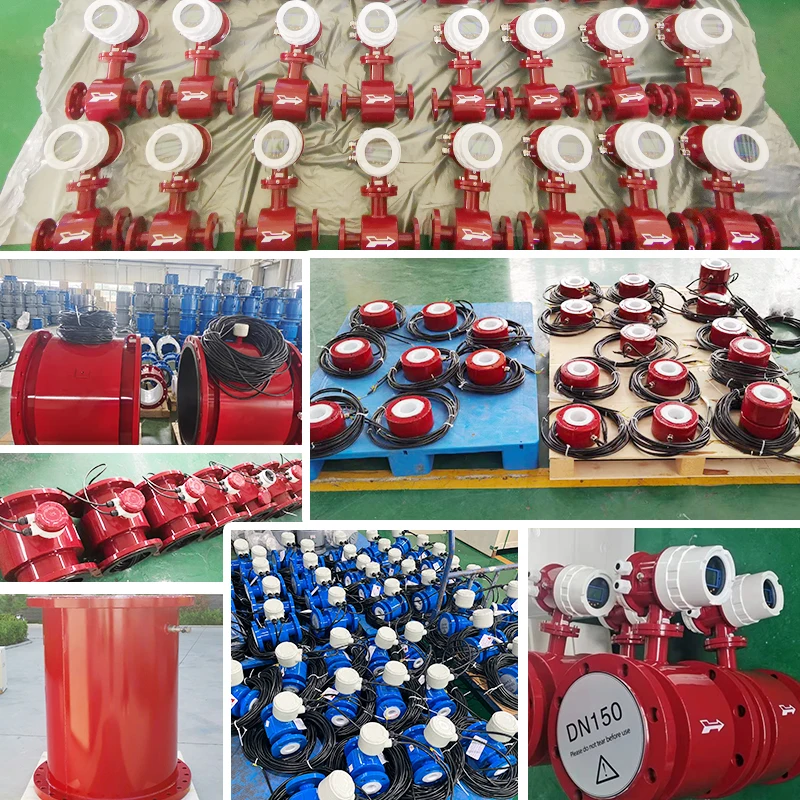

Packing & Delivery
Related Products
We are a company that values customer satisfaction. We are always committed to producing and providing high-quality flow meters that meet all your needs. Has 10 years of experience and is proficient in this field. You can give us your needs and expectations.
